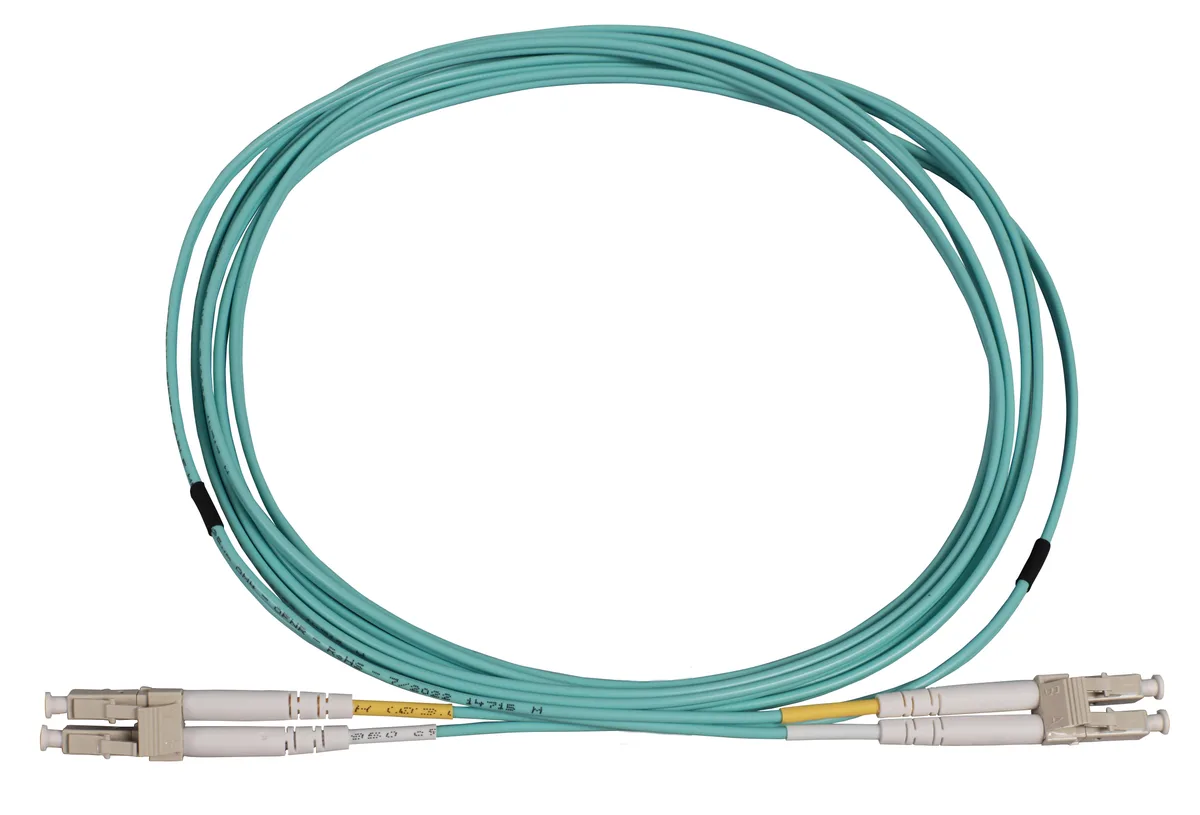

Aqua blue duplex fiber patch cable with LC UPC connectors on both ends, 2.0 mm jacket, 5 m length

Intellinet Network Solutions

Intellinet Network Solutions OM3 Multimode Duplex LC to LC UPC 5 m Aqua Blue 50/125 µm BIMMF 2.0 mm OFNR 16 ft

SKU CH-B4QE-8RM18

OM3 multimode duplex LC to LC patch cable, 5 m aqua, UPC polish, bend-insensitive 50/125 µm Corning fiber, OFNR rated for 40G and 100G links

  • TypeFiber
  • Connector ALC
  • Connector BLC
  • Length5 m
  • ColorAqua Blue
  • ShieldedNo
  • Ready for 40G and 100G Ethernet with OM3 multimode fiber
  • UPC connectors reduce return loss for cleaner signal transmission
  • Bend-insensitive design maintains performance when routed through tight spaces
  • Corning ultra-pure glass core delivers low attenuation across 5 m length
  • Each cable includes individual test report verifying link quality

5 m OM3 Duplex Fiber Patch Cable

This 5 m duplex patch cable uses OM3 multimode fiber with LC/UPC connectors at both ends. The aqua jacket identifies the OM3 grade and the cable is rated OFNR for in-building riser use. Bend-insensitive Corning glass reduces attenuation when the cable is routed around tight corners.

Suits high-speed links in data centres

The cable supports 10 GbE and is optimised for 40 GbE and 100 GbE over short to medium distances. Installers who need single-mode reach or a different connector type such as SC or MPO should select another product.

Ships with a factory test report for each assembly

The included report documents insertion loss and return loss for both fibres, giving immediate verification before deployment. No software, adapters or cleaning tools are bundled, so those items must be sourced separately if required.

Highlights

  • Ready for 40G and 100G Ethernet with OM3 multimode fiber
  • UPC connectors reduce return loss for cleaner signal transmission
  • Bend-insensitive design maintains performance when routed through tight spaces
  • Corning ultra-pure glass core delivers low attenuation across 5 m length
  • Each cable includes individual test report verifying link quality

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ALC
Connector BLC
Length5 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

What LC duplex patch panels or transceivers will accept the UPC ferrules on this cable?

The UPC polished LC connectors on both ends mate with any standard LC duplex receptacle on patch panels, transceivers or switches that use the same UPC polish.

Will the bend-insensitive OM3 fiber work with my existing OM1 or OM2 patch leads in the same link?

Mixing OM3 with OM1 or OM2 in one link is not recommended because the different core sizes and bandwidth ratings will limit the overall channel performance.

How can I verify the cable meets spec after I install it?

Each cable ships with a factory test report; compare the insertion loss and return loss values on that report with the limits for OM3 UPC duplex links.
