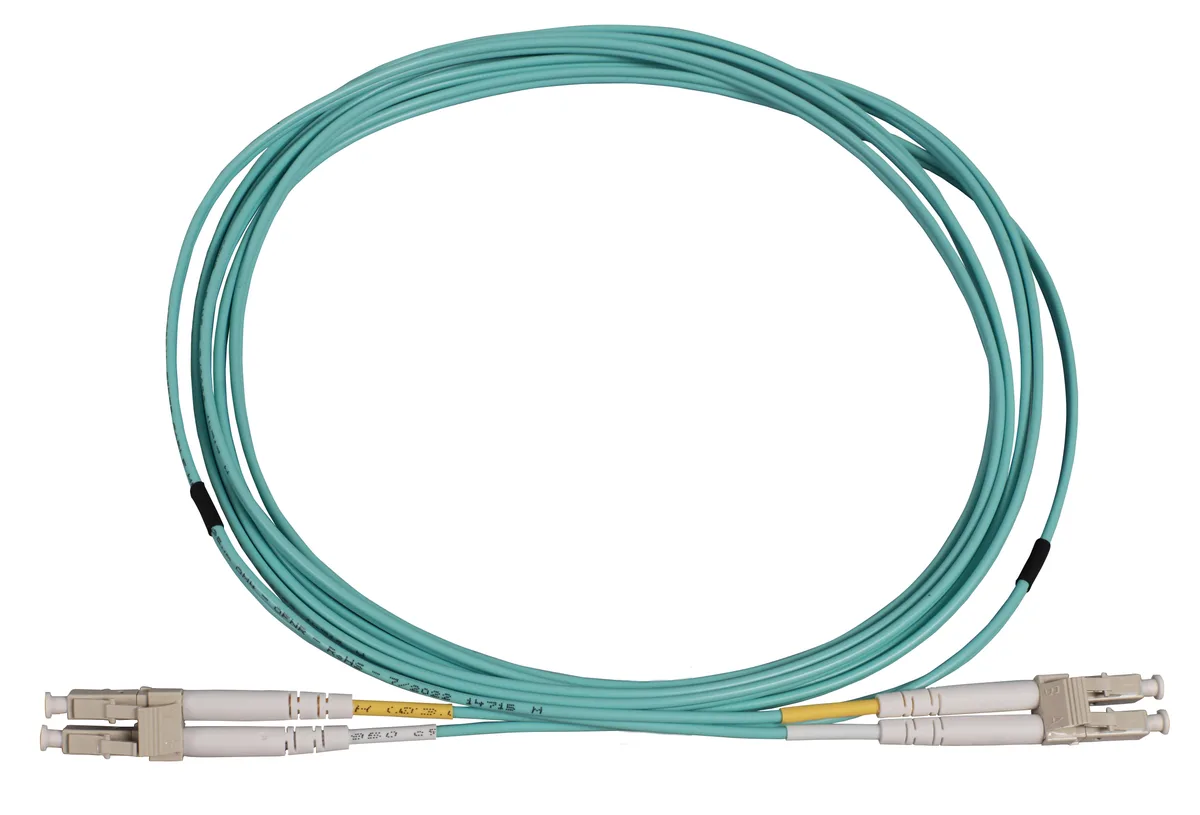

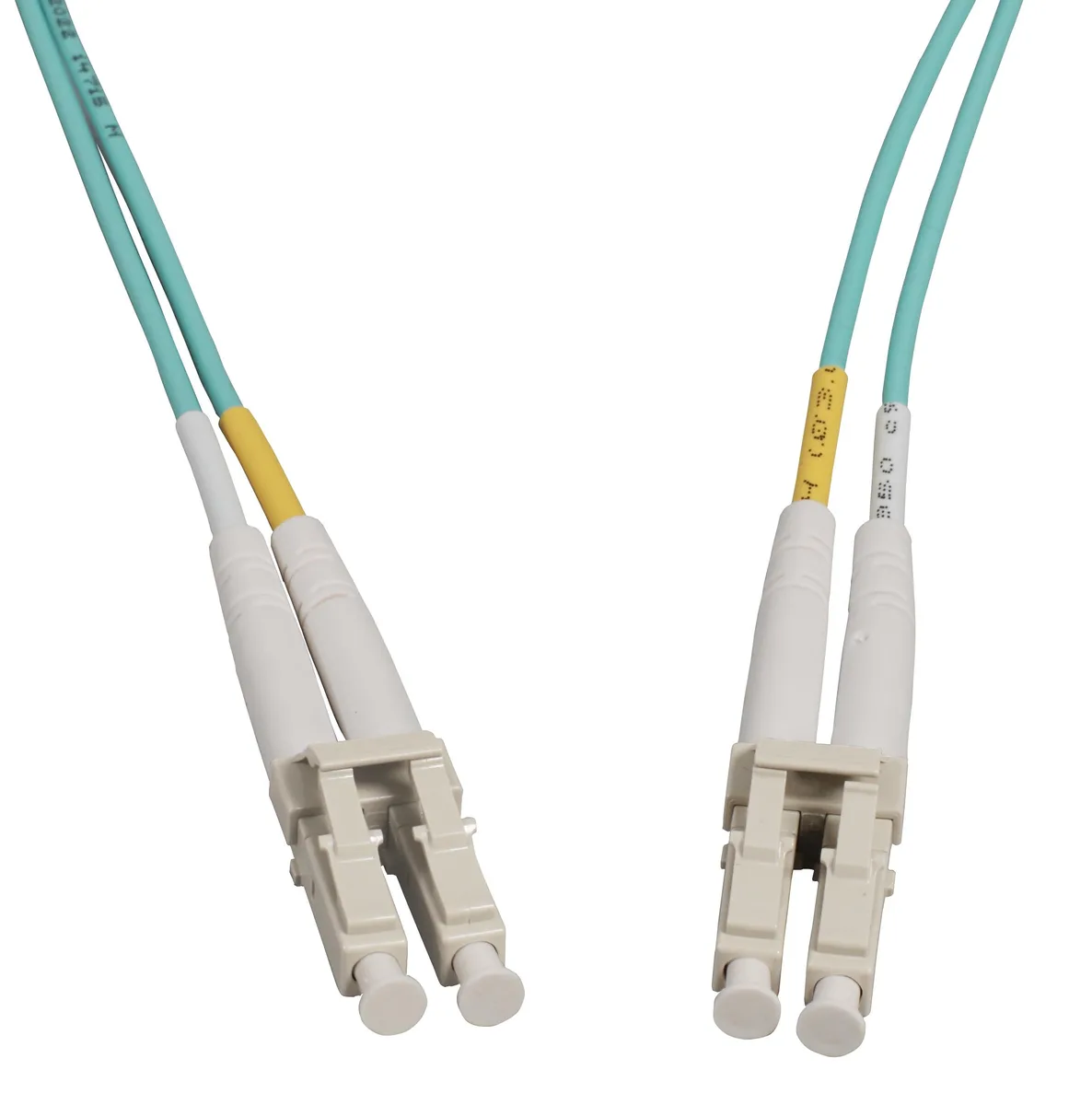

Aqua blue 7 m duplex LC to LC fiber patch cable with 2.0 mm jacket

Intellinet Network Solutions

Intellinet Network Solutions OM3 Multimode Duplex LC to LC 7 m Aqua Blue 50/125 µm BIMMF UPC

SKU CH-3ZH4-1JMZG

7 m duplex LC-to-LC patch cable with OM3 multimode fiber rated for 10 G, 40 G and 100 G Ethernet

  • TypeFiber
  • Connector ALC
  • Connector BLC
  • Length7 m
  • ColorAqua Blue
  • ShieldedNo
  • OM3 multimode fiber supports 40G and 100G Ethernet speeds
  • UPC connectors deliver superior surface finish for improved return loss
  • Bend-insensitive design reduces attenuation when cables are twisted or bent
  • Corning ultra-pure glass provides low attenuation and high bandwidth
  • 7 metre duplex LC-to-LC length suits data centre cross-connect applications

OM3 Duplex Fiber Patch Cable

This 7 m duplex fiber cable uses OM3 multimode glass with LC/UPC connectors at both ends. It is built for short to medium links in data centres, telecom rooms and desk-side cross-connects where 10 G, 40 G or 100 G Ethernet runs are required. The aqua jacket identifies the OM3 grade at a glance.

50/125 µm Bend-Insensitive Core

Corning ultra-pure glass in a 50/125 µm geometry delivers high bandwidth and low attenuation for 40 G Ethernet and beyond. Bend-insensitive construction keeps loss low when the cable is routed around tight corners or through dense patch panels. Each unit ships with its own factory test report confirming performance.

2.0 mm OFNR Duplex Construction

The 2.0 mm duplex jacket meets OFNR fire rating for indoor riser use without additional conduit. UPC polish on both LC ferrules provides a superior surface finish that improves return loss compared with standard PC finishes. Installers who need single-mode reach or armoured cable should select a different product type.

Highlights

  • OM3 multimode fiber supports 40G and 100G Ethernet speeds
  • UPC connectors deliver superior surface finish for improved return loss
  • Bend-insensitive design reduces attenuation when cables are twisted or bent
  • Corning ultra-pure glass provides low attenuation and high bandwidth
  • 7 metre duplex LC-to-LC length suits data centre cross-connect applications

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ALC
Connector BLC
Length7 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

Will the 50/125 µm OM3 cable work with my existing OM1 or OM2 patch panels?

OM3 is backward-compatible with OM1 and OM2 at the same 50/125 µm core size, but the link budget follows the lowest-grade fiber in the chain, so distances supported by legacy panels will be shorter than the 40 G and 100 G ranges this cable enables.

How can I verify the LC UPC connectors are performing to spec after installation?

Each cable ships with a factory test report showing insertion loss and return loss for both connectors; compare those figures with a light source and power meter or an OTDR after termination to confirm the link meets OM3 limits.

Does the 7 m aqua duplex patch cord include dust caps or cleaning supplies, or must I order them separately?

Protective dust caps are fitted on both LC connectors at the factory; cleaning tools, inspection scopes, and additional caps are not included and must be purchased separately.
