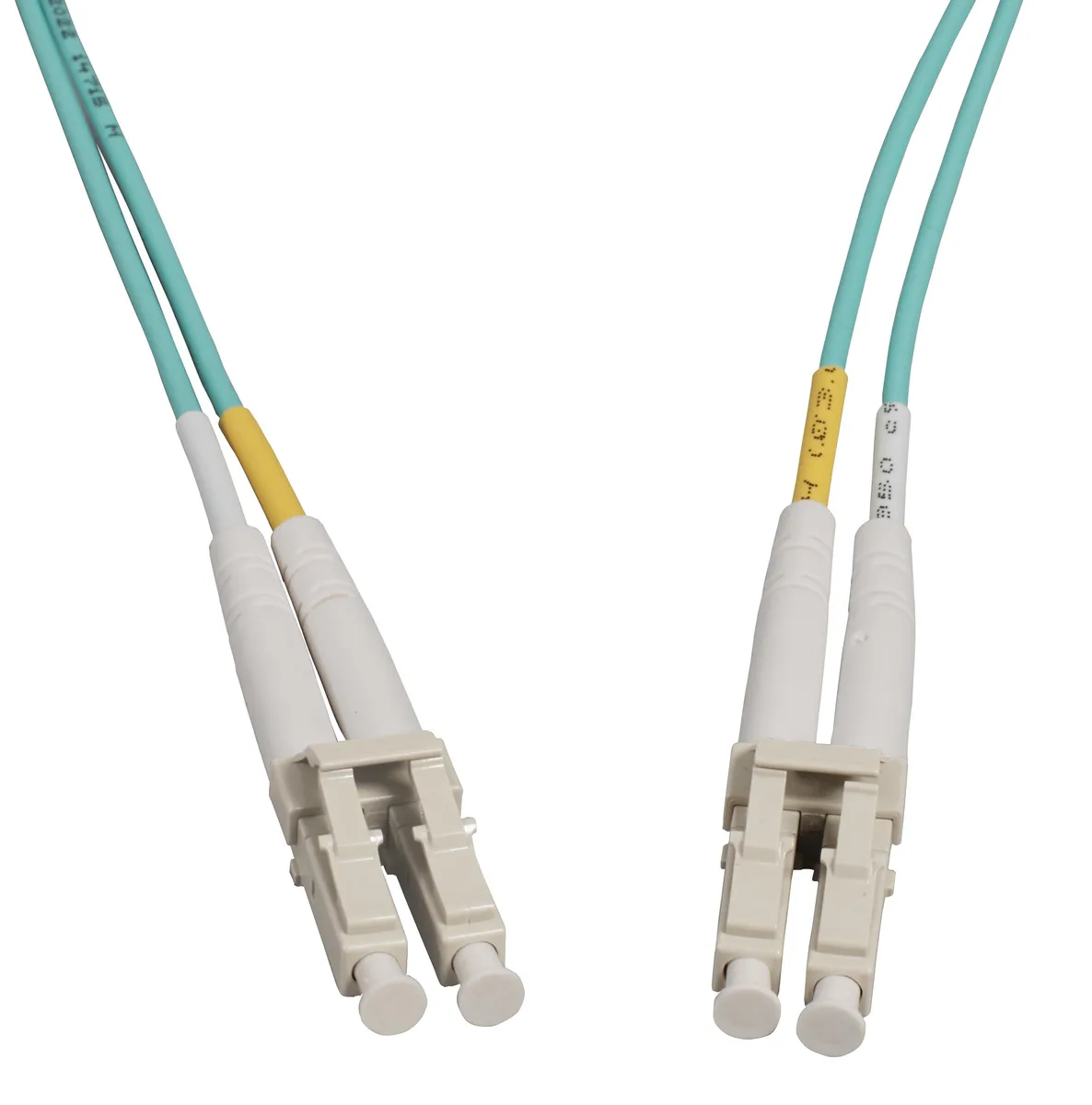

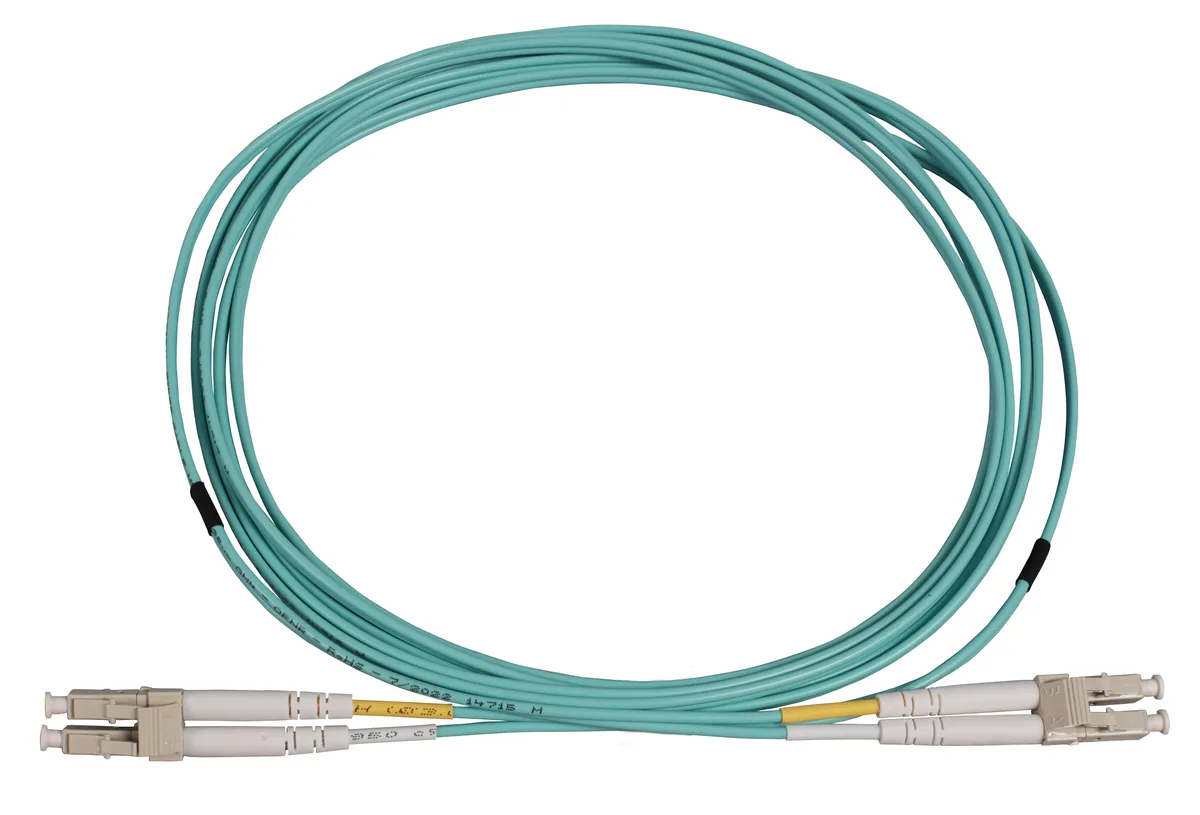

Aqua duplex fiber patch cable with LC connectors at both ends, 20 m length

Intellinet Network Solutions

Intellinet Network Solutions OM3 Multimode Duplex LC to LC 20 m Aqua Blue

SKU CH-D148-XCW7C

A 20 m duplex LC-to-LC OM3 multimode patch cable with bend-insensitive 50/125 µm fiber and UPC connectors for 10, 40 and 100 GbE links

  • TypeFiber
  • Connector ALC
  • Connector BLC
  • Length20 m
  • ColorAqua Blue
  • ShieldedNo
  • 20 m reach supports 40 G and 100 G Ethernet links
  • OM3 50/125 µm multimode fiber delivers high bandwidth over short to medium distances
  • Bend-insensitive Corning glass reduces attenuation when cables are bent or twisted
  • UPC polished LC connectors provide low return loss for reliable signal quality
  • OFNR rated jacket suits indoor riser and general-purpose installations

Connectivity Scope

This 20 m duplex fiber patch cable links equipment in entrance facilities, telecommunications rooms, data centres and desk-side deployments. Its LC-to-LC connectors suit interconnect and cross-connect roles where short to medium multimode runs are required. The aqua jacket identifies OM3 multimode rating at a glance.

Connector Quality and Protection

UPC polishing on each LC ferrule improves return loss compared with standard physical contact finishes. Bend-insensitive multimode fiber reduces attenuation when the cable is routed around tight corners or cable trays. A Corning ultra-pure glass core maintains low loss across the 20 m span and each unit ships with its own test report.

OM3 Distance Limits

OM3 multimode supports 10G Ethernet over the full 20 m length and is optimised for 40G and 100G Ethernet within the same distance. Beyond the rated reach for those speeds a single-mode solution would be required. The cable carries no shielding and is rated OFNR for indoor riser use only.

Highlights

  • 20 m reach supports 40 G and 100 G Ethernet links
  • OM3 50/125 µm multimode fiber delivers high bandwidth over short to medium distances
  • Bend-insensitive Corning glass reduces attenuation when cables are bent or twisted
  • UPC polished LC connectors provide low return loss for reliable signal quality
  • OFNR rated jacket suits indoor riser and general-purpose installations

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ALC
Connector BLC
Length20 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

Will the UPC polish on the LC connectors degrade and need re-polishing after repeated matings?

The UPC polish is factory finished and designed to maintain low return loss over normal use; re-polishing is not a standard maintenance task for installed patch cables.

At 20 m length, does OM3 bandwidth or connector loss limit 40G Ethernet first?

OM3 multimode fiber supports 40G Ethernet up to 100 m, so the 20 m run stays well within the fiber bandwidth limit; connector loss is the practical ceiling.

Does the 2.0 mm OFNR jacket and Corning glass add noticeable heat or power draw during all-day 40G traffic?

Passive fiber cable draws no power and generates no heat; the 2.0 mm OFNR jacket and Corning glass affect only mechanical and optical performance.
