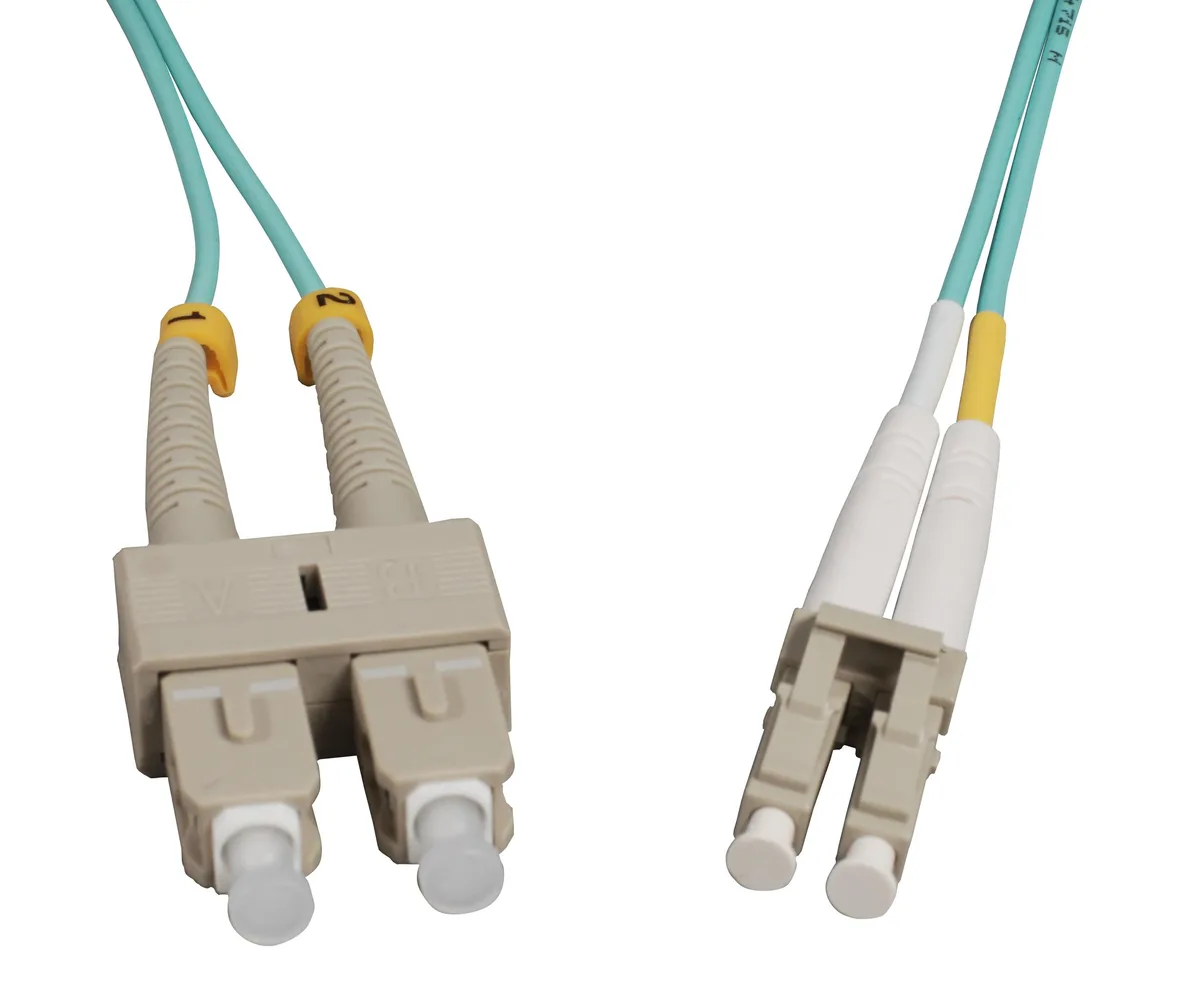

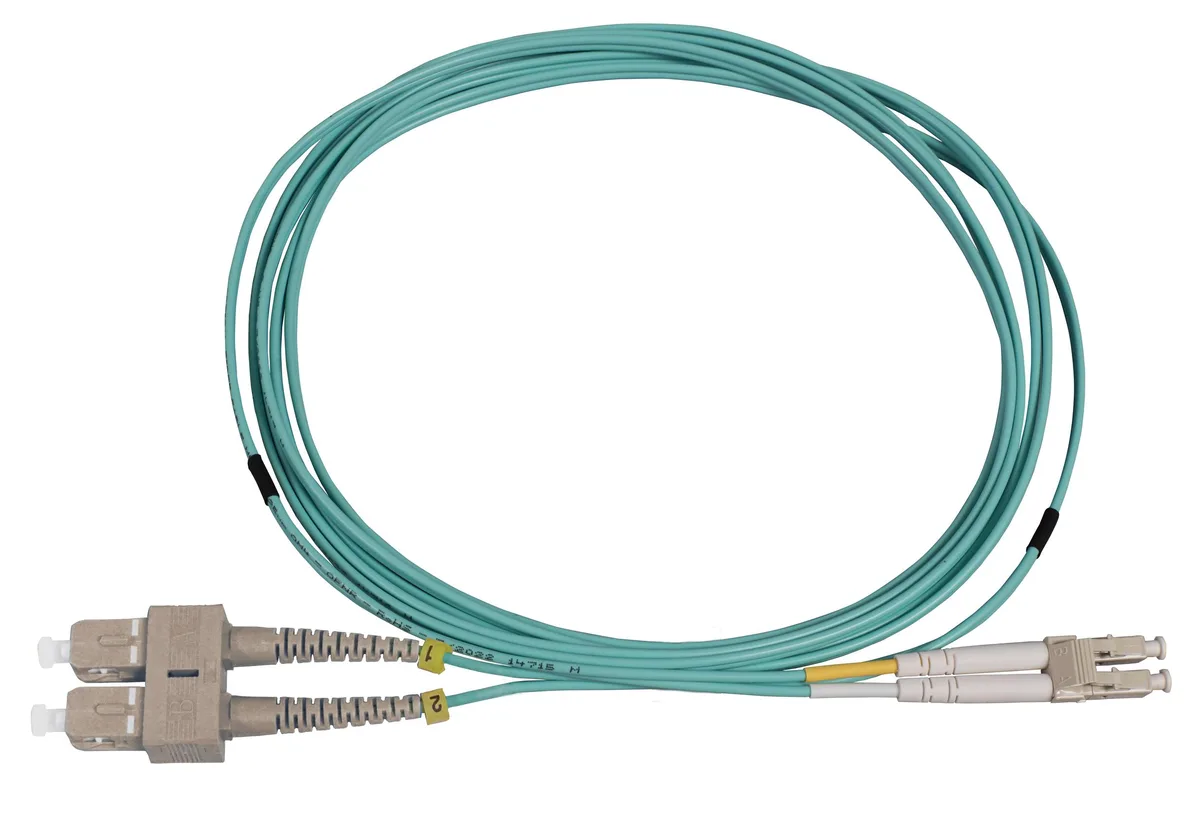

Aqua duplex fiber patch cable LC to SC connectors 5 m length 2.0 mm jacket

Intellinet Network Solutions

Intellinet Network Solutions OM3 Multimode Duplex LC-SC UPC Fiber Patch Cable 5 m Aqua 2.0 mm

SKU CH-DDW2-RS1GY

A 5 m OM3 multimode duplex fiber patch cable with LC to SC UPC connectors for 10G, 40G and 100G Ethernet links

  • TypeFiber
  • Connector ALC
  • Connector BSC
  • Length5 m
  • ColorAqua Blue
  • ShieldedNo
  • UPC connectors improve return loss for cleaner signals
  • OM3 multimode fiber supports 40G and 100G Ethernet speeds
  • Bend-insensitive design reduces attenuation when cables are twisted
  • Corning ultra-pure glass delivers low attenuation and high bandwidth
  • Each cable includes a factory test report

Versatile 5 m OM3 Duplex Patch Cable

This 5 metre aqua duplex cable connects LC and SC UPC interfaces using OM3 multimode fibre. It is built for cross-connect and interconnect work in entrance facilities, telecommunications rooms, data centres and at the desk. The cable uses Corning ultra-pure glass with a 50/125 µm core and bend-insensitive design. Each unit ships with its own test report.

Simple plug-and-play installation

Connectors are pre-terminated so no field polishing or epoxy work is required. The bend-insensitive multimode fibre tolerates tight routing without excess attenuation. The main risk is mixing OM3 with OM1 or OM4 links, which changes the supported reach. Always verify that both ends use the same fibre grade before deployment.

OM3 reach limits at higher speeds

OM3 multimode supports 10 G Ethernet over the full 5 m length and is optimised for 40 G and 100 G Ethernet within data centre distances. The 50/125 µm core and UPC finish keep return loss low, but the standard itself caps usable reach at higher data rates. Buyers needing longer runs at 40 G or 100 G must plan for single-mode infrastructure instead.

Highlights

  • UPC connectors improve return loss for cleaner signals
  • OM3 multimode fiber supports 40G and 100G Ethernet speeds
  • Bend-insensitive design reduces attenuation when cables are twisted
  • Corning ultra-pure glass delivers low attenuation and high bandwidth
  • Each cable includes a factory test report

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ALC
Connector BSC
Length5 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

How can I verify the cable is performing correctly after installation?

Each cable ships with a factory test report confirming low signal loss and return loss values for the UPC connectors, so you can compare your link budget against those baseline figures.

What comes in the box and do I need to buy anything extra?

The package contains the 5 m aqua duplex patch cable with LC and SC UPC connectors on 2.0 mm OM3 BIMMF; no additional adapters or cleaning supplies are included.

Which capacity or version should I choose for a 40G Ethernet link?

This OM3 50/125 µm bend-insensitive multimode cable supports 10G, 40G and 100G Ethernet over short to medium distances, so the 5 m length is suitable for 40G interconnects.
