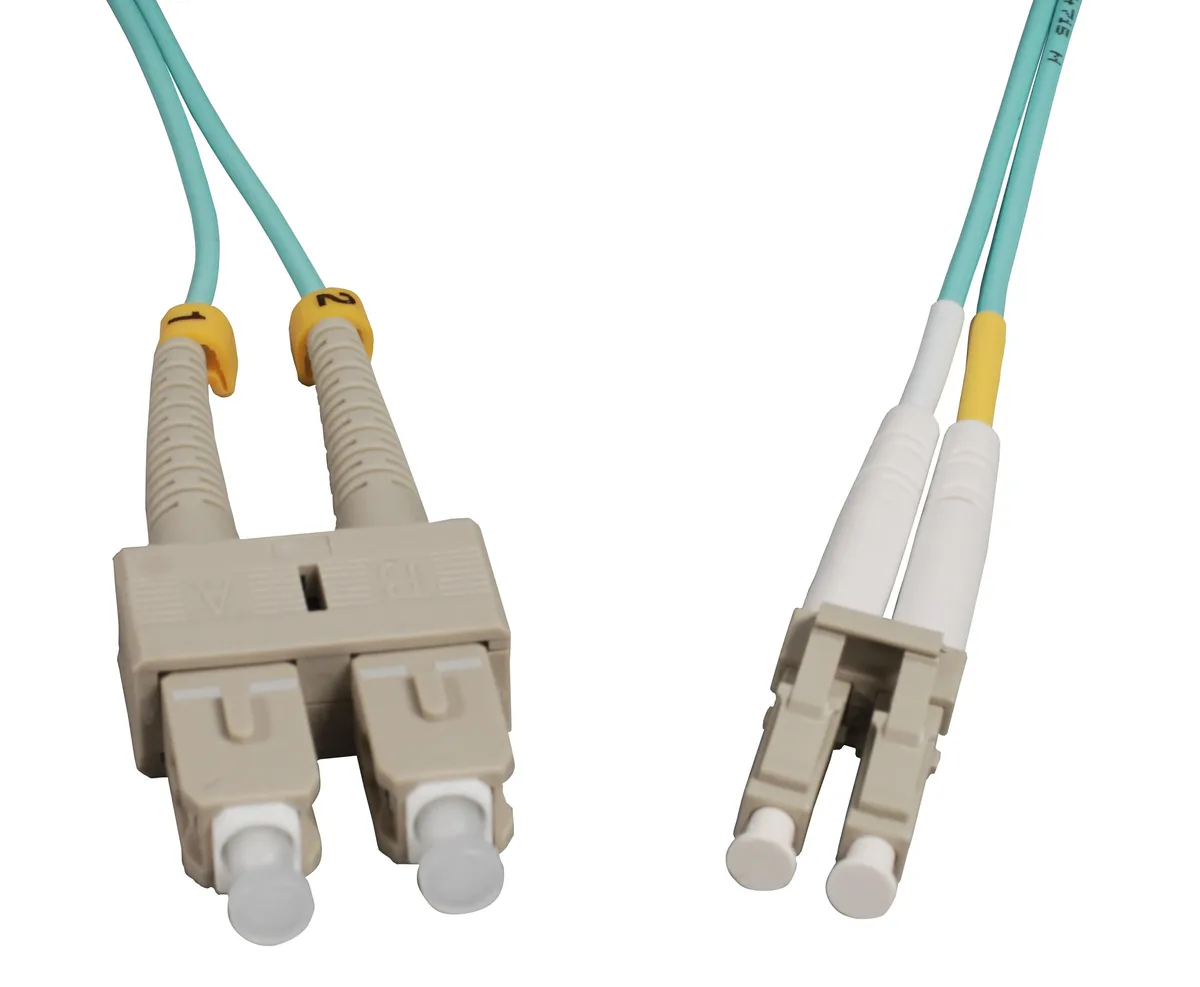

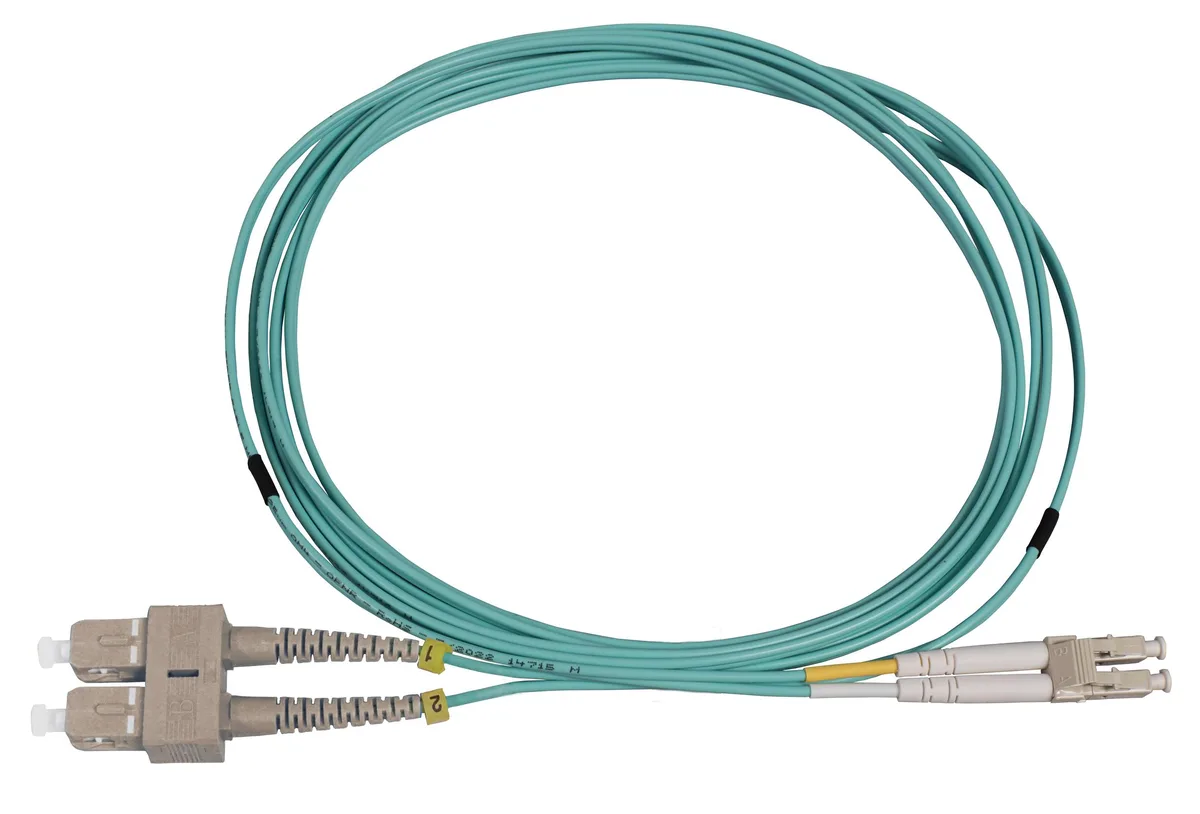

Aqua duplex fiber patch cable with LC and SC connectors, 20 m length

Intellinet Network Solutions

Intellinet Network Solutions OM3 Multimode Duplex 20 m LC to SC UPC Aqua 50/125 µm BIMMF OFNR

SKU CH-NC1P-6CDHF

A 20 m duplex multimode fiber patch cable with LC and SC UPC connectors, OM3 50/125 µm bend-insensitive Corning glass, aqua jacket, and OFNR rating for 10G, 40G and 100G Ethernet links

  • TypeFiber
  • Connector ALC
  • Connector BSC
  • Length20 m
  • ColorAqua Blue
  • ShieldedNo
  • Ideal for cross-connect and desk applications
  • UPC connectors provide improved return loss
  • OM3 multimode supports 40G and 100G Ethernet
  • Bend-insensitive design reduces attenuation when bent
  • Corning ultra-pure glass ensures low attenuation

Versatile 20 m Fiber Patch Cable

This 20 metre duplex patch cable connects LC and SC UPC connectors using OM3 multimode fiber with a 50/125 µm core. It is built for interconnect and cross-connect tasks in entrance facilities, telecommunications rooms, data centres and desk-side links. The aqua jacket identifies the OM3 rating at a glance.

UPC Connectors and Bend-Insensitive Fiber

Ultra Physical Contact polish on both ends improves return loss compared with standard PC finishes. Bend-insensitive multimode fiber reduces attenuation when the cable is routed around tight corners or through dense trays. Each unit ships with its own factory test report confirming insertion loss and return loss figures.

OM3 Distance Limits at High Speeds

OM3 multimode fiber supports 10 G Ethernet over its full length and is optimised for 40 G and 100 G Ethernet within data centre reach. At 40 G and 100 G the practical link distance is shorter than at 10 G, so very long runs may require single-mode cable instead. The OFNR jacket rating covers riser installations but not plenum spaces.

Highlights

  • Ideal for cross-connect and desk applications
  • UPC connectors provide improved return loss
  • OM3 multimode supports 40G and 100G Ethernet
  • Bend-insensitive design reduces attenuation when bent
  • Corning ultra-pure glass ensures low attenuation

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ALC
Connector BSC
Length20 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

Will the 50/125 µm OM3 multimode fiber need periodic cleaning or re-polishing of the LC and SC UPC end-faces?

The UPC connectors are factory polished and ship with a test report; normal practice is to inspect and clean the end-faces only when moving or re-seating the patch cord.

At 20 metres, which limit appears first on a 40 Gbps link — modal bandwidth distance or connector insertion loss?

OM3 is rated for 100 m at 40 Gbps, so the 20 m length stays well within the modal bandwidth budget; connector loss is typically the tighter practical limit.

Does the 2.0 mm OFNR jacket and bend-insensitive glass keep heat or noise low when the cable runs continuously in a rack?

The passive fiber generates no heat or noise; the OFNR jacket meets riser flame requirements and the Corning bend-insensitive glass maintains low attenuation during constant use.
