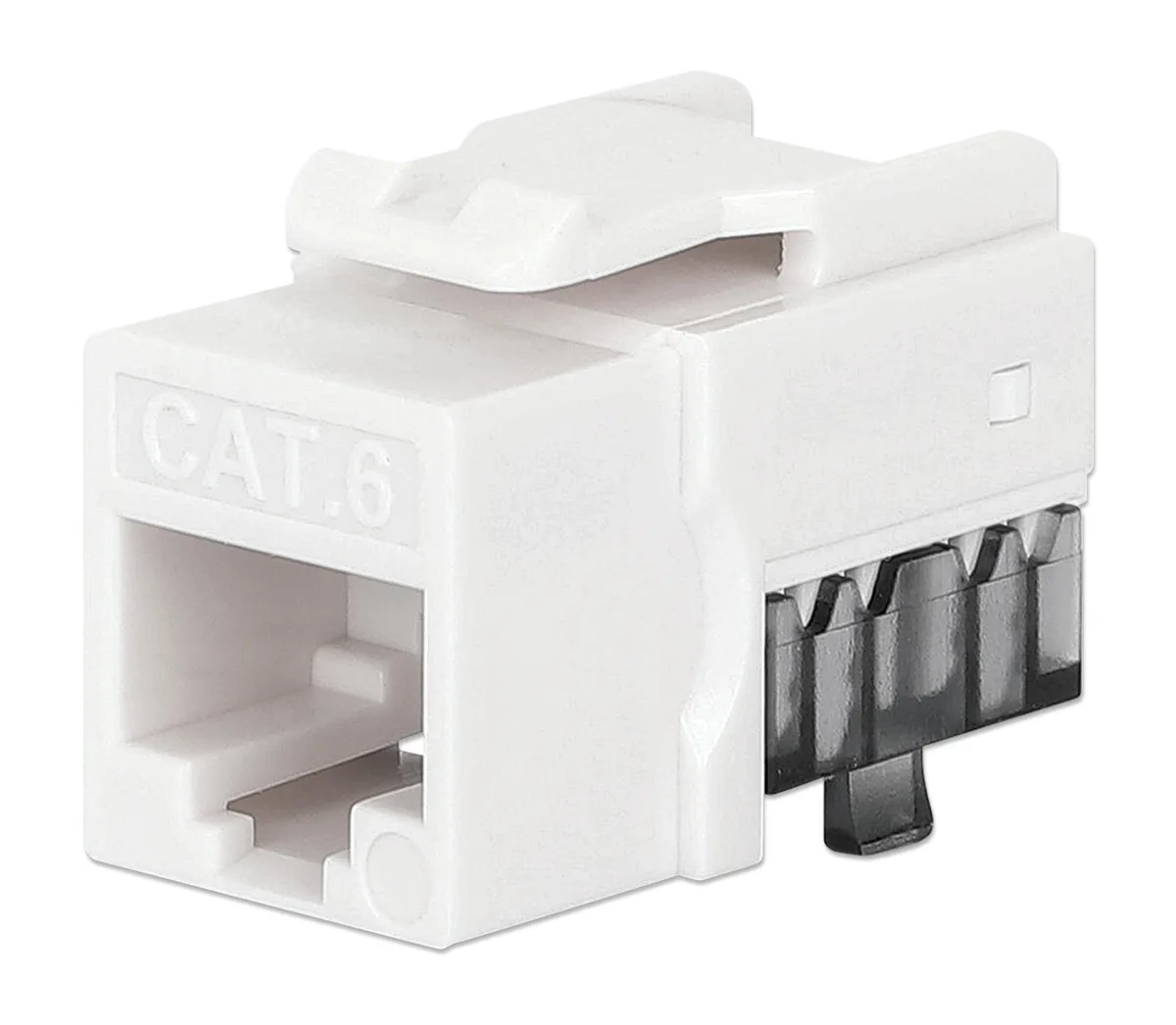

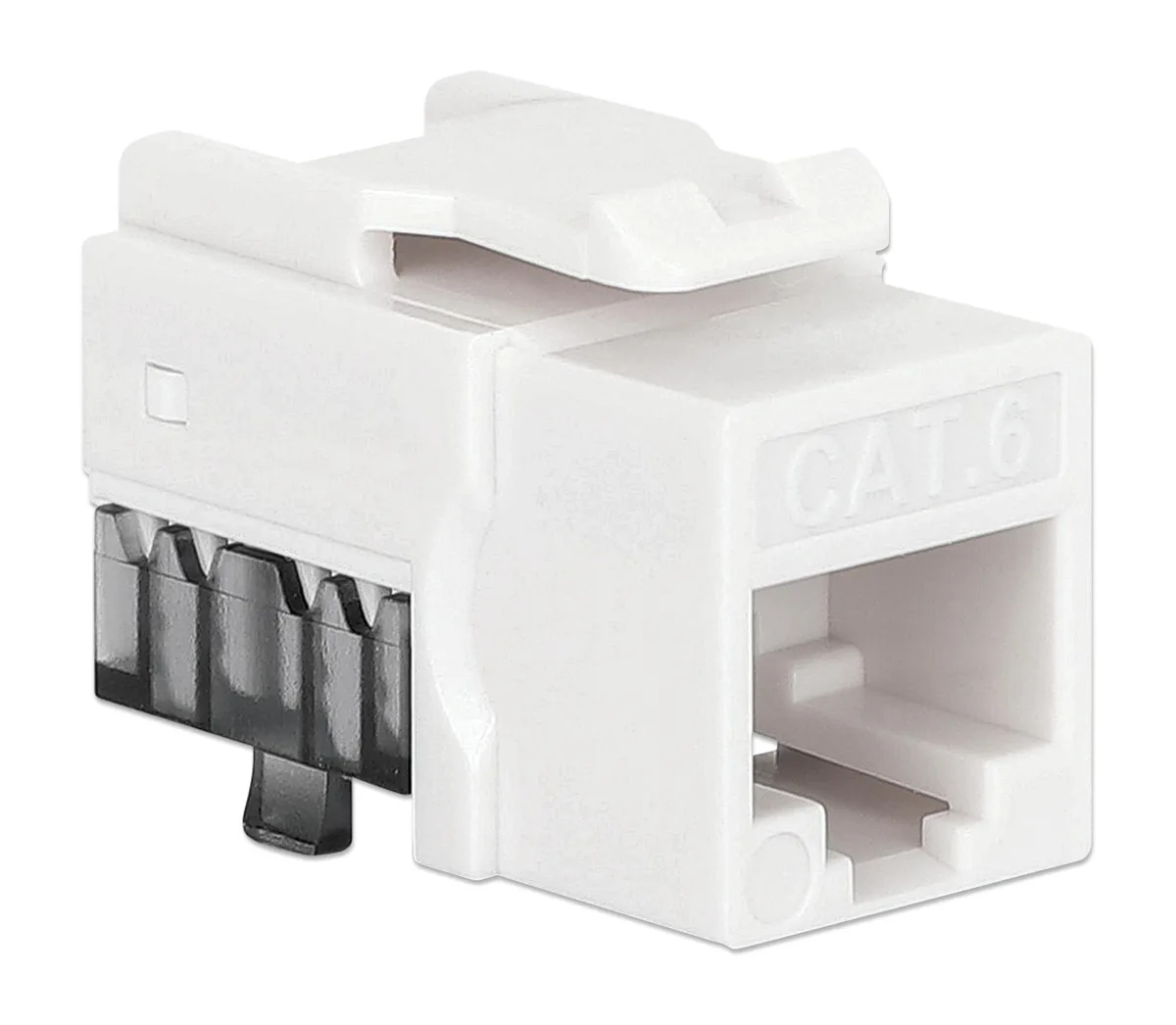

White slim Cat6 keystone jacks in 25-pack, gold-plated contacts, punch-down terminals

Intellinet Network Solutions

Intellinet Network Solutions 772105 Cat6 Slim Keystone Jack White 25-Pack

SKU CH-AGCQ-5ZKB6 MPN 772105

Twenty-five slim Cat6 keystone jacks with gold-plated contacts fit side-by-side in high-density panels and support solid wire from 26 to 23 AWG

  • ColorWhite
  • Connector PlatingGold
  • Connector StyleRJ45
  • Slim 16.5 mm width fits high-density panels
  • Cat6 rated for 10G up to 55 m and 1G up to 100 m
  • Gold-plated contacts ensure reliable signal integrity

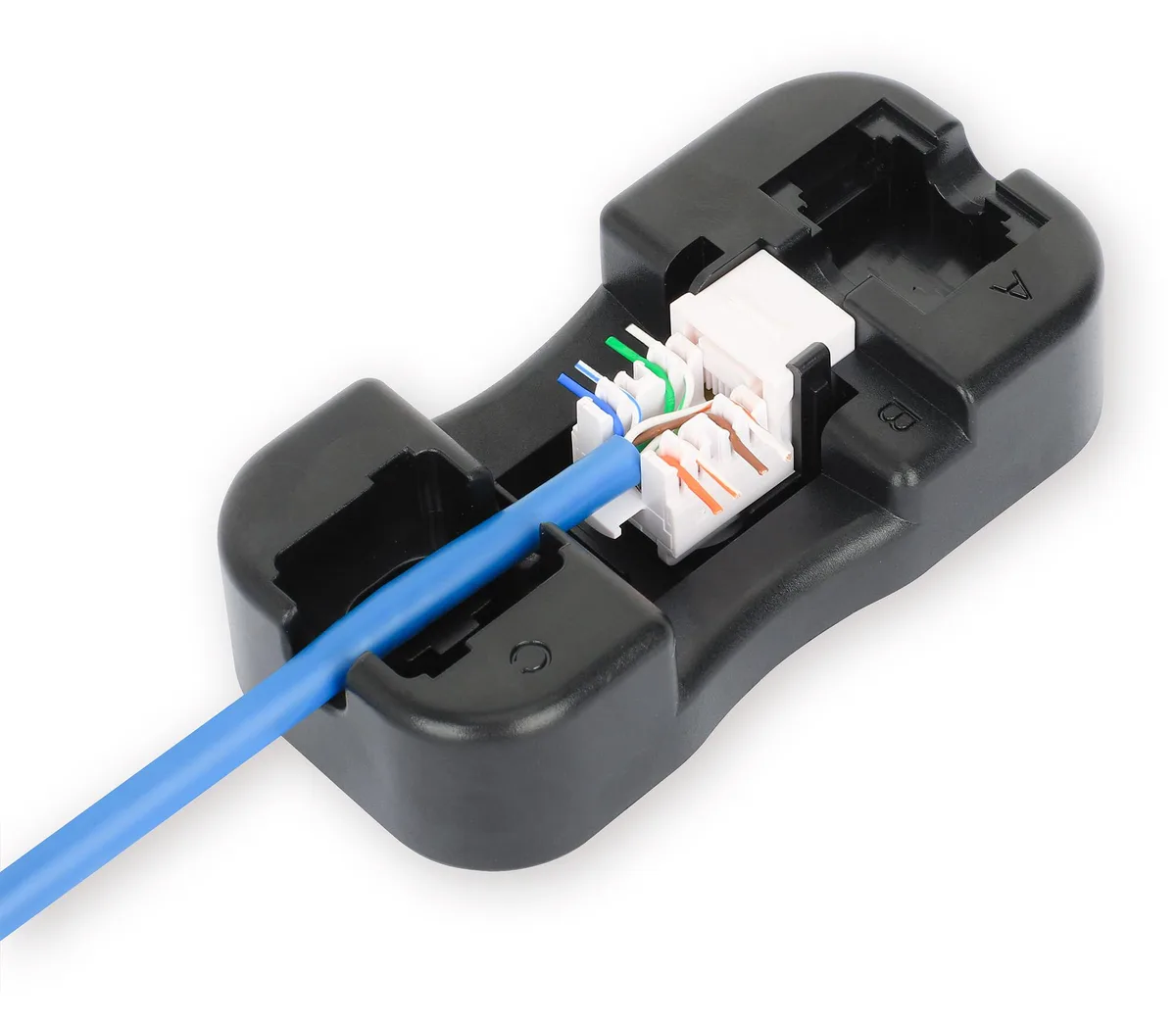

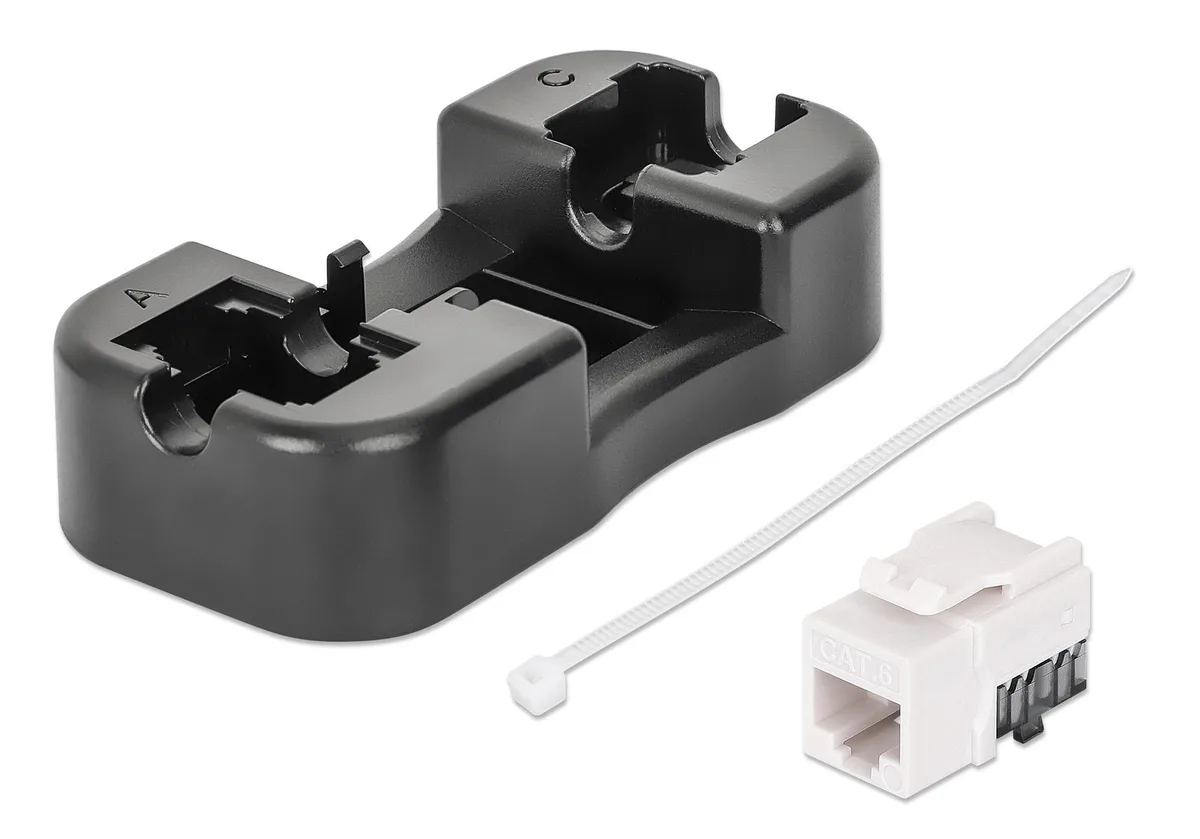

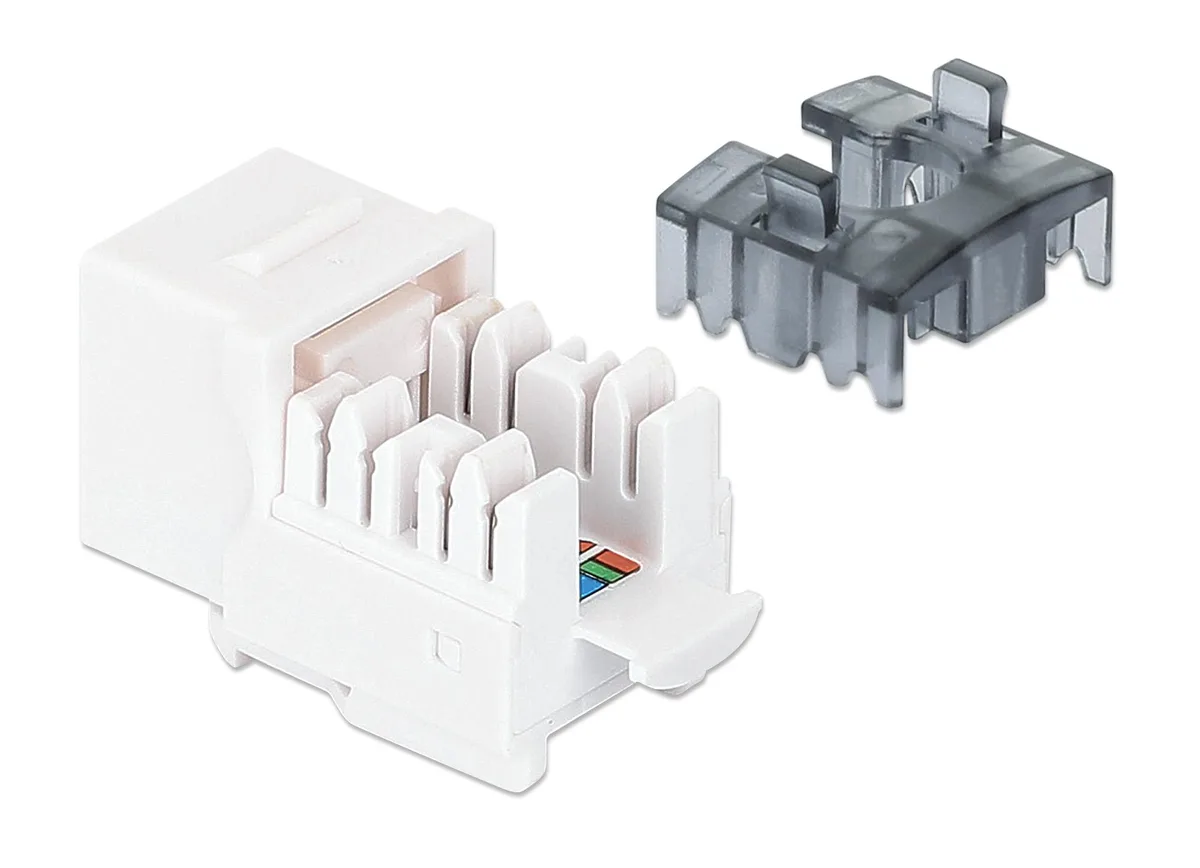

  • LSA punch-down works with 110 and Krone tools
  • Supports PoE++ up to IEEE 802.3bt for powered devices

High-density Cat6 keystone pack

This 25-pack of white Cat6 keystone jacks is built for installers fitting high-density patch panels, wall plates or surface boxes. Each module measures 16.5 mm wide so they sit side-by-side without crowding. Gold-plated contacts and LSA punch-down terminals accept solid wire from AWG 26/1 to 23/1. The jacks support 10GBASE-T up to 55 m and 1000BASE-T up to 100 m with PoE up to IEEE 802.3bt.

Upgrade from loose couplers or wider jacks

Replacing individual couplers or bulkier keystones with these slim modules recovers space in crowded panels and reduces insertion-loss variance. The jump is worth it when a rack or cabinet runs out of port density or when a project specifies 250 MHz Class E performance per ISO/IEC 11801. Existing 110 or Krone punch-down tools work without change.

Limits of the Cat6 UTP interface

Unshielded Cat6 tops out at 10 Gb/s over 55 m; longer runs drop to 1 Gb/s at 100 m. Alien crosstalk rises in tight bundles, so shielded cable or Category 6A is needed for guaranteed 10G at full distance. The RJ45 8P8C geometry also caps PoE at the four-pair 802.3bt limit; higher-power or future standards will require new connector hardware.

Highlights

  • Slim 16.5 mm width fits high-density panels
  • Cat6 rated for 10G up to 55 m and 1G up to 100 m
  • Gold-plated contacts ensure reliable signal integrity
  • LSA punch-down works with 110 and Krone tools
  • Supports PoE++ up to IEEE 802.3bt for powered devices

Specifications

ColorWhite
Connector PlatingGold
Connector StyleRJ45
Shipping weight0.28 kg
Package size133 × 89 × 89 mm

Questions about this item

How wide is the slim keystone jack for fitting side-by-side in a high-density patch panel?

The jack is 16.5 mm (0.65 in.) wide, allowing comfortable side-by-side deployment in blank patch panels, wall plates, or surface connection boxes.

Which punch-down tool type is compatible and what wiring standard should I follow?

It uses LSA punch-down type compatible with 110 and Krone tools; the jack is color-coded for both T568A and T568B wiring standards.

What cable type and PoE level does this Cat6 jack support for long-term use?

It supports solid wire AWG 26/1 to 23/1 and handles PoE up to IEEE 802.3bt / PoE++ / 4PPoE / Ultra PoE for connected devices.
