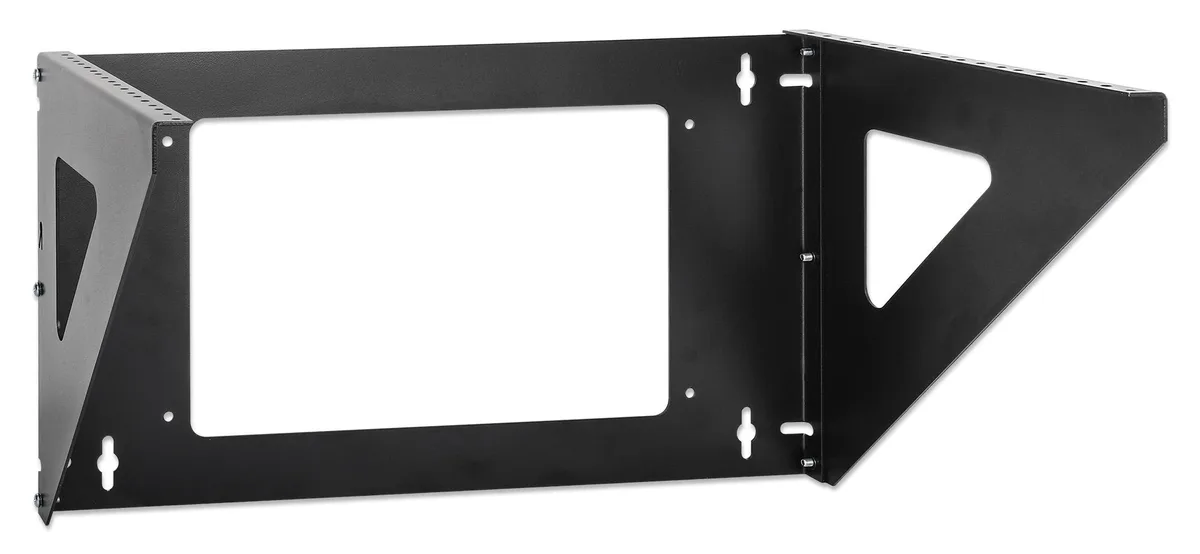

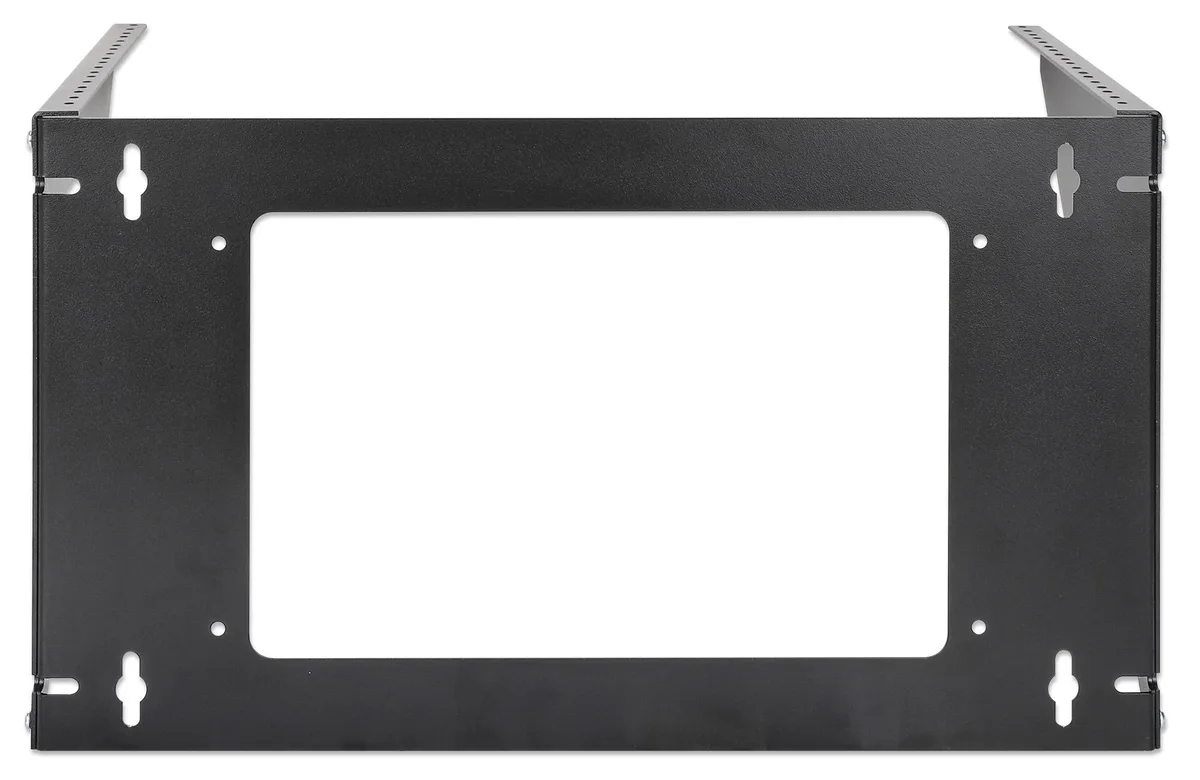

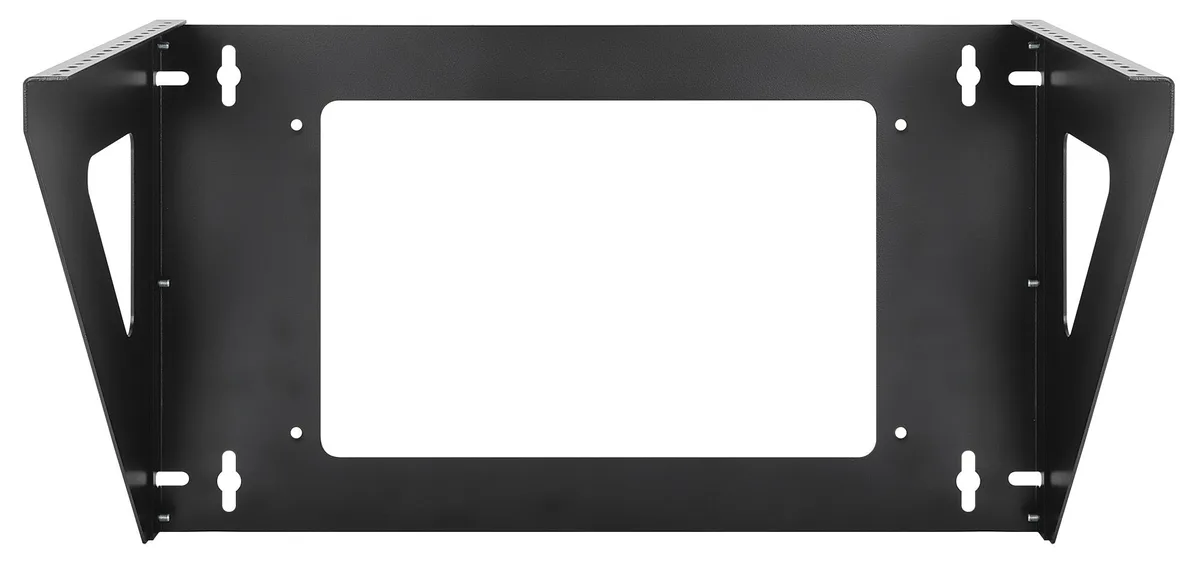

Black steel open-frame 6U vertical wall-mount rack bracket for 19in equipment

Intellinet Network Solutions

Intellinet Network Solutions 716376 6U Vertical Wall Mount Server Rack

SKU CH-EFWX-NWVDH MPN 716376

A 6U open-frame steel bracket that mounts standard 19 in. network gear vertically on a wall or horizontally under a desk, supporting 135 lbs. with included hardware

  • TypeMounting Racks
  • Rack Units6U
  • ColorBlack
  • MaterialSteel
  • Weight Capacity135
  • Unit Dimension11.18 x 19.17 x 7.68 in
  • Space-saving vertical mounting for 19-inch network gear in tight areas
  • 135 lb load capacity on 2 mm cold-rolled SPCC steel frame
  • Open-frame design ensures airflow and easy cable access

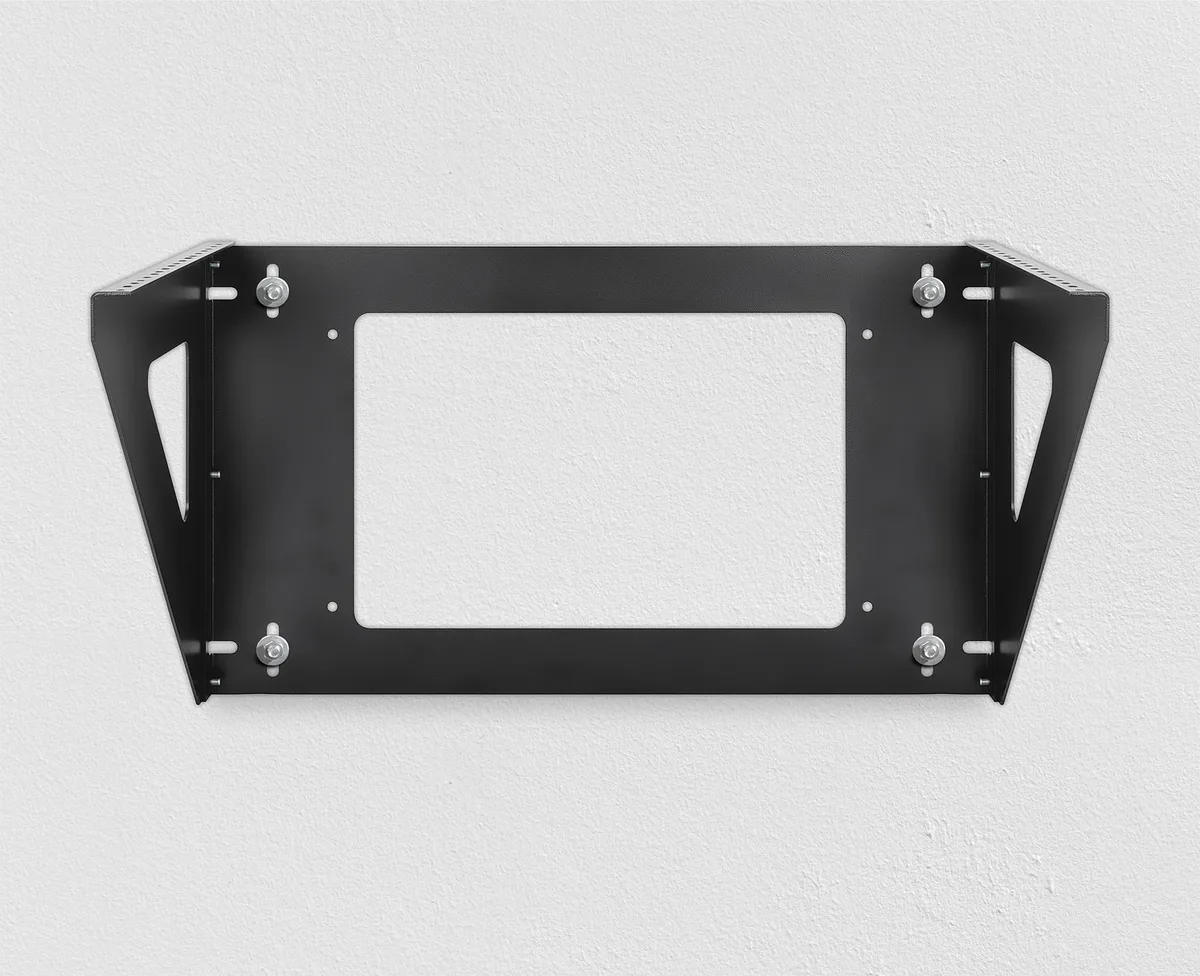

  • Wall studs at 16-inch centres or horizontal under-desk installation
  • Compliant with EIA-310 and IEC 60297 for standard 19-inch equipment

6U Vertical Wall-Mount Bracket

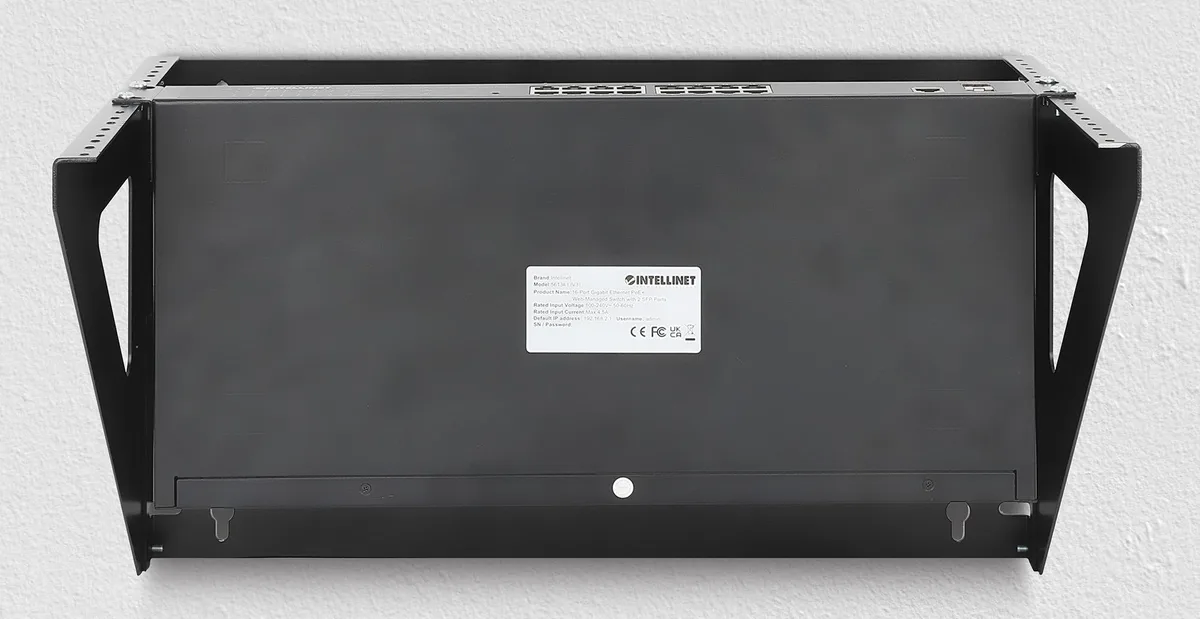

The Intellinet 716376 is a 6U open-frame bracket that holds standard 19-inch network equipment vertically against a wall or horizontally under a desk. Cold-rolled SPCC steel construction supports patch panels, switches and PDUs in spaces where a full cabinet cannot fit.

Installers needing flush wall mounting

Suits IT managers and home-office builders who want equipment secured to studs spaced 16 inches apart with included hardware. Not suited for sites that require a lockable enclosure, front-to-rear cable management rails or deeper shelves for full-length servers.

135 lb load capacity

Rated to carry 135 lbs (61 kg) of rack-mounted gear across the 6U height. The 11.18-inch depth and open steel frame provide airflow and front access for cabling while meeting ANSI/EIA 310-E and IEC 60297-3 dimensional standards.

Highlights

  • Space-saving vertical mounting for 19-inch network gear in tight areas
  • 135 lb load capacity on 2 mm cold-rolled SPCC steel frame
  • Open-frame design ensures airflow and easy cable access
  • Wall studs at 16-inch centres or horizontal under-desk installation
  • Compliant with EIA-310 and IEC 60297 for standard 19-inch equipment

Specifications

BrandIntellinet
TypeMounting Racks
Rack Units6U
ColorBlack
MaterialSteel
Weight Capacity135
Unit Dimension11.18 x 19.17 x 7.68 in
Unit Weight5.75 lbs.
Shipping Weight6.97 lbs.
Shipping weight3.16 kg
Package size540 × 340 × 70 mm

Questions about this item

How much weight can the 6U bracket hold before the steel frame becomes the limiting factor?

The bracket is rated for a maximum load of 135 lbs (61 kg) according to the EIA-310 and IEC 60297 standards.

Does the open steel frame stay cool and quiet when equipment runs continuously?

The open-frame design allows unrestricted airflow around the 19-inch devices, so heat dissipates passively and the rack itself adds no fan noise.

What wall structure is needed to mount the bracket securely?

Mounting holes are spaced 16 inches apart to align with standard wall studs, and the necessary hardware is included.
