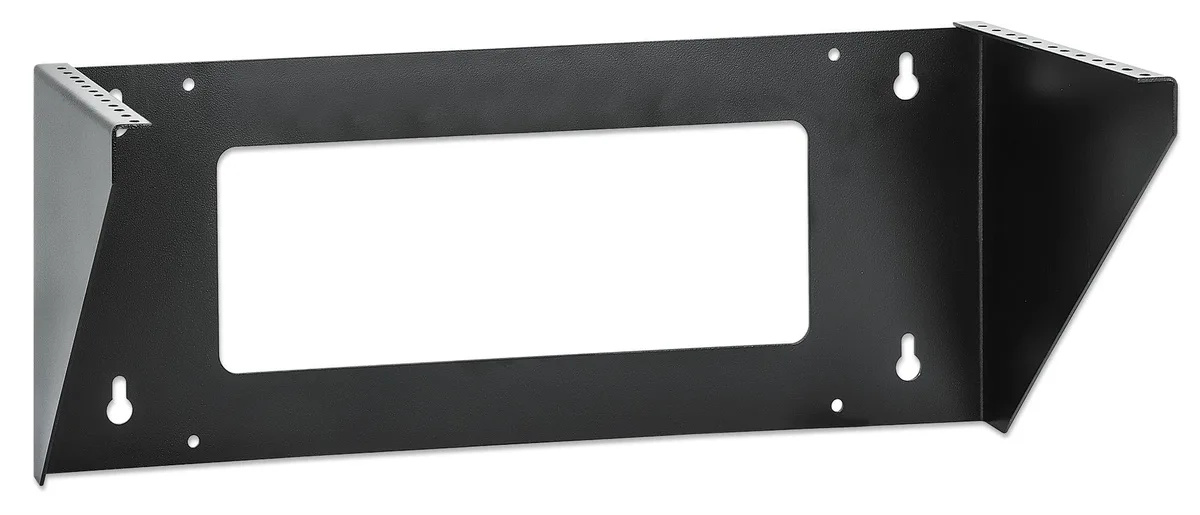

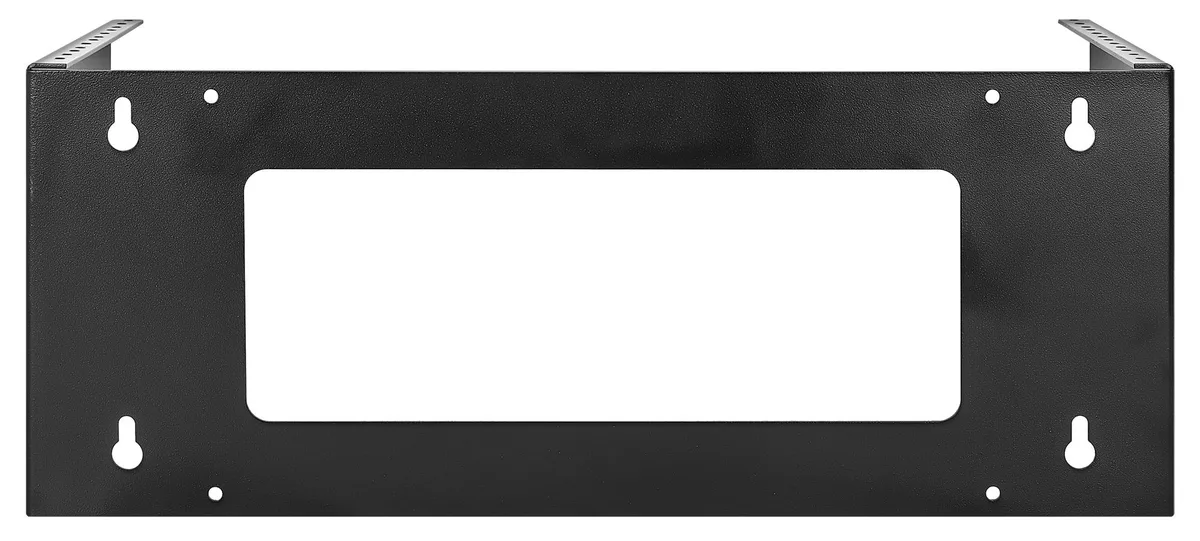

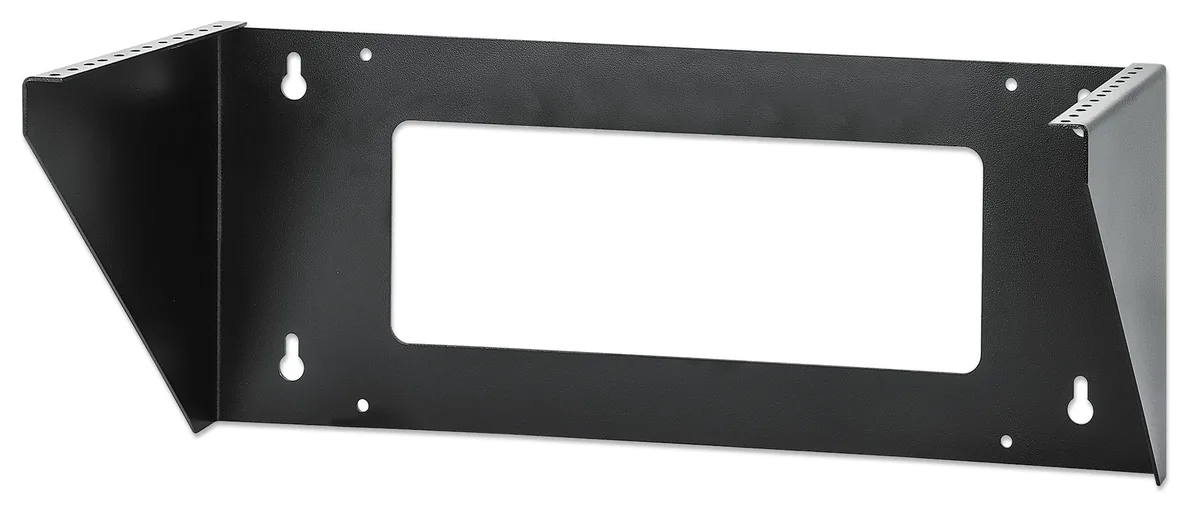

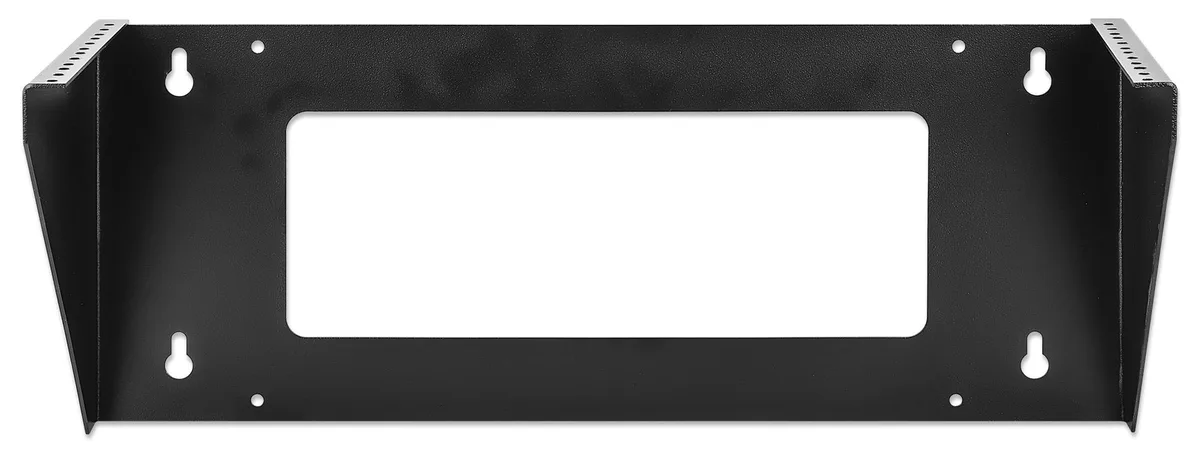

Black steel 4U open-frame wall bracket for 19 inch rack gear

Intellinet Network Solutions

Intellinet Network Solutions 716369 4U 19" wall-mount server rack

SKU CH-0T7K-QH7DK MPN 716369

A 4U open-frame bracket that mounts 19-inch network gear vertically on a wall or horizontally under a desk, supporting 135 lbs with included hardware

  • TypeMounting Racks
  • Rack Units4U
  • ColorBlack
  • MaterialSteel
  • Weight Capacity135
  • Space-saving vertical mounting fits 19″ equipment in tight areas
  • Wall-mount holes spaced 16″ apart match standard stud placement
  • Open frame design provides airflow and easy cable access
  • Supports up to 135 lbs (61 kg) of network gear
  • IEC 60297 / EIA 310 compliant for standard 19″ rack equipment

4U Vertical Wall-Mount Bracket

The Intellinet Network Solutions 716369 is a 4U 19-inch rack bracket that mounts standard network gear vertically on a wall or horizontally under a desk. It suits small offices, home labs or secure rooms where floor space for a full cabinet is not available. The open steel frame holds patch panels, switches, PDUs and similar 19-inch equipment.

Check Wall Structure and Equipment Depth

Verify that your wall has studs spaced 16 inches apart to match the supplied mounting holes. Confirm the total weight of the installed devices stays within the 135 lbs (61 kg) limit. Measure each piece of equipment to ensure it fits the vertical orientation and does not exceed the bracket’s depth allowance.

Open Frame for Airflow and Cable Access

The bracket’s open design lets air circulate around active gear and gives direct access to ports and cabling from the front or sides. Powder-coated 2 mm SPCC steel meets IEC 60297 and EIA 310 standards for universal 19-inch / 482.6 mm compatibility. Mounting hardware is included for a flush wall installation.

Highlights

  • Space-saving vertical mounting fits 19″ equipment in tight areas
  • Wall-mount holes spaced 16″ apart match standard stud placement
  • Open frame design provides airflow and easy cable access
  • Supports up to 135 lbs (61 kg) of network gear
  • IEC 60297 / EIA 310 compliant for standard 19″ rack equipment

Specifications

BrandIntellinet
TypeMounting Racks
Rack Units4U
ColorBlack
MaterialSteel
Weight Capacity135
Shipping weight2.61 kg
Package size545 × 260 × 260 mm

Questions about this item

What mounting hardware comes with the 716369 bracket and do I need to buy anything else?

Wall-mounting hardware is included for studs spaced 16 inches apart. No extra brackets are required for standard 19 in. equipment.

Should I choose the vertical wall-mount or the horizontal under-desk orientation for my 4U patch panel and switch?

Both orientations fit 4U of 19 in. gear. Vertical saves floor space; horizontal under a desk gives front access from your chair.

What does the 135 lb load rating mean when I mount a 4U switch and PDU on this steel bracket?

The 135 lb (61 kg) limit applies to the total installed equipment weight. The 2 mm cold-rolled SPCC steel frame and IEC 60297 / EIA 310 compliance keep the load secure.
