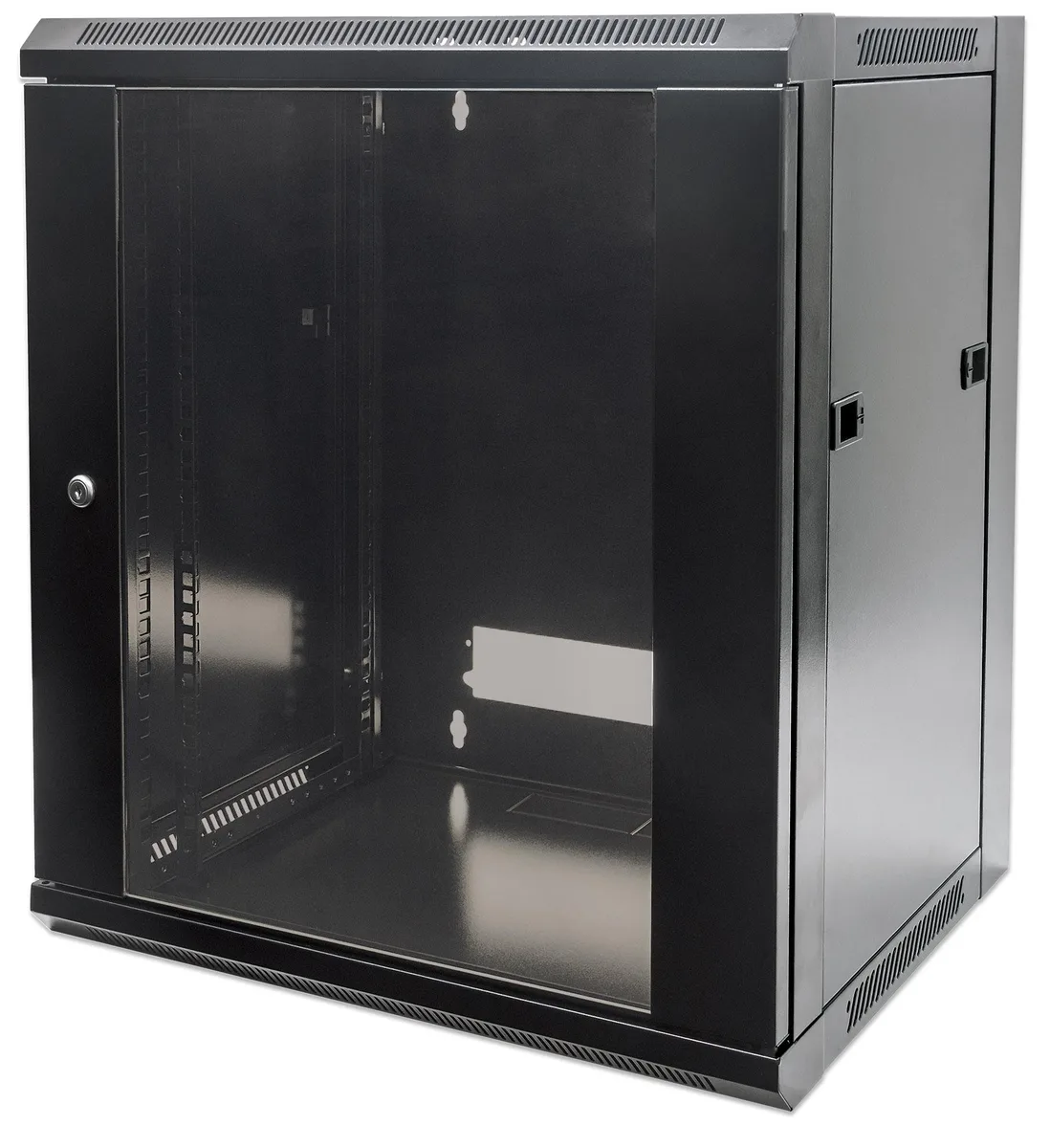

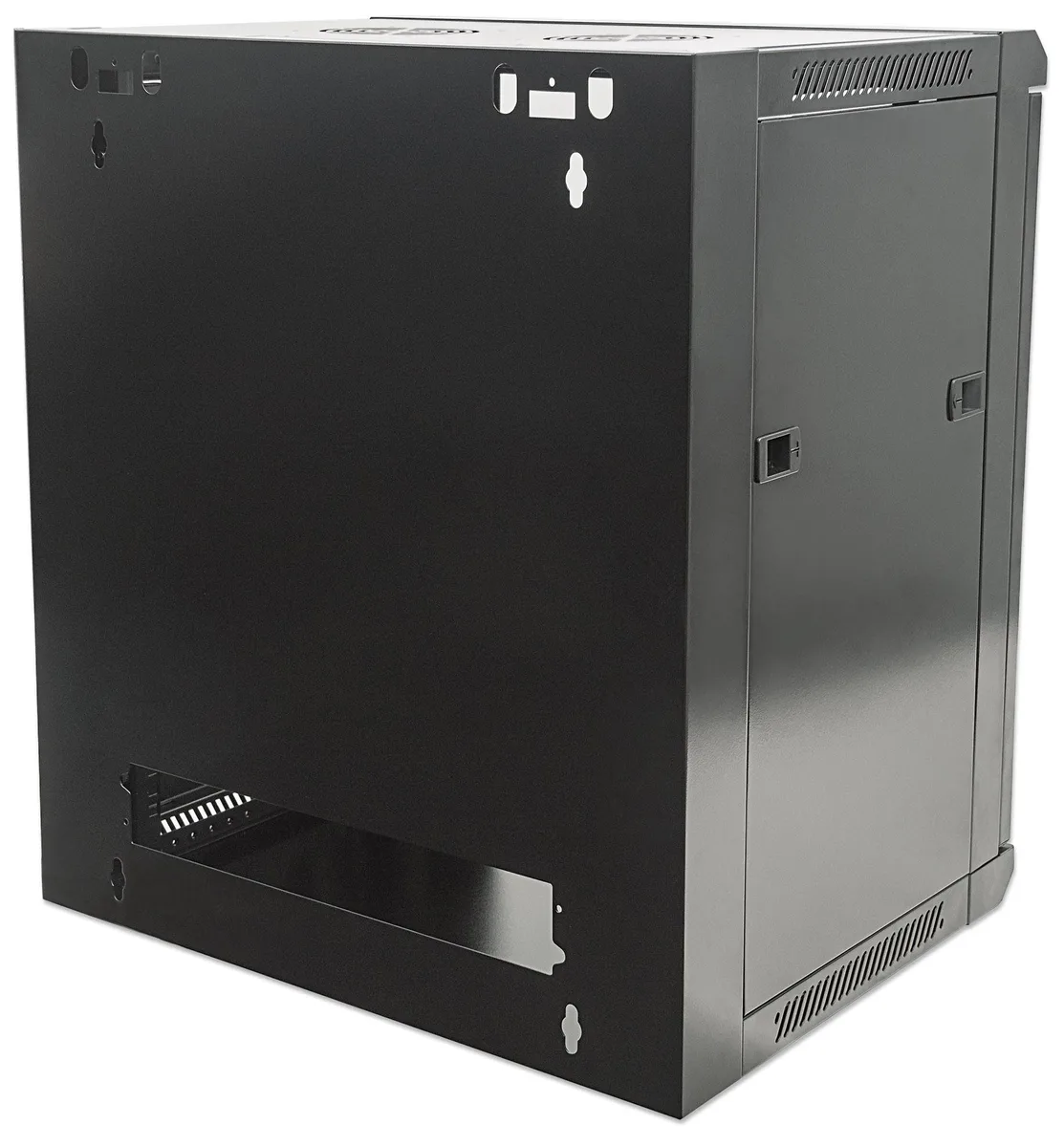

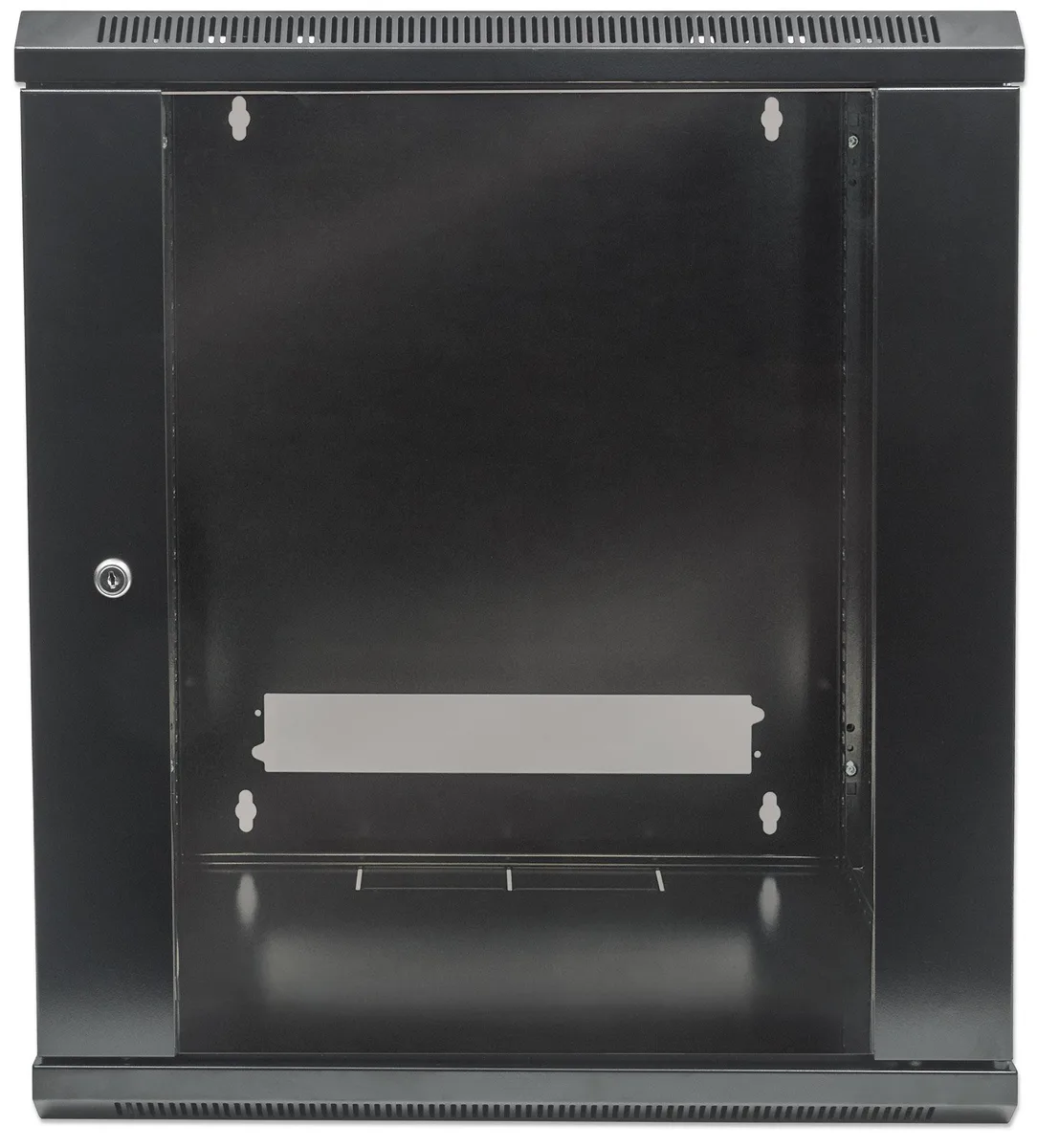

Black 12U 19-inch wallmount server rack, flat-pack steel frame with tempered-glass door

Intellinet Network Solutions

Intellinet Network Solutions 711869 19" 12U Wallmount Server Rack 450mm Depth

SKU CH-08T7-BKC1Q MPN 711869

A 12U wall-mounted 19-inch steel cabinet with 450 mm depth, 60 kg load rating and adjustable 270–350 mm usable depth

  • TypeRack Cabinet
  • Rack Units12U
  • ColorBlack
  • MaterialSteel
  • 12U wallmount rack fits 19-inch equipment
  • 60 kg static load capacity for heavy gear
  • Adjustable 270–350 mm usable depth for flexibility

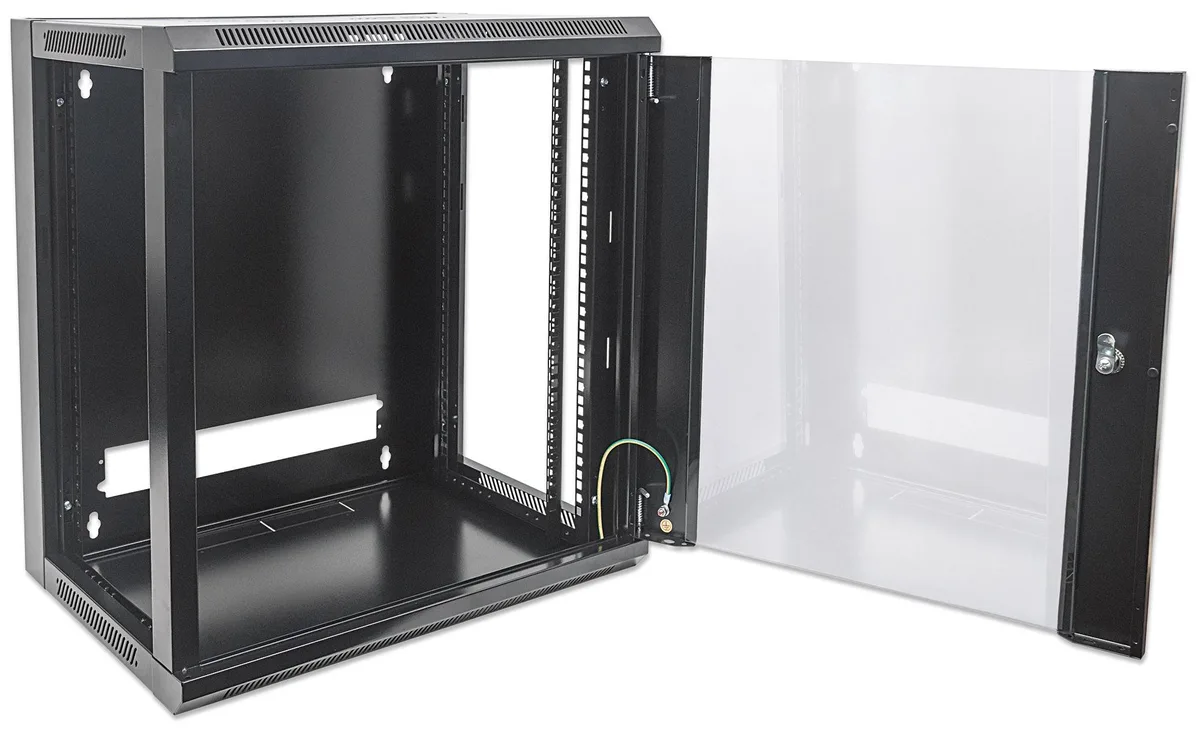

  • Tempered-glass door opens beyond 180° for access
  • 2 mm SPCC steel with removable side panels

12U 19-Inch Wallmount Cabinet

The Intellinet Network Solutions 711869 is a 12U wallmount server rack built from cold-rolled SPCC steel. It provides a black 19-inch enclosure for network switches, patch panels or small servers in offices or server rooms. Flat-pack delivery reduces shipping volume and simplifies storage before assembly.

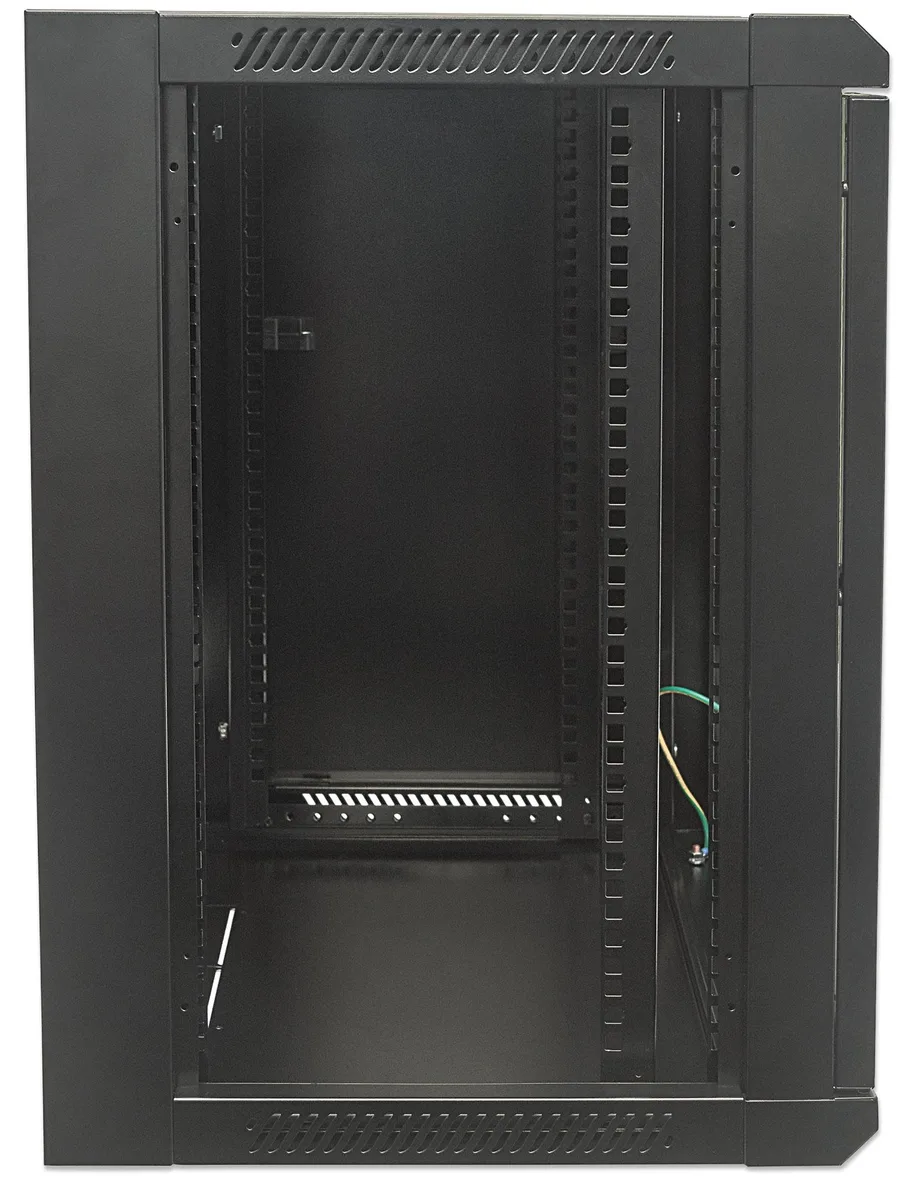

Usable Depth Range 270 mm to 350 mm

The single specification that decides fit is the adjustable usable depth of 270 mm to 350 mm. Equipment deeper than 350 mm will not mount, while shallower gear can be positioned on the sliding rails. Maximum static load is rated at 60 kg and the frame uses steel up to 1.2 mm thick.

Installers Needing Shallow Wallmount Enclosure

Suits installers who need a compact 12U wall cabinet with reversible tempered-glass door opening past 180 degrees and cable entry at rear or top. Not for buyers who require deeper than 350 mm usable depth, floor-standing capacity, or perforated doors for high-airflow cooling.

Highlights

  • 12U wallmount rack fits 19-inch equipment
  • 60 kg static load capacity for heavy gear
  • Adjustable 270–350 mm usable depth for flexibility
  • Tempered-glass door opens beyond 180° for access
  • 2 mm SPCC steel with removable side panels

Specifications

BrandIntellinet
TypeRack Cabinet
Rack Units12U
ColorBlack
MaterialSteel
Shipping weight23.59 kg
Package size681 × 597 × 168 mm

Questions about this item

How much equipment weight can the 12U rack actually hold once it is mounted on the wall?

The cabinet is rated for a maximum static load of 60 kg when properly secured to a suitable wall structure.

What does the adjustable depth range of 270 mm to 350 mm mean for the 19-inch rails?

You can slide the mounting rails forward or back within that 80 mm window to match the depth of your servers or switches.

What wall space and fixings are needed to install the 450 mm deep cabinet?

The unit requires a solid wall capable of carrying the loaded weight; mounting hardware is not included, so select fixings rated for the total load.
