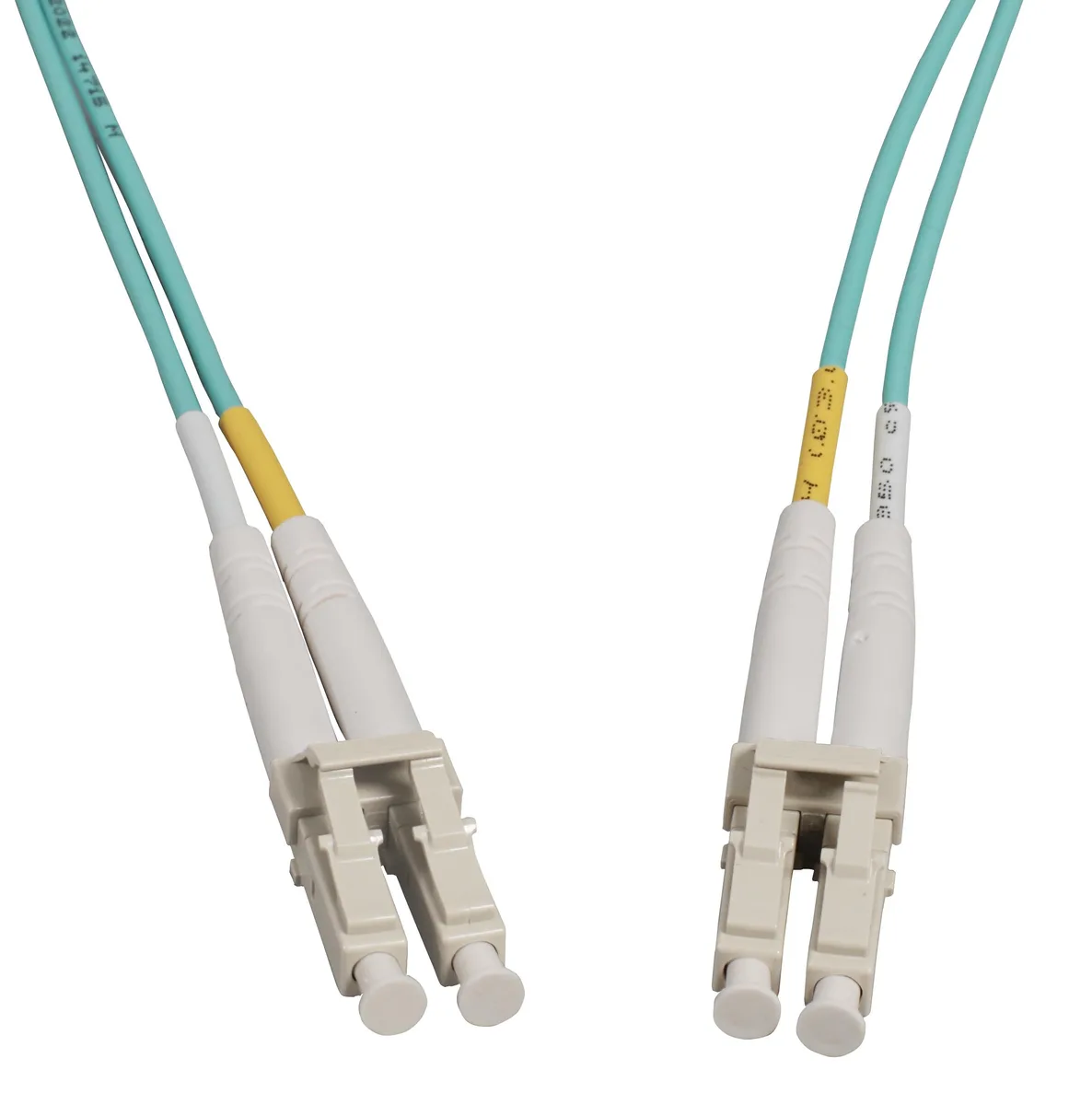

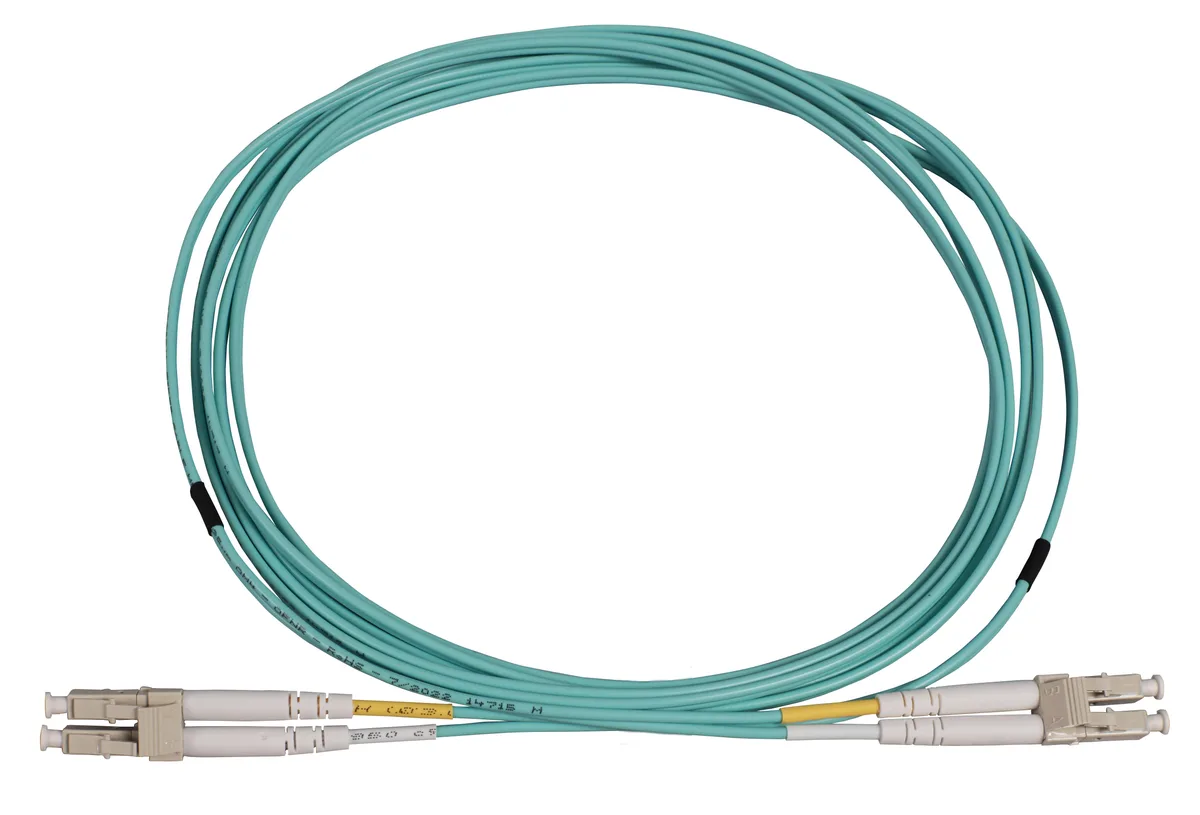

Aqua duplex fiber patch cable with LC UPC connectors on both ends 10 m length 2.0 mm jacket

Intellinet Network Solutions

Intellinet Network Solutions 10 m LC to LC UPC OM3 Duplex Aqua BIMMF 50/125 2.0 mm 33 ft

SKU CH-P51Y-6BYG7

A 10 m duplex OM3 multimode fiber patch cable with LC UPC connectors and bend-insensitive 50/125 µm Corning glass for 40G and 100G Ethernet

  • TypeFiber
  • Connector ALC
  • Connector BLC
  • Length10 m
  • ColorAqua Blue
  • ShieldedNo
  • Ultra Physical Contact connectors reduce return loss for reliable links
  • OM3 multimode fiber supports 40 G and 100 G Ethernet over short distances
  • Bend-insensitive design minimises attenuation when cables are twisted or bent
  • Corning ultra-pure glass core delivers low attenuation and high bandwidth
  • Each cable includes a factory test report verifying performance

10 m LC Duplex OM3 Patch Cable

This 10 metre LC to LC duplex patch cable uses OM3 multimode fiber with a 50/125 µm core/cladding diameter. It is built for interconnect and cross-connect work in entrance facilities, telecommunications rooms, data centres and desk-side connections. The aqua jacket identifies the OM3 classification at a glance.

Bend Insensitive Fiber Under Load

Bend insensitive multimode fiber reduces attenuation when the cable is routed around tight corners or twisted during installation and maintenance. UPC polished connectors provide a superior surface finish that improves return loss compared to standard polish. Corning ultra-pure glass keeps insertion loss low over repeated mating cycles.

OM3 Distance Limits at 40G and 100G

OM3 multimode fiber supports 10G Ethernet and is optimised for 40G and 100G Ethernet within data centre distances. The 50/125 µm geometry and low attenuation design enable high bandwidth transmission for short to medium range links. Each cable ships with a test report verifying the measured performance.

Highlights

  • Ultra Physical Contact connectors reduce return loss for reliable links
  • OM3 multimode fiber supports 40 G and 100 G Ethernet over short distances
  • Bend-insensitive design minimises attenuation when cables are twisted or bent
  • Corning ultra-pure glass core delivers low attenuation and high bandwidth
  • Each cable includes a factory test report verifying performance

Specifications

BrandIntellinet Network Solutions
ModelOM3 Multimode Duplex
TypeFiber
Connector ALC
Connector BLC
Length10 m
ColorAqua Blue
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

Does this 10 m LC-to-LC OM3 patch cable generate any heat or draw power when it runs continuously?

No, it is a passive fiber cable with no active components, so it produces no heat and requires no power.

What equipment must I already have for the LC connectors on this 2.0 mm duplex cable to plug in?

You need devices with LC ports — such as switches, patch panels or transceivers — that accept duplex multimode ferrules.

Will the bend-insensitive 50/125 µm fiber work reliably alongside older OM1 or OM2 cabling in the same link?

Mixing fiber grades in one link is not recommended because core-size and bandwidth differences increase loss at each junction.
