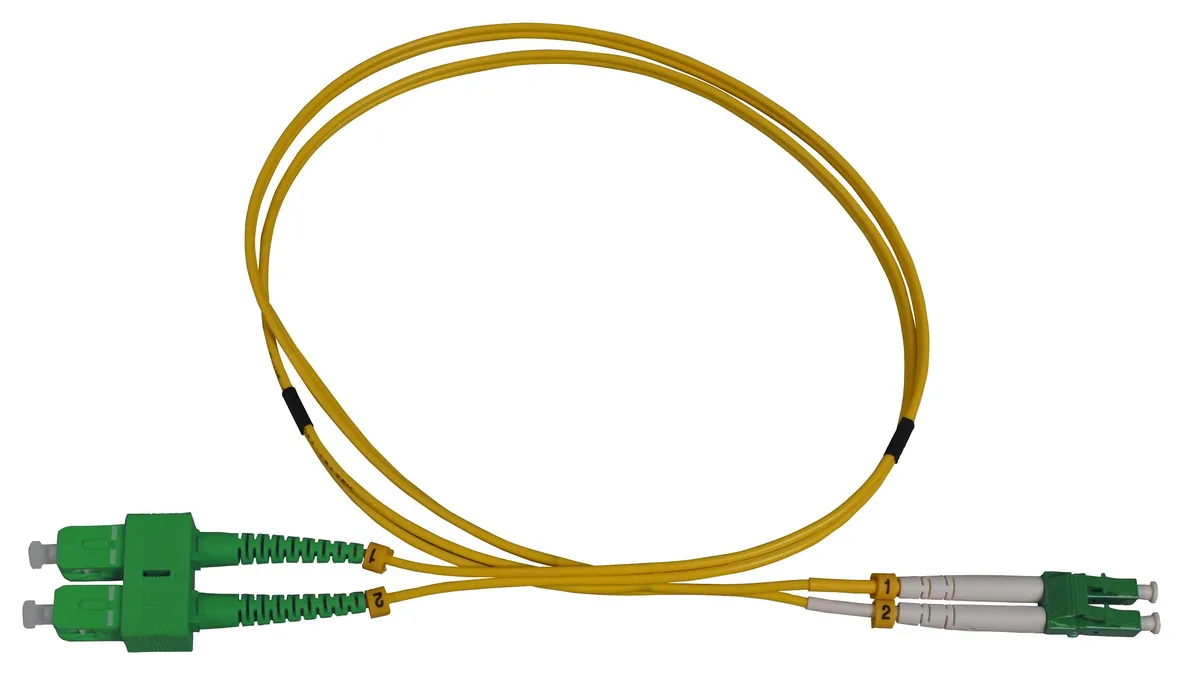

Yellow duplex fiber patch cable with LC UPC and SC APC connectors, 3 m length

Intellinet Network Solutions

Intellinet LC UPC to SC APC Duplex Fiber Patch Cable 3 m Yellow 9/125 µm G.657.A1 10 ft

SKU CH-D9CB-JSN6T

A 3 m yellow single-mode duplex patch cable with LC UPC to SC APC connectors, bend-insensitive G.657.A1 fiber and 9/125 µm core for low-loss 40G links

  • TypeFiber
  • Length3 m
  • ColorYellow
  • Features9/125 µm, Bend Insensitive Fiber Cable G.657.A7
  • APC connectors reduce signal reflection and return loss
  • Bend-insensitive G.657.A7 fiber minimizes attenuation when bent or twisted
  • Corning ultra-pure glass core delivers low attenuation and high bandwidth
  • OS2 single-mode fiber supports 40G Ethernet and beyond
  • 3 m duplex cable with 2.0 mm jacket for versatile cross-connect use

Duplex Singlemode Patch Cable

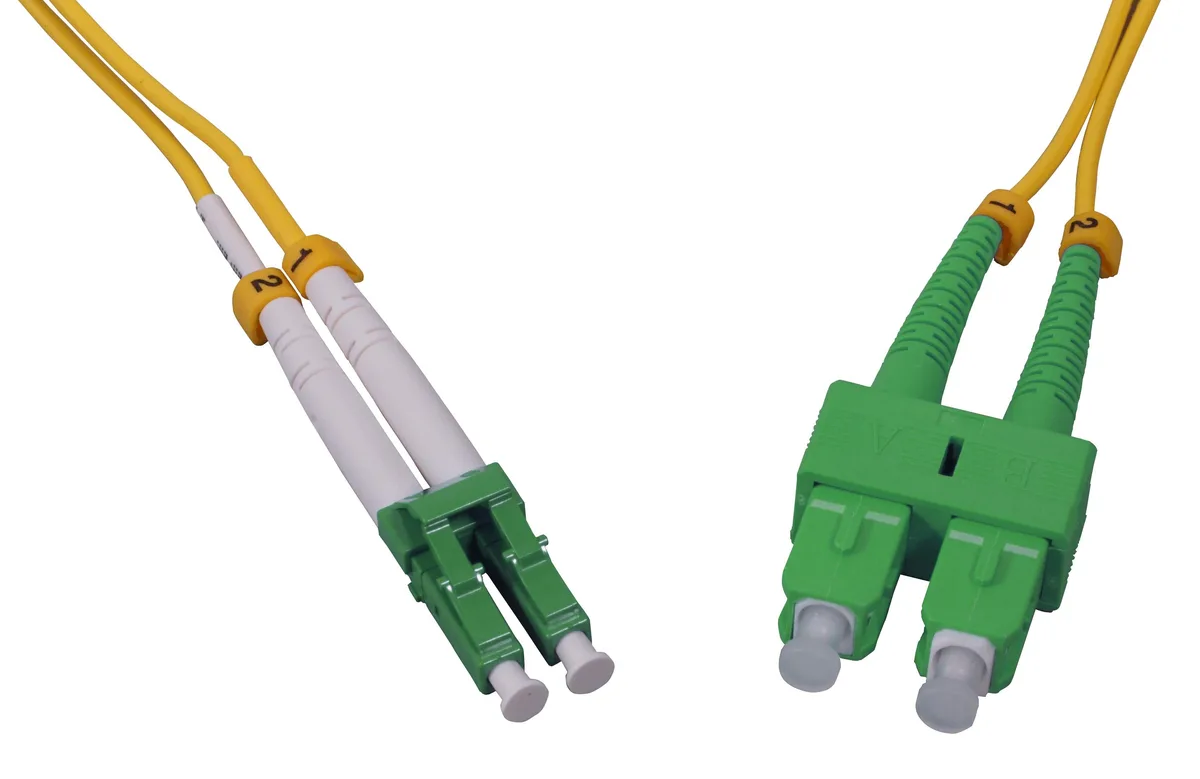

This 3 m duplex singlemode fiber patch cable uses 9/125 µm bend-insensitive glass built to the G.657.A7 specification. It connects an LC UPC connector on one end to an SC APC connector on the other, making it suitable for interconnect and cross-connect links in entrance facilities, telecom rooms, data centers and desk-side drops. Yellow jacket identifies the singlemode run at a glance. OFNR rating supports general indoor routing.

Installers Needing Low Return Loss

The angled SC APC face cuts back-reflection, so the cable suits links where return loss must stay low. It is not for runs that require APC on both ends or UPC on both ends, nor for multimode infrastructure. Buyers who need a different connector pairing or a multimode core should select another assembly.

40G Ethernet Ready Link

Rated for 40G Ethernet and beyond, the Corning ultra-pure glass core keeps attenuation low over distance. The 2.0 mm jacket and bend-insensitive design ease routing around tight bends without excess loss. Each unit ships with its factory test report, so the installer can verify insertion loss before the cable goes into service.

Highlights

  • APC connectors reduce signal reflection and return loss
  • Bend-insensitive G.657.A7 fiber minimizes attenuation when bent or twisted
  • Corning ultra-pure glass core delivers low attenuation and high bandwidth
  • OS2 single-mode fiber supports 40G Ethernet and beyond
  • 3 m duplex cable with 2.0 mm jacket for versatile cross-connect use

Specifications

ModelSinglemode Duplex BIF, UPC to APC
TypeFiber
Length3 m
ColorYellow
Features9/125 µm, Bend Insensitive Fiber Cable G.657.A7

Questions about this item

Which patch-panel ports or transceivers must I already have to plug in the LC UPC and SC APC connectors on this 3 m duplex cable?

You need equipment with LC UPC and SC APC bulkhead adapters or SFP/SFP+ modules that present those same single-mode interfaces.

Will the G.657.A1 bend-insensitive single-mode fiber work reliably alongside legacy OS2 cabling already in my rack?

Yes — G.657.A1 is fully compatible with standard OS2 single-mode installations and meets the same 9/125 µm geometry for low-loss splicing or patching.

How can I verify the cable is performing correctly once it is installed?

Each unit ships with a factory test report; compare the measured insertion loss and return loss on that report against your link-loss budget.
