Intellinet Network Solutions

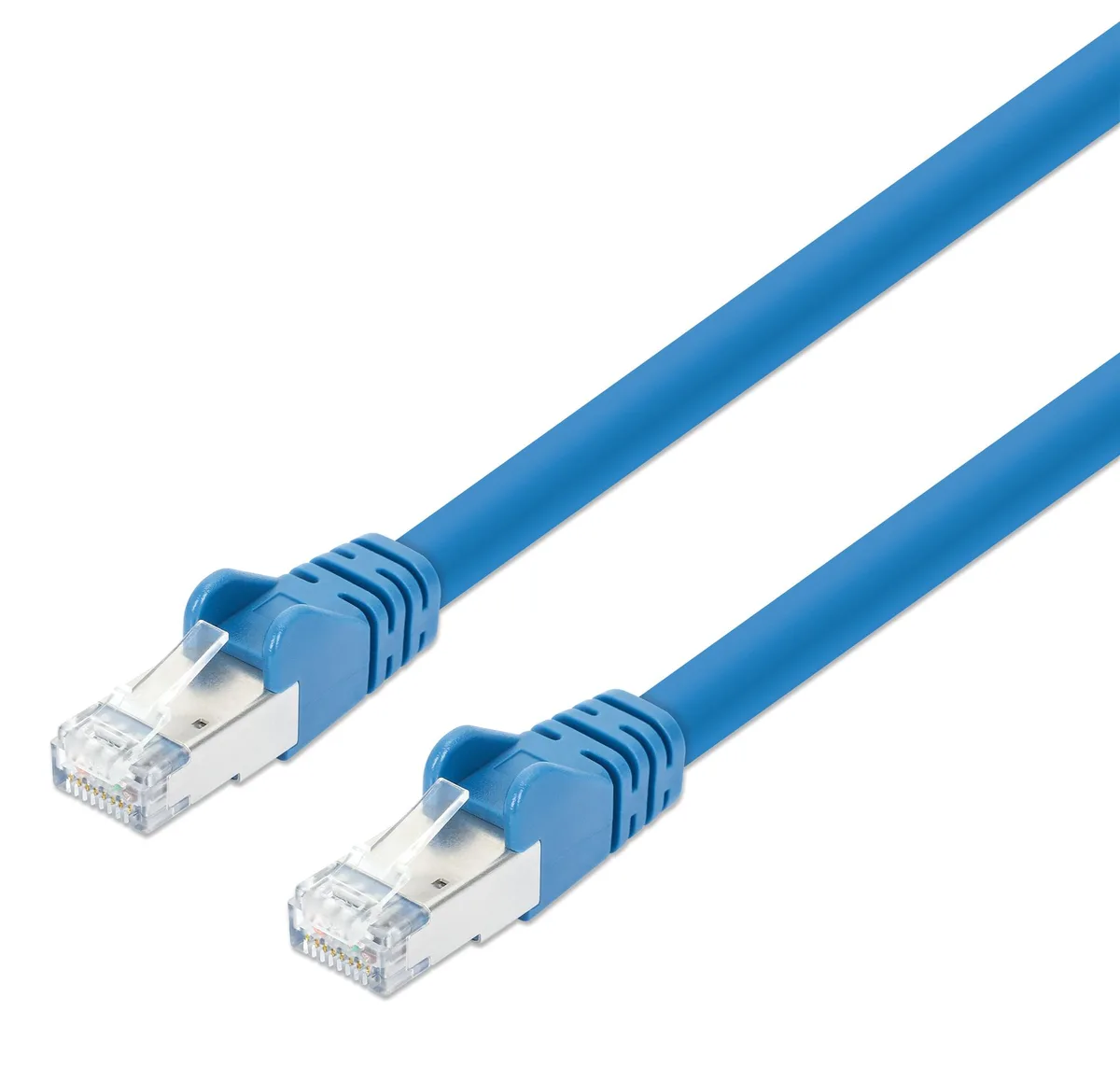

Intellinet Cat8.1 S/FTP Patch Cable 10 ft Blue
Shielded Cat8.1 cable delivers 40 Gbps at 2 GHz over 10 ft with pure copper conductors and gold-plated contacts
- TypeNetwork Ethernet Cables
- Cat8
- Connector ARJ45
- Connector BRJ45
- Length10 ft.
- ColorBlue
- Supports 40 Gbps data rates with 2 GHz bandwidth
- Certified Cat8.1 Class I per ISO/IEC 11801 and EN 50173-1
- S/FTP shielding with aluminum foil per pair and overall braid
- 100 % bare copper conductors and 50 µin gold-plated contacts

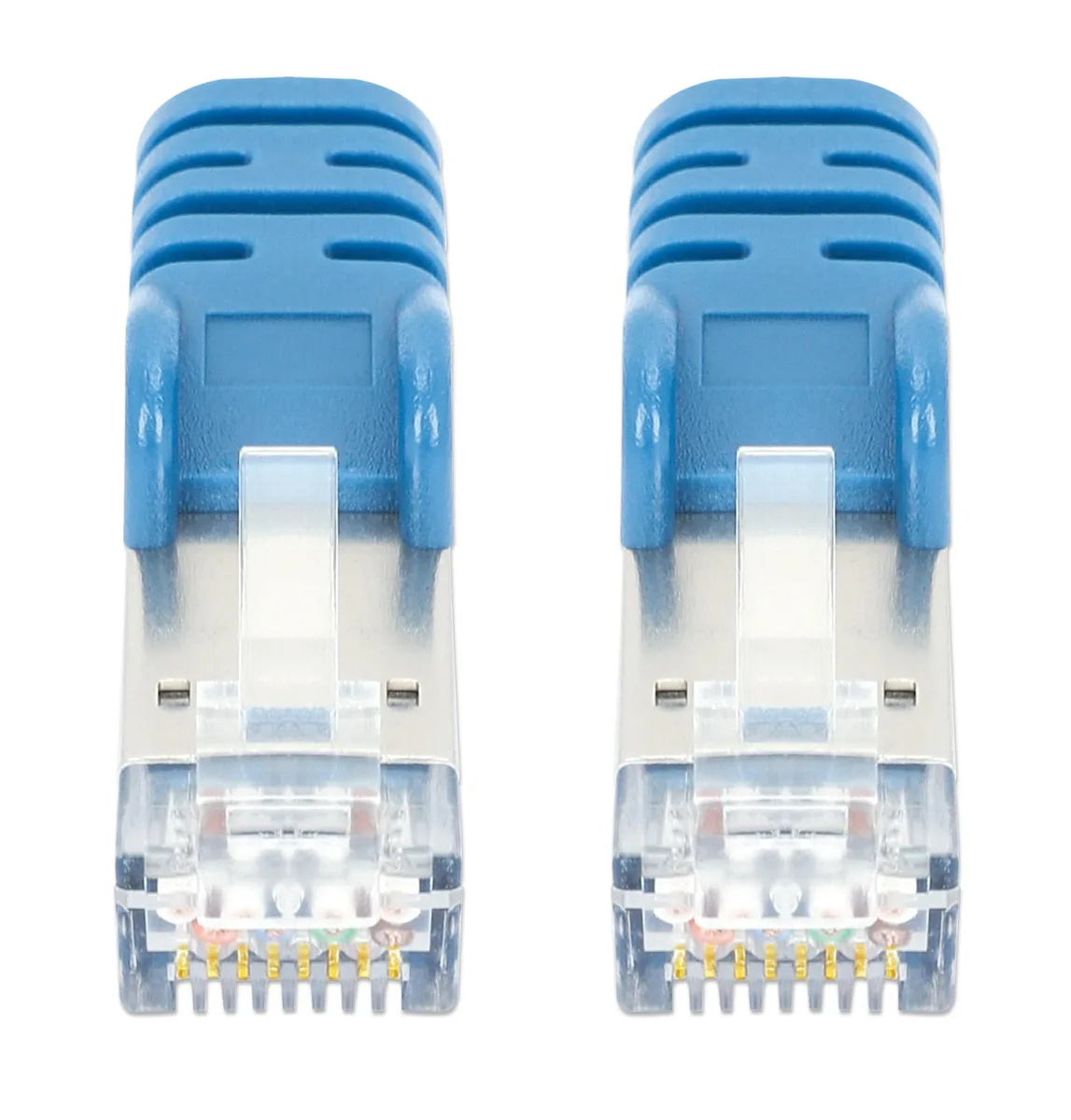

- Snag-free boots and heavy-duty strain relief protect RJ45 connectors
Cat8.1 S/FTP Patch Cable 10 ft
This Cat8.1 S/FTP patch cable provides a 10 ft shielded link for 40 Gbps Ethernet at frequencies up to 2 GHz. It uses 100 % bare copper conductors in a 24 AWG stranded construction with gold-plated RJ45 contacts. The S/FTP design wraps each pair in aluminum foil and adds an overall aluminum braid for maximum noise immunity. Snag-free boots and heavy-duty strain relief protect the connectors during repeated moves.
Suited for data-centre ToR and MoR links.
The cable is certified to Cat8.1 Class I under ISO/IEC 11801 and EN 50173-1, supporting 25GBase-T and 40GBase-T plus PoE++ up to IEEE 802.3bt. Its 10 ft length fits rack-to-rack or switch-to-server patching inside a cabinet. Builders who need longer horizontal runs, different colours, or unshielded cabling for simpler termination should look at other solutions.
40 Gbps at 2 GHz over 10 ft
The single specification that decides fit is the 40 Gbps data rate at 2000 MHz bandwidth across the 10 ft S/FTP construction. This performance level meets Cat8.1 Class I requirements for top-of-rack and middle-of-row installations and carries PoE++ power without extra wiring. If the link demands lower speed, longer reach, or a different shielding scheme, this cable will not match the requirement.
Highlights
- Supports 40 Gbps data rates with 2 GHz bandwidth
- Certified Cat8.1 Class I per ISO/IEC 11801 and EN 50173-1
- S/FTP shielding with aluminum foil per pair and overall braid
- 100 % bare copper conductors and 50 µin gold-plated contacts
- Snag-free boots and heavy-duty strain relief protect RJ45 connectors
Specifications
| Brand | Intellinet Network Solutions |
|---|---|
| Model | Cat8.1 S/FTP Network Patch Cable |
| Type | Network Ethernet Cables |
| Cat | 8 |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Length | 10 ft. |
| Color | Blue |
| Shielded | Yes |
| Features | 40G, 2 GHz, 100% Copper, 24 AWG, RJ45, Stranded, Snag-free, Gold-plated Contacts |
Questions about this item
Does the 10 ft blue cable ship with both RJ45 ends already attached, or do I need to buy connectors separately?
Both RJ45 connectors are factory-terminated on the 10 ft blue cable, so no separate plugs or crimping tools are required.
Should I choose the 24 AWG stranded version for a 10 ft patch run or is a solid-core option available?
The listed 10 ft cable uses 24 AWG stranded conductors, which are designed for flexible patch-cord use; no solid-core variant is offered in this listing.
What does the 40 Gbps / 2 GHz rating mean when the cable is plugged into a standard 10 GbE switch port?
The cable is certified to 40 Gbps at 2 GHz, so it will run a 10 GbE link well within its rated headroom and also supports PoE++ up to IEEE 802.3bt.
