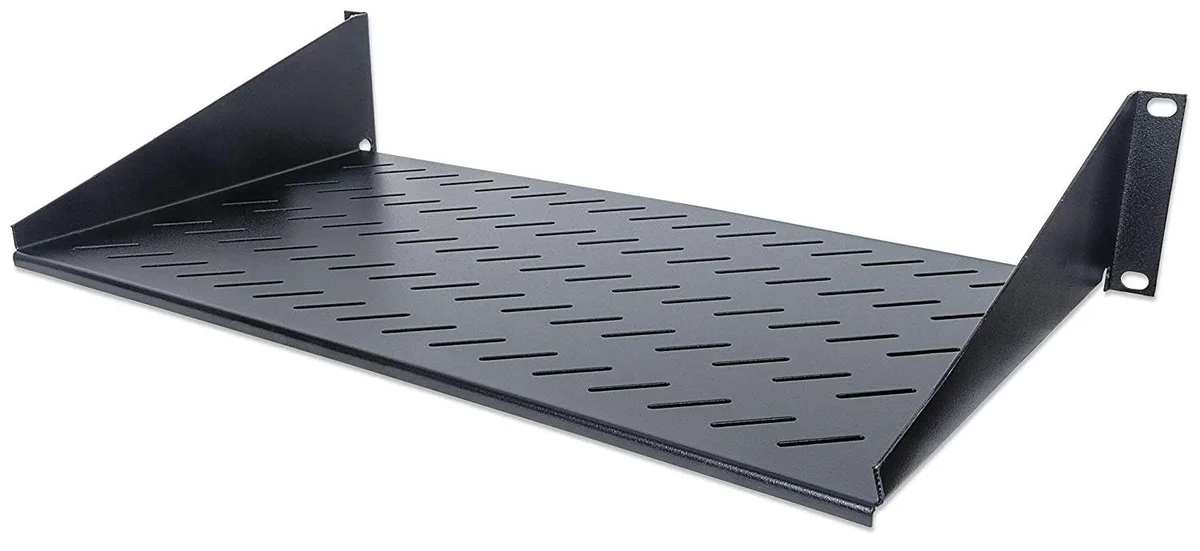

Intellinet 712507 19" Cantilever Shelf 2U 250 mm Depth Vented Black

19" Cantilever Shelf 2U 250 mm Depth

The Intellinet 712507 is a 19-inch cantilever shelf designed for two-point front mounting in standard server racks. It occupies 2U of rack space and provides a 250 mm deep platform for equipment that does not require full-depth support. The unit is built from 1.5 mm thick steel with a black RAL 9005 finish. It suits installers who need a lightweight, front-mounted surface for modems, switches or small appliances.

Sustained Load Capacity 25 kg

The shelf carries a maximum static load of 25 kg, a rating that applies to continuous, evenly distributed weight rather than a brief peak. Because it mounts only at the front flange, the cantilever design transfers bending moment directly to the rack uprights, so the 25 kg limit assumes the cabinet is properly secured and level. Heavier devices or deep chassis that shift the centre of gravity far from the rails exceed the design envelope and should use a four-post or heavy-duty shelf rated up to 100 kg.

Vented Steel Construction Black

Perforations across the tray surface allow front-to-rear airflow around mounted gear, helping to keep temperatures stable during normal operation. The 1.5 mm steel panel resists flex under the rated load without adding significant mass, and the powder-coated black finish matches standard RAL 9005 rack aesthetics. No moving parts or fans are present, so the shelf adds no audible noise or power draw to the installation.
