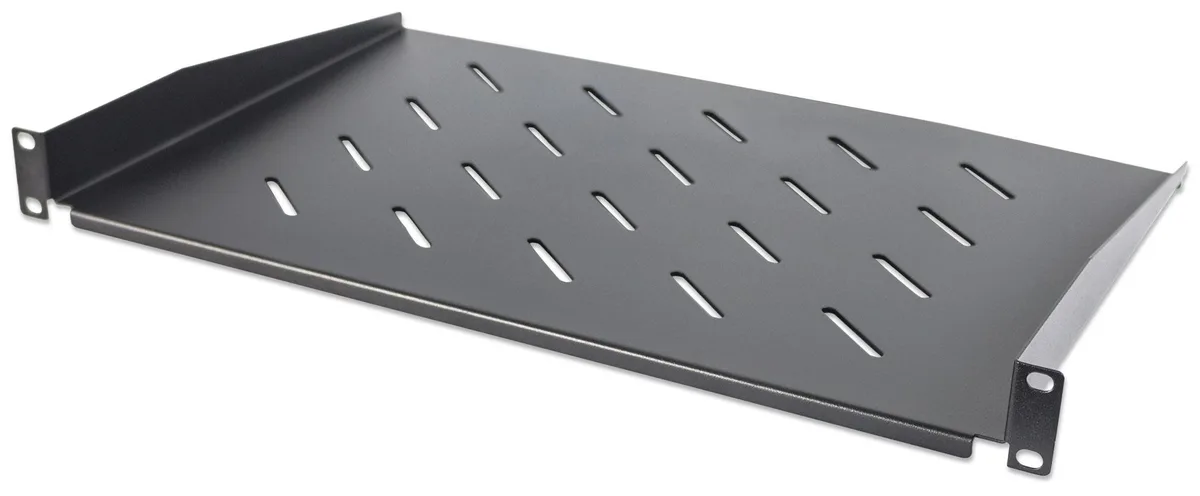

Black vented steel cantilever shelf, 1U 19-inch rackmount, 300 mm deep

Intellinet

Intellinet 19" Cantilever Shelf 1U 300 mm Vented Black

SKU CH-8F2Y-9J25B

A vented 1U cantilever shelf for 19-inch racks, 300 mm deep, supporting 25 kg static load with 1.2 mm steel and antistatic powder coating

  • 1U cantilever design fits 19" racks without rear rails
  • 25 kg (55 lbs) static load rating holds heavy gear
  • 300 mm (11.8 in) depth suits compact cabinets
  • 2 mm steel with antistatic powder coating resists EMI
  • Front or rear mounting gives flexible equipment access

19" 1U Cantilever Shelf

This 19-inch cantilever shelf occupies a single 1U rack space and bolts to the front or rear rails of any standard cabinet. It is intended for network administrators who need quick, tool-free access to equipment without committing to a full-depth fixed shelf. The vented steel surface supports a maximum static load of 25 kg (55 lbs.) for routers, switches or test gear.

Build quality and mounting

The shelf is formed from 1.2 mm steel and finished with an antistatic powder coating that reduces electromagnetic interference with sensitive networking hardware. Its cantilever design means it attaches to only one pair of rails, leaving the opposite side completely open for cable routing or airflow. The black finish matches typical rack aesthetics.

Practical limits

The 300 mm (11.8 in.) shelf depth restricts the size of devices that can sit securely without overhang. Loads heavier than the rated 25 kg risk permanent deformation of the steel. The single-rail mounting also makes the shelf unsuitable for deep or heavily vibrating appliances that require four-point fixation.

Highlights

  • 1U cantilever design fits 19" racks without rear rails
  • 25 kg (55 lbs) static load rating holds heavy gear
  • 300 mm (11.8 in) depth suits compact cabinets
  • 2 mm steel with antistatic powder coating resists EMI
  • Front or rear mounting gives flexible equipment access

Specifications

BrandINTELLINET

Questions about this item

Does the 19" cantilever shelf mount on standard 19" rack rails?

Yes, the shelf is designed to bolt directly to the front or rear 19" mounting rails of any standard rack or cabinet.

What depth and steel thickness does the 300 mm shelf have?

The usable shelf depth is 300 mm (11.8 in.) and it is built from 1.2 mm thick steel.

How do I install the cantilever shelf and what is the common mistake?

Bolt the brackets to the front or rear 19" rails using four cage nuts per side; the common mistake is using only the front holes and leaving the rear flange unsecured.
