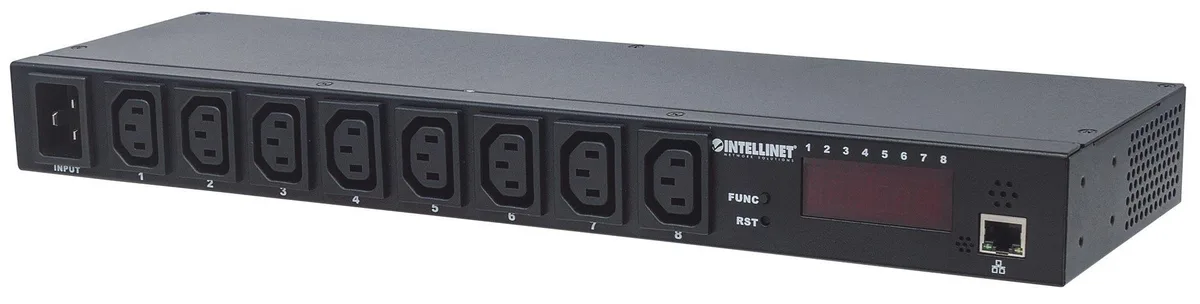

Silver 19-inch rackmount PDU with eight C13 outlets and digital display

Intellinet

Intellinet 163682 19" Switched Metered 8-Outlet PDU

SKU CH-Y0FY-BX7NF MPN 163682

A 19-inch rackmount PDU with eight switched IEC C13 outlets, metered monitoring, and built-in temperature and humidity sensors

  • TypeSwitched, Metered
  • Monitors power, temperature and humidity via built-in sensors
  • Eight switched IEC320 C13 outlets deliver up to 16 A total
  • Real-time voltage, current and IP shown on digital display
  • Remote power cycling per outlet through web interface
  • 19-inch rackmount design with fanless silent operation

19" Switched Metered PDU for 8 Devices

The Intellinet 163682 is a 19-inch rackmount power distribution unit built for server rooms and network cabinets. It delivers eight IEC320 C13 outlets with a total current rating of 16 A and monitors voltage, wattage, temperature and humidity through a built-in sensor. Administrators manage outlets and alarms via a web interface or the front digital display.

Replaces basic strips when remote control is needed

This unit upgrades a standard power strip by adding per-outlet switching, real-time metering and environmental monitoring. The jump is worth it when you must reboot hung devices remotely, set overload thresholds or track rack temperature and humidity without extra sensors. It does not suit setups that only need passive distribution or lack an RJ45 management network.

Mounts in 19" rack and connects via IEC320 C20 input

Installation uses standard 19-inch rack rails and a single IEC320 C20 inlet fed by the included 7 ft IEC320 C19 to NEMA 5-15P cable. Each of the eight outputs requires a separate 15 A 14 AWG IEC320 C14 to C13 extension cable, which is not supplied. Common issues are forgetting to order those output cables and overlooking the need for a LAN drop to reach the RJ45 port.

Highlights

  • Monitors power, temperature and humidity via built-in sensors
  • Eight switched IEC320 C13 outlets deliver up to 16 A total
  • Real-time voltage, current and IP shown on digital display
  • Remote power cycling per outlet through web interface
  • 19-inch rackmount design with fanless silent operation

Specifications

BrandIntellinet
TypeSwitched, Metered
Shipping weight2.47 kg
Package size508 × 203 × 102 mm

Questions about this item

How deep is the 19-inch rackmount chassis so I can confirm it fits my cabinet?

The unit is built for standard 19-inch racks; allow enough depth for the rear IEC320 C20 inlet and the eight C13 outlets plus cable bend radius.

What network step is required before the web interface will show voltage, temperature and humidity readings?

Connect the RJ45 LAN port to your network, assign an IP address via DHCP or static configuration, then log in to the web UI to enable monitoring and per-outlet control.

Which replacement cables are needed when the IEC320 C13 output leads wear out?

Use 15 A 14 AWG cords with IEC320 C14 plugs on the PDU side and IEC320 C13 connectors on the device side; the supplier lists NE Item# 9SIBTE0KBH3135 and 9SIBTE0KBH3046 as compatible options.
