Weatherproof metal box with two RJ45 ports and AC power input

Inscape Data Corporation

Inscape Data Corporation PIS2060 2-Port Gigabit PoE Injector 60W IP67

SKU CH-S0DQ-G0FPG

Outdoor two-port Gigabit PoE injector delivers up to 60 W per port with IP67 weatherproofing and lightning-protected AC input

  • Delivers up to 60W per port for high-power devices
  • Two Gigabit RJ45 ports provide 10/100/1000 Mbps connectivity
  • IP67 rated enclosure withstands harsh outdoor environments
  • Fanless design ensures silent operation in any setting
  • Built-in lightning protection safeguards connected equipment

Outdoor PoE Injector for High-Power Devices

The Inscape Data PIS2060 is a two-port Gigabit PoE injector built for outdoor deployments that require up to 60 watts per port. It supports IEEE 802.3bt Class 6 and remains backward compatible with Type 1 15.4W and Type 2 30W powered devices. The unit accepts AC input through a lightning-protected port and delivers DC power over all four twisted-pair line pairs.

Fanless Cooling Across Extreme Temperatures

With no fans, the injector relies on natural convection and operates silently from -22°F to 158°F (-30°C to 70°C). Each PoE port outputs 43.2 to 52.8 volts at 60 watts while the total power budget reaches 65 watts. The IP67-rated enclosure and water-tight connectors protect the internal Texas Instruments TPS23881 chipset against dust and water ingress.

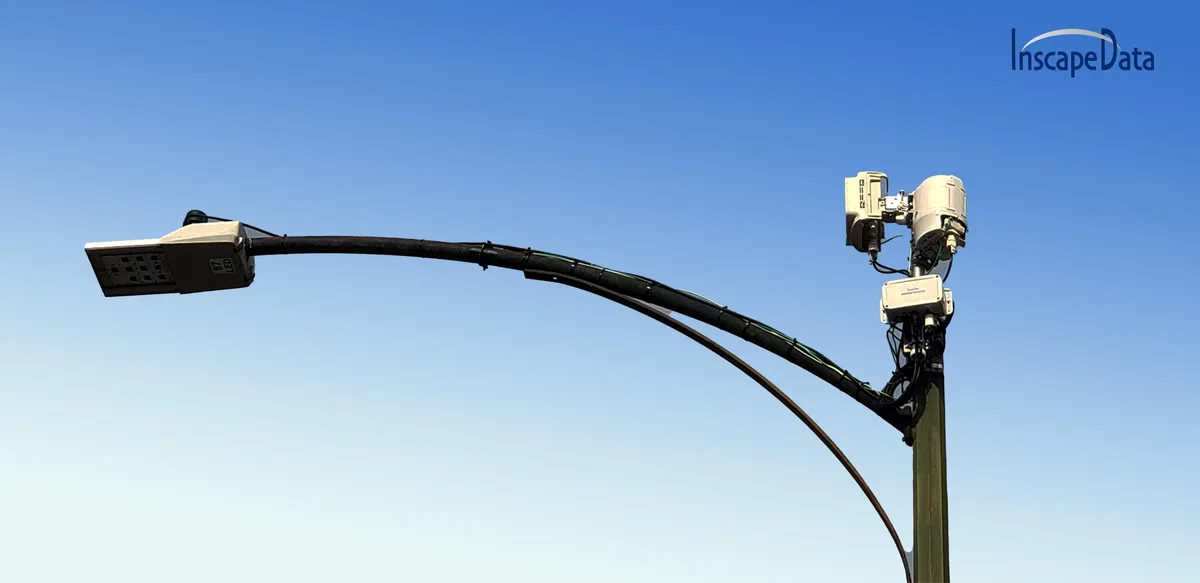

Simple Integration for Outdoor Networks

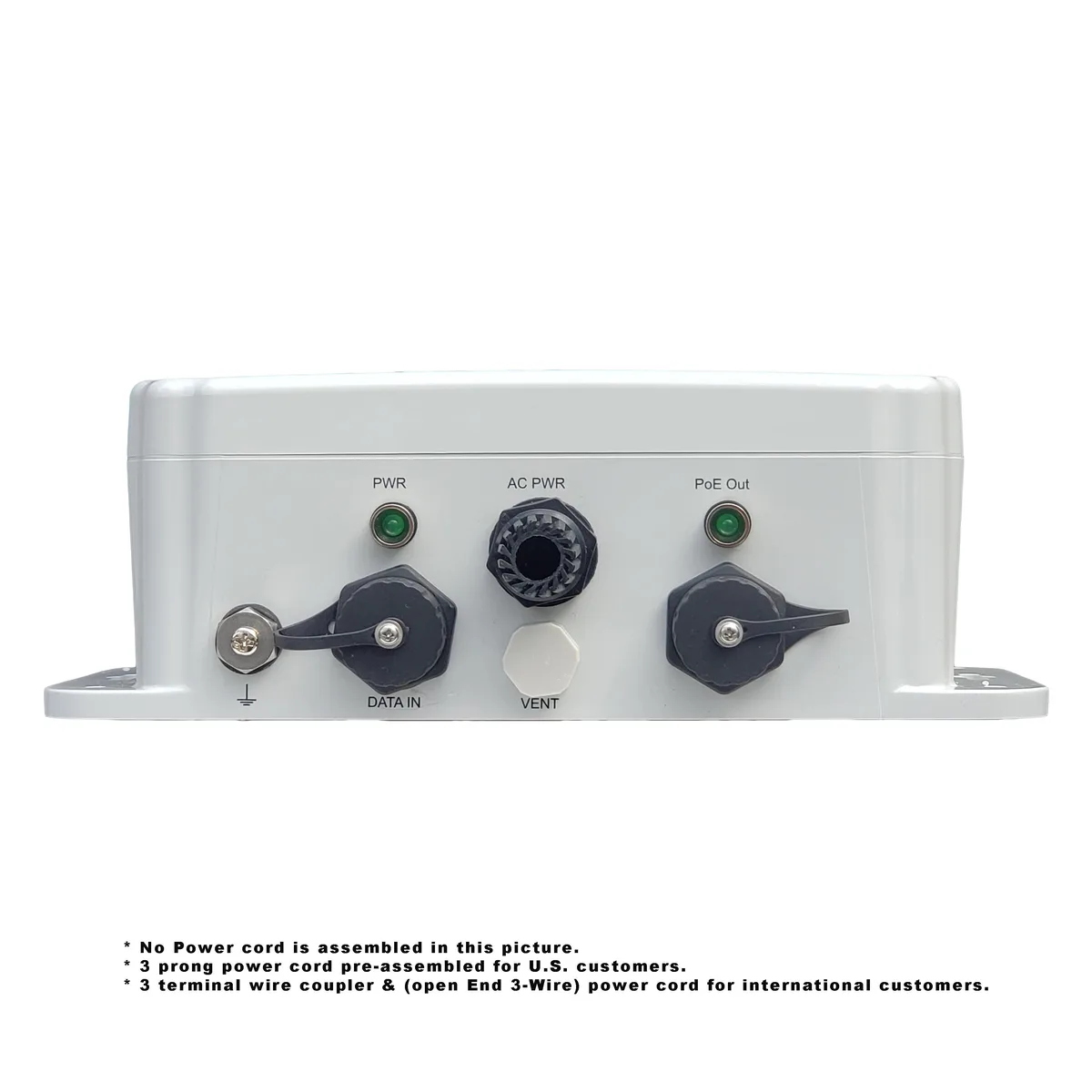

Two 10/100/1000 Mbps RJ45 ports connect the injector between a network switch and powered devices such as wireless access points or cameras. External LEDs indicate link status, PoE power, system power and AC output at a glance. The compact, fanless design fits tight outdoor enclosures without adding noise, though builders needing more than two powered ports or indoor-only rack mounting should consider other form factors.

Highlights

  • Delivers up to 60W per port for high-power devices
  • Two Gigabit RJ45 ports provide 10/100/1000 Mbps connectivity
  • IP67 rated enclosure withstands harsh outdoor environments
  • Fanless design ensures silent operation in any setting
  • Built-in lightning protection safeguards connected equipment

Specifications

No published specifications for this item yet.

Questions about this item

How do I mount the PIS2060 outdoors and which step is often missed?

Secure the IP67-rated enclosure with its integrated brackets, then fit the water-tight connectors onto each RJ45 port — skipping the connector seals breaks the IP67 rating.

What part will need replacement first on the PIS2060?

The internal AC-to-DC power supply is the only active component without redundancy; plan to swap it after several years of continuous outdoor operation.

Which limit appears first when both ports run at 60 W continuously?

The 65 W total power budget caps combined output, so the second port drops power once the first draws the full 60 W.
