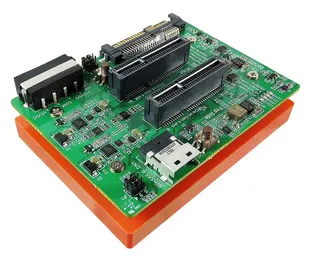

Green printed circuit board with two silver edge connectors and two black vertical slots, plus a silver U.2 port

Innocard

Innocard SlimSAS 4i U.2 PCIe x4 Gender Changer Gen4

SKU CH-B52P-M6C8D

Converts U.2 and SlimSAS 4i drives to dual PCIe x4 slots with hot-swap SMBus and eFuse protection at Gen4 speeds

  • Changer TypePCIe Gen4
  • Converts U.2 and SlimSAS 4i to PCIe x4 slots
  • PCIe Gen4 16 GT/s bandwidth for high-speed storage
  • Built-in SMBus hot-swap buffer with eFuse protection
  • Designed and manufactured in Taiwan
  • SFF-8639 and SFF-8654 pin-outs per SFF-9402 Rev 1.1

SlimSAS 4i and U.2 to PCIe x4 adapter

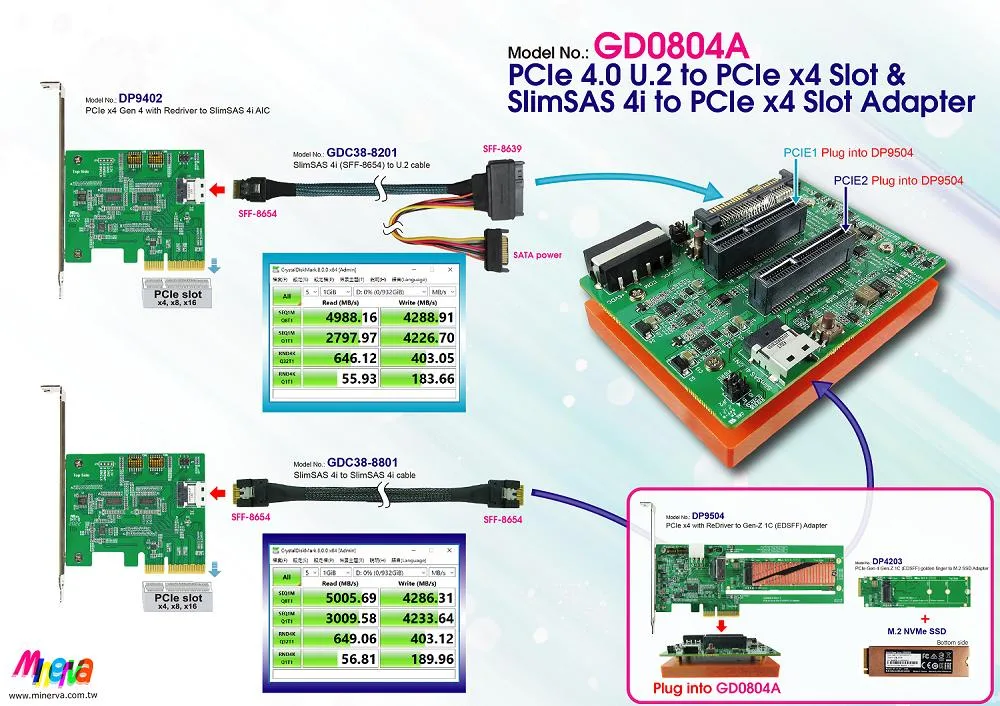

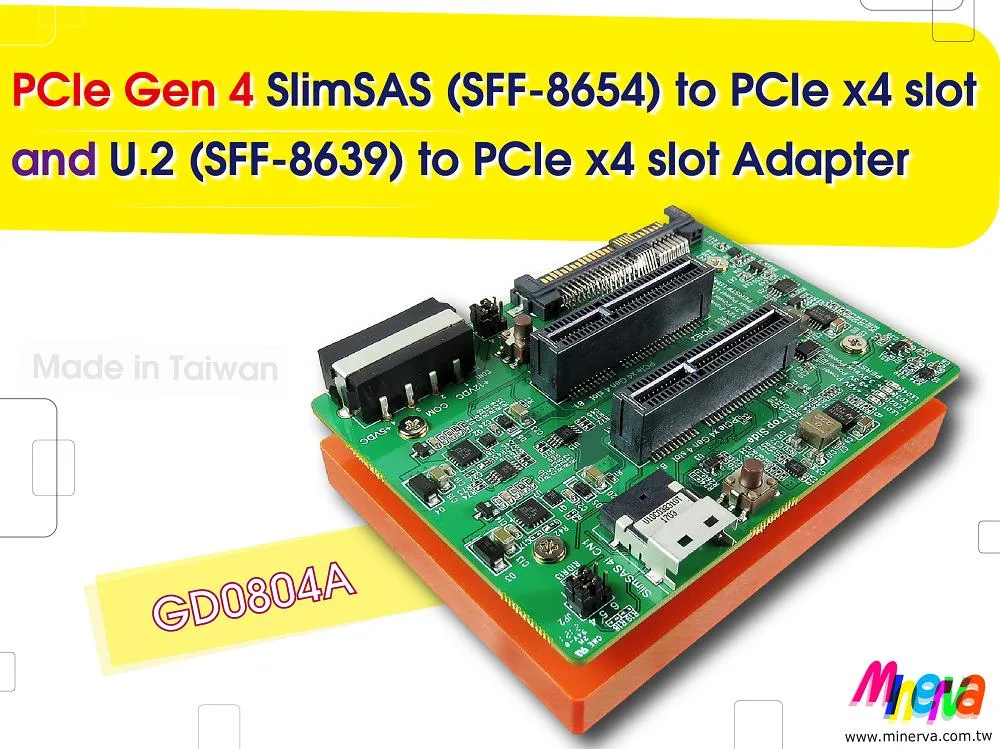

This gender changer converts SlimSAS 4i and U.2 connectors to two PCIe x4 slots for Gen4 signalling at 16GT/s. It suits technicians and system integrators who need to attach SFF-8654 or SFF-8639 storage devices to a standard PCIe backplane. The board is designed and made in Taiwan and carries part number GD0804A.

Hot-plug power management with eFuse protection

Each PCIe slot receives +12 V through an eFuse with a programmable 6.5 A current limit and controlled inrush slew rate. On-board PWM and LDO buck converters generate 3.3 V rails up to 4 A with over-current, under-voltage and UVLO safeguards. Thermal shutdown and 2 kV HBM ESD protection guard both power domains during insertion and removal.

Replaces separate SlimSAS and U.2 interposers

One card handles both SFF-8654 4i and SFF-8639 pin-outs defined by SFF-9402 Rev 1.1, removing the need for two distinct adapters. Built-in SMBus hot-swap buffers and Broadcom 95xx Tri-Mode sideband support (BP_TYPEA/B pull-ups, CPRSNT pull-downs) let MegaRAID and HBA controllers manage presence detect without extra cabling. The jump is worthwhile when a single Gen4 x4 slot must serve mixed drive form factors.

Highlights

  • Converts U.2 and SlimSAS 4i to PCIe x4 slots
  • PCIe Gen4 16 GT/s bandwidth for high-speed storage
  • Built-in SMBus hot-swap buffer with eFuse protection
  • Designed and manufactured in Taiwan
  • SFF-8639 and SFF-8654 pin-outs per SFF-9402 Rev 1.1

Specifications

Changer TypePCIe Gen4

Questions about this item

How do I install the SlimSAS 4i and U.2 connectors to the PCIe x4 slots, and what step is often missed?

Plug each connector into its matching PCIe x4 slot, then attach the SMBus hot-swap buffer cable; the step often missed is enabling the BP_TYPE pull-up resistors for Broadcom 95xx Tri-Mode adapters.

What maintenance or replacement will this gender changer need over time?

The eFuse protecting the +12 V rail and the 3.3 V load switches are the only active protection parts; if a sustained over-current or thermal event trips them, the board must be replaced.

What limit appears first when the adapter runs at PCIe Gen 4 16 GT/s under sustained load?

The programmable 6.5 A current limit on the +12 V hot-plug circuit is the first ceiling reached during continuous high-speed operation.
