Green printed circuit board add-in card with gold edge connector and multiple black connectors and chips

Innocard

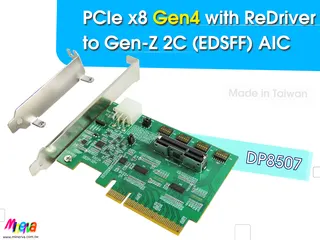

Innocard PCIe x8 Gen4 ReDriver to Gen-Z 2C EDSFF AIC

SKU CH-RMTC-GJXR8

Adds a PCIe x8 Gen 4 ReDriver and EDSFF 2C connector to extend 8-lane signals for server BMC management

  • Changer TypePCIe Gen4
  • PCIe Gen4 ReDriver extends 8-lane signal integrity
  • Built-in EDSFF 2C latch connector secures module retention
  • SMBus I/O expander at 0x21 enables Gen-Z 2C power disable control
  • Clock buffer at 0x6C drives longer traces for BMC management
  • 12 V hot-plug power with eFuse protection safeguards insertion

PCIe Gen4 x8 adapter with ReDriver

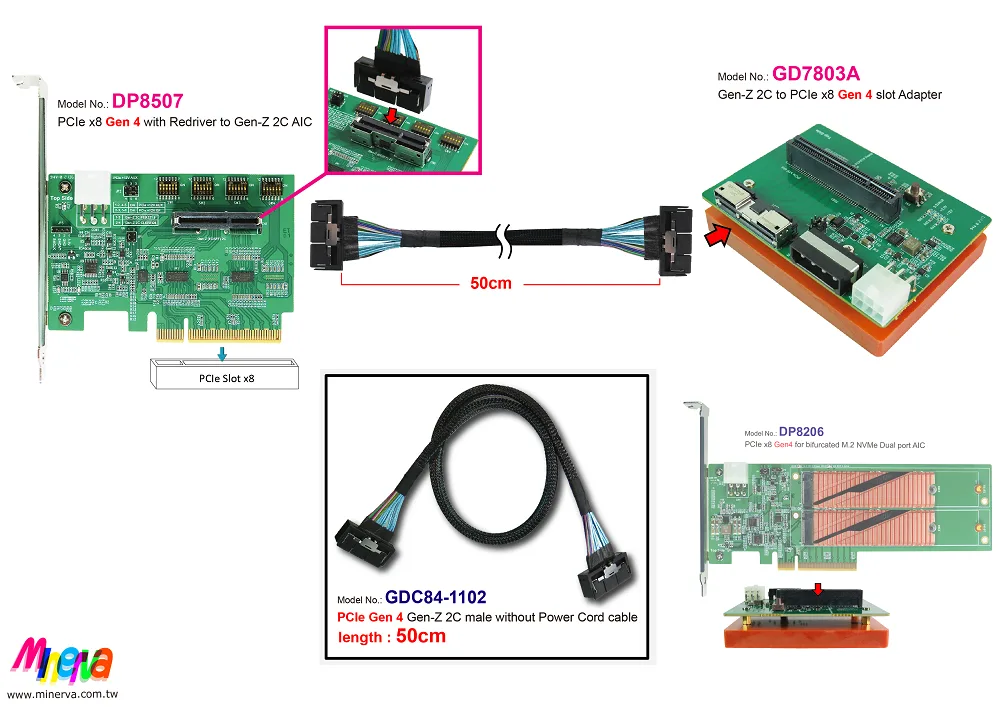

This Innocard add-in card converts a PCIe x8 Gen4 slot into a Gen-Z 2C EDSFF connection. It includes a ReDriver to extend eight-lane signal integrity and a 100 MHz clock buffer for longer traces. The board is designed and made in Taiwan and targets server or industrial deployments.

Check slot width and management needs

Verify the host system provides a PCIe x8 Gen4 slot and that the chassis can accommodate an EDSFF 2C module with latch connector. The card exposes SMBus addresses 0x21 and 0x6C for power-disable and BMC management, plus PERST0#, PERST1#, WAKE# and CLKREQ# translators for out-of-band control. A 12 V hot-plug supply with eFuse protection is built in.

Suits integrators needing Gen-Z 2C over PCIe

This adapter suits engineers extending Gen4 links to remote EDSFF storage or accelerators in server and industrial environments. It is not for desktop users who need consumer M.2 or U.2 connectivity, nor for builds lacking BMC or SMBus infrastructure to manage the side-band signals.

Highlights

  • PCIe Gen4 ReDriver extends 8-lane signal integrity
  • Built-in EDSFF 2C latch connector secures module retention
  • SMBus I/O expander at 0x21 enables Gen-Z 2C power disable control
  • Clock buffer at 0x6C drives longer traces for BMC management
  • 12 V hot-plug power with eFuse protection safeguards insertion

Specifications

Changer TypePCIe Gen4

Questions about this item

Does the card ship with any cables or brackets, or must they be purchased separately?

The product is supplied as the add-in card only; cables, brackets and mounting hardware are not included and must be sourced separately.

Which PCIe lane width and generation does this adapter support?

It provides a PCIe x8 Gen 4 connection with an on-board ReDriver to maintain signal integrity across the link.

What does the 100 MHz clock buffer do for the installed system?

The buffer drives the reference clock over longer traces and cables, keeping timing margins within PCIe 4.0 CEM limits for the x8 link.
