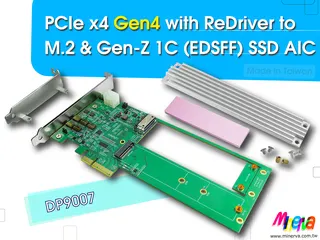

Innocard PCIe Gen4 Gender Changer M.2 EDSFF 1C ReDriver

PCIe Gen4 x4 Adapter with ReDriver

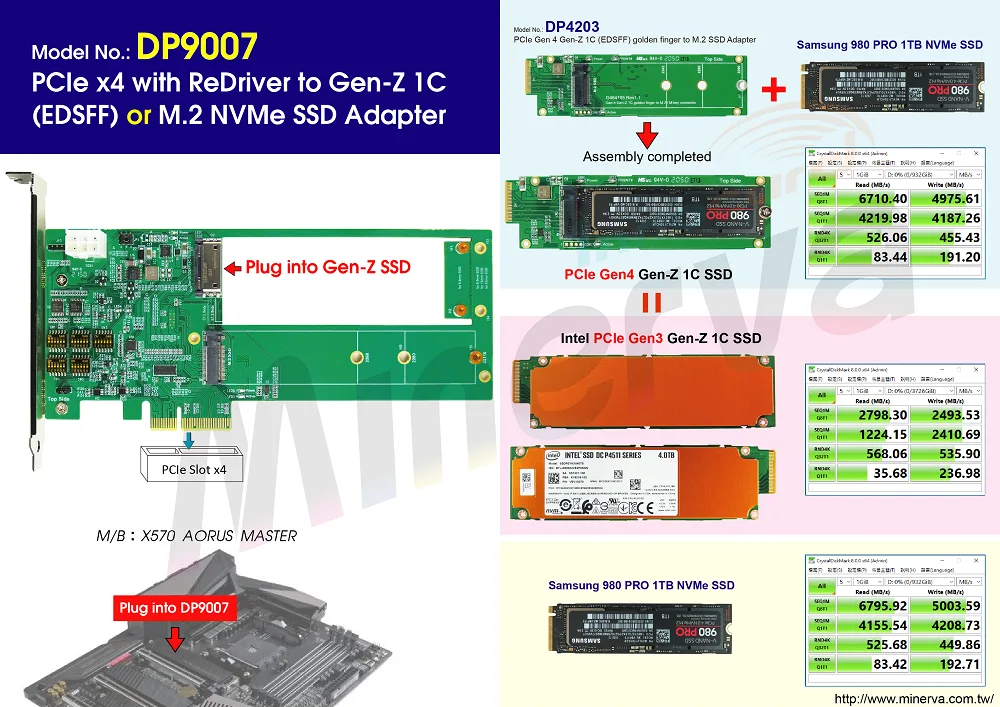

This adapter converts a single PCIe 4.0 x4 slot to either an M.2 NVMe SSD or an EDSFF 1C SSD. It includes a ReDriver that boosts signal integrity up to 17 dB at 16 GT/s, plus a 100 MHz clock buffer for extended trace lengths. On-board SMBus devices at addresses 0x21, 0x6C and 0x71 provide IPMI control and reset functions. Power enable and PERST# buffering support out-of-band management.

Suits servers needing flexible EDSFF

Builders who require a fixed M.2 slot without EDSFF capability should consider a simpler riser. Systems lacking SMBus management infrastructure cannot use the remote reset and power-control features. The card occupies one PCIe x4 slot, so platforms without a free x4 lane cannot accommodate it. Buyers needing dual-drive support must use two separate adapters.

PCIe 4.0 x4 ReDriver extends signal reach

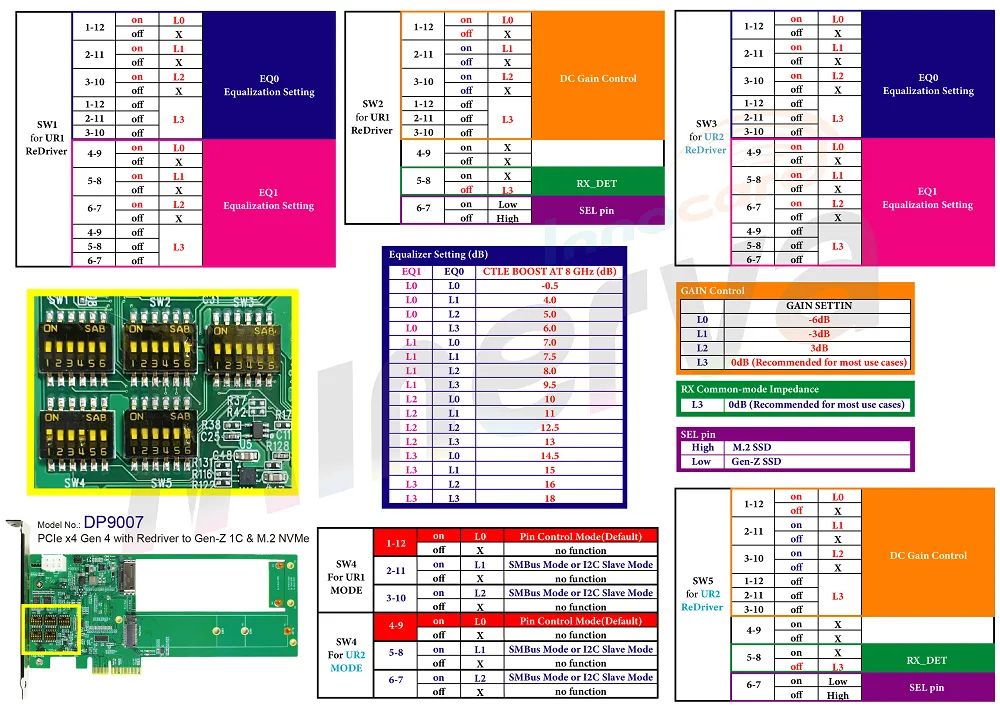

The integrated ReDriver applies up to 17 dB gain on 16 GT/s differential pairs, while the 100 MHz clock buffer drives longer cables. SMBus addresses 0x6C and 0x71 enable BMC control of PERST#, WAKE# and CLKREQ# buffers. Independent 12 V and 3.3 V enable pins manage EDSFF and M.2 power domains. This signal conditioning decides whether the adapter works in your chassis.
