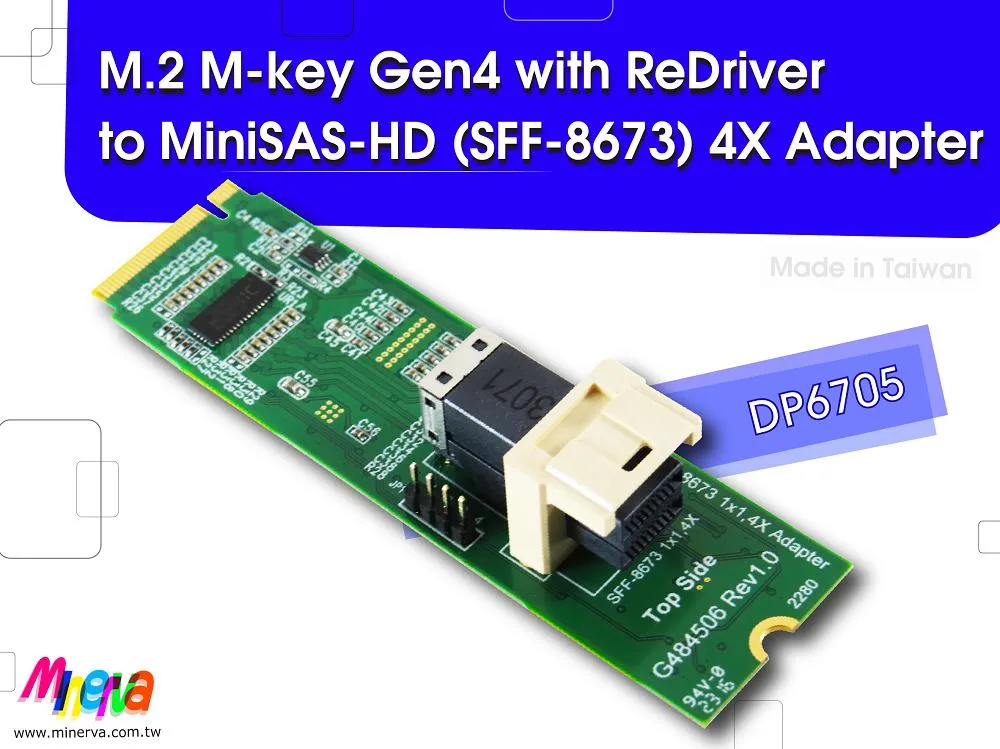

Small green circuit board with M.2 M-key slot and MiniSAS-HD connector, gold contacts visible

Innocard

Innocard M.2 M-key PCIe Gen4 gender changer with ReDriver for MiniSAS-HD SFF-8673 4X

SKU CH-HA45-YZHM1

Converts an SFF-8673 4X MiniSAS-HD link to an M.2 M-key PCIe 4.0 slot with an integrated ReDriver, clock buffer and side-band translators for extended signal reach

  • Changer TypePCIe Gen4
  • Converts SFF-8673 4X to M.2 PCIe 4.0
  • Built-in ReDriver extends PCIe 4.0 16GT/s signals
  • Integrated 100MHz clock buffer drives longer traces and cables
  • Hot-swappable SMBus repeater with voltage level shifting
  • PERST#, WAKE#, CLKREQ#, PWRDIS bidirectional translators included

M.2 M-key PCIe Gen4 gender changer with ReDriver

This Innocard adapter connects an M.2 M-key slot to a MiniSAS-HD SFF-8673 4X interface using a built-in PCIe ReDriver. It supports PCI Express 4.0 at 16 GT/s across a x4 link. A 100 MHz clock buffer and SMBus repeater with voltage-level translation extend signal reach for longer cables. Hot-plug support is included via PERST# and PWRDIS translators tied to the SFF-8673 connector.

Suited for server and HPC integration

The card fits rack, microserver and tower platforms needing to bridge M.2 storage or accelerators to MiniSAS-HD backplanes. It operates under Windows 8, 8.1, 10, 11 and UEFI 2.3.1 or later. Builders without an M.2 M-key slot or a MiniSAS-HD SFF-8673 4X port cannot use this changer. Systems limited to PCIe 3.0 will not gain Gen4 speeds from the adapter alone.

PCIe Gen4 x4 with ReDriver and clock buffer

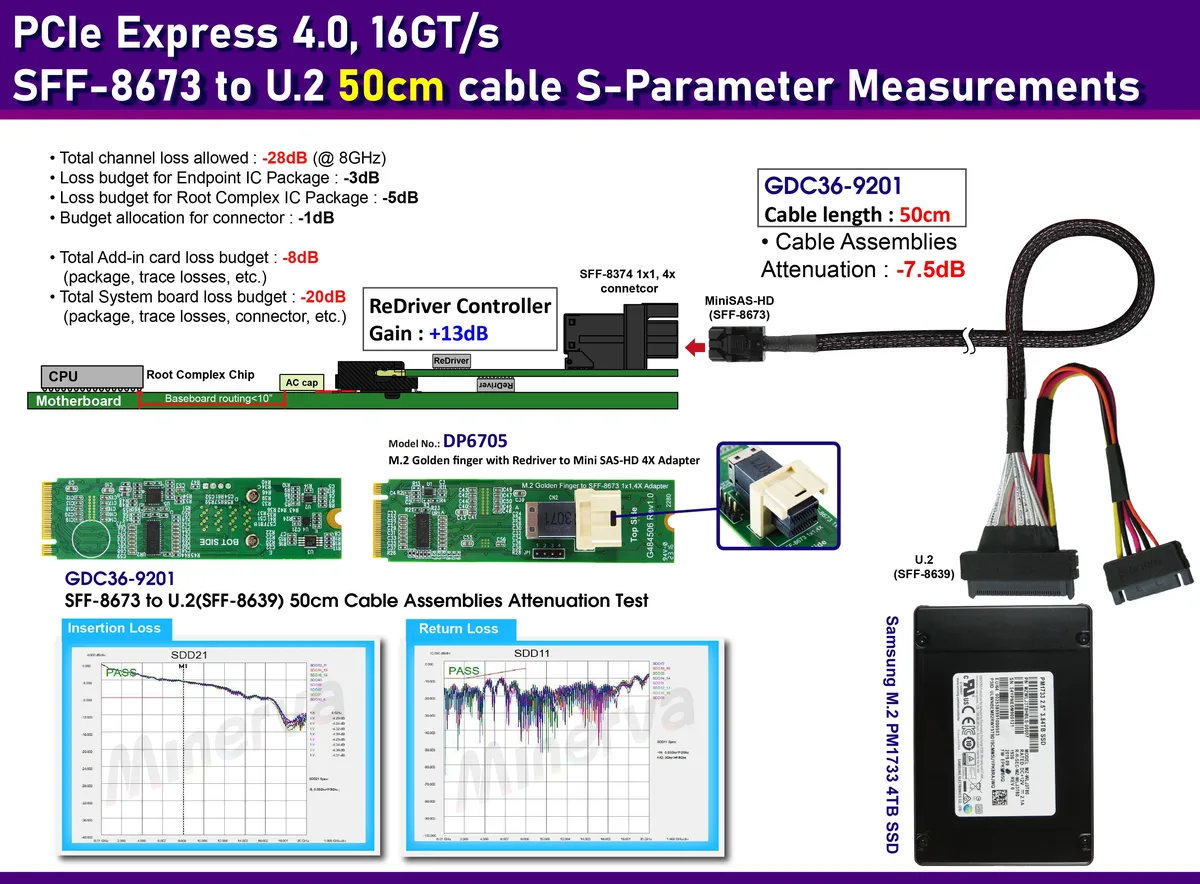

The integrated ReDriver restores 16 GT/s differential signals while the clock buffer drives extended trace lengths. Voltage-level translators handle PERST#, WAKE#, CLKREQ# and PWRDIS across the SFF-8673 B1, C1, B2 and C2 pins. The SFF-8673 connector uses 30 µin gold mating-area plating. Compliance covers PCIe Base 4.0, CEM 4.0, M.2 4.0, SFF-8613 3.5.4_C and SFF-9402 1.1 specifications.

Highlights

  • Converts SFF-8673 4X to M.2 PCIe 4.0
  • Built-in ReDriver extends PCIe 4.0 16GT/s signals
  • Integrated 100MHz clock buffer drives longer traces and cables
  • Hot-swappable SMBus repeater with voltage level shifting
  • PERST#, WAKE#, CLKREQ#, PWRDIS bidirectional translators included

Specifications

Changer TypePCIe Gen4

Questions about this item

Does the box include the MiniSAS-HD SFF-8673 cable or must I buy it separately?

The adapter has a built-in SFF-8673 connector with 30u gold plating; a separate MiniSAS-HD cable is required to reach the target device.

Which PCIe generation does this gender changer support?

It complies with PCI Express Base Specification Rev 4.0 and the M.2 Spec Rev 4.0, delivering 16 GT/s over an x4 link.

Will the 16 GT/s Gen 4 speed hold over a long cable run inside my server?

The on-board ReDriver, 100 MHz clock buffer and SMBus repeater are designed to extend 16 GT/s differential signals across longer traces and cables.
