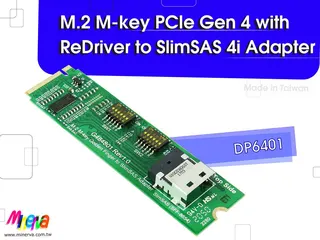

Green circuit board with M.2 slot and SlimSAS connector

Innocard

Innocard M.2 M-key PCIe Gen 4 ReDriver SlimSAS 4i Adapter

SKU CH-X10N-7Y49P

Converts SlimSAS 4i to PCIe 4.0 M.2 with a built-in ReDriver for 16 GT/s signal extension

  • Extends PCIe Gen 4 signals with integrated ReDriver
  • Buffers 100 MHz clock for longer cable runs
  • Repeats SMBus and side-band signals reliably
  • Converts SlimSAS 4i to M.2 M-key slot
  • Designed and manufactured in Taiwan

SlimSAS 4i to M.2 PCIe Gen 4 Adapter

This adapter connects an M.2 M-key PCIe 4.0 device to a SlimSAS 4i (SFF-8654) host interface. It integrates a ReDriver, clock buffer and side-band repeaters to maintain 16 GT/s signal integrity over extended trace lengths and cables. The card targets rack, tower and micro-servers as well as high-performance compute and storage-controller deployments. It operates with Windows 7 through 10 and UEFI 2.3.1 or later.

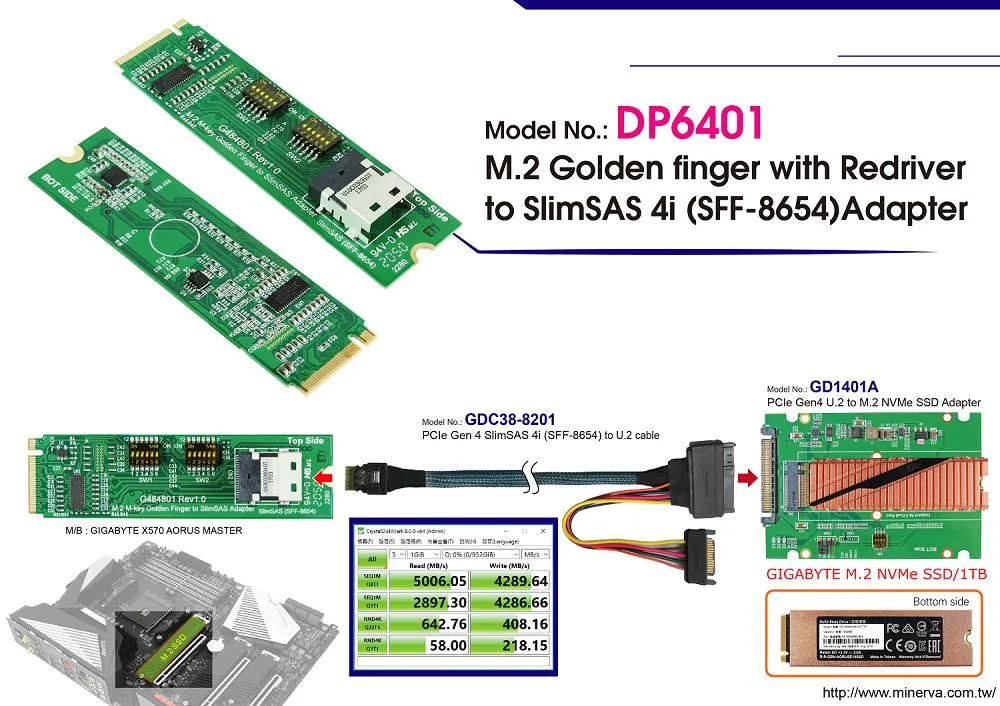

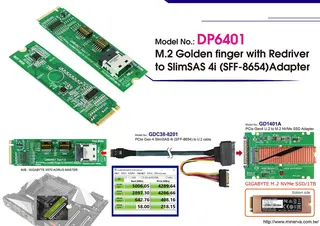

Builders extending PCIe 4.0 to M.2 via SlimSAS

Suitable for integrators who need to route Gen 4 links from a backplane or HBA to an M.2 slot while compensating for longer interconnects. The on-board ReDriver and buffers address clock, PERST#, WAKE# and CLKREQ# across those distances. Not suited for installations that require a different M.2 key, a PCIe 5.0 link, or a direct motherboard M.2 mount without a SlimSAS connection.

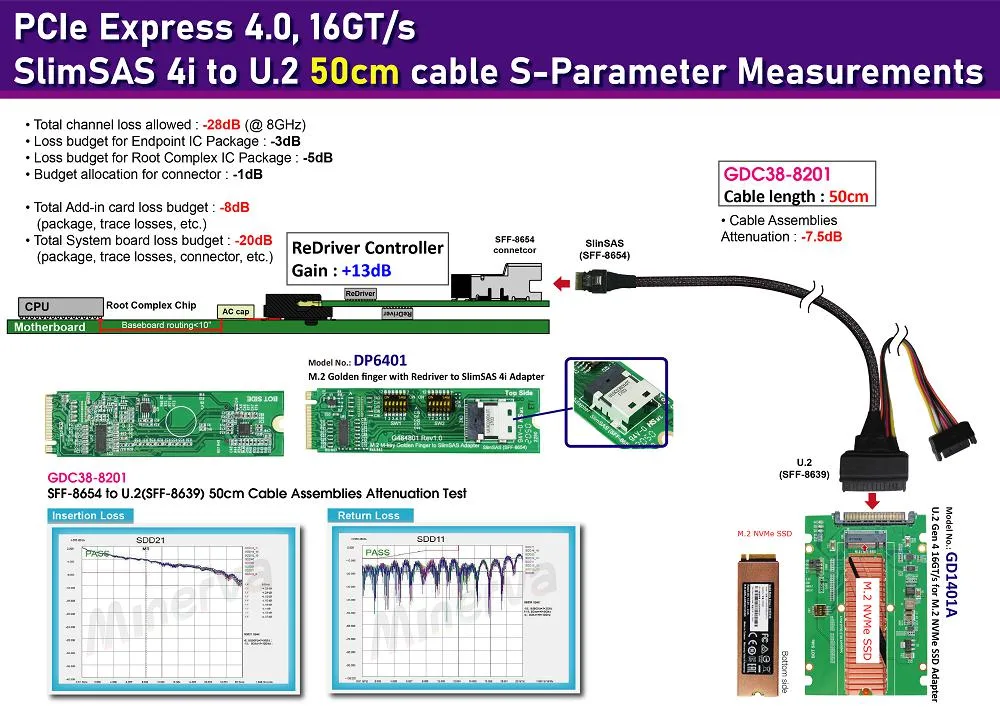

16 GT/s ReDriver for Gen 4 signal reach

The defining specification is the built-in PCIe 4.0 ReDriver that sustains 16 GT/s differential pairs together with a 100 MHz clock buffer and SMBCLK/SMBDAT, PERST#, WAKE# and CLKREQ# repeaters. Compliance with SFF-8654 1.2, SFF-9402 1.1 and the PCIe M.2 Spec Rev 4.0 ensures the adapter meets the electrical requirements for extended cabling in server and accelerator applications.

Highlights

  • Extends PCIe Gen 4 signals with integrated ReDriver
  • Buffers 100 MHz clock for longer cable runs
  • Repeats SMBus and side-band signals reliably
  • Converts SlimSAS 4i to M.2 M-key slot
  • Designed and manufactured in Taiwan

Specifications

No published specifications for this item yet.

Questions about this item

What physical slot and connector does the Innocard M.2 M-key PCIe Gen 4 ReDriver SlimSAS 4i Adapter require on the motherboard?

It requires an M.2 M-key slot on the motherboard and presents a SlimSAS 4i (SFF-8654) connector for the cable side.

What is the correct installation sequence for the built-in PCIe ReDriver and clock buffer to function?

Insert the adapter into the M.2 M-key slot, secure it with the mounting screw, then attach the SlimSAS 4i cable; the ReDriver and 100 MHz clock buffer activate automatically once the system powers on.

When should the SlimSAS 4i cable or the adapter itself be replaced to maintain Gen 4 16 GT/s signal integrity?

Replace the cable if its SFF-8654 connectors show bent pins or the cable jacket is kinked; replace the adapter only if the PERST#, WAKE# or CLKREQ# buffer gates fail to re-establish link after a reboot.
