Green rectangular plastic diagnostic card with gold edge connectors and multiple status LEDs

IMC

IMC TL611 PRO Multifunction Diagnostic Card motherboard accessory

SKU CH-FM2Q-JBQ80

Multifunction diagnostic card tests motherboards via PCI, PCIe x1 and LPC interfaces with 12 status indicators

  • Tests PCI and PCIe x1 slots for desktop board diagnostics
  • Connects 2.0 mm and 2.54 mm LPC headers on laptops and desktops
  • Links MINI PCIe and SPI debug ports for notebook fault finding
  • Dedicated LEDs show CPU, DRAM, VGA and PCH status instantly
  • 3VSB power indicator confirms standby rail is present

Multifunction Diagnostic Card TL611 PRO

The TL611 PRO is a multifunction diagnostic card designed for motherboard troubleshooting across laptops, mobile phones and desktop systems. It connects through PCI-E, LPC and PCI slots to provide real-time hardware status feedback. Technicians and repair shops use it to isolate faults quickly without relying on BIOS beep codes alone.

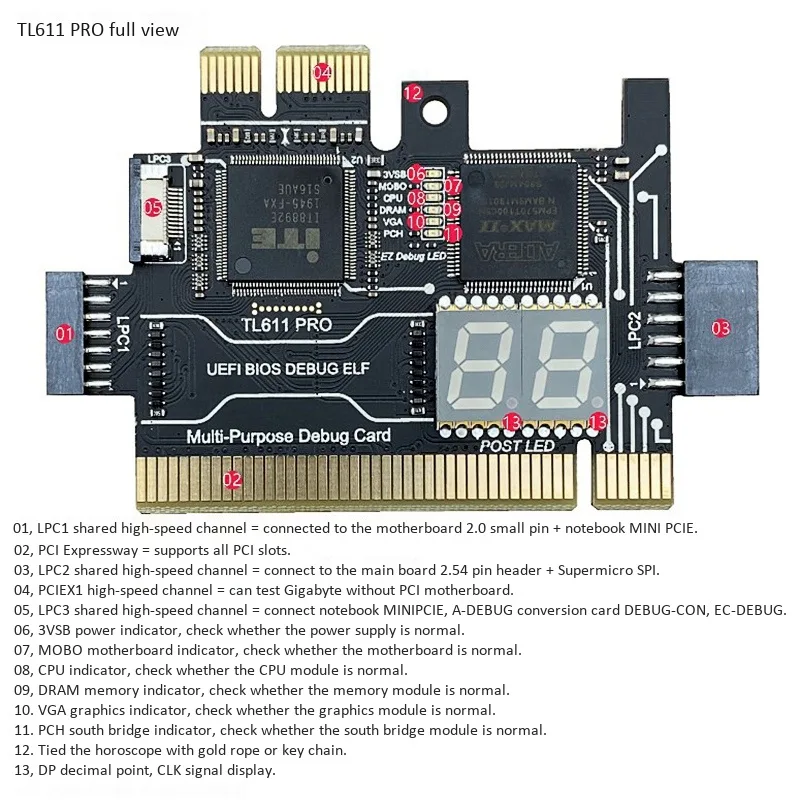

Five diagnostic channels with targeted coverage

Channel one links 2.0 small-pin headers and Mini PCIe notebook slots. Channel two supports all standard PCI slots. Channel three handles 2.54 large-pin headers and supermini SPI interfaces. Channel four tests Gigabyte boards lacking PCI slots via PCIe x1. Channel five connects Mini PCIe, A-DEBUG, ASUS DEBUG-CON and EC-DEBUG interfaces for broader notebook coverage.

Thirteen onboard indicators show power

A 3VSB power LED confirms standby voltage presence while the MOBO LED checks motherboard power sequencing. Separate LEDs monitor CPU, DRAM, VGA and PCH south-bridge status during POST. The decimal-point display shows CLK signal activity. Builders needing automated logging or remote reporting will require a different tool.

Highlights

  • Tests PCI and PCIe x1 slots for desktop board diagnostics
  • Connects 2.0 mm and 2.54 mm LPC headers on laptops and desktops
  • Links MINI PCIe and SPI debug ports for notebook fault finding
  • Dedicated LEDs show CPU, DRAM, VGA and PCH status instantly
  • 3VSB power indicator confirms standby rail is present

Specifications

No published specifications for this item yet.

Questions about this item

Will the TL611 PRO's PCI high-speed channel fit the PCI slot on my older desktop motherboard?

Yes, the PCI high-speed channel supports all PCI slots, so it will connect to the PCI slot on an older desktop motherboard.

Which indicator lights on the TL611 PRO should I watch to confirm the card is working after I connect it?

The 3VSB power indicator shows power status, and the MOBO, CPU, DRAM, VGA, and PCH south bridge indicators show whether each module is normal.

Does the TL611 PRO package include the A-DEBUG conversion cable for my notebook's MINI PCIE slot?

The box contains only 1 x TL611 PRO Diagnostic Test card in a random colour; the A-DEBUG conversion card and other cables must be bought separately.
