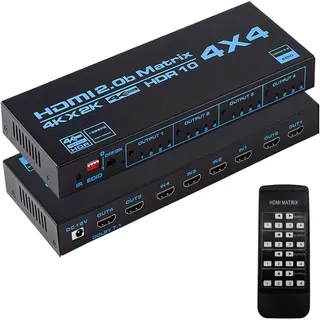

Black rectangular HDMI matrix switcher with four inputs and four outputs

IHDAPP

IHDAPP HDMI Matrix 4x4 4K@60Hz 18Gbps Black

SKU CH-T1Y3-1CXJ9

Routes four HDMI sources to four displays independently or mirrored at 4K 60 Hz with HDR and Dolby Vision support, includes IR remote and EDID control

  • TypeHDMI Switchers
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixHDMI Matrix 4X4
  • Input Connector4 x HDMI
  • Output Connector4 x HDMI

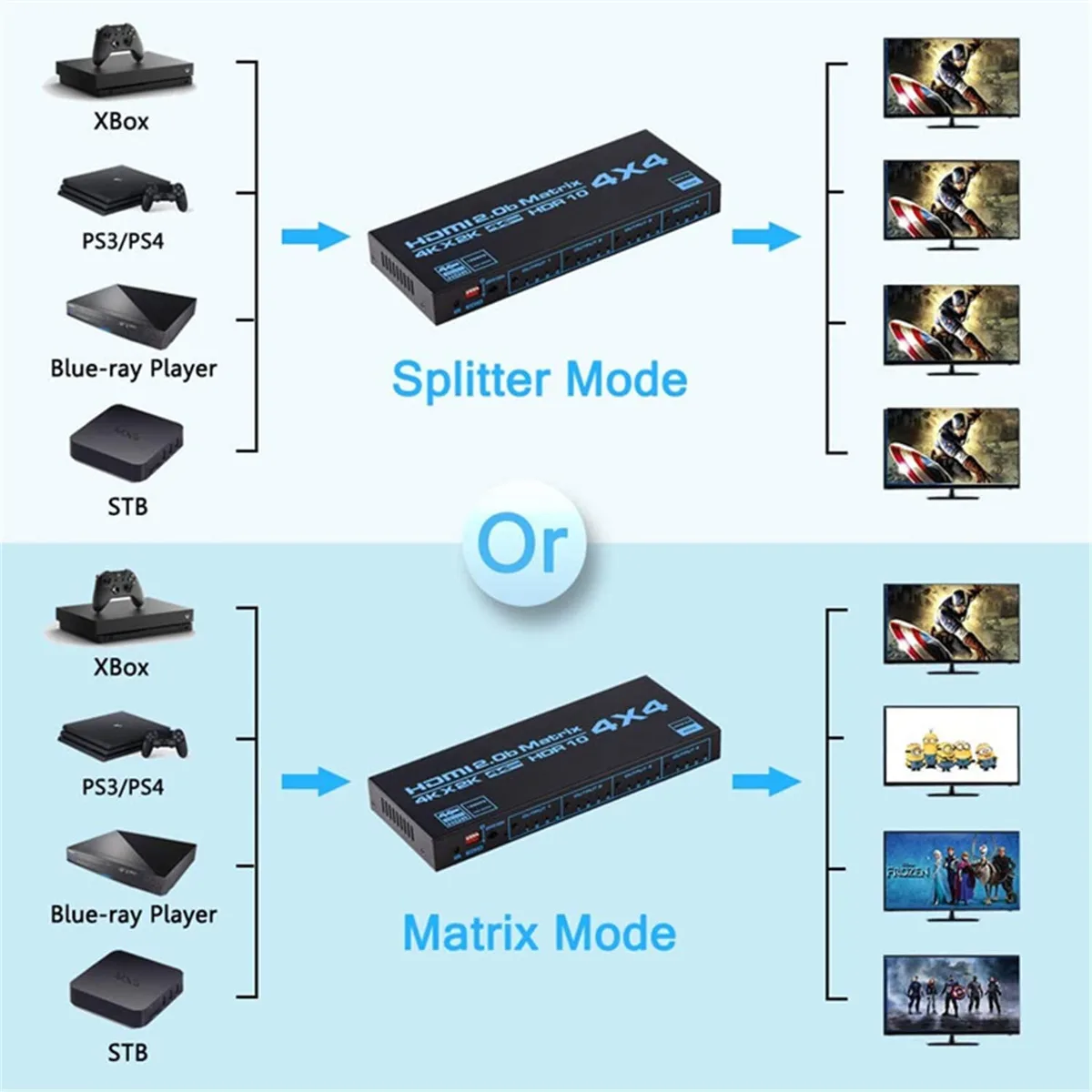

  • Four inputs independently routed to four displays via 4x4 matrix switching
  • Any source duplicated across one to four outputs for identical viewing
  • 4K 60 Hz YUV 4:4:4 and 18 Gbps bandwidth for full-colour fidelity
  • Dolby Vision, HDR10+ and HDCP 2.2 support for protected premium content
  • IR remote and front-panel buttons give instant source selection

IHDAPP HDMI Matrix 4x4

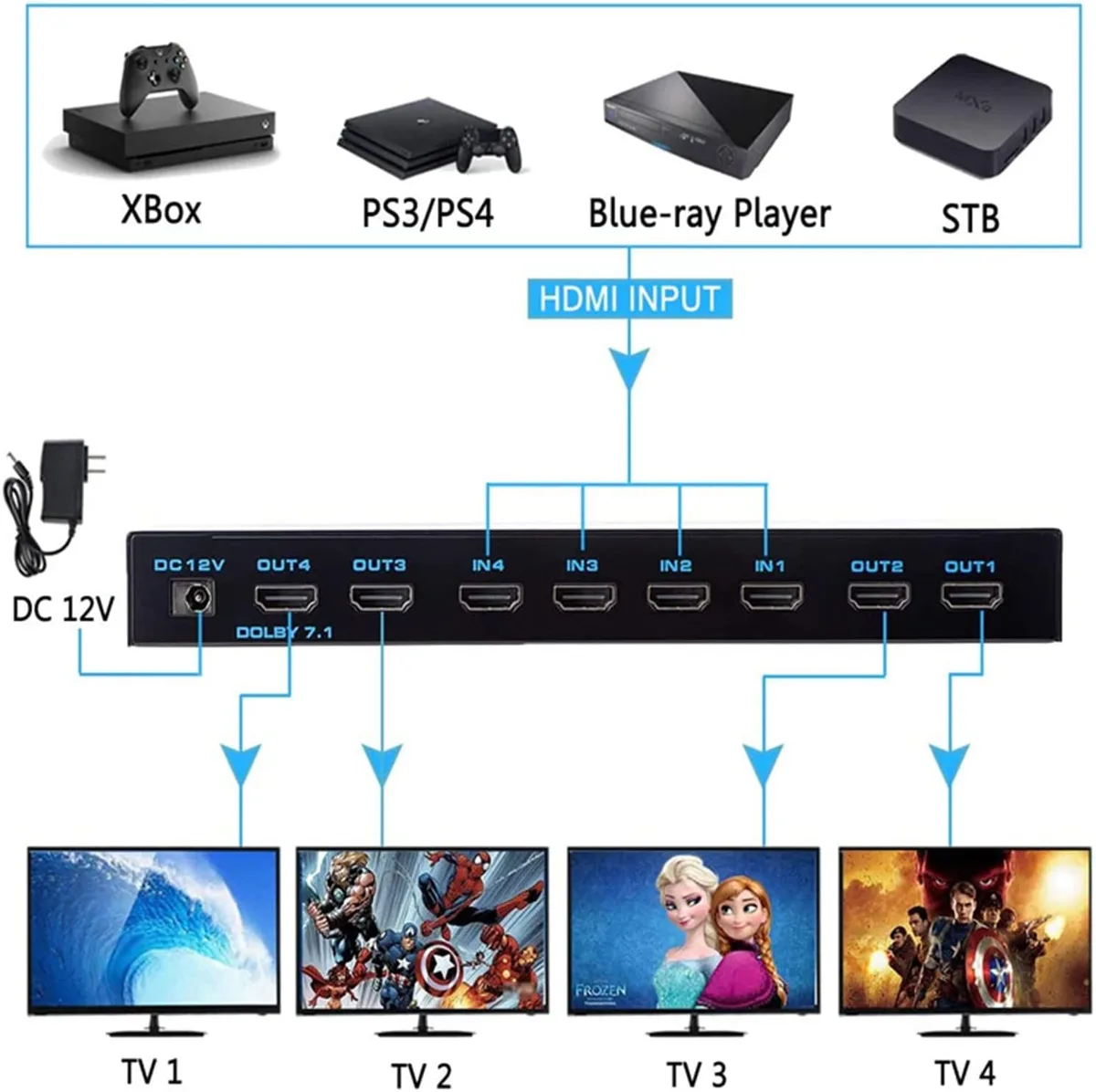

This HDMI matrix switch routes four HDMI sources to four displays independently or duplicates any input across all outputs. It suits installers who need flexible routing in meeting rooms, retail walls or home theatres. The unit handles 4K at 60 Hz with full 4:4:4 colour sampling and 18 Gbps bandwidth.

Bundled IR remote and EDID control

An infrared remote lets operators change routing from a distance while front-panel buttons provide local switching. The EDID selector forces sources to output 3D or specific audio formats such as Dolby Vision and Dolby Panorama when the display supports them. Audio remains lossless on every HDMI path.

HDMI 2.0b and HDCP 2.2 limits

The switch is bound by the 18 Gbps ceiling of HDMI 2.0b, so 4K 60 Hz 4:4:4 is the highest uncompressed format it can pass. HDCP 2.2 protects premium content but will fall back to 1.4 for older sinks. Cable runs beyond typical passive lengths may need active fibre or equalisers not included.

Highlights

  • Four inputs independently routed to four displays via 4x4 matrix switching
  • Any source duplicated across one to four outputs for identical viewing
  • 4K 60 Hz YUV 4:4:4 and 18 Gbps bandwidth for full-colour fidelity
  • Dolby Vision, HDR10+ and HDCP 2.2 support for protected premium content
  • IR remote and front-panel buttons give instant source selection

Specifications

TypeHDMI Switchers
ColorBlack
Ports4x4 Matrix
MatrixHDMI Matrix 4X4
Input Connector4 x HDMI
Output Connector4 x HDMI
Maximum Resolutions3840 x 2160

Questions about this item

How long do the EDID dip-switches and front-panel buttons typically last before they need replacement?

The unit has no moving mechanical parts; the EDID dip-switches and front-panel buttons are solid-state and rated for the life of the product.

What bandwidth ceiling limits 4K 60 Hz 4:4:4 distribution across all four outputs simultaneously?

The 18 Gbps HDMI 2.0b link and 600 MHz TMDS clock are the first limits reached when driving four 4K 60 Hz 4:4:4 streams.

How much heat does the 12 V DC supply generate when the matrix runs 24/7?

The DC 12 V power supply draws only the current needed for signal switching, so heat output remains low during continuous operation.
