Green PCB card with two M.2 slots and two silver heatsinks

IHDAPP

IHDAPP Dual M.2 PCIe Adapter SATA NVMe Heatsink

SKU CH-NPEJ-53KQ6

Adds one NVMe and one SATA M.2 SSD to a PCIe x4, x8 or x16 slot with included heatsinks and brackets

  • TypePCI Express to M.2 Card
  • External USB Ports2x SATA III
  • Dual M.2 slots run one NVMe and one SATA SSD together
  • PCIe 3.0 x4 link gives full NVMe bandwidth on Gen 3 or Gen 2 motherboards
  • Two aluminium heatsinks plus a 24 × 5 copper-hole PCB pull heat away from both drives
  • Fits 2230, 2242, 2260, 2280 and 22110 mm modules in a single card
  • Works in x4, x8 or x16 slots with no driver needed on Windows, Mac or Linux

Dual M.2 PCIe adapter with heatsink

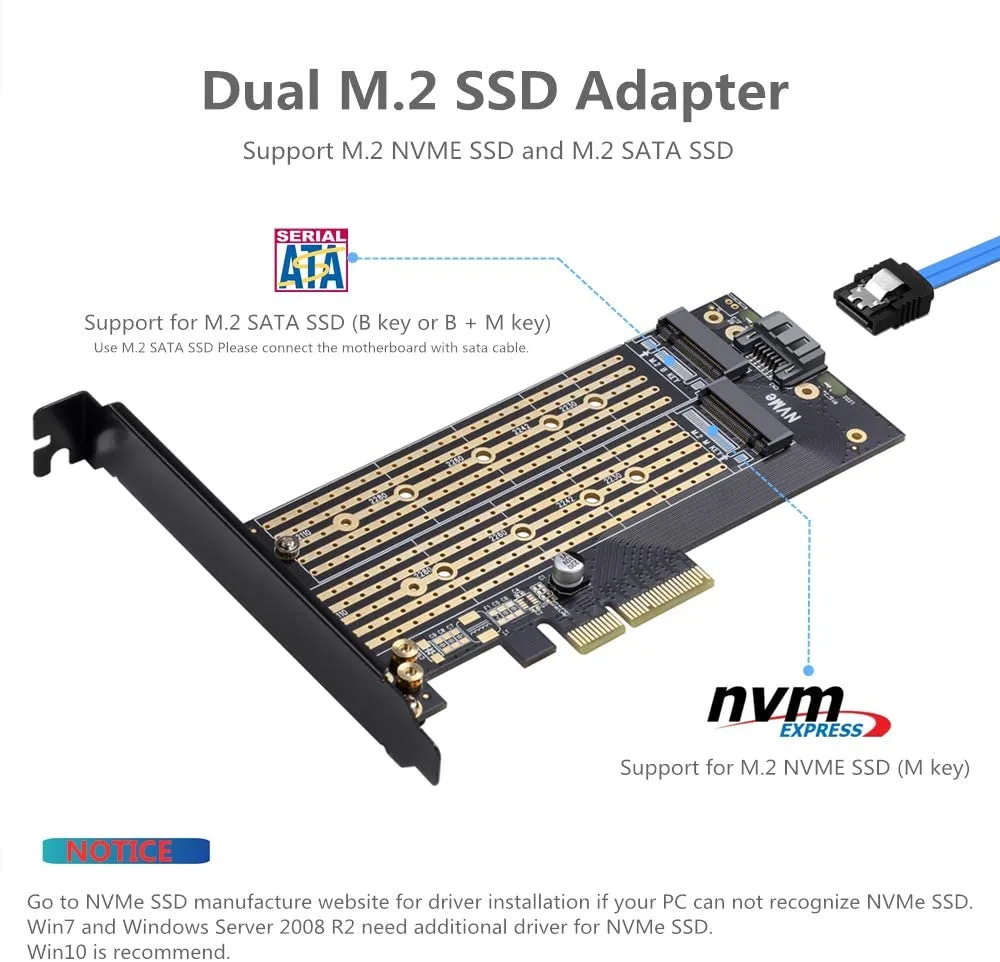

This PCIe x4 expansion card adds one NVMe M-key slot and one SATA B-key slot to a desktop system. Both drives can operate at the same time, so a single card upgrades storage capacity and speed without occupying multiple motherboard connectors. The board fits PCIe 4.0, 3.0, 2.0 and 1.0 slots and needs no driver under Windows, macOS or Linux.

Replaces separate NVMe and SATA adapters

A single x4, x8 or x16 slot now serves two drives instead of one, freeing board space and reducing cable clutter. The jump is worth it when the motherboard lacks a second M.2 socket or when an existing M.2 slot is limited to SATA signalling. The card does not work in x1 slots, so builders with only x1 lanes available must look elsewhere.

Handles 2230 to 22110 drives

Supported lengths are 2230, 2242, 2260, 2280 and 22110 millimetres for both NVMe and SATA modules. A 24-by-5 copper-hole PCB and two aluminium heatsinks dissipate heat from high-throughput workloads. The bundle includes full-height and low-profile brackets, a screwdriver, screw kit and a SATA data cable for the B-key drive.

Highlights

  • Dual M.2 slots run one NVMe and one SATA SSD together
  • PCIe 3.0 x4 link gives full NVMe bandwidth on Gen 3 or Gen 2 motherboards
  • Two aluminium heatsinks plus a 24 × 5 copper-hole PCB pull heat away from both drives
  • Fits 2230, 2242, 2260, 2280 and 22110 mm modules in a single card
  • Works in x4, x8 or x16 slots with no driver needed on Windows, Mac or Linux

Specifications

TypePCI Express to M.2 Card
External USB Ports2x SATA III

Questions about this item

What slot size does the adapter need on the motherboard?

It fits PCIe x4, x8 or x16 slots and will not work in an x1 slot.

Which cable must be connected for the SATA M.2 drive to be recognised?

The included 7-pin SATA cable must be plugged into a motherboard SATA port for the B-key SSD.

What SSD lengths do the two heatsinks cover?

Both heatsinks accommodate 2230, 2242, 2260, 2280 and 22110 mm drives.
