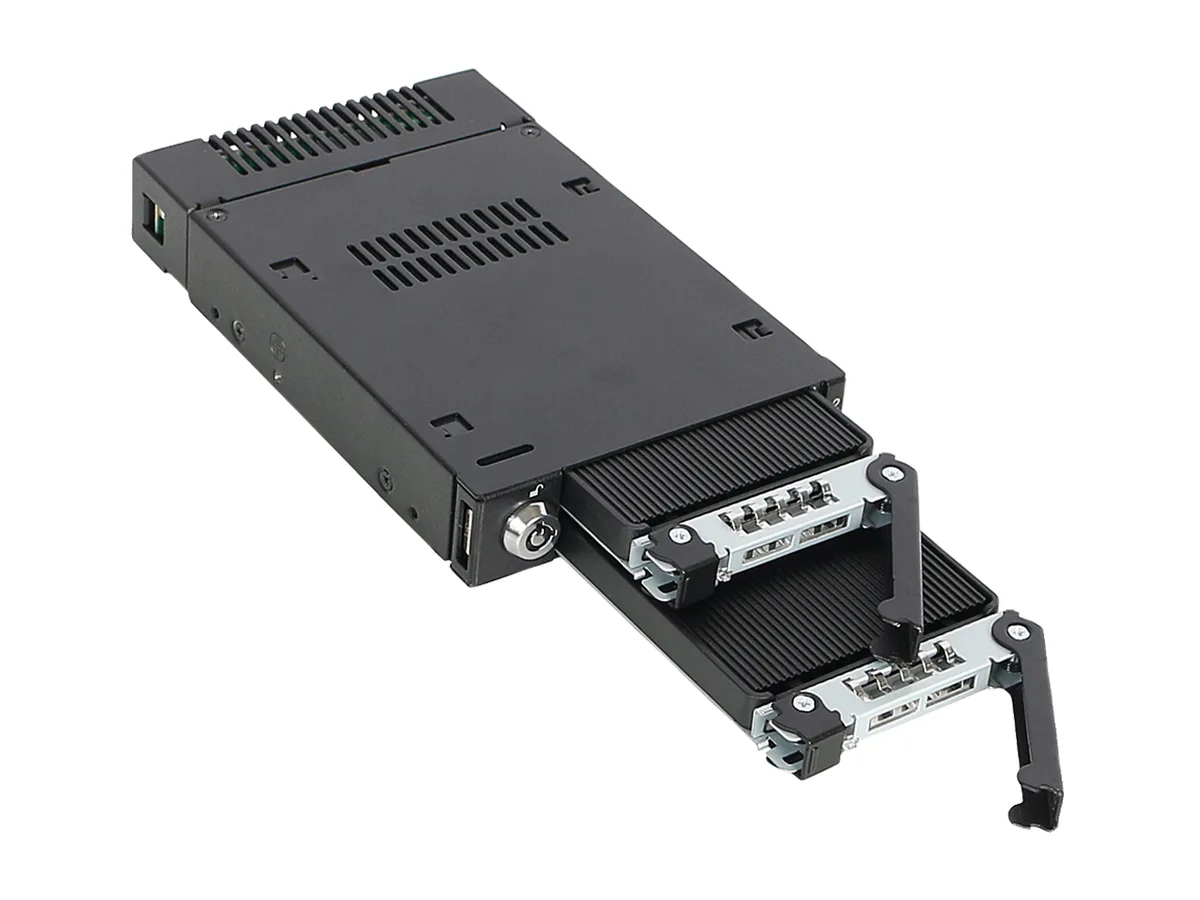

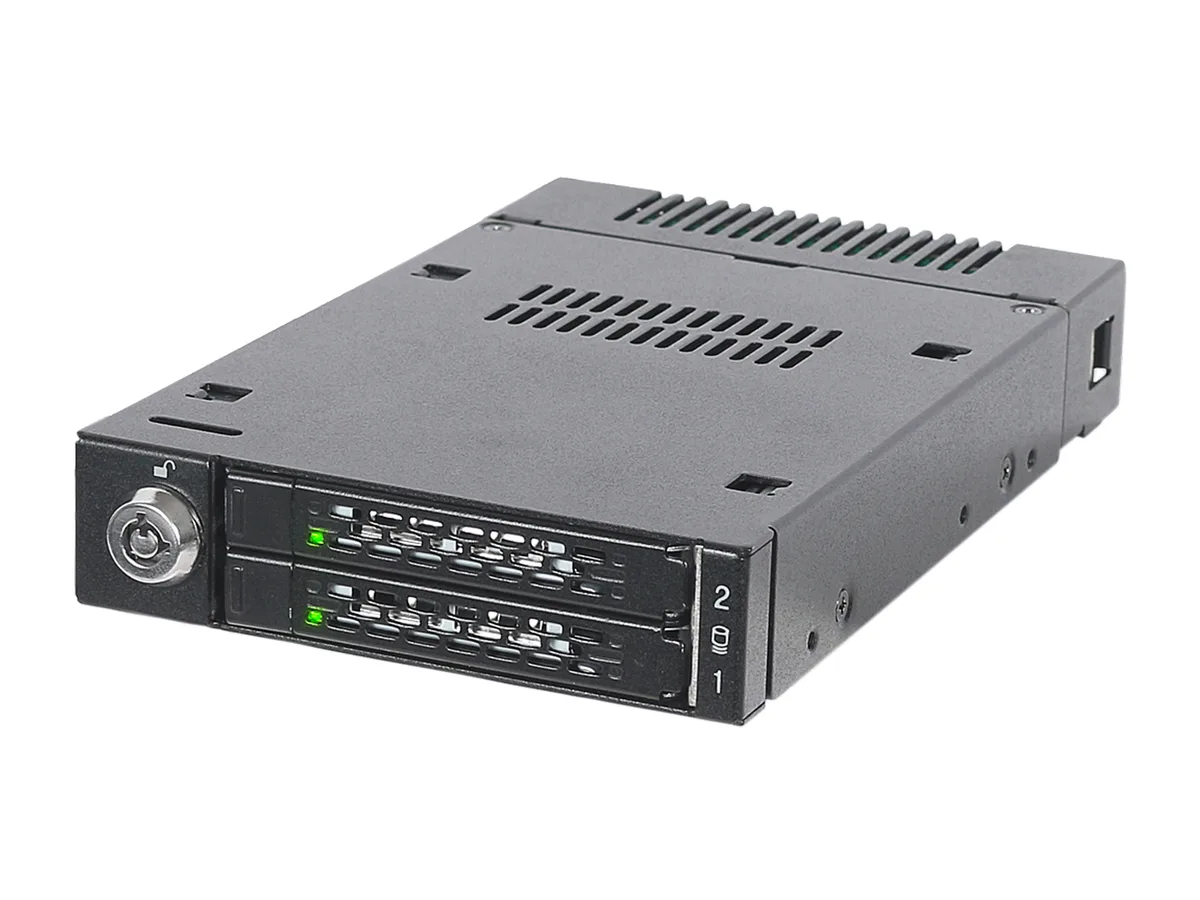

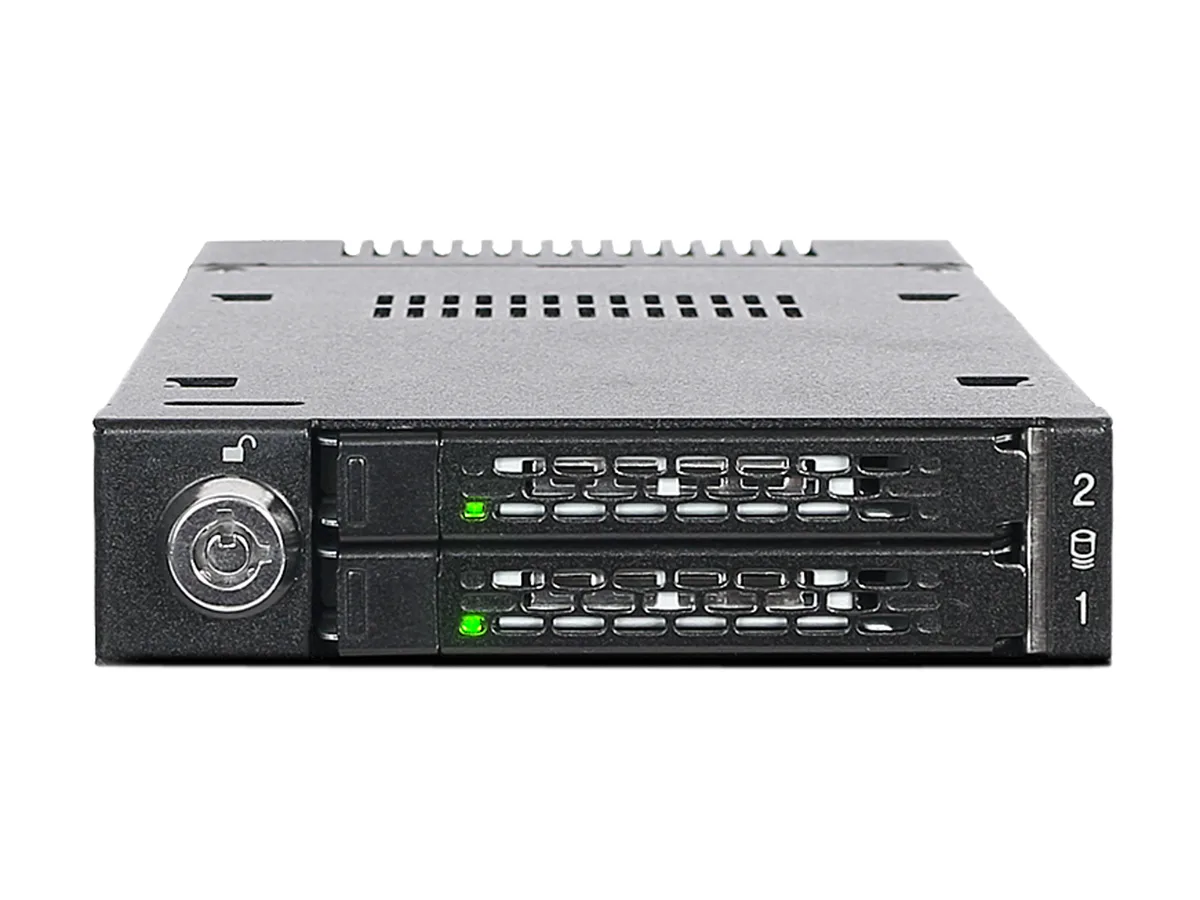

Black metal enclosure fitting two M.2 NVMe SSDs into a 3.5-inch bay

ICY DOCK

ICY DOCK MB834M2K-B 2 x M.2 NVMe SSD Mobile Rack 3.5" Bay

SKU CH-DAKY-QZ0D5 MPN MB834M2K-B

Holds two M.2 NVMe SSDs in lengths 30, 42, 60, 80 and 110 mm, installs tool-less into a 3.5-inch bay with dual miniSAS HD 8643 links

  • ColorBlack
  • Conversion Tray2 x 2.5" Drive to 3.5" Bay
  • Mobile Rack Drives Support2 x M.2 PCIe NVMe SSD to 3.5" Bay
  • Mobile Rack Interface2 x miniSAS HD (SFF-8643)
  • Protection CaseMultiple Drives
  • Compatible Products2 x M.2 PCIe NVMe SSD 2230 / 2242 / 2260 / 2280 / 22110
  • Holds two NVMe M.2 SSDs up to 110 mm in a single 3.5" bay
  • Tool-less adjustable locker secures every drive length from 30 mm to 110 mm
  • Dual miniSAS HD SFF-8643 ports give each SSD its own PCIe link

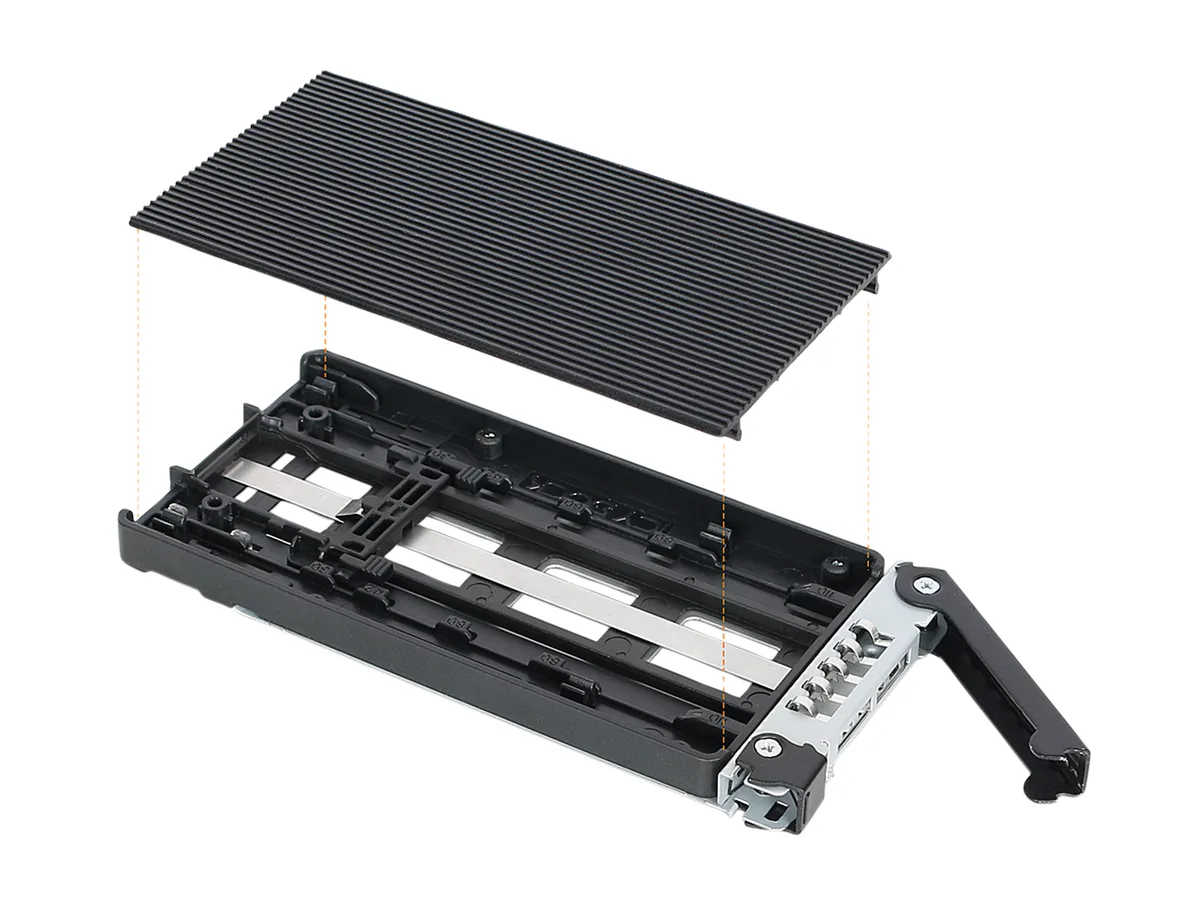

  • Full-metal tray acts as heatsink with included thermal pads for sustained speed
  • Supports 2230, 2242, 2260, 2280 and 22110 form factors without adapters

Two M.2 NVMe drives in one 3.5" bay

The ICY DOCK MB834M2K-B fits two M.2 PCIe NVMe SSDs into a single external 3.5-inch device bay. It accepts drive lengths of 30mm, 42mm, 60mm, 80mm and 110mm and connects each drive through a miniSAS HD SFF-8643 interface. Tool-less installation and an adjustable locker secure every drive without screws.

Suits builds needing high-density NVMe storage

This rack is for systems with a free 3.5-inch bay and a host controller or backplane that provides two miniSAS HD ports. It is not for platforms that lack miniSAS HD connectivity or that require a different drive interface. Builders needing hot-swap trays for 2.5-inch drives should consider a different enclosure type.

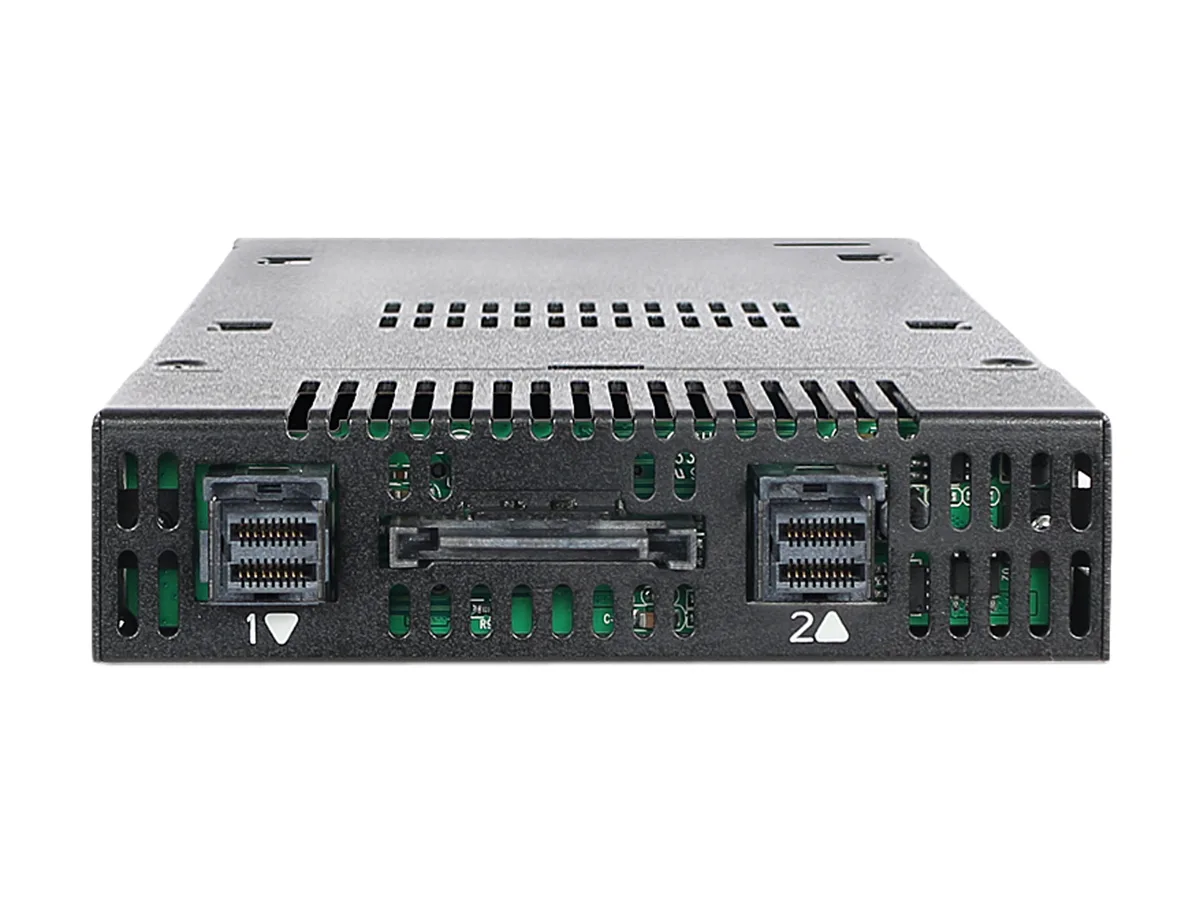

Dual miniSAS HD host interface

Each M.2 slot routes to its own SFF-8643 connector, so the host must supply two miniSAS HD links to access both SSDs simultaneously. If your controller or backplane offers only one such port, only one drive will be active.

Highlights

  • Holds two NVMe M.2 SSDs up to 110 mm in a single 3.5" bay
  • Tool-less adjustable locker secures every drive length from 30 mm to 110 mm
  • Dual miniSAS HD SFF-8643 ports give each SSD its own PCIe link
  • Full-metal tray acts as heatsink with included thermal pads for sustained speed
  • Supports 2230, 2242, 2260, 2280 and 22110 form factors without adapters

Specifications

BrandICY DOCK
ModelMB834M2K-B
ColorBlack
Conversion Tray2 x 2.5" Drive to 3.5" Bay
Mobile Rack Drives Support2 x M.2 PCIe NVMe SSD to 3.5" Bay
Mobile Rack Interface2 x miniSAS HD (SFF-8643)
Protection CaseMultiple Drives
Compatible Products2 x M.2 PCIe NVMe SSD 2230 / 2242 / 2260 / 2280 / 22110
SpecificationsSupport Drive Size: 2 x M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110
Compatible Drive Type: NVMe M.2
Number of Drives: 2
Drive Bay: 1 x external 3.5" device bay
Host Interface: 2 x miniSAS HD (SFF-8643)
Power Input: 1 x 15pin SATA power connector
Transfer Rate: Up to 32Gbps (Depending on hard drive speed)
Support HDD Capacity: No Limitation
Drive Cooling: Metal heat dispersion with thermal pad for passive cooling
Structure / Material: Metal with partial plastic
Support Hot-Plug: Yes (host must support hot-plug function)
Drive Security: 2 segment key lock
FeaturesFits 2x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
Adjustable drive locker holds all length drives securely
Tool-less drive installation design for easy drive maintenance and system upgrading
Installs into any standard external 3.5" device bay or floppy bay
Uses a miniSAS HD port (SFF-8643) to connect, requires NVMe host
Supports the full NVMe bandwidth specification of 32 Gbps
Ruggedized full-metal enclosure meeting flammability requirements
Integrated extra-large high-efficiency heat sink and ample ventilation for excellent pa
Package ContentsDevice, user manual, screws, thermal pads.
Shipping weight0.91 kg
Package size305 × 229 × 102 mm

Questions about this item

How do I install an M.2 NVMe SSD into the MB834M2K-B and what step is often missed?

Slide the SSD into the tray at the correct notch for its length — 30, 42, 60, 80 or 110 mm — then close the adjustable locker until it clicks; the step people miss is forgetting to peel and stick the included thermal pad onto the controller before locking the drive.

What maintenance or replacement will the MB834M2K-B need over time?

The thermal pads supplied in the package degrade with heat cycles; replace them when you swap drives or if temperatures rise, and check that the miniSAS HD SFF-8643 cables remain firmly seated in the backplane.

What limit appears first when the MB834M2K-B runs sustained heavy I/O?

Heat builds up in the enclosed 3.5-inch bay because the tray has no active cooling; the NVMe drives will throttle once their controllers hit thermal limits unless the chassis provides strong airflow across the tray.
