ICY DOCK
ICY DOCK MB833M2K-B M.2 NVMe SSD mobile rack for 3.5" bay
Holds one M.2 NVMe SSD (2230 to 22110) in an external 3.5" bay via miniSAS HD (SFF-8643)
- ColorBlack
- Conversion Tray1 x 2.5" Drive to 3.5" Bay
- Mobile Rack Drives Support1 x M.2 PCIe NVMe SSD to 3.5" Bay
- Mobile Rack Interface1 x miniSAS HD (SFF-8643)
- Protection CaseSingle Drive
- Compatible ProductsM.2 PCIe NVMe SSD 2230 / 2242 / 2260 / 2280 / 22110
- Supports M.2 NVMe SSDs from 2230 to 22110 lengths
- Adjustable locker secures every supported drive size
- Tool-less design enables fast drive swaps
- miniSAS HD SFF-8643 host interface for NVMe connectivity
- Fits a standard external 3.5" drive bay
M.2 NVMe mobile rack for 3.5" bay
The ICY DOCK ToughArmor MB833M2K-B installs one M.2 PCIe NVMe SSD into a standard external 3.5" drive bay. An adjustable locker secures drives from 30 mm up to 110 mm without tools. A single miniSAS HD (SFF-8643) connector carries the PCIe link to the host controller.
For compact storage upgrades, not multi-drive arrays
Builders adding a single NVMe drive to a workstation or server chassis with an open 3.5" slot will find the tray fits 2230, 2242, 2260, 2280 and 22110 lengths. The single-drive design and lone miniSAS port rule out RAID configurations or installations that require multiple drives in one bay.

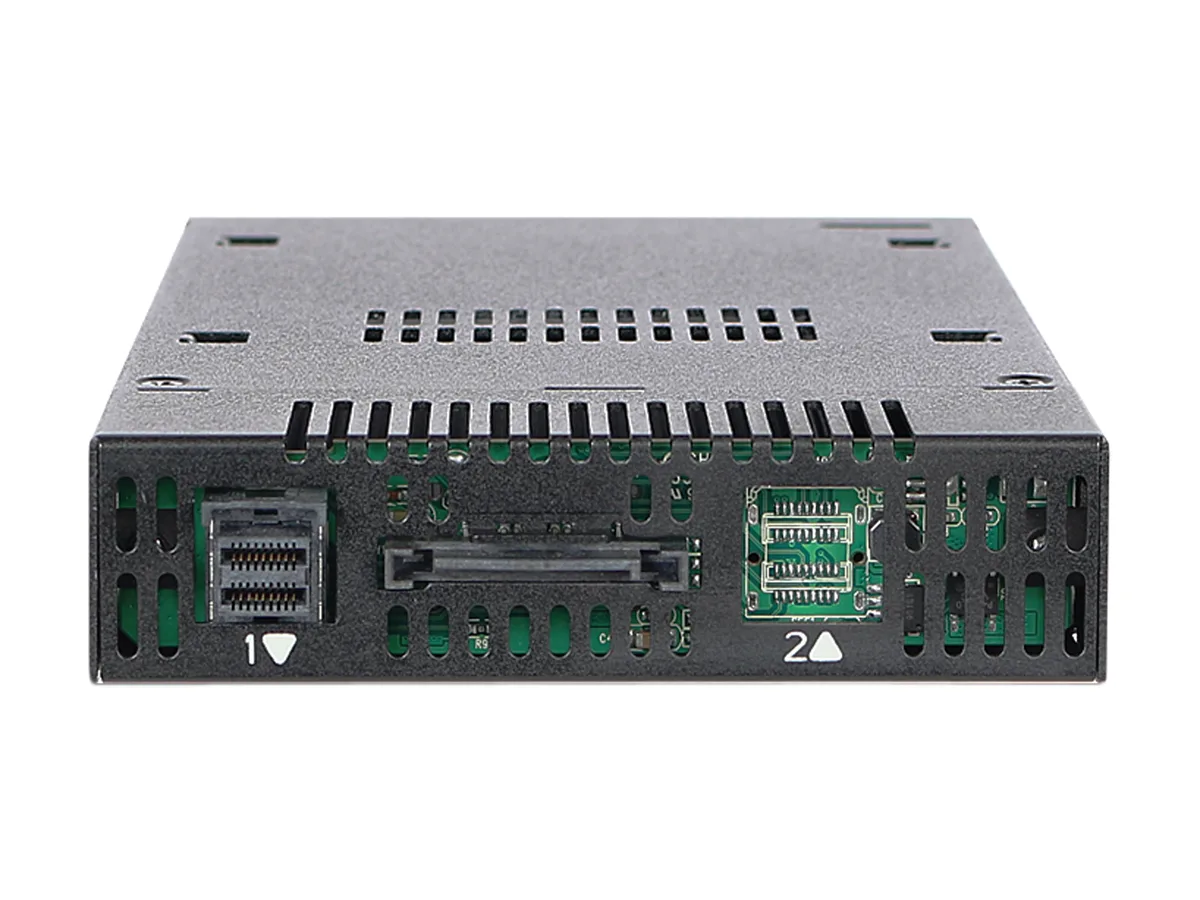

Host connection via miniSAS HD (SFF-8643)
The rack presents one miniSAS HD (SFF-8643) interface to the system. The host controller or backplane must provide a matching port and PCIe signalling for the NVMe SSD to operate.
Highlights
- Supports M.2 NVMe SSDs from 2230 to 22110 lengths
- Adjustable locker secures every supported drive size
- Tool-less design enables fast drive swaps
- miniSAS HD SFF-8643 host interface for NVMe connectivity
- Fits a standard external 3.5" drive bay
Specifications
| Brand | ICY DOCK |
|---|---|
| Model | MB833M2K-B |
| Color | Black |
| Conversion Tray | 1 x 2.5" Drive to 3.5" Bay |
| Mobile Rack Drives Support | 1 x M.2 PCIe NVMe SSD to 3.5" Bay |
| Mobile Rack Interface | 1 x miniSAS HD (SFF-8643) |
| Protection Case | Single Drive |
| Compatible Products | M.2 PCIe NVMe SSD 2230 / 2242 / 2260 / 2280 / 22110 |
| Specifications | Support Drive Size: 1 x M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110 Compatible Drive Type: NVMe M.2 Number of Drives: 1 Drive Bay: 1 x external 3.5" device bay Host Interface: 1 x miniSAS HD (SFF-8643) Power Input: 1x 15pin SATA power connector Transfer Rate: Up to 32Gbps (Depending on hard drive speed) Support HDD Capacity: No Limitation Drive Cooling: Metal heat dispersion with thermal pad for passive cooling Structure / Material: Metal with partial plastic Support Hot-Plug: Yes (host must support hot-plug function) Drive Security: 2 segment key lock |
| Features | Fits 1x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110) Adjustable drive locker holds all length drives securely Tool-less drive installation design for easy drive maintenance and system upgrading Installs into any standard external 3.5" device bay or floppy bay Uses a miniSAS HD port (SFF-8643) to connect, requires NVMe host Supports the full NVMe bandwidth specification of 32 Gbps Ruggedized full-metal enclosure meeting flammability requirements Integrated extra-large high-efficiency heat sink and ample ventilation for excellent pa |
| Package Contents | Device, user manual, screws, thermal pads, keys |
| Shipping weight | 0.60 kg |
| Package size | 197 × 114 × 38 mm |
Questions about this item
What comes in the box and what must I buy separately?
The package includes the mobile rack device, user manual, mounting screws, thermal pads and two keys. You must supply your own M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) and a miniSAS HD (SFF-8643) cable to connect to the host.
Which M.2 lengths does the adjustable locker support?
The drive locker adjusts to hold 30 mm (2230), 42 mm (2242), 60 mm (2260), 80 mm (2280) and 110 mm (22110) NVMe SSDs securely without tools.
What does the miniSAS HD (SFF-8643) host interface mean for my system?
The rack presents the NVMe SSD to the system through a single miniSAS HD (SFF-8643) port, so you need a compatible host adapter or backplane with that connector to use the drive.
