ICY DOCK
ICY DOCK MB604SPO-B 4 x 2.5" SAS/SATA SSD/HDD & Slim ODD Backplane Cage hdd accessory
Converts one 5.25" bay into four hot-swap 2.5" SAS/SATA drive slots plus a slim optical drive bay with a 40 mm cooling fan
- ColorBlack
- Conversion Tray4 x 2.5" Drive to 5.25" Bay
- Mobile Rack Drives Support4 x 2.5" SAS/SATA SSD/HDD & (Ultra) Slim ODD Backplane Cage
- Mobile Rack InterfaceSATA I/II/III/SAS
- Protection CaseMultiple Drives
- Compatible Products2.5"
- Hot-swap four drives without tools thanks to removable trays
- Fits four 2.5" SAS/SATA drives up to 9.5 mm and one slim optical drive
- Full-metal steel chassis built for industrial and commercial use
- 40 mm configurable fan with ventilation keeps drives cool
- Individual status LEDs show each drive's activity at a glance

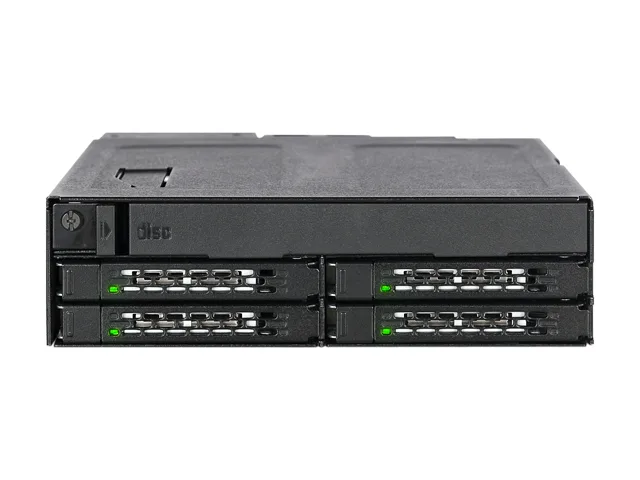

Rugged 5.25" cage for four 2.5" drives
The ToughArmor MB604SPO-B fits a single external 5.25" bay and accepts four 2.5" SAS or SATA SSDs and HDDs up to 9.5 mm thick. Heavy-duty steel construction is rated for industrial, military and medical environments. A single Slim or Ultra-Slim optical drive can also be installed in the same unit.
Hot-swap trays with vibration protection
Each drive mounts on a removable tray that locks into the backplane, enabling hot-swap operation when the host supports it. Anti-vibration design and EVA foam spacers reduce mechanical stress in mobile or rack-mounted systems. The cage requires a SAS host connection for SAS drives and provides individual status LEDs per bay.
User-configurable 40 mm cooling fan
A built-in 40 mm fan and ventilation holes draw air across all four drives during sustained workloads. Fan speed can be adjusted to balance airflow against acoustic output in noise-sensitive deployments. Steel chassis and tray design dissipate heat without relying on a single high-RPM burst.
Highlights
- Hot-swap four drives without tools thanks to removable trays
- Fits four 2.5" SAS/SATA drives up to 9.5 mm and one slim optical drive
- Full-metal steel chassis built for industrial and commercial use
- 40 mm configurable fan with ventilation keeps drives cool
- Individual status LEDs show each drive's activity at a glance
Specifications
| Brand | ICY DOCK |
|---|---|
| Model | MB604SPO-B |
| Color | Black |
| Conversion Tray | 4 x 2.5" Drive to 5.25" Bay |
| Mobile Rack Drives Support | 4 x 2.5" SAS/SATA SSD/HDD & (Ultra) Slim ODD Backplane Cage for External 5.25" Bay |
| Mobile Rack Interface | SATA I/II/III/SAS |
| Protection Case | Multiple Drives |
| Compatible Products | 2.5" |
| Specifications | Support Drive Size: 4 x 2.5" SSD / HDD & 1 x Ultra Slim or Slim ODD Compatible Drive Type: SATA / SAS (SAS host required / single channel) Number of Drives: 4 Max Drive Height: 4 x 2.5" up to 9.5mm 1 x Ultra Slim ODD (9.5mm) / Slim ODD (12.7mm) Drive Bay: 1 x external 5.25" drive bay Host Interface: 5 x SATA 7pin Power Input: 2 x SATA 15pin power connector Transfer Rate: Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity: No Limitation Drive Cooling: 1 x 40mm fan Structure / Material: Metal Support Hot-Swap: Yes Drive Activity LED Indication: Drive power: solid green LE |
| Features | Rugged heavy-duty steel construction designed for industrial and commercial applications such as military and medical, servers, data centers, workstations, and portable computer systems Perfect for applications that must meet a flammability requirement Fits 4x SSDs or HDDs between 5mm and 9.5mm in height Supports SATA III and SAS single-channel Supports Slim (12.7mm) or Ultra-Slim (9.5mm) Optical Disk Drive (ODD Drive) Spring-loaded ODD bracket for fast installation and removal Dual SATA power connectors separate ODD from HDD/SSD power for stable power delivery 40mm cooling fan with |
| Package Contents | Device, User Manual, Screws, EVA foam spacer |
| Shipping weight | 1.36 kg |
| Package size | 305 × 229 × 102 mm |
Questions about this item
How many 2.5" drives fit in the 5.25" bay before height becomes a limit?
The cage holds four drives up to 9.5 mm tall each in the single 5.25" bay.
What happens to noise and heat when the 40 mm fan runs continuously?
The user-configurable 40 mm fan and ventilation holes keep drive temperatures stable during all-day operation.
Which host interface must the system already provide for the SAS drives to function?
A 6 Gb/s SAS host connection is required; the backplane also accepts SATA 600 host links.
