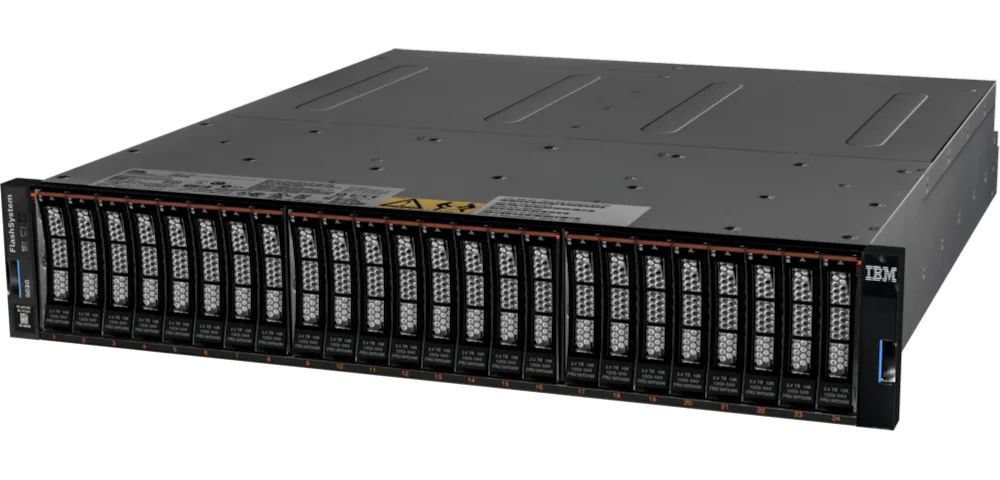

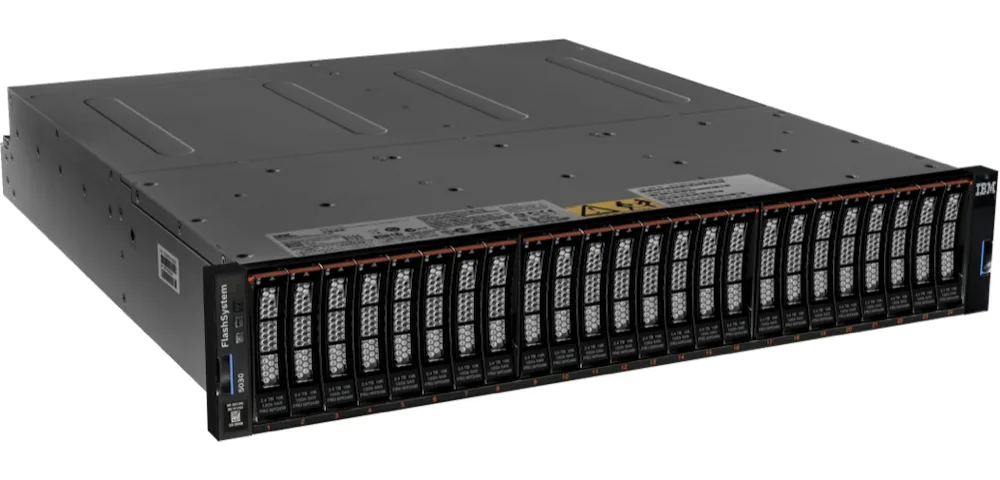

Silver 2U rackmount server chassis with front drive bays

IBM

IBM FlashSystem 5045 All Flash 9TB 2U barebone server

SKU CH-M0YT-J2T6N MPN FlashSystem 5045 All Flash 9TB

2U rackmount storage server holding 8 × 1.92 TB SAS SSDs with 64 GB cache, 10 Gb iSCSI, 16 Gb Fibre Channel and 1.2 M IOPS

  • Form Factor2U Rackmount
  • WorkloadStorage Server
  • 2.5" BaysDrive Configuration: 8 x 1.92TB SAS SSD Host Connections: 1G
  • FeaturesData Reduction Pools (Compression, DeDuplication, Thin Provi

Option FlashSystem 5045 All Flash 9TB

  • 9 TB raw capacity from eight 1.92 TB SAS SSDs
  • 2 M IOPS peak performance for demanding workloads
  • Under 70 µs minimum latency accelerates response times
  • Data reduction pools with compression and deduplication cut storage footprint
  • Fully redundant hot-swap fans and power supplies maximise uptime

Enterprise Storage Server

The IBM FlashSystem 5045 is a 2U rackmount barebone server designed for storage workloads. It ships with 8 x 1.92TB SAS SSDs delivering 9TB raw capacity. Host connections include 1Gb iSCSI and 16Gb Fibre Channel. This system targets organisations that need consolidated block storage with integrated data services.

Sustained Workload Behaviour

Distributed RAID 1, 5 and 6 protect data during continuous operation. The platform sustains 1.2M IOPs with latency under 70µs and peak bandwidth of 12GB/s. Data Reduction Pools apply compression, deduplication, thin provisioning and UNMAP inline. Easy Tier automates tiering while encryption and Safeguarded Copy maintain resilience without hardware-assisted compression.

Deployment Considerations

The 2U form factor fits standard racks and uses fully redundant hot-swappable fans and power supplies. Eight 5m OM3 fibre cables with LC connectors are included for Fibre Channel links. Supported drive types cover 2.5-inch flash, SFF 2.5-inch and LFF 3.5-inch disks. Integration with VMware, Red Hat OpenShift and scale-out clustering simplifies provisioning, but NVMe flash and FC-NVMe host connections are not available.

Highlights

  • 9 TB raw capacity from eight 1.92 TB SAS SSDs
  • 2 M IOPS peak performance for demanding workloads
  • Under 70 µs minimum latency accelerates response times
  • Data reduction pools with compression and deduplication cut storage footprint
  • Fully redundant hot-swap fans and power supplies maximise uptime

Specifications

BrandIBM
SeriesFlashSystem
Model5045 All Flash 9TB
Form Factor2U Rackmount
WorkloadStorage Server
2.5" BaysDrive Configuration: 8 x 1.92TB SAS SSD
Host Connections: 1GB iSCSI, 16GB Fiber Channel
Drives Supported: 2.5-inch flash drives, SFF 2.5-inch disk drives, LFF 3.5-inch disk drives
Connectivity Supported: 10Gb ISCSI, 16Gb Fiber Channel, 12Gb SAS
Max IOPs: 1.2M IOPs
RAID levels: Distributed RAID 1, 5 and 6
Min latency: Under 70µs
Max bandwidth: 12GB/s
FeaturesData Reduction Pools (Compression, DeDuplication, Thin Provisioning, UNMAP): Yes
Hardware Assisted Compression: No
Encryption: Yes
VMWare Integration: Yes
IBM Safeguarded Copy: Yes
CyberVault Support for Cyber Resiliency: Yes
Remote Replication (Synchronous Metro Mirror, Asynchronous Global Mirror): Yes
Hyperswap High Availability: Yes
NVMe Flash: No
FC-NVMe Host Connections: No
Easy Tier AI-driven automated tiering: Yes
Storage Class Memory: No
Transparent Data Migration: Yes
Red Hat OpenShift Container Integration: Yes
Scale-out Clustering: Yes
Heterogenous Support for >500 storage
Shipping weight18.14 kg
Package size483 × 432 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power and heat does the 2U FlashSystem 5045 generate when running all day?

The unit ships with fully redundant, hot-swappable fans and power supplies designed for continuous operation in a 2U rackmount form factor.

What host connections must already exist in the rack for the 1.2M IOPs FlashSystem 5045 to work?

The system provides onboard 10Gb iSCSI and 16Gb Fibre Channel adapters, plus 12Gb SAS connectivity for host attachment.

Can the 8 x 1.92TB SAS SSD FlashSystem 5045 share a 12Gb SAS fabric with older 3.5-inch disk arrays?

Yes, it supports 2.5-inch flash drives, SFF 2.5-inch and LFF 3.5-inch disk drives on the same 12Gb SAS infrastructure.
