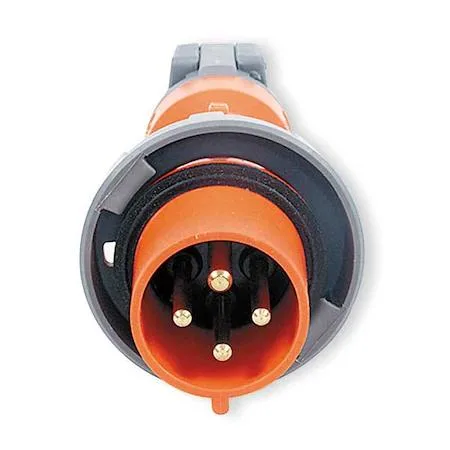

Orange watertight pin and sleeve plug, 30 A, IP67 nylon housing

Hubbell Incorporated

Hubbell Incorporated HBL430P12W Watertight Pin & Sleeve Plug 30 A

SKU CH-EPEW-GYVVY

A watertight pin-and-sleeve plug rated 30 A at 125/250 V AC with IP67 protection, Zytel 801 nylon housing and screw terminals for 14–10 AWG wire

  • Color/FinishOrange
  • Color MappingOrange
  • TypeLight Switch
  • Watertight IP67 rating protects against dust and moisture ingress
  • Rugged Zytel 801 nylon housing withstands impacts in harsh environments
  • Operates reliably from -40°C to +75°C for extreme conditions
  • Screw terminals accept 14 AWG to 10 AWG for secure connections
  • 30 A at 125/250 V AC rating handles demanding industrial loads

Industrial Watertight Plug

The Hubbell HBL430P12W is a 30 A IEC pin-and-sleeve plug built for industrial and commercial power distribution. Its three-pole, four-wire configuration handles 125/250 V AC single-phase loads. The Zytel 801 nylon housing and gasketed sealing ring meet IP67 and NEMA Type 4X requirements for dust and moisture resistance. It suits crews needing reliable connections in wet or dirty environments.

Screw Terminals And Cable Range

The plug uses screw terminals that accept 14 AWG to 10 AWG conductors for secure, tool-tightened wiring. A straight-body orientation simplifies cable routing in tight panels or conduit runs. The sealing gland accommodates outer diameters from .5 in to 1.25 in, so installers can use a range of flexible cords without adapters. These features reduce assembly time and improve field reliability.

Temperature And Impact Limits

Operation is rated from -40 °C to +75 °C, so the plug survives cold storage and hot equipment rooms alike. The non-metallic body is rated for impact resistance but is not metal-armoured; severe crush or vehicle traffic may damage the housing. The IP67 seal protects against immersion up to 1 m for 30 minutes, not continuous submersion or high-pressure washdown beyond the rating. Buyers needing armoured cable glands or higher-temperature ratings should specify a different series.

Highlights

  • Watertight IP67 rating protects against dust and moisture ingress
  • Rugged Zytel 801 nylon housing withstands impacts in harsh environments
  • Operates reliably from -40°C to +75°C for extreme conditions
  • Screw terminals accept 14 AWG to 10 AWG for secure connections
  • 30 A at 125/250 V AC rating handles demanding industrial loads

Specifications

BrandHUBBELL
Color/FinishOrange
Color MappingOrange
TypeLight Switch

Questions about this item

How often should the gasketed sealing ring on this IP67-rated plug be inspected or replaced?

Inspect the gasketed sealing ring at least once a year or after any heavy impact; replace it if you see cracks, flattening, or loss of elasticity to maintain the IP67 seal.

What is the maximum continuous current this 30 A plug can carry before the Zytel 801 nylon housing reaches its thermal limit?

The plug is rated for 30 A continuous at 125/250 V AC; sustained loads at that rating keep the housing within its -40 °C to +75 °C operating range.

How warm does the Zytel 801 nylon body get when the plug runs at 30 A all day in a 25 °C ambient?

At full 30 A load the housing temperature rise stays within the rated +75 °C maximum, so surface heat remains safe to touch in normal industrial conditions.
