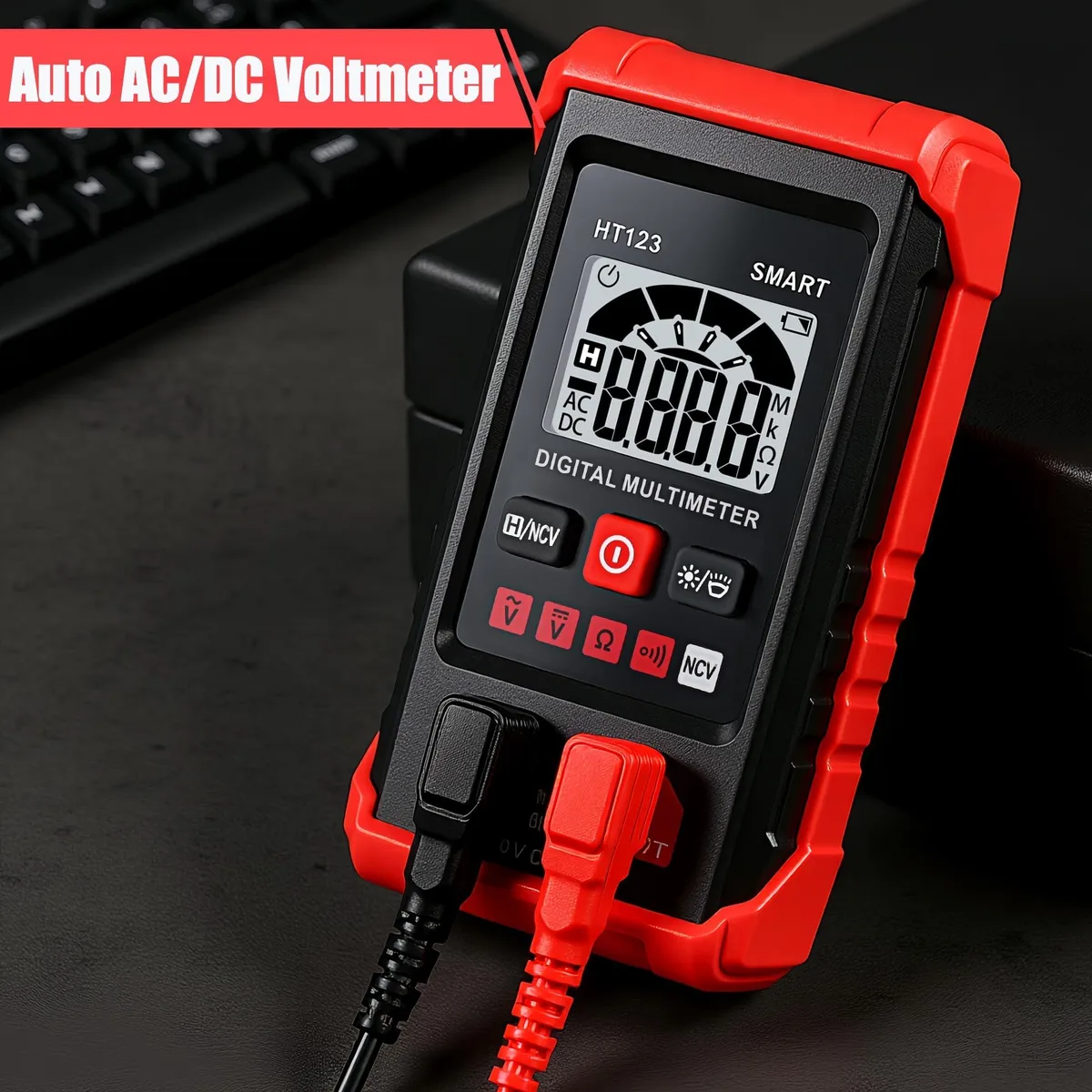

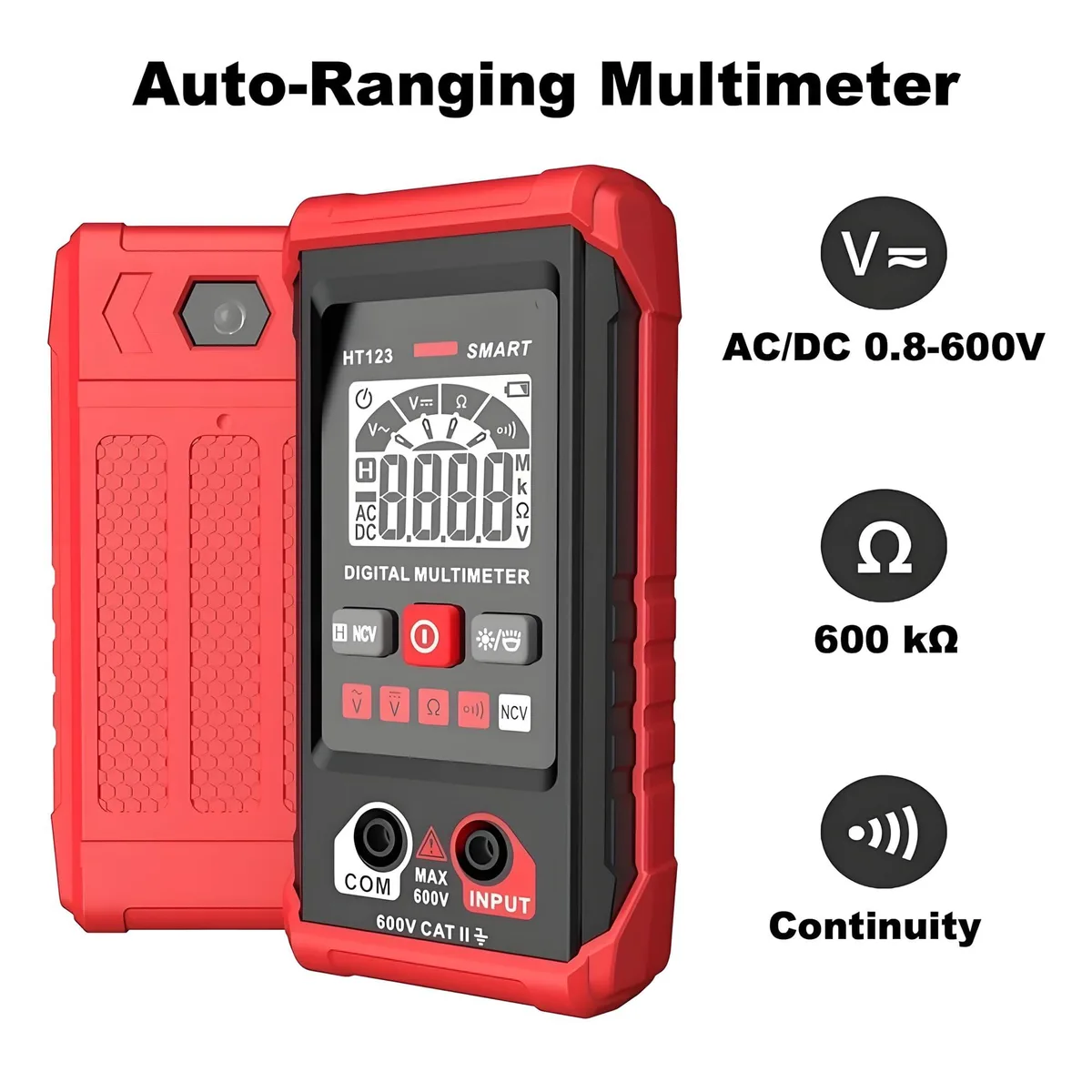

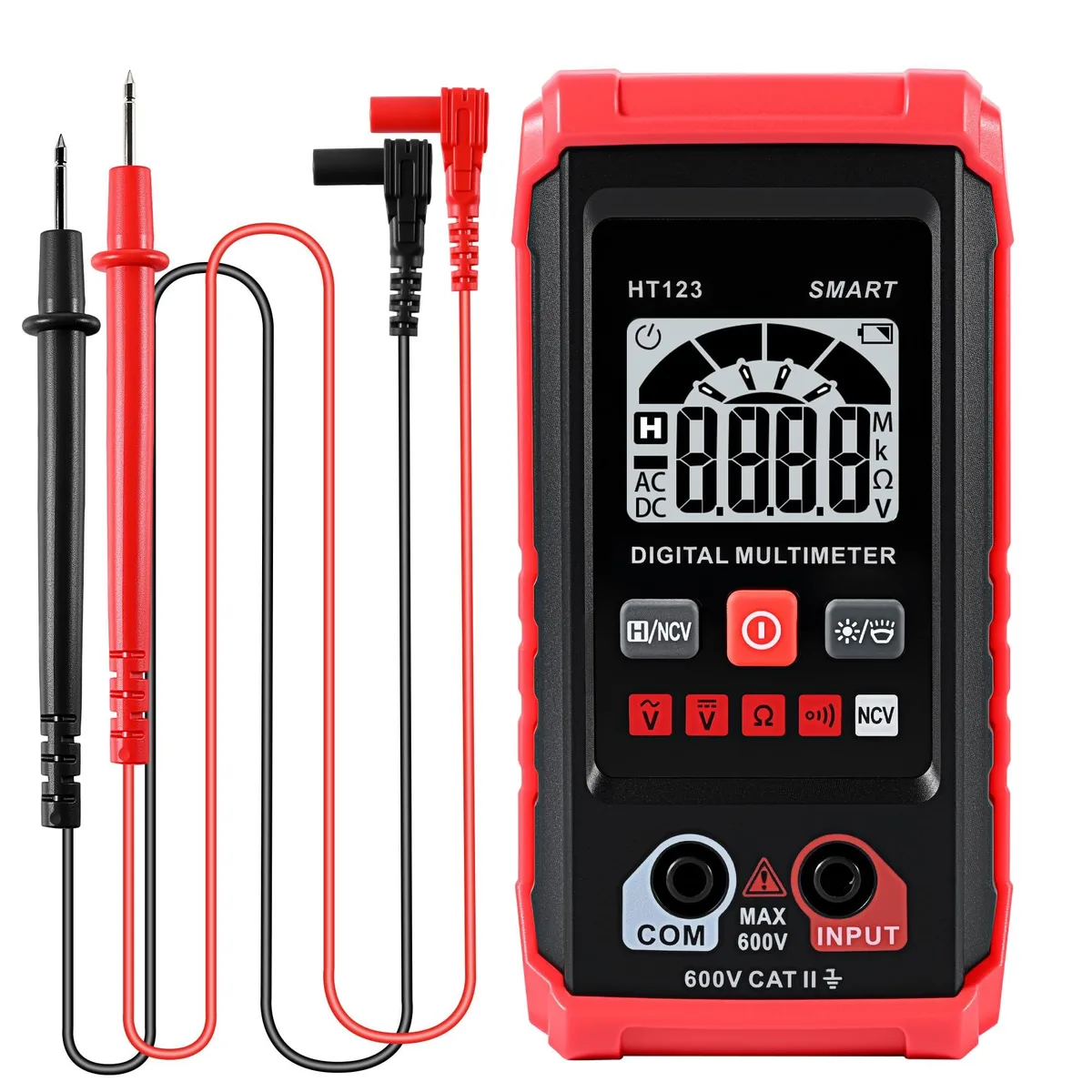

HT123 Digital Multimeter 600V 2000 counts CAT II
Auto-ranging multimeter measures AC/DC voltage to 600 V and resistance to 600 k with 2000-count display, non-contact voltage detection with dual-colour alerts, audible and visual alarms below 50 Ω.
- Sports Team1 Piece
- IncludesMultimeter, Test Probe, Manual
- Standards/CertificationsFDA Class VI Seats
- Auto-ranging simplifies measurements across AC/DC voltage and resistance
- NCV detection with green/red indicators warns of live conductors safely
- Sound and light alarms activate near AC sources or below 50 ohms resistance
- Backlit HD LCD and built-in LED flashlight improve visibility in dim areas
- CAT II 600V rating and protective rubber cover support safe portable use
What the multimeter does
The HT123 is a CAT II 600V digital multimeter that measures AC and DC voltage up to 610V and resistance up to 600k with a 2000-count display. It includes auto-ranging, non-contact voltage detection with green and red indicators, continuity testing with a 50-ohm threshold, data hold, low-battery warning and auto power-off. A backlit LCD and rear LED flashlight aid visibility in dim conditions.
Who benefits and who does not
Electricians, HVAC technicians and DIY users gain a compact, rubber-protected meter for live-circuit checks and basic fault finding. The 2000-count resolution and CAT II rating limit its suitability for high-energy industrial panels or precision calibration work where higher counts and CAT III or IV ratings are required.
The deciding specification
The 2000-count display combined with CAT II 600V certification defines the measurement envelope: it covers household and light-commercial circuits but not distribution-level equipment or tasks demanding finer resolution.
Highlights
- Auto-ranging simplifies measurements across AC/DC voltage and resistance
- NCV detection with green/red indicators warns of live conductors safely
- Sound and light alarms activate near AC sources or below 50 ohms resistance
- Backlit HD LCD and built-in LED flashlight improve visibility in dim areas
- CAT II 600V rating and protective rubber cover support safe portable use
Specifications
| Sports Team | 1 Piece |
|---|---|
| Includes | Multimeter, Test Probe, Manual |
| Standards/Certifications | FDA Class VI Seats |
Questions about this item
Will the HT123's CAT II 600V rating cover the 600 V AC circuits I still work on?
Yes, the CAT II 600V certification and 610 V AC range mean the HT123 is rated for measurements on 600 V AC mains circuits.
How can I confirm the HT123 is reading correctly after I insert the batteries?
The 2000-count HD LCD with backlight shows live readings; the data-hold button freezes the value, and the low-battery indicator will light if the 2×1.5 V AAA cells need replacing.
What comes in the box with the HT123 and what must I supply?
The package includes the multimeter, test probes and manual; you need to provide 2×1.5 V AAA batteries for power.
