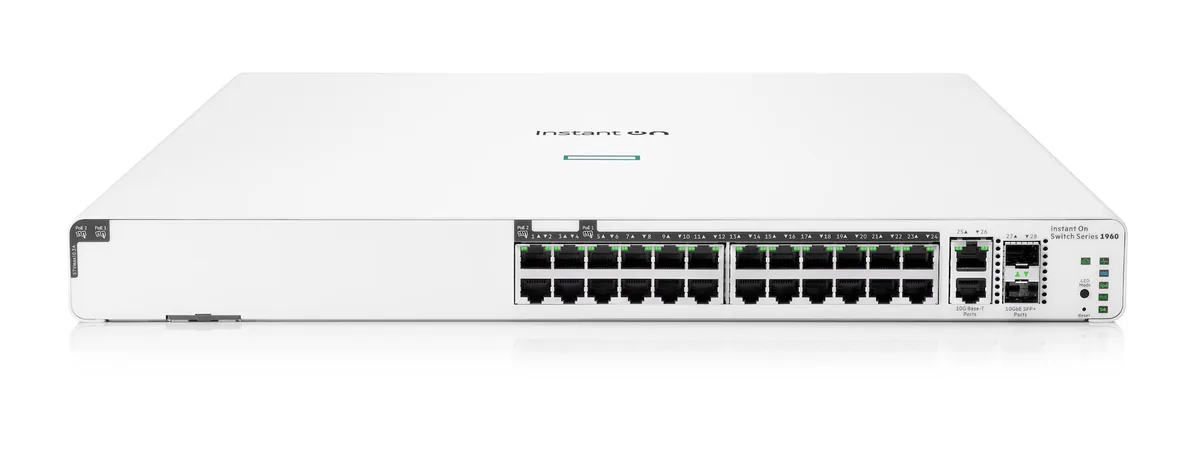

Silver rack-mount network switch with 24 RJ45 ports, two SFP+ and two 10GBASE-T uplinks

HPE Networking Instant On

HPE Networking Instant On 1960 24G 2XT 2XF 370W network switch JL807A#ABA

SKU CH-GT71-GRAV7 MPN JL807A#ABA

A 26-port smart-managed switch with 24 PoE ports, two 10GBASE-T ports and two SFP+ uplinks delivering up to 370 W of power

  • Network Management TypeSmart
  • Primary Ports26 x RJ45 + 2 x SFP
  • Primary Port Speed10/100/1000Mbps + 10 Gbps
  • Primary Port Type24 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE p
  • PoEYes
  • SNMPYes

Model 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP

  • Simplify operations by stacking up to four switches under one IP address
  • Power 24 PoE devices with a 370 W budget supporting Class 4 and Class 6
  • Connect servers and storage at 10 Gbps via two SFP+ and two 10GBASE-T uplinks
  • Manage the network remotely through the Instant On mobile app or cloud portal
  • Fit a high-density 26-port switch in a 1U rack height of 4.4 cm

Smart-Managed PoE Switch for Small Business

The HPE Instant On 1960 is a smart-managed Layer 2 switch with 24 Gigabit PoE ports supporting both Class 4 and Class 6 devices. It adds two 10GBASE-T copper ports and two SFP+ 10GbE ports for high-speed uplinks or stacking. A 370 W PoE budget powers access points, cameras and phones without separate injectors.

Suits Growing Teams Needing Stackable 10G Uplinks

This model fits small and growing businesses that want cloud or local management via a single IP address for up to four stacked units. It is not for buyers who require Layer 3 routing features, larger port counts beyond 26 primary ports, or a PoE budget exceeding 370 W for Class 4 or 240 W for Class 6 devices.

370 W PoE Budget Defines Device Capacity

The total PoE power budget of 370 W determines how many Class 4 or Class 6 endpoints you can connect simultaneously. Class 4 devices can draw up to the full 370 W, while Class 6 devices are limited to 240 W total. Calculate your attached device load against these limits before deployment.

Highlights

  • Simplify operations by stacking up to four switches under one IP address
  • Power 24 PoE devices with a 370 W budget supporting Class 4 and Class 6
  • Connect servers and storage at 10 Gbps via two SFP+ and two 10GBASE-T uplinks
  • Manage the network remotely through the Instant On mobile app or cloud portal
  • Fit a high-density 26-port switch in a 1U rack height of 4.4 cm

Specifications

BrandHPE Instant On
Model1960
Part NumberJL807A#ABA
Network Management TypeSmart
Primary Ports26 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps + 10 Gbps
Primary Port Type24 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports
PoEYes
SNMPYes
Layer2
PoE Power BudgetTotal 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)
Dimensions35.05 x 44.25 x 4.4 cm (13.80" x 17.42" x 1.73")
Weight4.7 kg (10.4 lbs.)
TemperatureOperating temperature 0-40°C, 0-10,000 ft
FeaturesHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust.
Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking.
Using either local web GUI, Instant On mobile app or cloud-based
web portal, you can quickly set up, monitor and manage the
switches from anywhere at anytime.
Shipping weight6.35 kg
Package size457 × 356 × 203 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack depth is required for the 44.25 cm wide, 4.4 cm high JL807A#ABA chassis?

The switch is 35.05 cm deep, so any rack or cabinet deeper than 35.05 cm will accommodate it with room for cable bend radius.

Which steps are needed to stack two JL807A#ABA units using the 10GBASE-T ports?

Connect a Cat6a or better cable between the 10GBASE-T ports, enable stacking in the Instant On mobile app or cloud portal, and assign a single management IP for the stack.

When should the internal power supply be considered for replacement given the 370 W PoE budget?

Plan a replacement if PoE devices regularly draw near 370 W and the switch logs power-supply warnings, or after the Limited Lifetime Warranty period ends.
