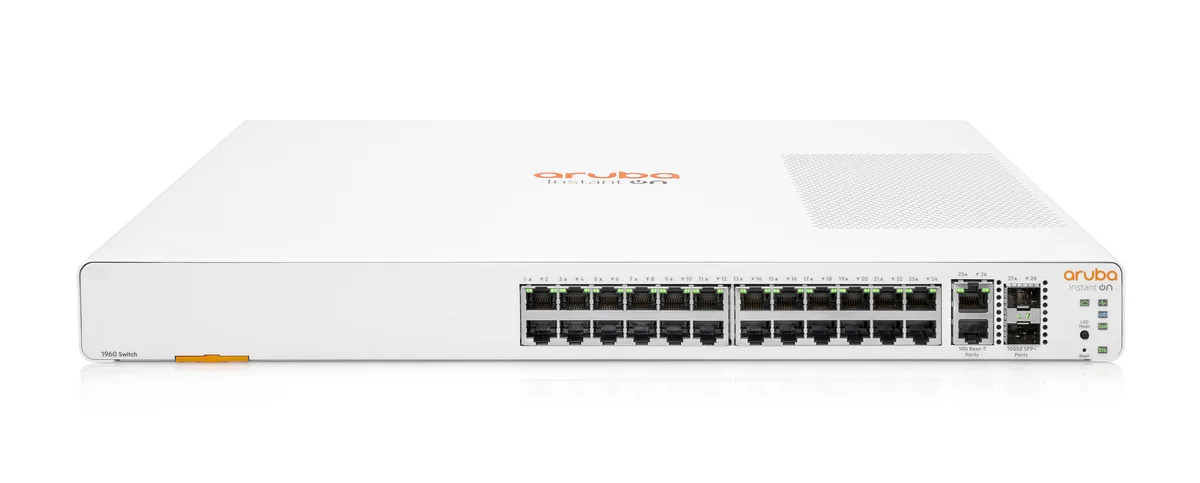

Silver rack-mountable network switch with 24 RJ-45 ports and four uplink ports on the front

HPE Networking Instant On

HPE Networking Instant On 1960 24G 2XGT 2SFP+ network switch JL806A#ABA

SKU CH-0YTE-N41TW MPN JL806A#ABA

A smart-managed Layer 2 switch with 24 Gigabit RJ-45 ports, two 10GBASE-T ports and two SFP+ uplinks, stackable to four units under one IP address

  • Network Management TypeSmart
  • Primary Ports26 x RJ45 + 2 x SFP
  • Primary Port Speed10/100/1000Mbps + 10 Gbps
  • Primary Port Type24 RJ-45 10/100/1000 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T
  • PoENo
  • SNMPYes

Model 24p Gigabit 2p 10GBT 2p SFP+

  • 24 Gigabit RJ-45 ports connect workstations and printers
  • Two 10GBASE-T ports link servers at ten-gigabit speed
  • Two SFP+ uplinks extend the network over fibre
  • Stack up to four switches and manage them through one IP address
  • Smart-managed Layer 2 features include VLANs, QoS and SNMP monitoring

Smart-Managed 26-Port Switch for Growing Businesses

The HPE Instant On 1960 delivers 24 Gigabit RJ-45 ports, two 10GBASE-T ports and two SFP+ 10GbE uplinks in a single rack-mountable unit. It is built for small and growing businesses that need Layer 2+ switching with simple cloud or app-based management. No PoE support means it suits environments where powered devices are handled separately. Stacking up to four 1960 switches under one IP address scales the network without adding complexity.

Rack-Mount Chassis with High-Speed Uplinks

The metal enclosure measures 44.25 cm wide, 35.05 cm deep and 4.4 cm high, fitting a standard 1U rack space at 3.9 kg. Front-facing ports keep patch cables accessible while the rear power inlet simplifies cabinet wiring. Two dedicated 10GBASE-T copper ports and two SFP+ cages provide flexible 10 Gbps links to servers, storage or core switches without consuming Gigabit access ports. Fan cooling is internal; the operating range covers 0 to 40 °C at altitudes up to 10,000 ft.

Upgrade Path from Unmanaged or 1G-Only Gear

This switch replaces unmanaged Gigabit switches when VLANs, QoS, link aggregation or SNMP monitoring become necessary. It also supersedes older 1G uplinked stacks by adding native 10 Gbps uplinks in both copper and fibre form factors. The jump is worthwhile when traffic between access and aggregation layers regularly saturates 1 Gbps links or when a single management plane for up to four units reduces administrative overhead. Buyers who need PoE for phones, cameras or APs should select a PoE-equipped 1960 model instead.

Highlights

  • 24 Gigabit RJ-45 ports connect workstations and printers
  • Two 10GBASE-T ports link servers at ten-gigabit speed
  • Two SFP+ uplinks extend the network over fibre
  • Stack up to four switches and manage them through one IP address
  • Smart-managed Layer 2 features include VLANs, QoS and SNMP monitoring

Specifications

BrandHPE Instant On
Model1960
Part NumberJL806A#ABA
Network Management TypeSmart
Primary Ports26 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps + 10 Gbps
Primary Port Type24 RJ-45 10/100/1000 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports
PoENo
SNMPYes
Layer2
Dimensions35.05 x 44.25 x 4.4 cm (13.80" x 17.42" x 1.73")
Weight3.9 kg (8.7 lbs.)
TemperatureOperating temperature 0-40°C, 0-10,000 ft
FeaturesHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust.
Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking.
Using either local web GUI, Instant On mobile app or cloud-based
web portal, you can quickly set up, monitor and manage the
switches from anywhere at anytime.
Shipping weight7.26 kg
Package size566 × 498 × 122 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What speeds do the two SFP+ and two 10GBASE-T ports actually support?

The two SFP+ ports run at 10 Gbps and the two 10GBASE-T ports also run at 10 Gbps.

What rack depth and clearance does the 1 U chassis need?

The unit is 44.25 cm deep and 4.4 cm high, fitting a standard 19-inch 1 U rack space.

How do I join multiple 1960 switches into a single stack?

Connect the SFP+ or 10GBASE-T ports with compatible cables, then enable stacking in the Instant On app or cloud portal to manage up to four switches under one IP.
