Black rectangular HDMI matrix switch, six inputs two outputs, IR remote included

Hitoor

Hitoor BW-20HM62 6x2 HDMI Matrix Switch 4K@60Hz

SKU CH-7RWR-QHWM8

Routes six HDMI sources to two displays at 4K@60Hz with optical and 3.5mm audio extraction

  • TypeHDMI Matrix Switch
  • ColorBlack
  • Ports6
  • MatrixYes
  • AudioYes
  • Input Connector6 x HDMI
  • Routes 6 UHD sources to 2 displays independently
  • Delivers 4K@60Hz video with 8/10/12-bit color depth
  • Extracts audio via optical or 3.5mm stereo output
  • Supports LPCM, DTS 5.1 and Dolby formats with EDID
  • Includes IR remote for convenient source switching

Matrix switching for six sources

The Hitoor BW-20HM62 routes six HDMI inputs to two independent displays, letting each screen show a different 4K source. Optical and 3.5 mm ports extract audio separately from the video path. A handheld IR remote selects inputs without front-panel buttons.

Suited to multi-source installations

Home theatres, classrooms and digital-signage setups that need several players, consoles or streamers connected to a pair of projectors or TVs will benefit. Buyers who require more than two simultaneous output zones or who need HDMI 2.1 bandwidth should look elsewhere.

6x2 HDMI 2.0 matrix with 4K@60Hz

Six inputs and two outputs share 18 Gbps bandwidth, HDCP 2.2 and automatic downscaling so a 4K source can feed a 1080P display without manual setup. This 6x2 configuration at HDMI 2.0 is the specification that determines whether the switcher matches the installation.

Highlights

  • Routes 6 UHD sources to 2 displays independently
  • Delivers 4K@60Hz video with 8/10/12-bit color depth
  • Extracts audio via optical or 3.5mm stereo output
  • Supports LPCM, DTS 5.1 and Dolby formats with EDID
  • Includes IR remote for convenient source switching

Specifications

ModelBW-20HM62
TypeHDMI Matrix Switch
ColorBlack
Ports6
MatrixYes
AudioYes
Input Connector6 x HDMI
Output Connector2 x HDMI
Maximum Cable Length5M
Maximum ResolutionsSupport up to 4K@60Hz, 4K&2K, 1080P, 3D and other video resolutions, compatible with 8/10/12-bit color depth, HDMI 2.0, HDCP 2.2, 18Gbps, support for automatic downgrade, 4K resolution can be automatically downgraded to 1080P.
FeaturesSupport up to 4K@60Hz, 4K&2K, 1080P, 3D and other video resolutions;
4K HDMI switch supports LPCM, DTS 5.1 channel, Dobly and many other audio formats, and supports EDID;
This HDMI switcher with remote control is compatible with a wide range of devices, ensuring lossless transmission of video and audio signals. It supports VCD/DVD player, Blu-ray player, Xbox, Fire Stick, PS4/5, TV, PC, Projector and HDTV, etc.
Dimensions6.3 x 5.2 x 0.7 inches
Weight3.84 ounces
Package Quantity1
Package Contents1 x HDMI Matrix Switch,
1 x Remote Controller,
1 x Power Adapter,
1 x User Manual

Questions about this item

How do I decide between using the two HDMI outputs for separate displays versus mirroring the same source?

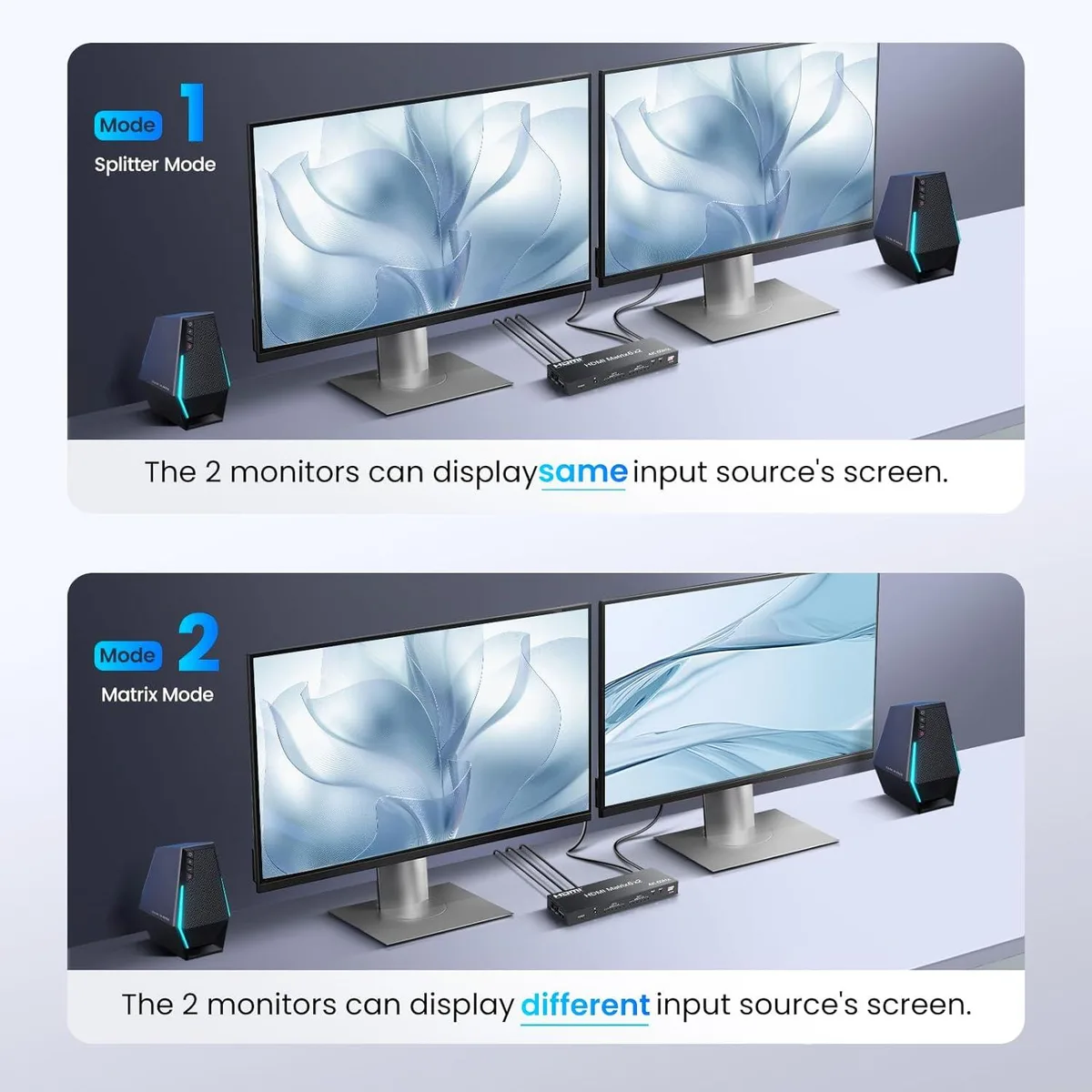

The 6x2 matrix lets you route any of the six inputs to either output independently, so you can show different 4K@60Hz sources on two screens or send one source to both.

What does the 18Gbps bandwidth mean when I connect a PS5 or Fire Stick?

It carries full 4K@60Hz 8/10/12-bit HDR video with HDCP 2.2, and the switch will auto-downscale 4K to 1080P if a connected display cannot handle the higher resolution.

How do the optical and 3.5mm audio ports work with the HDMI 2.0 inputs?

Both ports extract audio from the active HDMI stream — supporting LPCM, DTS 5.1 and Dolby formats — letting you feed a soundbar or headphones while video continues to the displays.
