Black rectangular HDMI matrix switch with multiple ports

Hitoor

Hitoor 4K HDMI Matrix Switch 6x2 Audio/Video Switch

SKU CH-Q57P-TQWQY

A 6×2 HDMI matrix that switches or splits six sources to two displays with PIP, ARC, 4K and 3D support plus optical and 3.5 mm audio extraction

  • TypeHDMI Matrix
  • Changer TypeHDMI
  • ColorBlack
  • Ports6
  • MatrixYes
  • Route six sources to two displays with matrix flexibility
  • Extract audio via optical or 3.5 mm jack
  • Switch inputs by IR remote or front button
  • Supports 4K, 3D and full HD resolutions
  • Handles multi-channel formats including DTS-HD and Dolby TrueHD

6x2 HDMI Matrix Switch

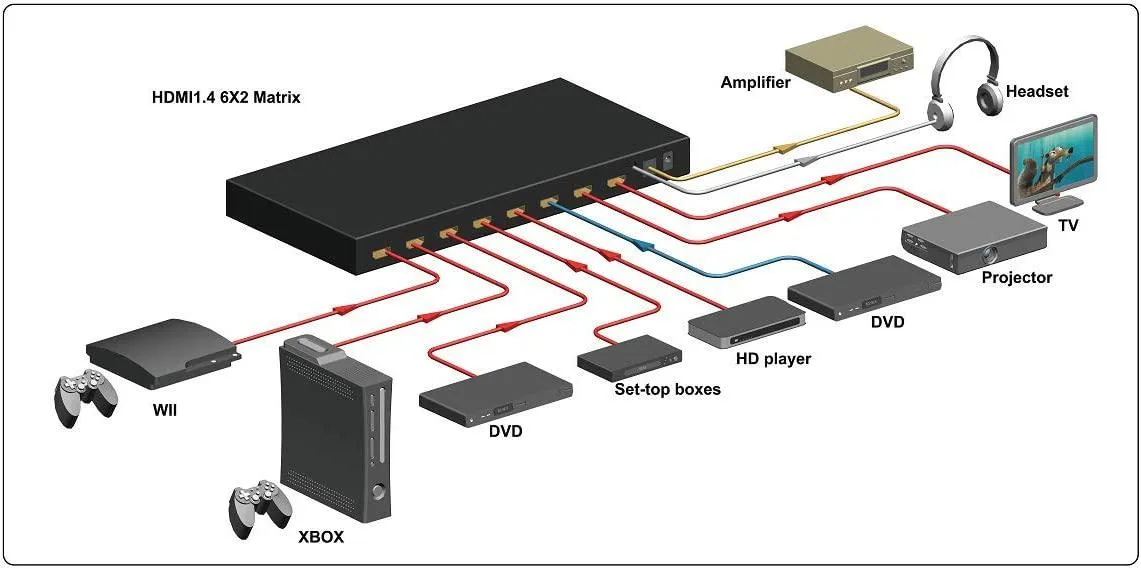

This 6x2 HDMI matrix routes six HDMI sources to two displays with independent output selection. It supports resolutions up to 4K x 2K, 3D and 1080p at 60 Hz. Audio can be extracted from any input through optical S/PDIF or 3.5 mm headphone ports. IR remote and front-panel buttons control switching.

Bandwidth and signal limits

Maximum transmission bandwidth is 300 MHz with a 9.0 Gbps baud rate. TMDS signals range from 0.5 to 1.5 Volts peak-to-peak while DDC runs at 5 Volts TTL. Digital audio output supports LPCM 2.0, Dolby AC3 and DTS at sampling rates of 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz. The unit draws up to 700 mA and requires external DC power.

Build and daily use

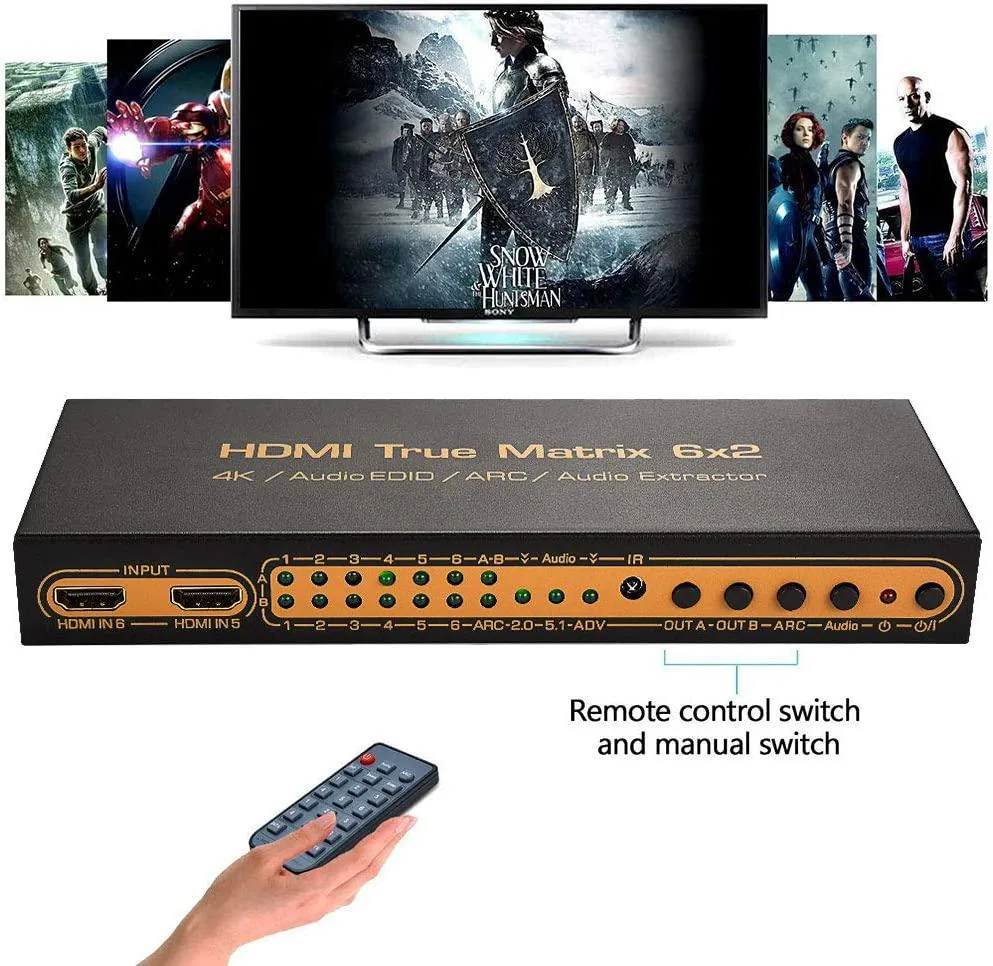

A black chassis houses six HDMI inputs and two HDMI outputs alongside optical and 3.5 mm audio outputs. Power-off memory restores the last routing after a mains cycle. ARC allows TV audio to return to an AV receiver and PIP shows a secondary source in a window. No loss of quality is claimed for switched signals.

Highlights

  • Route six sources to two displays with matrix flexibility
  • Extract audio via optical or 3.5 mm jack
  • Switch inputs by IR remote or front button
  • Supports 4K, 3D and full HD resolutions
  • Handles multi-channel formats including DTS-HD and Dolby TrueHD

Specifications

TypeHDMI Matrix
Changer TypeHDMI
ColorBlack
Ports6
MatrixYes

Questions about this item

Which matrix configuration suits a setup with six sources and two displays?

The 6x2 layout routes any of the six HDMI inputs to either of the two outputs independently, so you can show different sources on each screen or mirror one source to both.

What does the 9.0 Gbps bandwidth mean for 4K playback?

It carries 4K at 60 Hz with standard colour depth, but cannot pass higher refresh rates or deep-colour 4K formats that require more throughput.

How does the ARC function work with an AV receiver?

ARC returns audio from a compatible TV back through the matrix to an optical or 3.5 mm output, letting the receiver play TV sound without a separate cable.
