HighZer0 Electronics RFANT13Z+M1 WiFi Patch Antenna 1-Pair 15cm

Internal antenna pair for mini-PCIe cards

The HighZer0 Electronics RFANT13Z+M1 kit supplies two 15cm patch antennas with IPEX1, MHF1 and U.FL connectors for mini-PCIe and Half-Mini PCIe wireless cards such as the 7260HMW, 6235ANHMW and 6300AGN. Builders repairing laptops, desktops, routers or embedded boards use them when internal placement is preferred over external posts.

2.5dBi gain across 2.4, 5, 5.8 and 6GHz bands

Each antenna delivers up to 2.5dBi omnidirectional gain with vertical polarization and 50 Ohm impedance. The low-loss RF1.13 cable handles WiFi and Bluetooth traffic on all listed frequencies. SWR stays below 2 and maximum input power is rated at 2W, so signal quality remains stable within those limits.

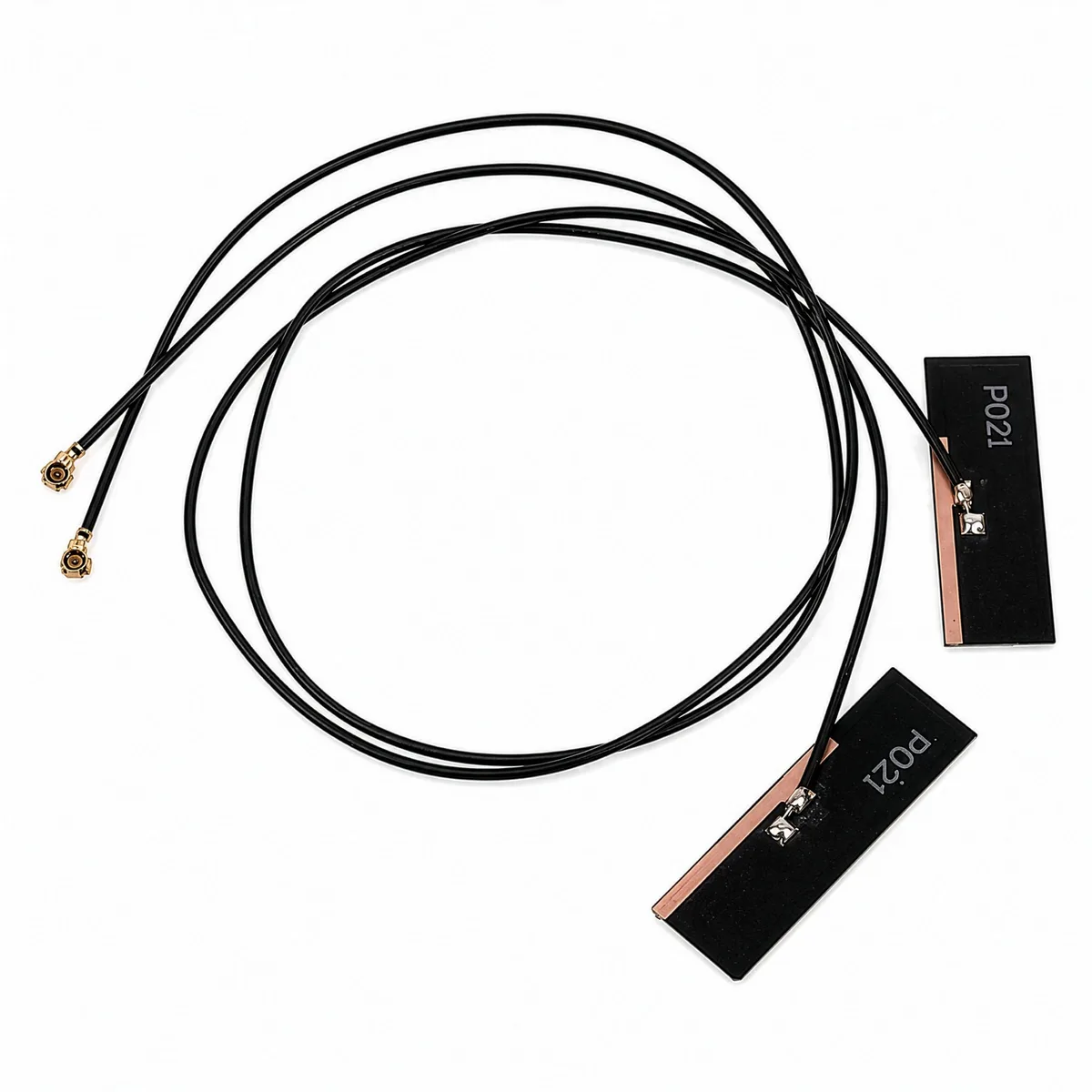

Adhesive-backed FPC pads for tight enclosures

Flexible printed-circuit radiators with pre-applied double-sided tape let you peel and place each antenna inside cramped motherboard trays, laptop housings or small-form-factor cases. The thin cable routes through narrow gaps without blocking airflow or adding audible noise, and the 15cm length keeps excess wire to a minimum.
