HighZer0 Electronics RFANT10Z+M1 network antenna 20cm 1-pair

Internal WiFi Antenna Pair

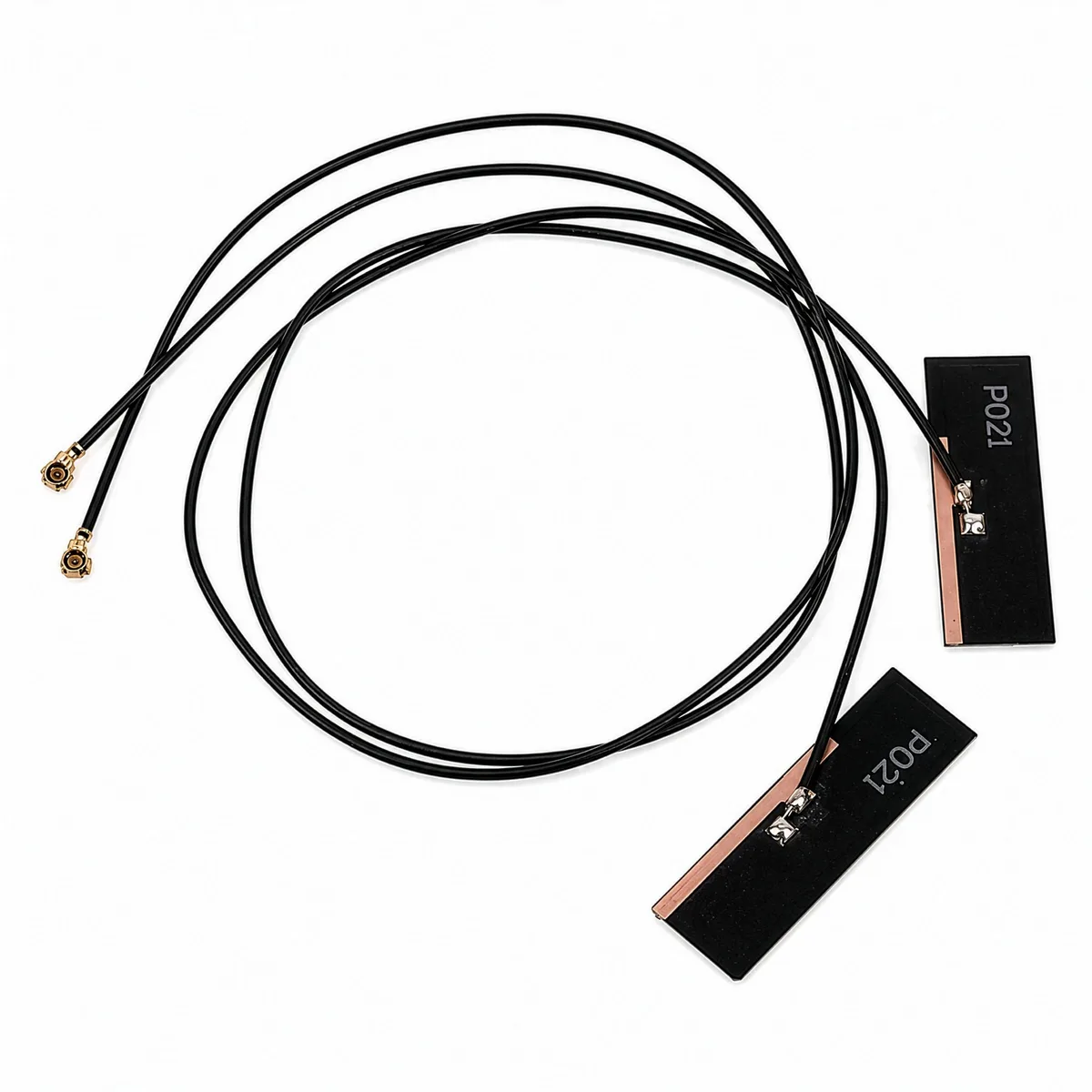

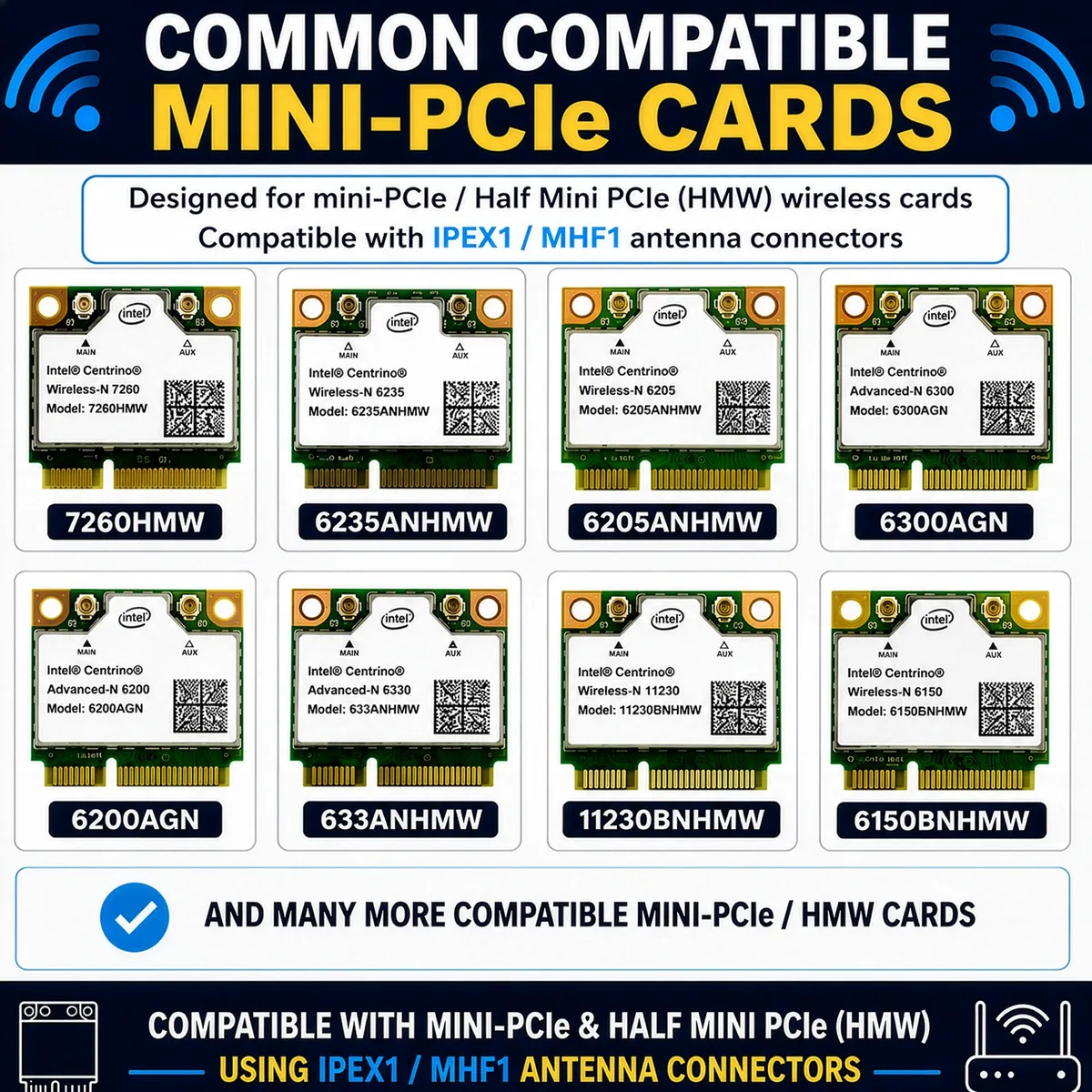

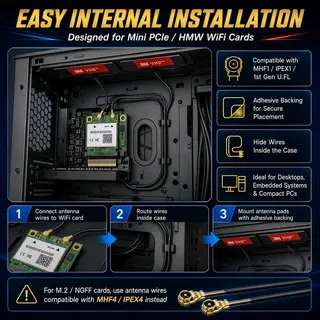

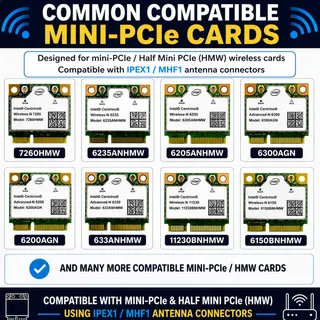

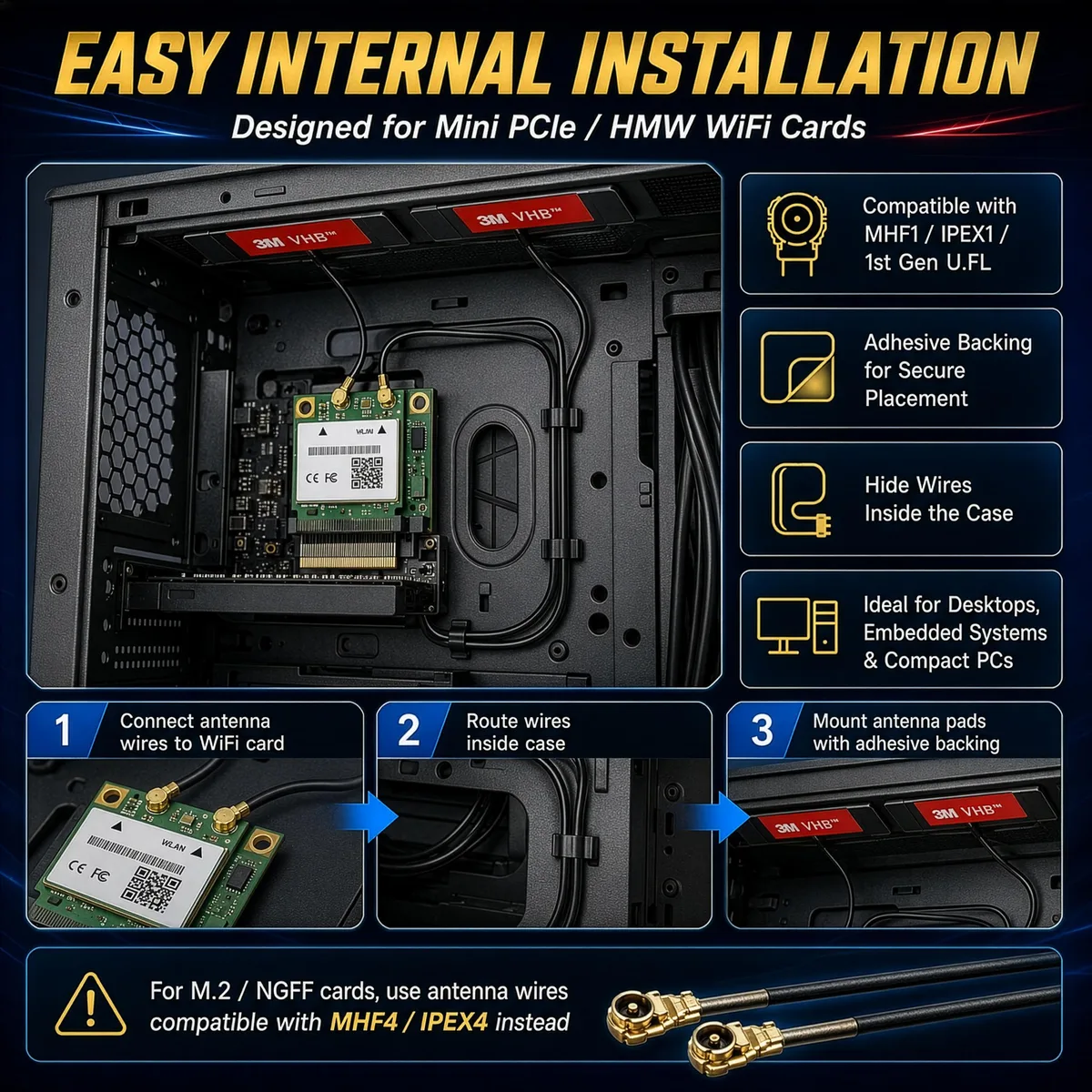

This HighZer0 Electronics RFANT10Z+M1 set provides two 20cm internal antenna cables with IPEX1, MHF1 and U.FL connectors. It is designed for mini-PCIe and Half-Mini PCIe wireless cards such as the 7260HMW, 6235ANHMW, 6205ANHMW, 6300AGN, 633ANHMW, 6200AGN and 6230ANHMW. The antennas suit desktops, laptops, routers and embedded builds where a concealed internal solution is preferred over external posts. Flexible FPC/PCB radiators with adhesive backing allow tidy routing inside tight enclosures.

Connector Compatibility Check

Before ordering, verify that your wireless card uses IPEX1, MHF1 or first-generation U.FL antenna ports. This set is not compatible with IPEX4 or MHF4 connectors found on many M.2 NGFF cards including AX200, AX210 and BE200 models used for WiFi 6E and WiFi 7. Compare the connector size and style on your existing card and antenna ends to ensure a correct match. The cables will not fit smaller MHF4 or IPEX4 sockets.

Thermals Noise and Power

These passive antennas add no active heat, noise or power draw to the system. They are rated for up to 2W maximum input power with 50 Ohm nominal impedance and SWR below 2. The low-loss RF1.13 coaxial cable maintains signal integrity across 2.4GHz, 5GHz, 5.8GHz and 6GHz bands with 2.5dBi omnidirectional gain and vertical polarization. Operation is silent and thermally neutral in normal use.
