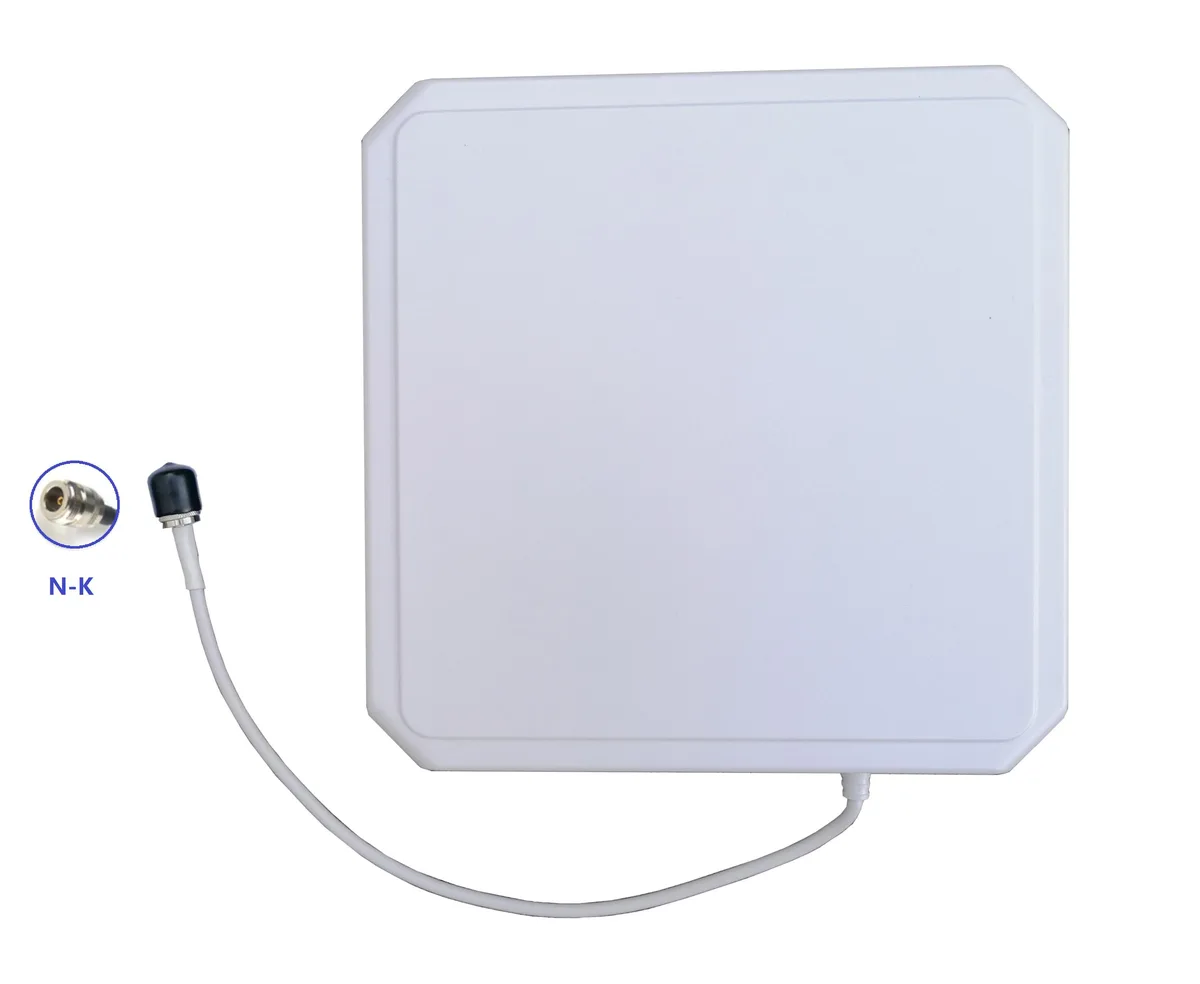

H-2 Technik 12dBi Directional Panel Antenna 850-960MHz N-Type 0.4m Cable
A 12dBi directional panel antenna covering 850-960MHz with N-Type connector and 0.4m RG58 cable
- ColorWhite
- FeaturesHigh Gain Performance,Wide Frequency Range
- 12dBi gain boosts signal strength across 850-960MHz
- DC ground lightning protection safeguards equipment in storms
- 65° beamwidth focuses coverage for reliable links
- 4m RG58 cable with N-Type female connector ready to install
- F4B shell withstands -40°C to +85°C for outdoor use
Directional Panel Antenna 12dBi
The H-2 Technik panel operates across the 850MHz to 960MHz band with a 12dBi gain rating. Its directional radiation pattern and circular polarisation focus energy where it is needed. A 20dB front-to-rear ratio suppresses signals from behind the antenna. The 65° half-power beamwidth in both planes gives balanced coverage for UHF RFID or LoRa deployments.
Thermal and Power Handling
The antenna is rated for continuous operation up to 50W input power. DC grounding provides a path for lightning-induced surges without active components. No moving parts or forced cooling are present, so acoustic output is zero. The specified operating range spans -40°C to +85°C, covering extreme outdoor environments.
Construction and Mounting

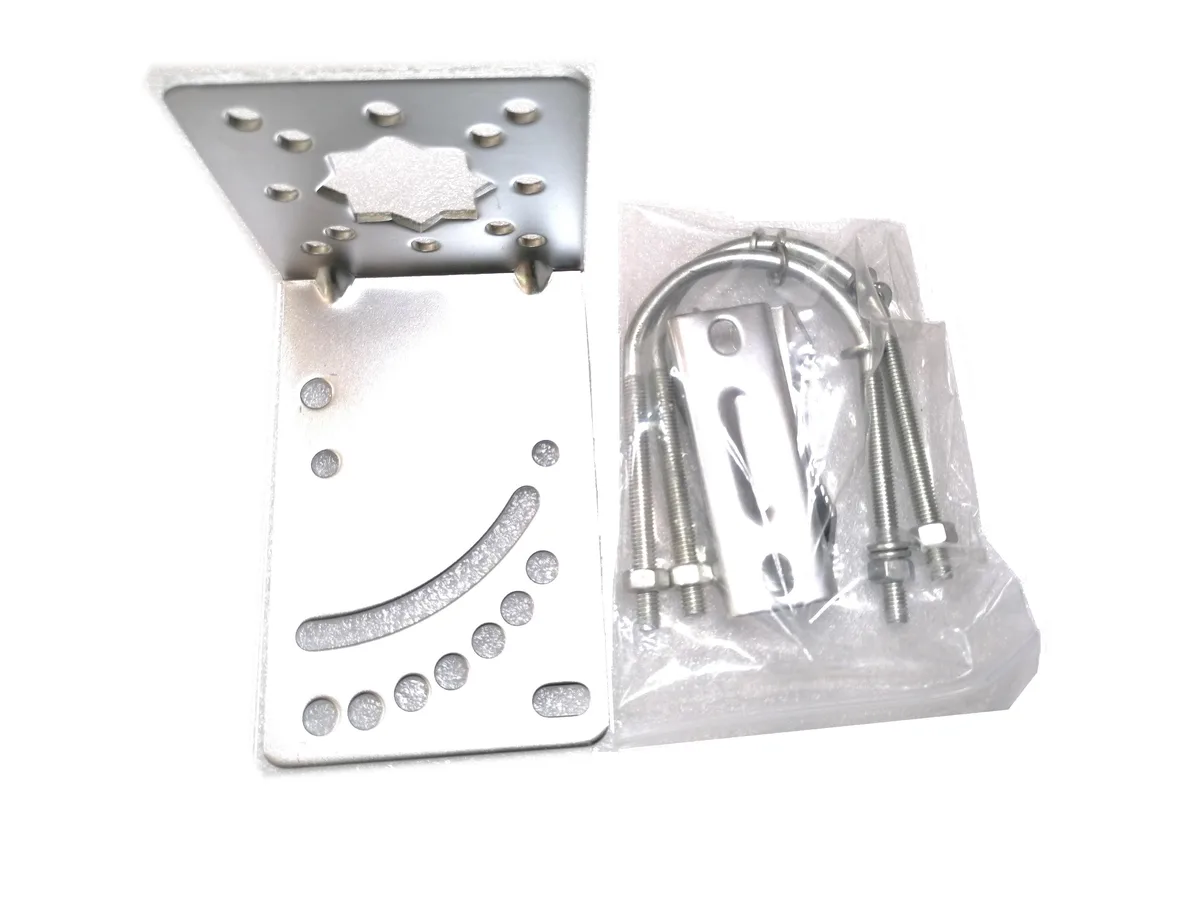

A white F4B shell keeps weight to 0.85Kg while measuring 258mm x 258mm x 34mm. Four mounting holes on a 4x4 pattern accept the supplied bracket set for pole or wall attachment. The fixed 0.4m RG58 pigtail terminates in an N-Type female connector, limiting cable routing flexibility but ensuring a weatherproof junction at the feed point.
Highlights
- 12dBi gain boosts signal strength across 850-960MHz
- DC ground lightning protection safeguards equipment in storms
- 65° beamwidth focuses coverage for reliable links
- 4m RG58 cable with N-Type female connector ready to install
- F4B shell withstands -40°C to +85°C for outdoor use
Specifications
| Brand | H2_12DB_UHF_PB_2626_NK |
|---|---|
| Model | H2_12DB_UHF_PB_2626 |
| Color | White |
| Features | High Gain Performance,Wide Frequency Range |
Questions about this item
How do I mount the 258mm x 258mm panel and what step is often missed?
Use the included mounting set with the 4x4 mounting holes on a pole or wall; the step often missed is ensuring the N-Type female connector on the 0.4m RG58 cable is weather-sealed after tightening.
What part will need checking or replacement after long outdoor exposure?
The RG58 feed cable and N-Type connector are the most exposed components; inspect the cable jacket for UV cracking and the connector for corrosion, especially after temperature cycles between -40°C and +85°C.
What is the maximum continuous RF power the antenna can handle before overheating?
The antenna is rated for up to 50W input power; sustained operation at this level in high ambient temperatures near +85°C is the thermal limit that appears first.
