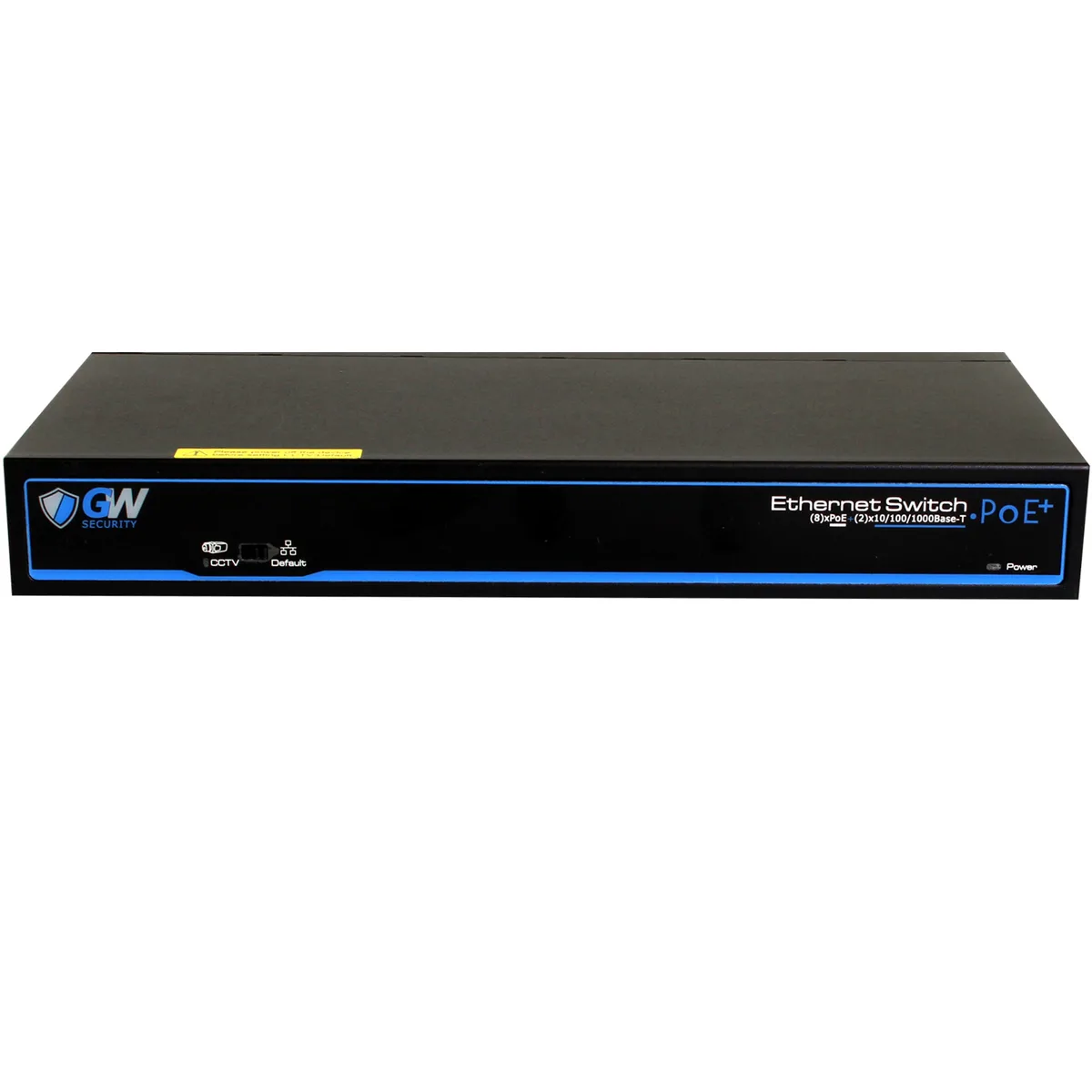

Small black metal network switch with eight PoE ports and two uplink ports

GW Security Inc.

GW Security Inc. GWSW0802M 8+2 Port PoE Switch surveillance accessory

SKU CH-J2WK-EVQX7

Eight-port PoE switch powers IP cameras up to 300 feet with two gigabit uplinks and a CCTV mode extending reach to 250 metres

  • TypePoE Switch
  • SpecificationsIEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 10
  • Package ContentsPoE switch, power adapter, user guide
  • 8 PoE ports power cameras directly
  • 250 m reach in CCTV mode extends cabling
  • 2 Gigabit uplinks connect recorder to network
  • 6 kV lightning protection guards equipment
  • IEEE 802.3af compliant for standard PoE devices

Designed for PoE IP cameras

This eight-port PoE switch powers IP cameras and passes data over a single Ethernet cable. It targets installers who need a compact mid-span solution for small to medium surveillance deployments. Each downlink port delivers power automatically when a compliant device is detected.

CCTV mode extends reach to 250 metres

A dedicated CCTV mode enables VLAN isolation and storm control while pushing the downlink distance from 100 metres to 250 metres at 10 Mbps. The two gigabit uplink ports connect the switch to an NVR or core network without creating a bottleneck. Ports one to eight communicate only with the uplinks in this mode.

2 Gbps backbone with 48 to 57 VDC input

The 2 Gbps backplane handles eight 100 Mbps PoE streams plus dual gigabit uplinks comfortably. Power input accepts 48 to 57 VDC via the supplied adapter. Installations requiring more than eight powered endpoints or 1000 Mbps downlink speeds will need additional switching capacity.

Highlights

  • 8 PoE ports power cameras directly
  • 250 m reach in CCTV mode extends cabling
  • 2 Gigabit uplinks connect recorder to network
  • 6 kV lightning protection guards equipment
  • IEEE 802.3af compliant for standard PoE devices

Specifications

BrandGW
ModelGWSW0802M
TypePoE Switch
SpecificationsIEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3af Power over Ethernet (PoE); IEEE 802.3x Flow Control;
Package ContentsPoE switch, power adapter, user guide

Questions about this item

Will the power adapter need replacing before the switch itself?

The unit ships with a DC 48-57 V power adapter; no other power supply is included, so that adapter is the only part that would require replacement if it fails.

Which bottleneck appears first when all eight cameras stream continuously?

Each downlink port is limited to 100 Mbps and the total backplane is 2 Gbps, so sustained full-bitrate streams from multiple cameras will saturate the 100 Mbps links before the 2 Gbps backbone becomes a constraint.

How hot and loud does the GWSW0802M get during all-day operation?

The switch has no fan and relies on passive cooling, so it runs silently; heat output is limited to the 802.3af PoE budget and the DC 48-57 V input, keeping surface temperatures low in normal indoor use.
