Small silver cylindrical gear motor with D-shaped output shaft and red and black wires

Greartisan 12V 1000RPM DC Gear Motor 37mm Eccentric Shaft

SKU CH-Q1PZ-Y2WZD

A 12 V DC gear motor delivering 1000 RPM no-load speed with a 6 mm eccentric D-shaft for vending, camera or automation projects

  • Size/Dimensions1.31 inches x 1.31 inches x 1.42 inches
  • Color1000 RPM
  • Weight0.2 kilograms
  • All-metal gears resist heat and wear for long service life
  • Pure copper rotor winding raises output power by 30 percent
  • D-shaped steel shaft improves bearing life and impact resistance
  • Reversible rotation with speed reduction only, low noise and high torque
  • Compact 37 mm gearbox fits vending, camera and automation equipment

12 V 1000 RPM Gear Motor with Eccentric Shaft

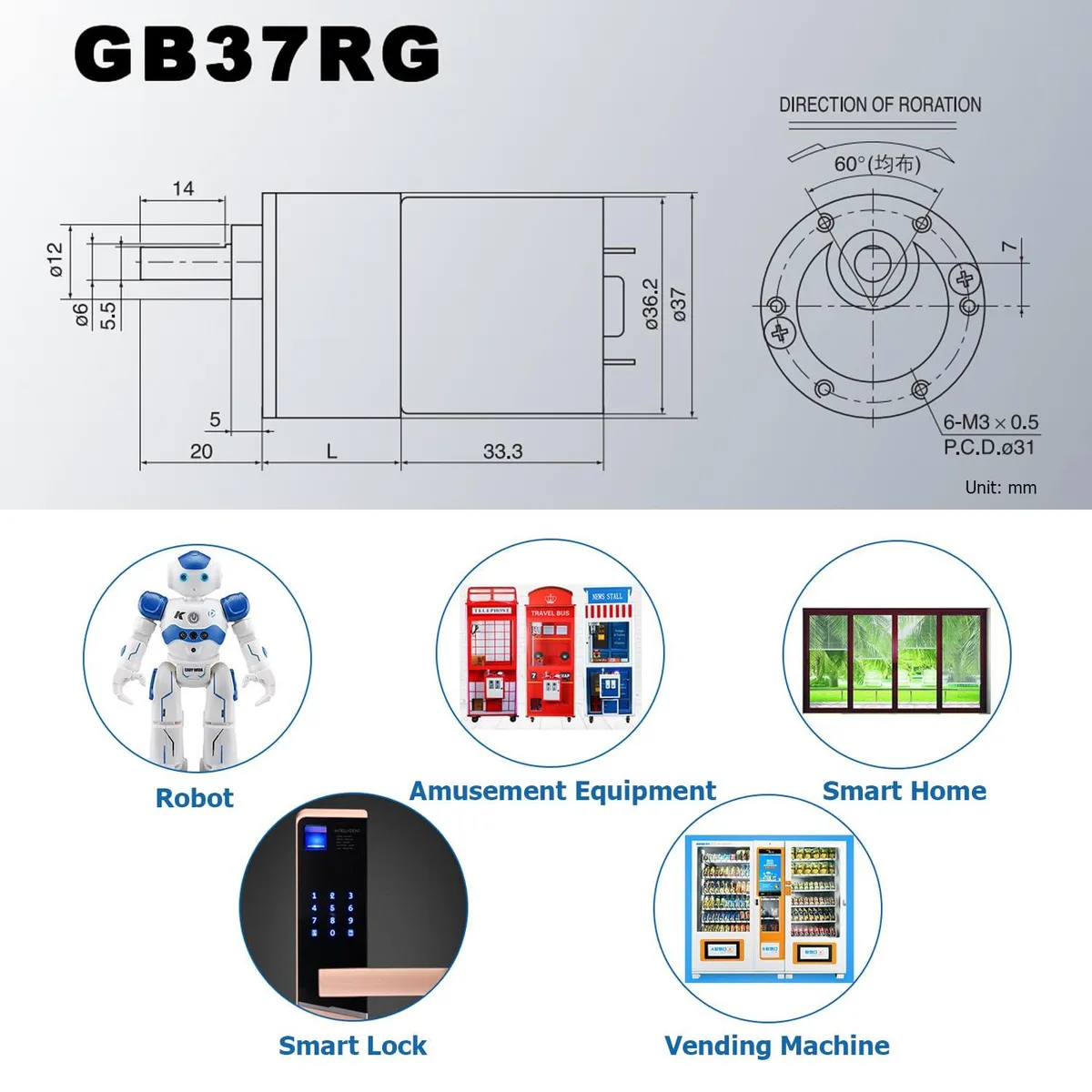

This 12 V DC gear motor delivers 1000 RPM no-load speed through a 1:3 all-metal reduction gearbox. The 37 mm diameter gearbox houses a D-shaped 6 x 14 mm output shaft suited for vending equipment, pan cameras and similar light-automation tasks. Builders needing a compact high-torque drive for low-speed mechanisms will find the rated torque of 0.15 kgf·cm and 0.35 A current draw easy to integrate.

Voltage and Load Limits

Operation is rated at 12 V DC with a 0.35 A no-load current; exceeding this voltage or allowing the motor to stall will shorten life and can burn the windings. The manufacturer notes speed can only be reduced from the 1000 RPM baseline, not increased, and recommends keeping load well below the 15 kg example cited at 10 RPM. Storage temperature must stay between 0 and 40 °C with 15–90 % relative humidity.

Wiring and Mounting Notes

Two leads exit the motor — red for positive, black for negative — and reversing them simply reverses rotation. Mounting holes are M3 pattern, though fasteners are not supplied. The all-metal gears and pure-copper rotor tolerate normal handling, but the datasheet warns against hammering the shaft or forcing the gearbox, as impact can misalign the reduction train and increase noise.

Highlights

  • All-metal gears resist heat and wear for long service life
  • Pure copper rotor winding raises output power by 30 percent
  • D-shaped steel shaft improves bearing life and impact resistance
  • Reversible rotation with speed reduction only, low noise and high torque
  • Compact 37 mm gearbox fits vending, camera and automation equipment

Specifications

BrandGreartisan
Model NumberGreartisan
Size/Dimensions1.31 inches x 1.31 inches x 1.42 inches
Modelgear
Color1000 RPM
Weight0.2 kilograms

Questions about this item

What shaft size should I plan for when mounting a wheel or gear?

The D-shaped output shaft measures 6 mm diameter by 14 mm length (0.24 in x 0.55 in), so couplings or hubs must match that profile.

How much torque can I expect at the rated 12 V supply?

At 12 V the motor delivers 0.15 kgf·cm of rated torque while drawing 0.35 A, giving enough turning force for light loads such as camera pans or small automated doors.

What does the 1:3 reduction ratio mean for output speed and force?

The internal gearbox reduces the motor speed by a factor of three, producing the listed 1000 RPM no-load speed while multiplying torque compared to the raw motor shaft.
