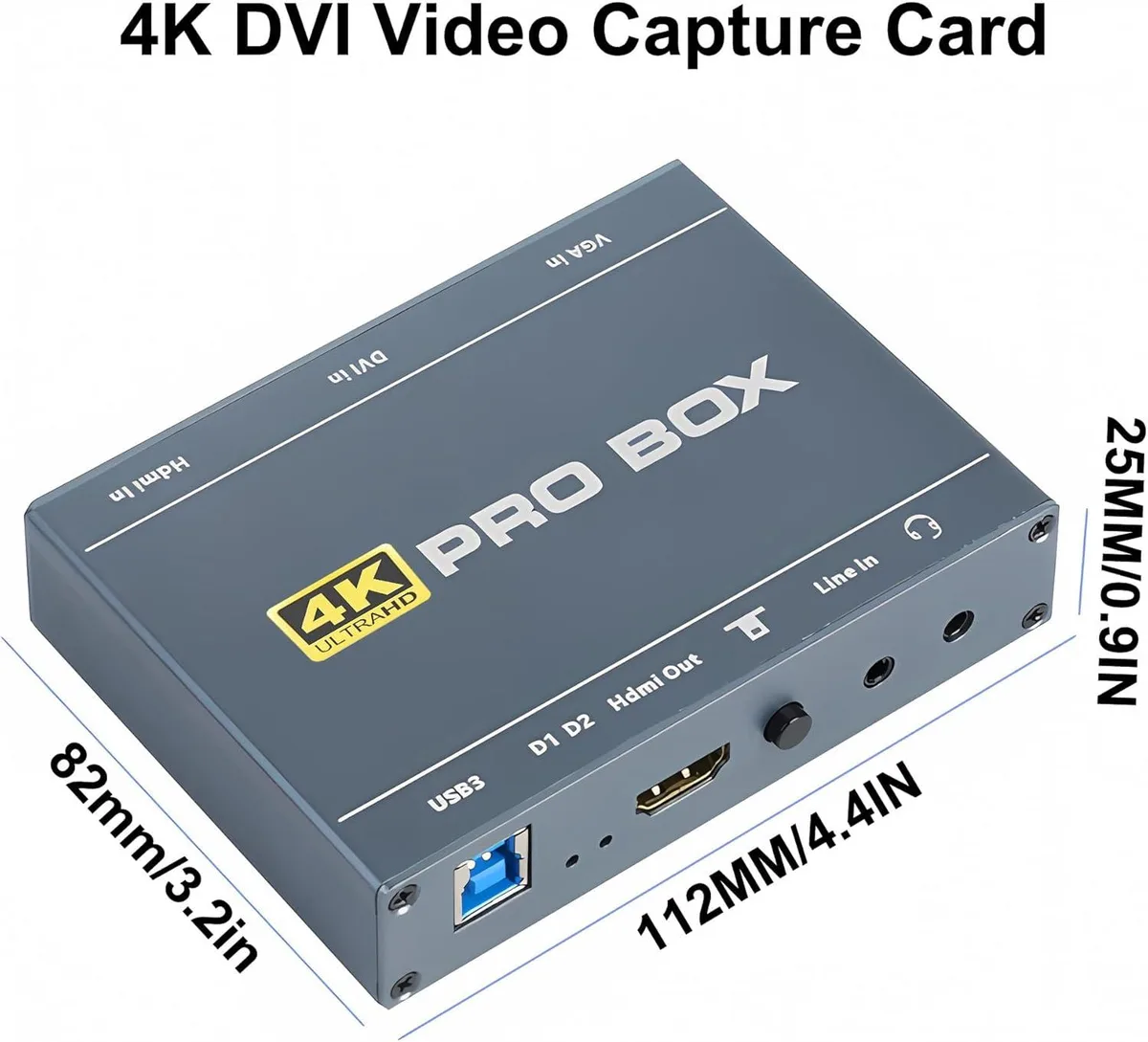

Compact aluminium capture box with HDMI, DVI, VGA and USB 3.0 ports

GRACETOP

GRACETOP GTUS-DVI2USB Video Capturing Device 4K60 HDMI Loopout USB 3.0 1080p60

SKU CH-YWPR-ZSR1X

Captures 4K60 DVI, VGA or HDMI sources and loops HDMI through while streaming 1080p60 via USB 3.0

  • Camera Resolution4K@60Hz
  • HDMI1 Input/1 Output
  • USB Port1
  • DVI1 In
  • VGA1 In
  • Option4K DVI Video Capture Card

Camera Resolution 4K@60Hz

Option 4K DVI Video Capture Card

  • 4K 60 Hz HDMI input captured to 1080p 60 fps via USB 3.0
  • HDMI loop-out passes 4K 60 Hz signal to a display without quality loss
  • Aluminium alloy body dissipates heat for stable, lag-free recording sessions
  • 5 mm mic/headset jack adds live commentary to streams and recordings

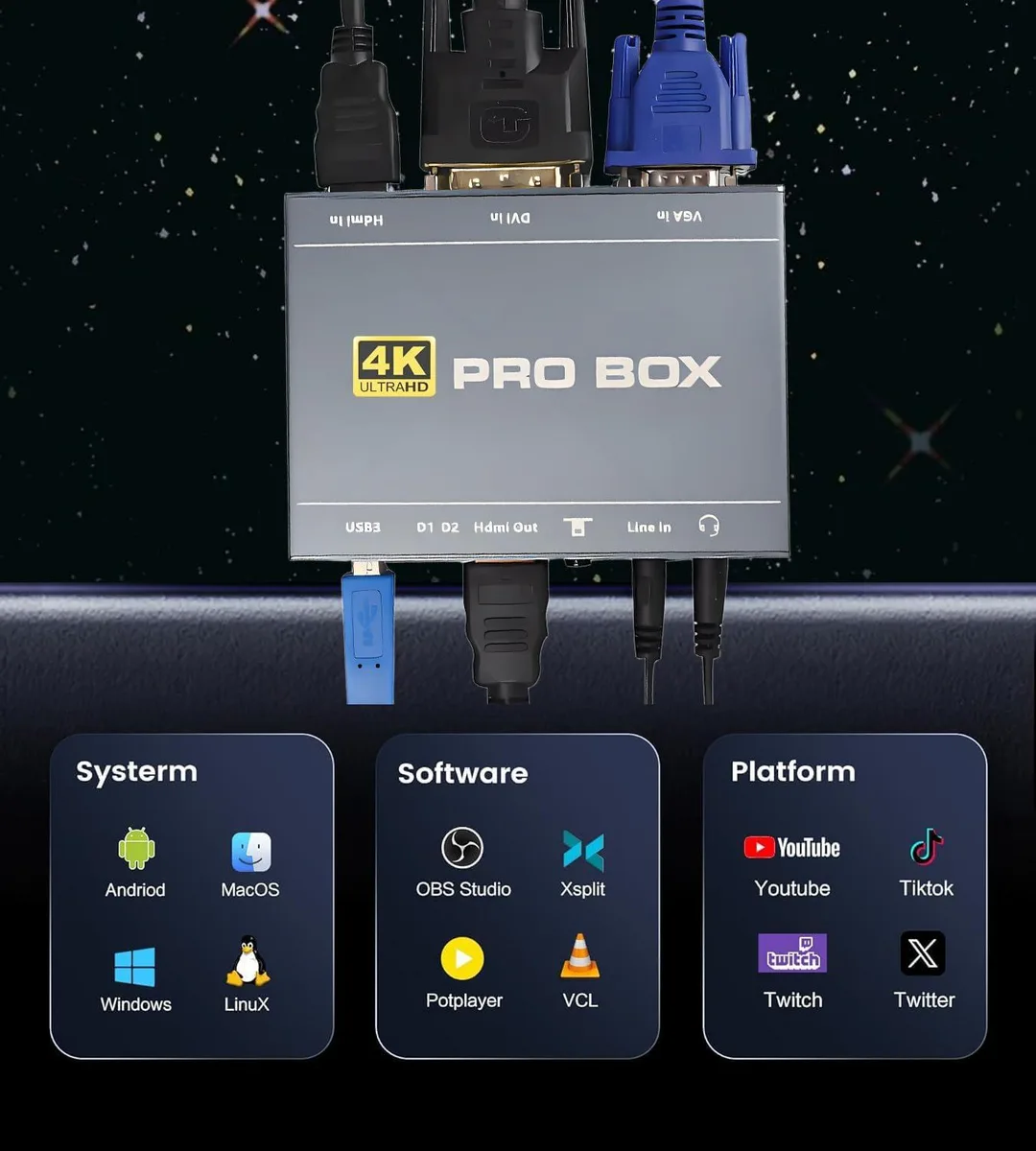

  • Works with Windows, macOS, Linux and Android using OBS or similar software

4K DVI VGA HDMI capture

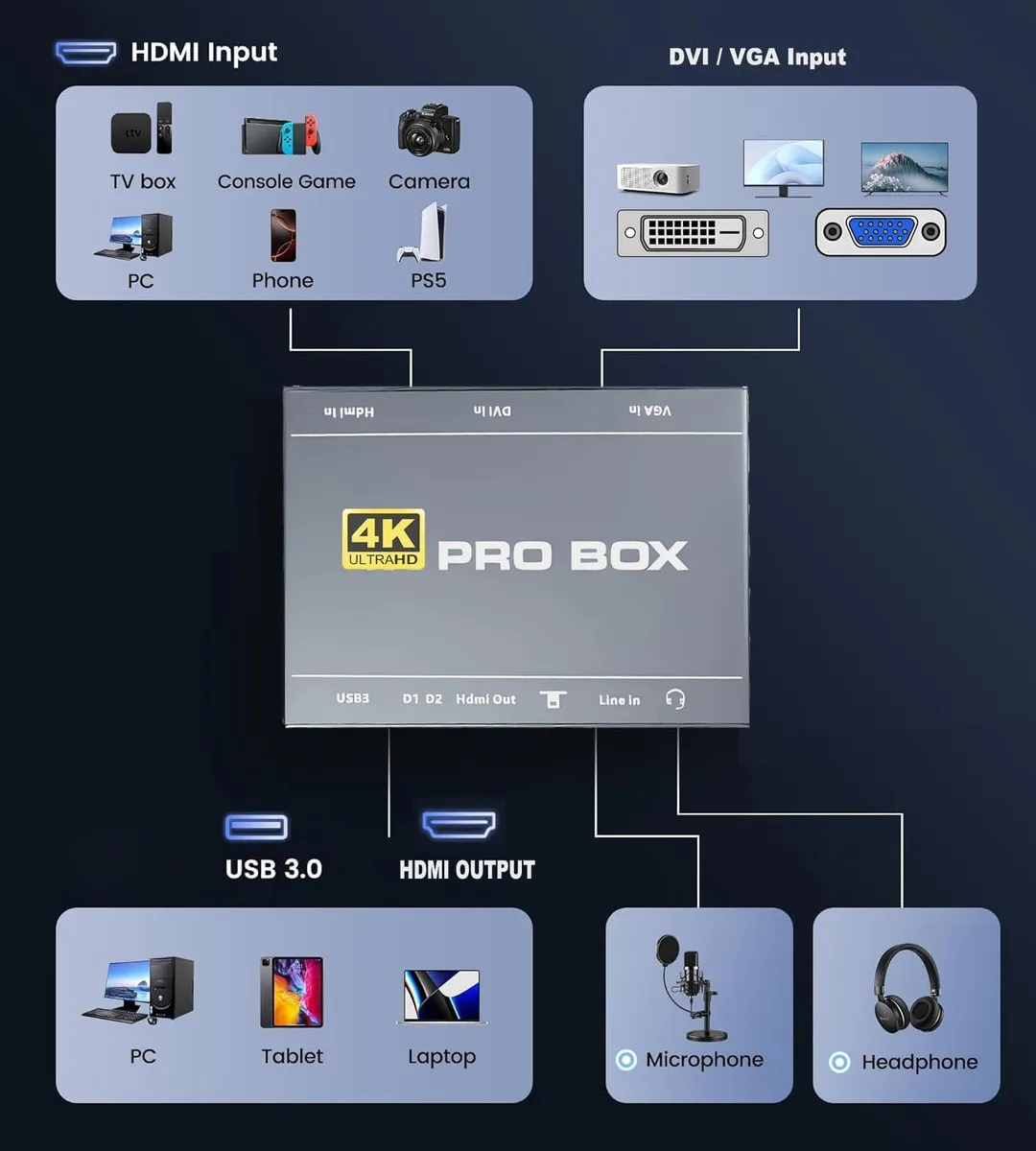

The GRACETOP GTUS-DVI2USB captures 4K 60Hz HDMI input and provides a loop-out at the same resolution while encoding to 1080p 60fps over USB 3.0. It also accepts DVI and VGA sources for broader device support. Streamers and remote workers can record or broadcast gameplay, meetings and presentations without a dedicated internal card. Buyers needing internal PCIe capture or multi-channel input will need a different solution.

USB 3.0 output limits

The USB 3.0 link caps encoded output at 1080p 60fps or 2K 30fps even though the HDMI path passes 4K 60Hz untouched. Latency stays low enough for real-time preview in OBS and similar software on Windows 7, 8, 10, macOS, Linux and Android. Party chat audio is not captured, so only the primary microphone or headset feed is recorded. Systems without a USB 3.0 port cannot reach the stated frame rates.

Aluminium chassis and connectors

An aluminium alloy body dissipates heat without a fan, keeping the unit silent during long sessions. The revised cable layout reduces signal instability that can cause dropped frames or blue screens. A 3.5 mm jack adds a microphone or headset for live commentary, while the HDMI loop-out lets a local display stay connected. The compact form factor suits desk or mobile setups where space is limited.

Highlights

  • 4K 60 Hz HDMI input captured to 1080p 60 fps via USB 3.0
  • HDMI loop-out passes 4K 60 Hz signal to a display without quality loss
  • Aluminium alloy body dissipates heat for stable, lag-free recording sessions
  • 5 mm mic/headset jack adds live commentary to streams and recordings
  • Works with Windows, macOS, Linux and Android using OBS or similar software

Specifications

BrandGRACETOP
ModelGTUS-DVI2USB
Part Number5
Camera Resolution4K@60Hz
HDMI1 Input/1 Output
USB Port1
DVI1 In
VGA1 In
Option4K DVI Video Capture Card

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 4K60 HDMI input model or a lower-resolution version for my streaming setup?

This model captures 4K at 60 Hz via HDMI, DVI or VGA and loops the signal out at the same 4K 60 Hz rate while sending 1080p 60 fps over USB 3.0 to the host computer.

What does the 1080p60 USB output actually deliver when I am recording or streaming?

The device encodes the incoming 4K 60 Hz source down to 1080p at 60 frames per second over USB 3.0, giving smooth full-HD footage for OBS, Twitch or YouTube without dropping frames.

How does the USB 3.0 connection limit the capture quality compared to the 4K60 HDMI input?

USB 3.0 bandwidth caps the recorded stream at 1080p 60 fps or 2K 30 fps, so the 4K 60 Hz HDMI signal is downscaled before it reaches your recording software.
