Compact aluminum capture box with SDI, HDMI and USB 3.0 ports

GRACETOP

GRACETOP GT-SDI2USB 1080p60 SDI/HDMI Loop-Out USB 3.0 Video Capturing Device

SKU CH-EVV5-5ZEV6

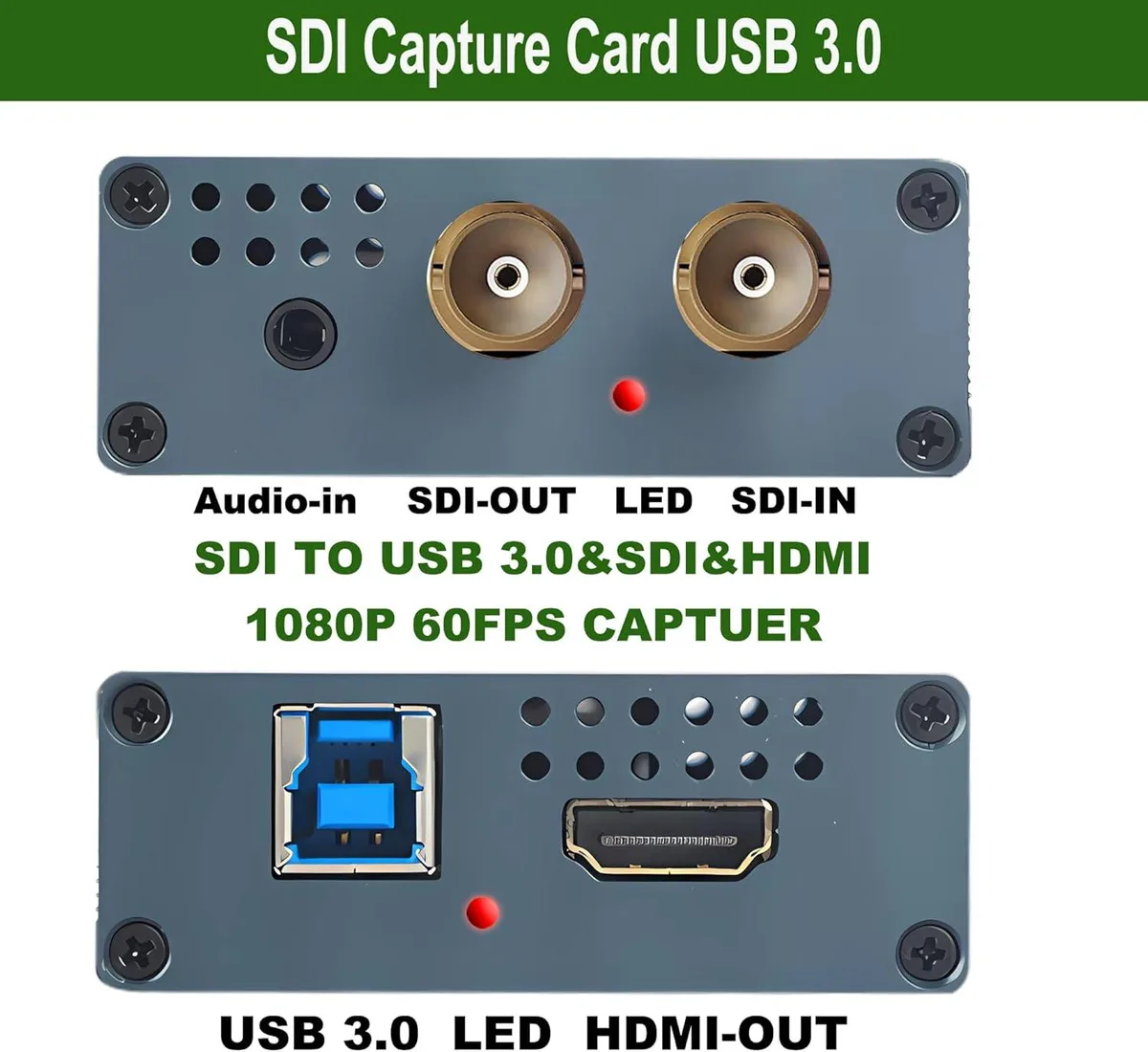

Capture SDI and HDMI sources at 1080p60 via USB 3.0 with loop-out, mic input and aluminium cooling

  • Camera ResolutionUp to 1080p Video
  • HDMI1 Out
  • SDI1 HD/SD-SDI Input; 1 HD/SD-SDI Output
  • USB Port1
  • Digital Aduio1
  • LED Indicator2

Camera Resolution Up to 1080p Video

Option SDI Video Capture Card X2

  • Capture 1080p at 60 fps via USB 3.0
  • SDI and HDMI loop-out passes signal to a monitor
  • Aluminium alloy body dissipates heat for stable operation
  • 5 mm mic input adds live commentary audio
  • Works with Windows, Mac, Linux, Android and OBS

GRACETOP GT-SDI2USB 1080p60 Capture Card

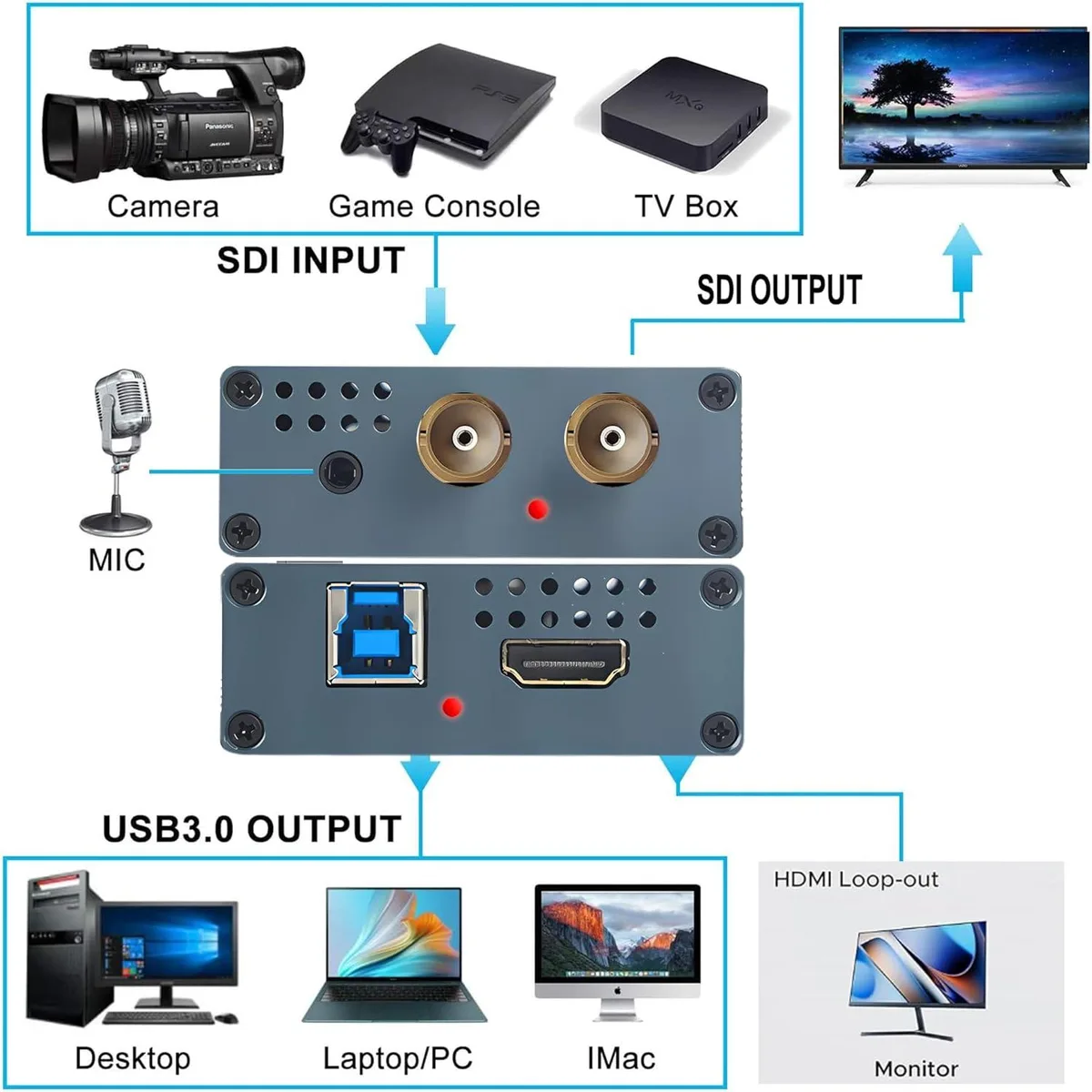

The GRACETOP GT-SDI2USB is a USB 3.0 video capturing device that accepts a single HD/SD-SDI input and provides simultaneous SDI loop-out plus HDMI output at up to 1080p60. It encodes the incoming signal for recording or streaming on a host computer while passing the original feed onward to a monitor or downstream device.

Streamers and installers needing SDI pass-through

This unit suits operators who must keep an SDI chain intact while also sending a 1080p60 stream to OBS, VLC or similar software on Windows, Mac, Linux or Android. It does not serve buyers who require 4K capture, multi-channel audio mixing, or internal PCIe installation for lower latency.

1080p60 SDI loop-out with USB 3.0 output

The deciding specification is the single HD/SD-SDI input paired with one SDI output and one HDMI output, all supporting 1080p at 60 frames per second over a USB 3.0 connection. If your workflow demands higher resolution, additional inputs, or a different host interface, this device will not meet the requirement.

Highlights

  • Capture 1080p at 60 fps via USB 3.0
  • SDI and HDMI loop-out passes signal to a monitor
  • Aluminium alloy body dissipates heat for stable operation
  • 5 mm mic input adds live commentary audio
  • Works with Windows, Mac, Linux, Android and OBS

Specifications

BrandGARCETOP
ModelGT-SDI2USB
Part Number5
Camera ResolutionUp to 1080p Video
HDMI1 Out
SDI1 HD/SD-SDI Input; 1 HD/SD-SDI Output
USB Port1
Digital Aduio1
LED Indicator2
OptionSDI Video Capture Card X2

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the GRACETOP GT-SDI2USB include cables or do I need to buy SDI and USB 3.0 cables separately?

The box contains the capture unit with SDI input, SDI loop output, HDMI loop output, USB 3.0 port and a 3.5 mm audio jack. Cables are not included so you will need an SDI cable for the camera, a USB 3.0 cable for the computer and an HDMI cable if you want to use the loop output.

Should I choose the single unit or the X2 option for a two-camera live stream?

The X2 option provides two identical capture cards, each with its own SDI input, SDI loop output, HDMI loop output and USB 3.0 connection, letting you capture two 1080p60 sources simultaneously. A single unit only handles one source.

Will the 1080p60 signal stay at 1080p60 when it reaches OBS on my Windows 10 PC?

Yes. The device outputs 1080p at 60 fps over USB 3.0, and OBS Studio on Windows 10 receives that resolution and frame rate directly without internal downscaling.
