Flat black 600mm cable with M.2 plug and PCIe X4 socket, foam base

GLOTRENDS

GLOTRENDS UEX108 600mm M.2 to PCIe X4 Riser Cable

SKU CH-T7KG-Q7HWD

A 600 mm cable converts an M.2 Key-M slot into a PCIe x4 slot running at PCIe 3.0 x1 speed for add-in cards such as Wi-Fi, USB or sound cards.

  • TypePCI Express to M.2 Card
  • Converts an M.2 Key-M slot into a PCIe X4 slot at PCIe 3.0 X1 speed
  • 600mm flexible round cable allows routing at virtually any angle
  • Insulating foam base enables secure mounting with self-adhesive tape
  • Plug-and-play operation across Windows, Mac OS, Linux and NAS platforms
  • Operates at 12 Voltage with a maximum output power of 10W

M.2 Key‑M to PCIe X4 Adapter

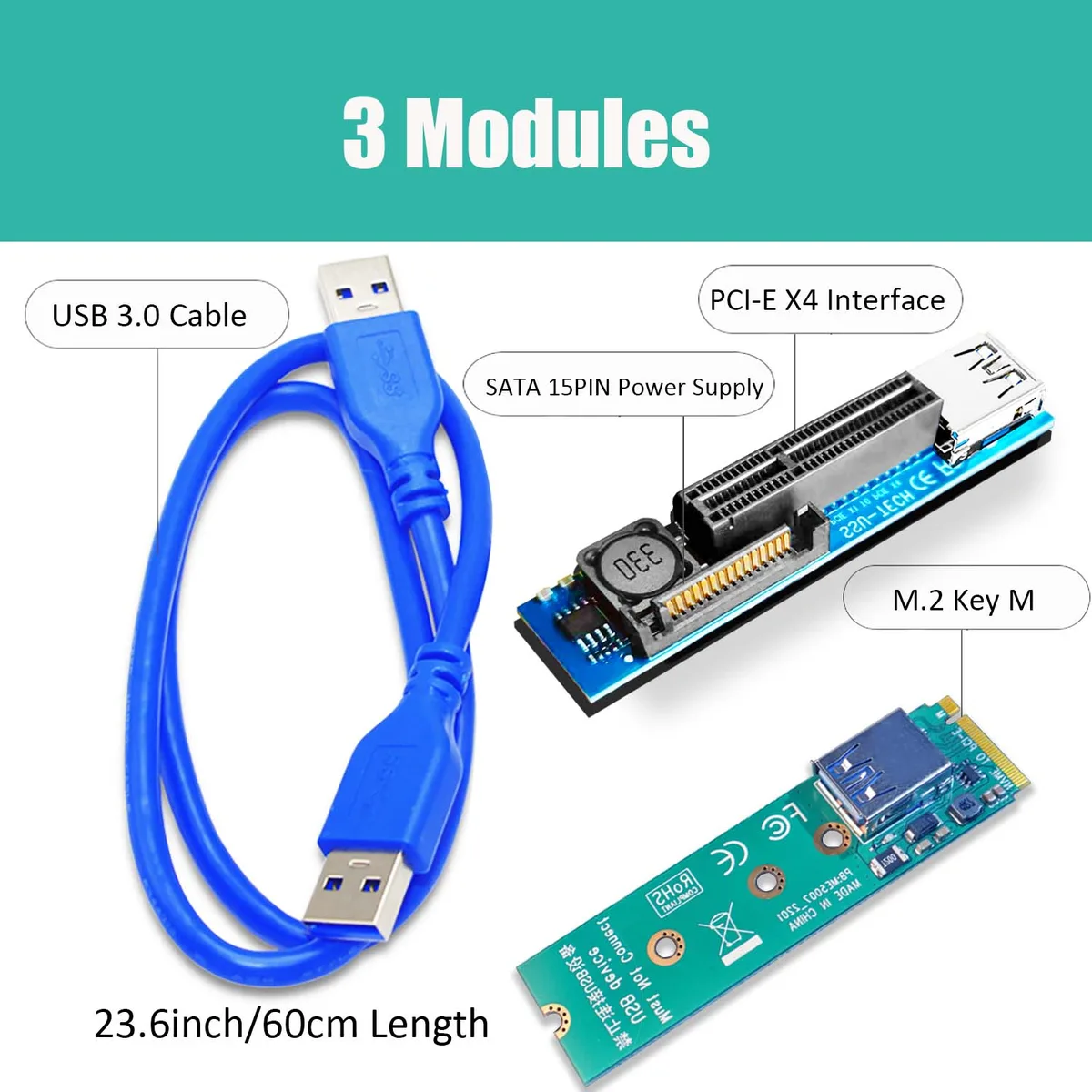

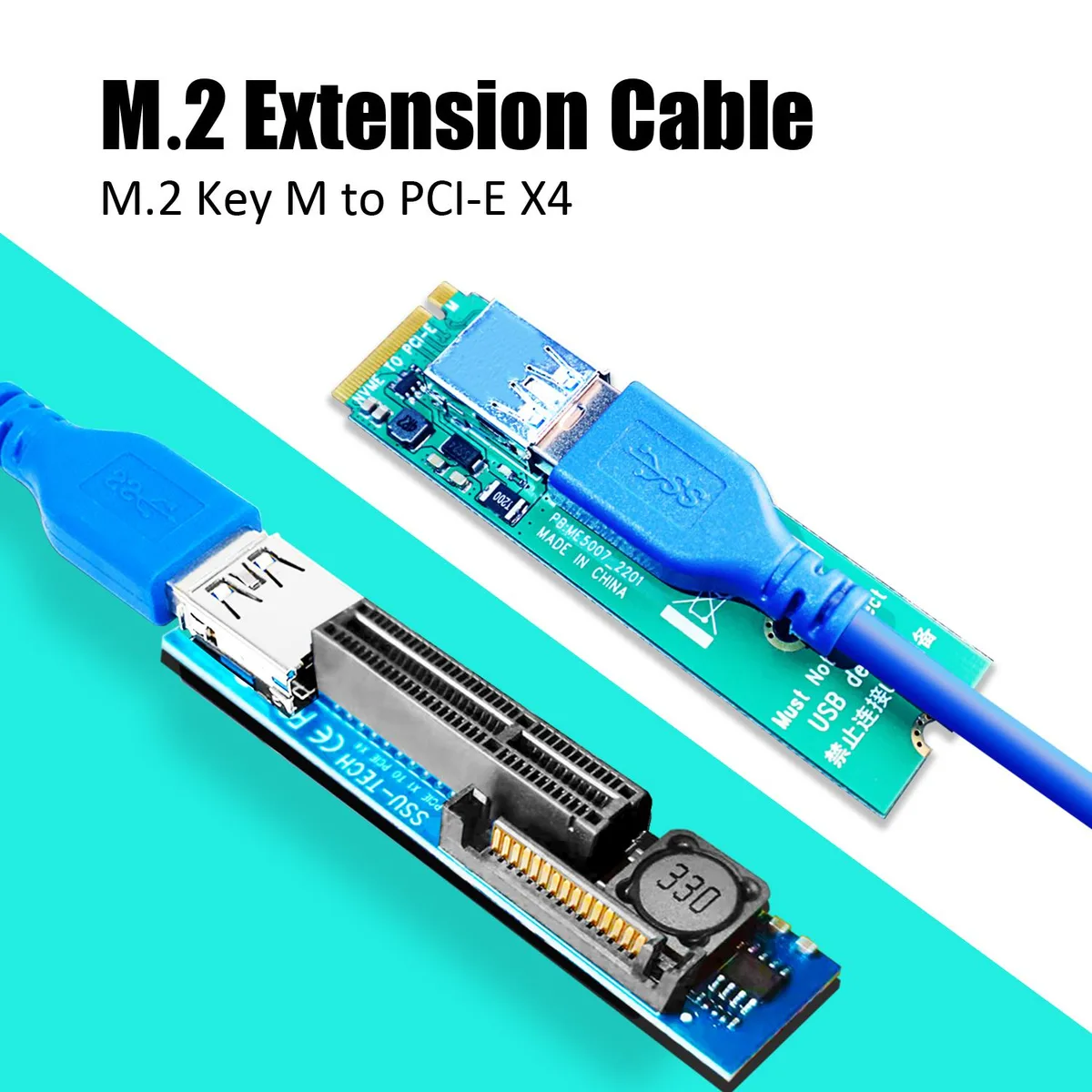

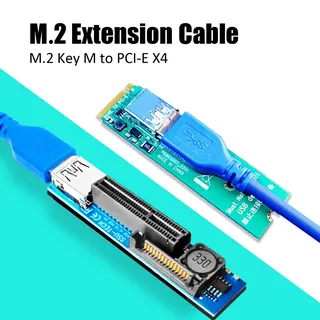

The GLOTRENDS UEX108 converts an onboard M.2 Key‑M slot into a PCIe X4 connector using a 600 mm round cable that can be twisted to any angle. The link operates at PCIe 3.0 X1 speed, delivering approximately 1 GB/s of bandwidth. An insulating foam base on the female side allows mounting with self‑adhesive tape at virtually any orientation. Plug‑and‑play operation is supported on Windows, Mac OS, Linux and NAS platforms.

Suited for Low‑Bandwidth Expansion Cards

Builders who need to relocate a PCIe X1 card such as a Wi‑Fi adapter, USB controller, sound card or FireWire board will find the flexible length and foam mounting convenient. The adapter is not for users who require full PCIe X4 throughput or multiple simultaneous high‑speed devices, because the electrical interface is limited to a single PCIe 3.0 lane.

10 W Maximum Power Draw

The cable draws up to 10 W at 12 V, so the host M.2 slot must be able to supply that power budget. If the system crashes or shows a blue screen after installation, re‑seat the cable and verify that all devices are firmly secured.

Highlights

  • Converts an M.2 Key-M slot into a PCIe X4 slot at PCIe 3.0 X1 speed
  • 600mm flexible round cable allows routing at virtually any angle
  • Insulating foam base enables secure mounting with self-adhesive tape
  • Plug-and-play operation across Windows, Mac OS, Linux and NAS platforms
  • Operates at 12 Voltage with a maximum output power of 10W

Specifications

TypePCI Express to M.2 Card

Questions about this item

Does the 12 V / 10 W power draw of the riser cable create noticeable heat or noise during continuous use?

The cable is passive with no fan or active components, so it produces no audible noise; the 10 W maximum draw at 12 V generates only modest warmth that is dissipated through the 600 mm round wire and insulating foam base.

What must my motherboard already provide for this UEX108 cable to function?

An available M.2 Key-M slot wired for PCIe signalling; the cable plugs directly into that slot and requires no additional headers, power connectors or adapters.

Will a legacy PCIe 2.0 x1 sound card work at full speed when connected through this riser?

Yes — the riser operates at PCIe 3.0 x1 (~1 GB/s), which exceeds the bandwidth of a PCIe 2.0 x1 card, so the older card runs at its native speed without bottleneck.
