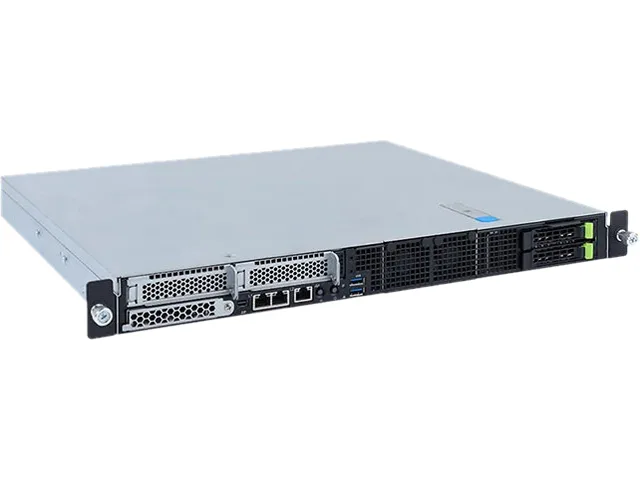

Silver 1U rackmount barebone server, front panel shows two drive bays, two USB ports, mini DisplayPort, dual RJ45 and management LAN

GIGABYTE

GIGABYTE E152-ZE0 1U barebone server

SKU CH-6SQ3-FTSZT MPN E152-ZE0

1U rackmount barebone supporting AMD EPYC 7002/7003 CPUs, 8-channel DDR4 3200, dual 2.5" NVMe/SATA hot-swap bays, four PCIe Gen4 slots and 800 W platinum power

  • Form Factor1U Rackmount
  • CPU TypeSupports AMD EPYC 7003 series processor family Compatible wi
  • CPU SocketSocket SP3
  • Installed CPUNo CPU Installed
  • Max Processors1
  • Memory Slots8 x 288Pin
  • Supports AMD EPYC 7003 and 7002 series processors on SP3 socket
  • Eight-channel DDR4 3200 memory architecture with eight 288-pin DIMM slots
  • Two 2.5-inch hot-swap bays accept SATA or Gen4 NVMe drives
  • Four PCIe Gen4 expansion slots plus OCP 3.0 mezzanine for flexible I/O
  • 800W 80 PLUS Platinum single power supply delivers efficient enterprise power

Purpose-built 1U server chassis

The GIGABYTE E152-ZE0 is a 1U rackmount barebones server designed for single-processor deployments. It accepts AMD EPYC 7002 and 7003 series CPUs in an SP3 socket and provides eight DDR4 3200 memory channels across eight 288-pin slots. The platform includes two full-height and two low-profile PCIe Gen4 slots plus an OCP 3.0 mezzanine slot for networking or accelerator cards.

Suited for single-socket workloads

This chassis fits environments that need one EPYC processor, eight-channel DDR4 memory, and Gen4 expansion in a 1U form factor. It is not for buyers who need dual-socket scaling, more than two hot-swap drive bays, or integrated networking faster than 1 Gigabit. The single 800 W platinum power supply also limits configurations requiring redundant power.

GPU-capable PCIe Gen4 expansion

The expansion layout supports one dual-slot or two single-slot Gen4 GPUs alongside the OCP 3.0 mezzanine, making the system viable for VDI or edge inference where accelerator density matters. Two 2.5-inch hot-swap bays accept SATA or Gen4 NVMe drives for local storage.

Highlights

  • Supports AMD EPYC 7003 and 7002 series processors on SP3 socket
  • Eight-channel DDR4 3200 memory architecture with eight 288-pin DIMM slots
  • Two 2.5-inch hot-swap bays accept SATA or Gen4 NVMe drives
  • Four PCIe Gen4 expansion slots plus OCP 3.0 mezzanine for flexible I/O
  • 800W 80 PLUS Platinum single power supply delivers efficient enterprise power

Specifications

BrandGIGABYTE
ModelE152-ZE0
Form Factor1U Rackmount
CPU TypeSupports AMD EPYC 7003 series processor family
Compatible with AMD EPYC 7002 series processor family
CPU SocketSocket SP3
Installed CPUNo CPU Installed
Max Processors1
Memory Slots8 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedDDR4 3200
Channel Supported8 Channel
Installed HDDNo Storage Installed
PCI Express2 x Full-height Full-length PCIe Gen4 expansion slots
2 x Low profile Half-length PCIe Gen4 expansion slots
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
Supported NCSI function
First LANIntel I350-AM2
Max. LAN Speed1 Gigabit
Hot-Swap Bays2 x 2.5" SATA/Gen4 NVMe hot-swappable HDD/SSD bays
Front USB2 x USB 3.0
RJ452 x RJ45
1 x MLAN
Other PortsInternal I/O
1 x TPM header
1 x USB 3.0 connector
1 x Front Panel connector
1 x HDD BPB connector
Front I/O
1 x miniDP
Max. Power800W single power supply*
80 PLUS Platinum
System CompatibilityWindows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 8.3 ( x64) or later
SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
Citrix Hypervisor 8.2.0 or later
TemperatureOperating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)

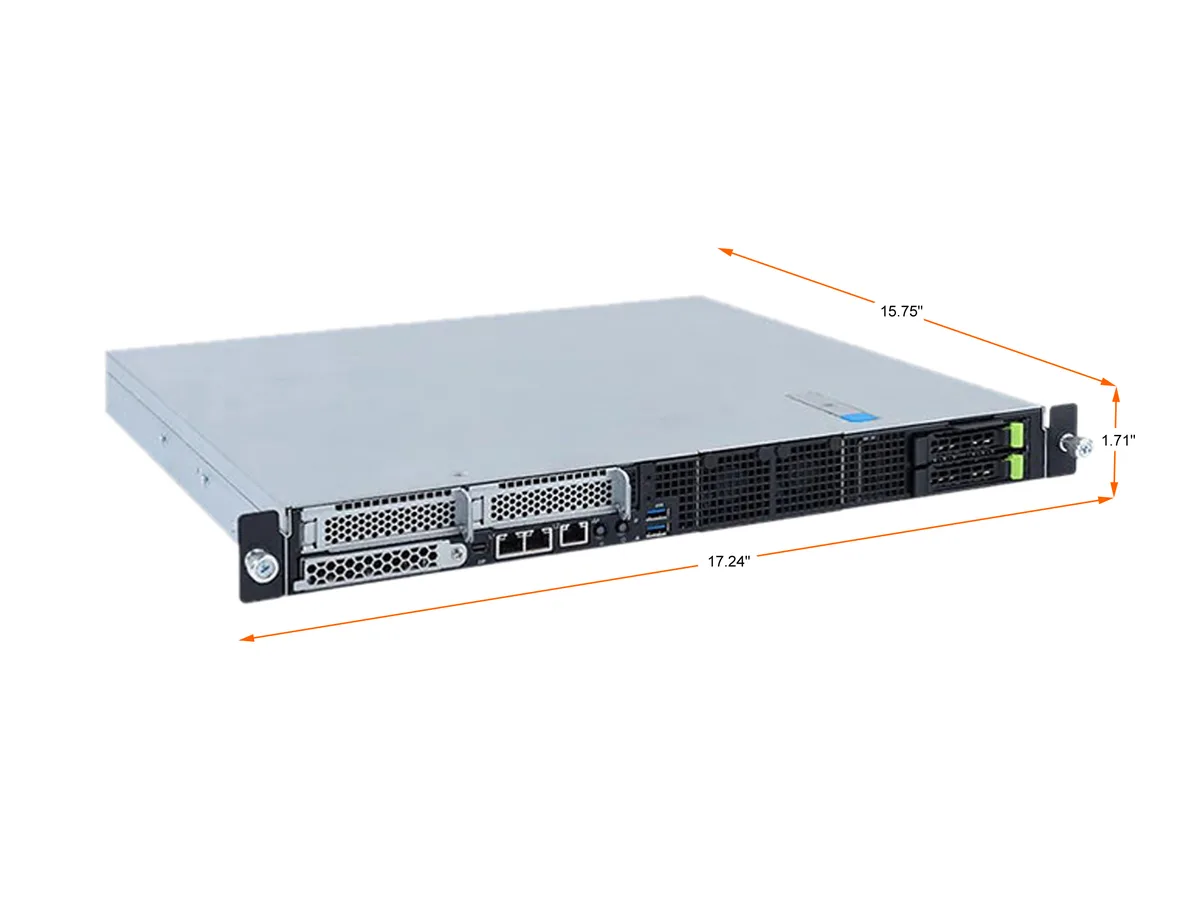

Dimensions1.71" x 17.24" x 15.75"
Package Contents1 x E152-ZE0
1 x CPU heatsinks
Shipping weight20.41 kg
Package size628 × 549 × 200 mm

Questions about this item

Should I pick an AMD EPYC 7003 or 7002 series CPU for the SP3 socket?

Both families fit the single SP3 socket; 7003 series delivers higher core counts and DDR4 3200 support while 7002 series works at lower speeds.

What does the eight-channel DDR4 3200 spec mean once memory is installed?

Populating all eight 288-pin slots with matched RDIMM or LRDIMM modules activates full eight-channel bandwidth at 3200 MT/s.

How do the PCIe Gen4 slots and OCP 3.0 mezzanine limit GPU and networking choices?

Two full-height and two low-profile Gen4 slots plus one OCP 3.0 x16 mezzanine allow one dual-slot or two single-slot Gen4 GPUs and a high-speed NIC.
