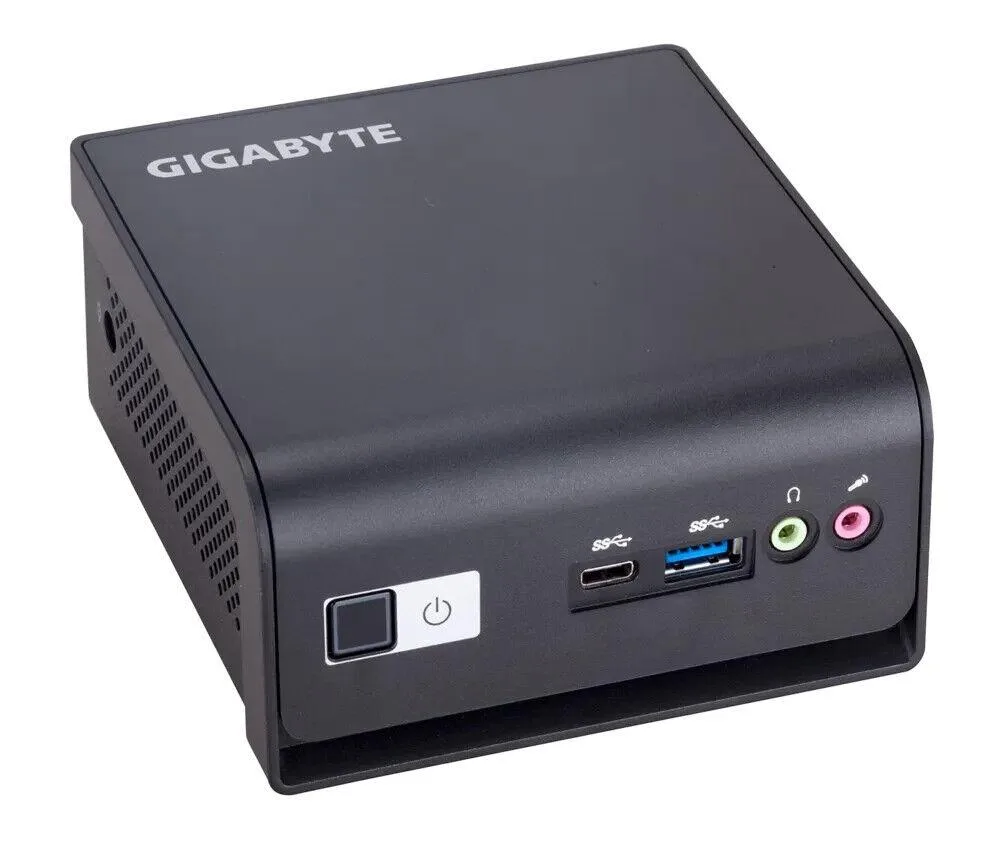

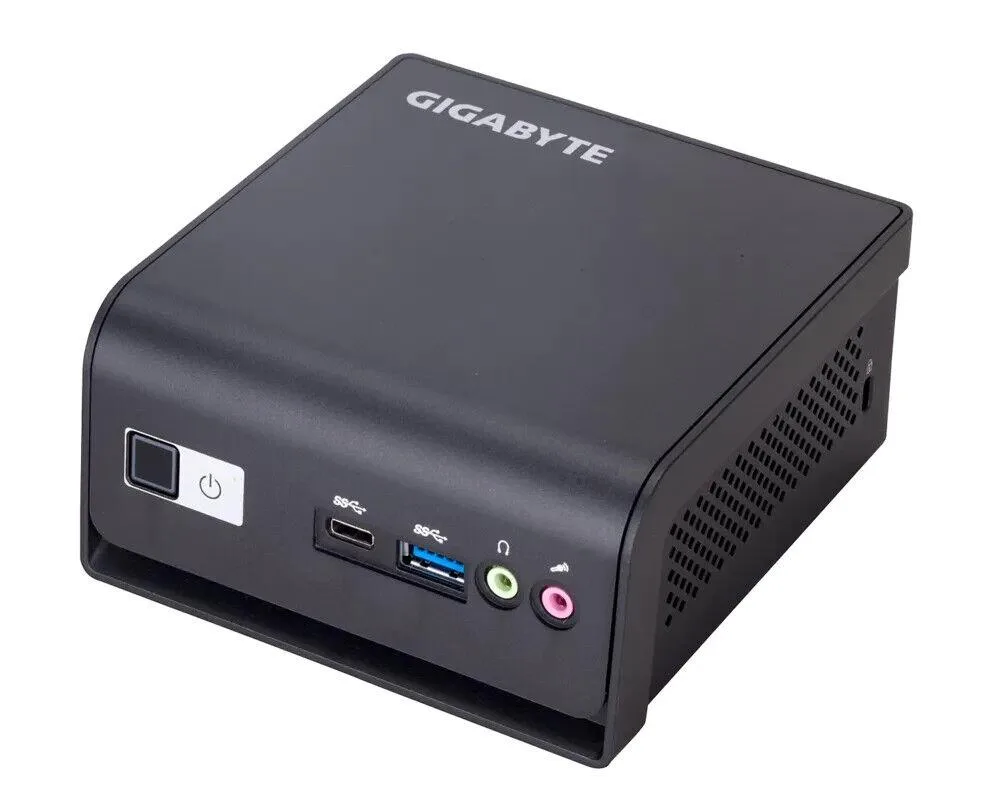

Small square black mini PC barebone with front USB ports and rear HDMI mini DisplayPort

GIGABYTE

GIGABYTE BRIX BMPD-6005 Pentium N6005 barebone mini PC

SKU CH-7WTH-VBBFV

Compact barebone mini PC with a 2.8 GHz quad-core Intel Pentium N6005, dual 4K display outputs, Gigabit LAN, dual-band Wi-Fi and VESA mounting bracket included

  • Quad-core Pentium N6005 runs at 2.8 GHz with 10 W TDP
  • Compact 56.22 x 103 x 116.52 mm chassis fits 75 x 75 or 100 x 100 VESA
  • Dual 4K@60 HDR video via HDMI 2.0 and Mini DP 1.4
  • Gigabit LAN plus dual-band 802.11 AC wireless built in
  • One SO-DIMM DDR4 slot up to 16 GB at 2933 MHz

Compact barebone for embedded builds

The GIGABYTE BRIX BMPD-6005 is a fanless mini PC barebone measuring 56.22 mm x 103 mm x 116.52 mm. It uses an Intel Pentium N6005 processor with four cores at 2.8 GHz and a 10 W TDP. The board accepts one DDR4 SO-DIMM up to 16 GB at 2933 MHz. It targets integrators and hobbyists building kiosks, signage players or thin clients.

Dual video and flexible storage

Two video outputs — HDMI 2.0 and mini DisplayPort 1.4 — each drive 4K at 60 Hz with HDR. Storage options include a 2.5 inch SATA bay for 7.0 or 9.5 mm drives and an M.2 2280 slot supporting PCIe x2 or SATA. A second M.2 2230 slot comes populated with the dual-band 802.11 AC wireless card. Front and rear ports provide four USB 3.0 connections, one USB-C, Gigabit LAN and audio jacks.

Suits space-constrained fixed-function roles

This unit suits builders who need a silent, VESA-mountable platform for single-display or dual-display appliances running Windows 10 64-bit. It does not suit buyers who want more storage than one SATA drive plus one M.2 device, or builders who need a second expansion card slot beyond the occupied wireless module. The 65 W external power brick and 0 °C to 35 °C operating range complete the package.

Highlights

  • Quad-core Pentium N6005 runs at 2.8 GHz with 10 W TDP
  • Compact 56.22 x 103 x 116.52 mm chassis fits 75 x 75 or 100 x 100 VESA
  • Dual 4K@60 HDR video via HDMI 2.0 and Mini DP 1.4
  • Gigabit LAN plus dual-band 802.11 AC wireless built in
  • One SO-DIMM DDR4 slot up to 16 GB at 2933 MHz

Specifications

No published specifications for this item yet.

Questions about this item

Will the SO-DIMM DDR4 memory or the 2.5" SATA drive need replacement first?

The board has one SO-DIMM DDR4 slot supporting up to 16 GB at 2933 MHz and one 2.5" SATA bay for 7.0 mm or 9.5 mm drives; either can be swapped later, but the memory slot is the only RAM upgrade path.

What thermal limit appears first when the Pentium N6005 runs at its 10 W TDP continuously?

The CPU is rated for a 10 W TDP and the chassis is specified for an operating temperature range of 0 °C to +35 °C; sustained loads will hit the ambient-temperature ceiling before the processor throttles.

How loud and hot does the unit get when powered by the 19 V 3.42 A adapter all day?

The 65 W power brick delivers 19 V at 3.42 A to the 10 W TDP processor; the small 56.22 mm x 103 mm x 116.52 mm case relies on passive cooling, so surface warmth rises but fan noise is absent.
