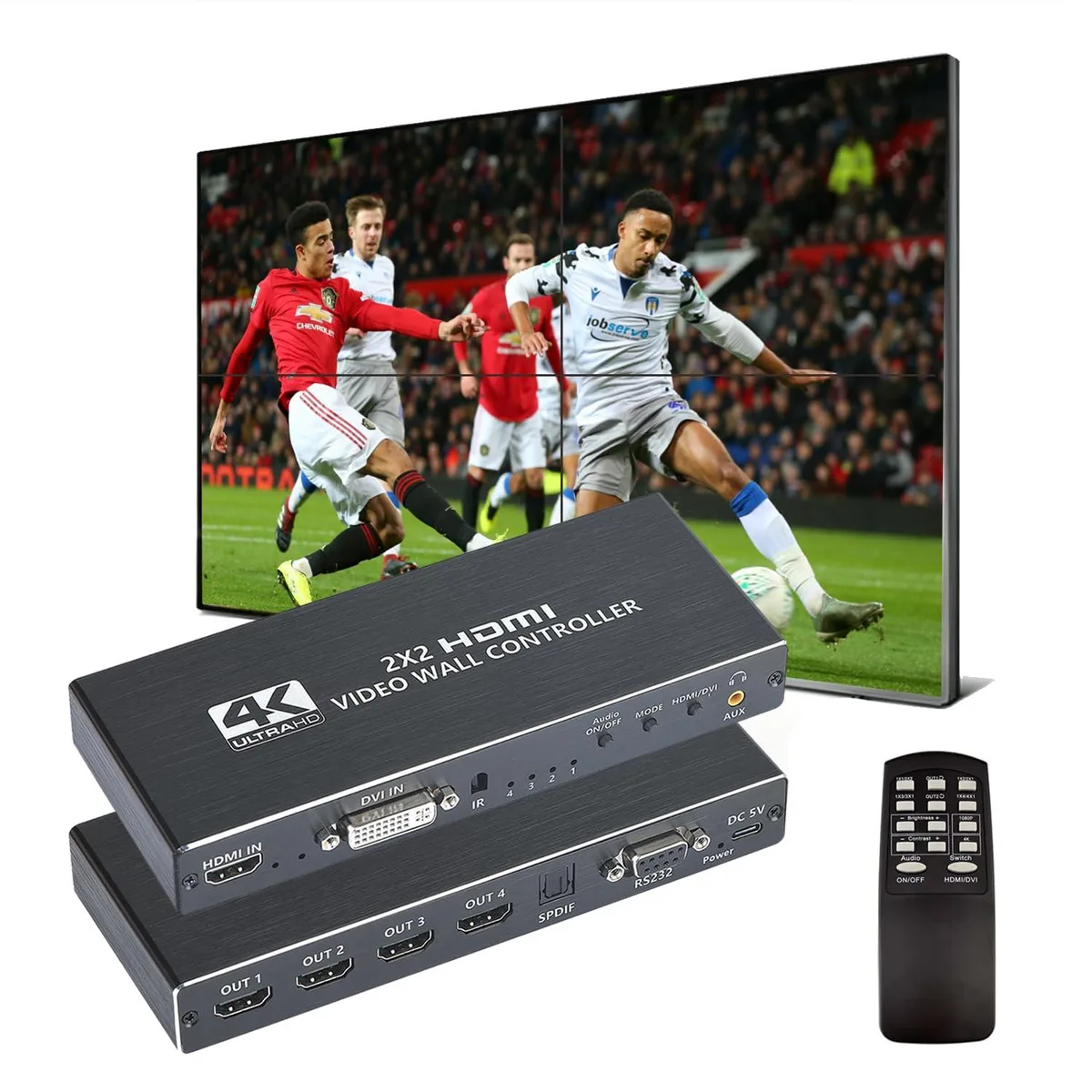

Compact black metal box with HDMI, DVI and RS232 ports on one side, four HDMI outputs opposite, shallow square profile

GGrozza 2x2 Video Wall Controller HDMI DVI RS232 4K@30Hz 4 HDMI Out 180° Rotation

SKU CH-WWJT-FPS7S

Splits one 4K@30Hz HDMI or DVI source across four 1080p@60Hz displays in eight splicing layouts with 180° rotation on two outputs and RS232 control

  • TypeHDMI
  • Changer TypeHDMI
  • Ports4
  • Input Connector4
  • Output ConnectorFemale
  • Dimensions5.0 in x 5.0 in x 0.5 in
  • Splits one 4K@30Hz source across four 1080p@60Hz displays
  • Eight splicing layouts including 2×2, 1×3 and 4×1 configurations
  • 180° rotation available on seven layouts for outputs 1 and 2
  • RS232 port enables automated control in installed systems
  • 1-channel audio extracted via optical output for external sound systems

2x2 Video Wall Controller

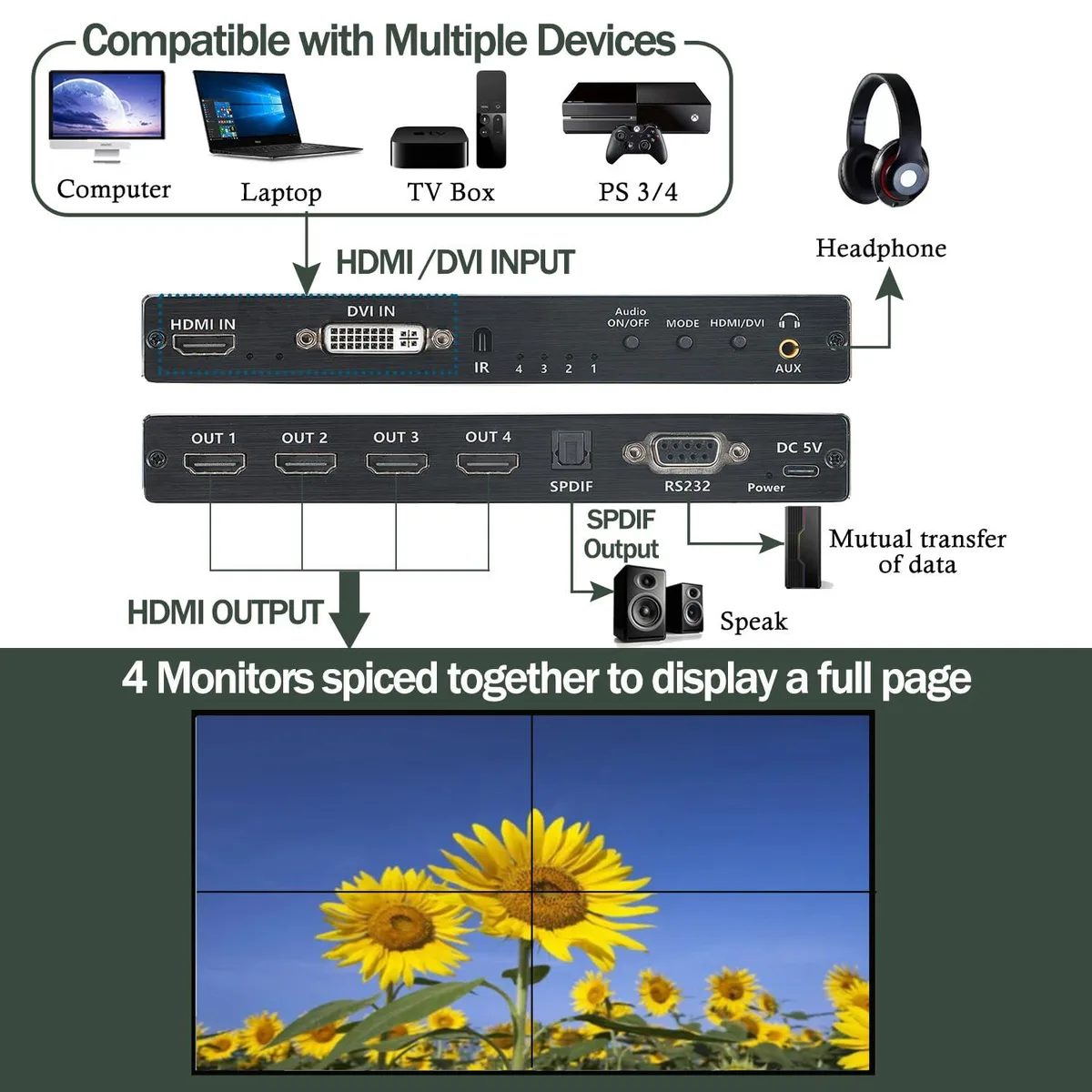

The GGrozza 2x2 video wall controller accepts one HDMI or DVI input and distributes it across four HDMI outputs to create a tiled display. It supports RS232 control and 5.1-channel audio via optical fibre for integrated installations.

4K Input to 1080p Output

Inputs handle 3840x2160 at 30 Hz and 1920x1080 at up to 60 Hz while outputs are fixed at 1920x1080 60 Hz. The processor divides the source into four blocks so each display shows a quarter of the original image at full HD resolution.

HDMI 1.4 Bandwidth Limit

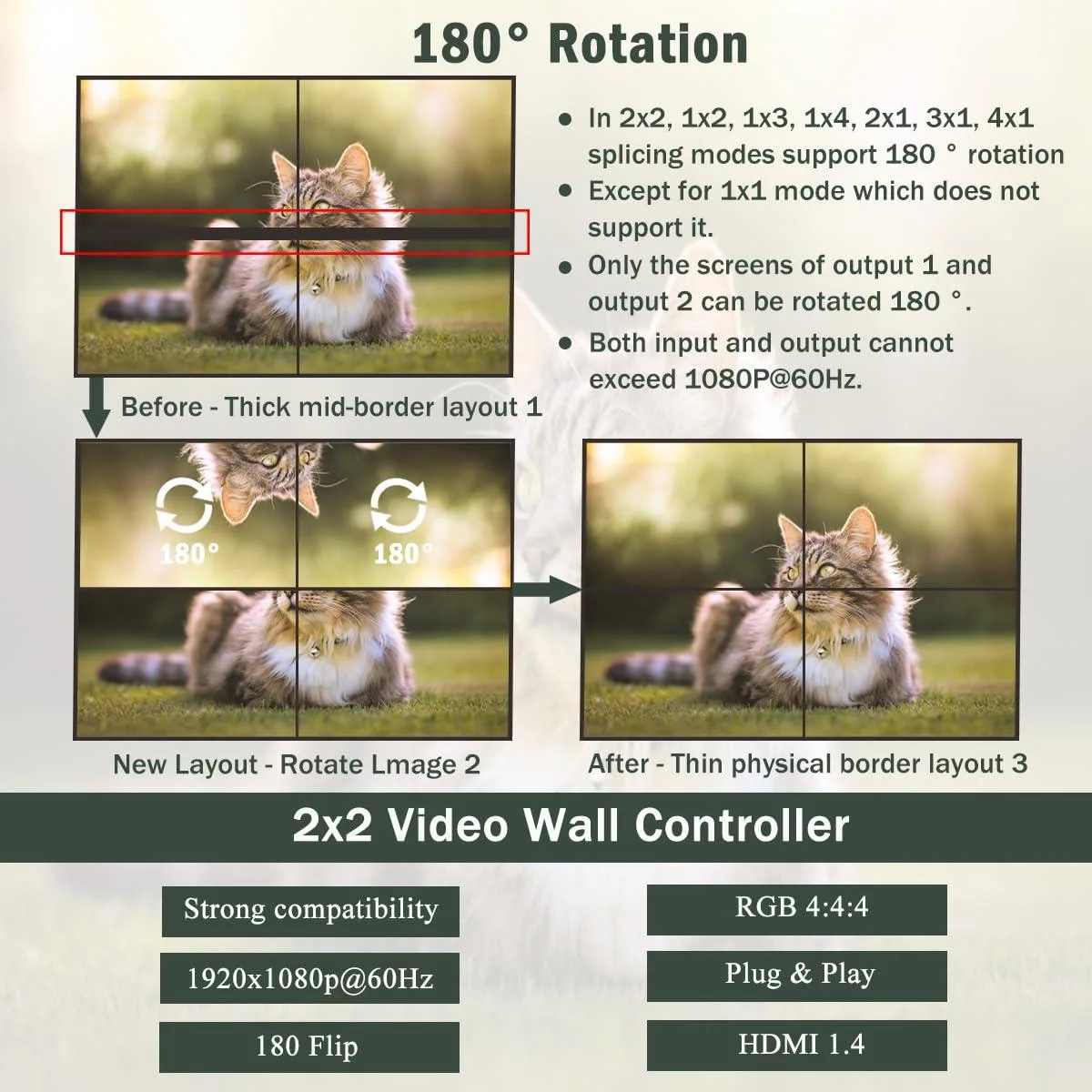

HDMI 1.4 and HDCP 1.4 restrict the pipeline to 4K 30 Hz on the input side and 1080p 60 Hz on the output side. Rotation of 180 degrees is available in seven of the eight splicing modes but only on outputs one and two, and only when both input and output remain at or below 1080p 60 Hz.

Highlights

  • Splits one 4K@30Hz source across four 1080p@60Hz displays
  • Eight splicing layouts including 2×2, 1×3 and 4×1 configurations
  • 180° rotation available on seven layouts for outputs 1 and 2
  • RS232 port enables automated control in installed systems
  • 1-channel audio extracted via optical output for external sound systems

Specifications

BrandGGrozza
TypeHDMI
Changer TypeHDMI
Ports4
Input Connector4
Output ConnectorFemale
Dimensions5.0 in x 5.0 in x 0.5 in
Weight0.349 kilograms

Questions about this item

Will the GGrozza 2x2 controller accept 1080p60 from my older media player over HDMI 1.4?

Yes, the HDMI 1.4 input supports 1920x1080p at 25, 30, 50 and 60 Hz.

How can I confirm the 4K@30Hz input is being split correctly across the four 1080p60 outputs?

Each display will show one quarter of the source image at 1920x1080p60 with RGB444 24-bit colour and 5.1-channel audio on the optical output.

Does the box include the four HDMI cables and the RS-232 cable needed for a 2x2 wall?

The package contains the controller unit only; HDMI cables, DVI cable, RS-232 cable and optical audio cable must be purchased separately.
