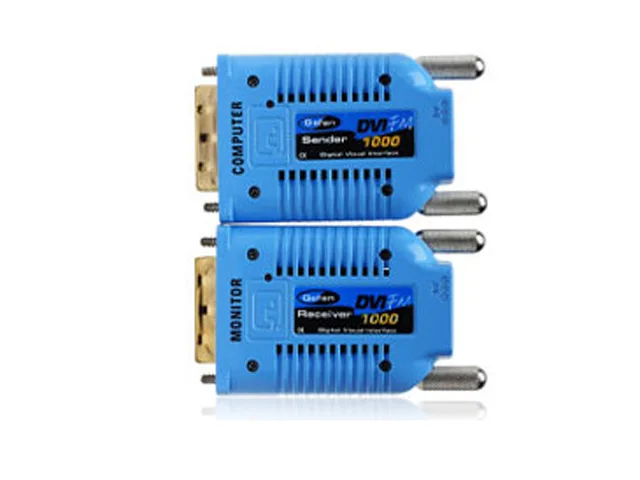

Small blue rectangular box with DVI-D and SC fiber ports

Gefen

Gefen EXTDVIFM1000 DVI-D fiber extender 5600 ft

SKU CH-R5PN-GACA7 MPN EXTDVIFM1000

Extends a DVI-D display up to 5600 feet over a single multi-mode SC fibre link with automatic EDID sync

  • TypeDVI-D over Fiber Optic
  • Max Extend Distance5600 feet
  • ColorBlue
  • SpecificationsInput Video Signal: 1.2V p-p Input DDC Signal: 5V p-p (TTL)
  • Connector AVideo Input Connector (Sender): (1) DVI-D 19-pin, female (di
  • Connector BVideo Output Connector (Receiver): (1) DVI-D 19-pin, female
  • Extends DVI-D signals up to 5600 feet using single-strand SC fiber optic cable
  • Automatic EDID programming synchronizes source to display without manual setup
  • Fiber transmission provides immunity from electromagnetic interference for clean video
  • Compact sender and receiver units each measure .60 x 1.60 x 2.60 inches
  • Digital-only DVI-D 19-pin connectors ensure pure signal path at 1.2V p-p

Extender purpose and audience

The Gefen EXTDVIFM1000 is a DVI-D fiber optic extender that transmits digital video up to 5600 feet over a single multi-mode SC cable. It is built for integrators and operators who need to place a DVI display far beyond the reach of copper cables in environments where electromagnetic interference would corrupt the signal.

Who this suits and who should look elsewhere

This unit suits installations that require a compact sender and receiver pair with automatic EDID programming for quick source-to-display synchronization. It is not intended for users who need to extend analog VGA, HDMI or DisplayPort signals, nor for setups that must carry USB, audio or serial data alongside the video.

Distance and fiber constraint

The extender reaches a maximum of 5600 feet using 62.5 µm multi-mode fiber terminated with SC connectors. The link distance is the single specification that determines whether this model fits the installation.

Highlights

  • Extends DVI-D signals up to 5600 feet using single-strand SC fiber optic cable
  • Automatic EDID programming synchronizes source to display without manual setup
  • Fiber transmission provides immunity from electromagnetic interference for clean video
  • Compact sender and receiver units each measure .60 x 1.60 x 2.60 inches
  • Digital-only DVI-D 19-pin connectors ensure pure signal path at 1.2V p-p

Specifications

BrandGefen
ModelEXTDVIFM1000
TypeDVI-D over Fiber Optic
Max Extend Distance5600 feet
ColorBlue
SpecificationsInput Video Signal: 1.2V p-p
Input DDC Signal: 5V p-p (TTL)
Link Connector (Sender / Receiver): (1) Type SC Fiber connector
Fiber Cable: CAB-1SC-XXX (62.5ì multi-mode)
Connector AVideo Input Connector (Sender): (1) DVI-D 19-pin, female (digital only)
Connector BVideo Output Connector (Receiver): (1) DVI-D 19-pin, female (digital only)
FeaturesUses single-strand multi-mode SC-terminated fiber optic cable
EDID Programming feature enables quick and correct sync of source to display
Fiber cable provides immunity from electromagnetic interference (EMI)
Eliminates computer noise at your workstation
Extends DVI up to 5600 feet (1.7 km) over a single-strand of OM3e/OM4 (50/125µm) multimode fiber optic cable
Extends DVI up to 4950 feet (1.5 km) over a single-strand of OM3 (50/125µm) multimode fiber optic cable
Extends DVI up to 3300 feet (1 km) over a single-strand of OM2 (50/125µm) multimode fiber optic cable
Extends DVI up to 16
Dimensions0.60" x 1.60" x 2.60"
Shipping weight0.54 kg
Package size163 × 142 × 66 mm

Questions about this item

What type of fiber connector does the EXTDVIFM1000 use for the link?

The extender uses a single Type SC fiber connector on both the sender and receiver units for the link.

How do you install the sender and receiver units for the DVI FM1000 extender?

Connect the video source to the sender's DVI-D 19-pin female input and the display to the receiver's DVI-D 19-pin female output, then link them with the SC-terminated fiber cable; the automatic EDID programming handles synchronization without manual steps.

What fiber cable specification is required for replacement with this extender?

Replacement requires CAB-1SC-XXX 62.5 multi-mode fiber cable with SC termination to maintain the single-strand optical link.
