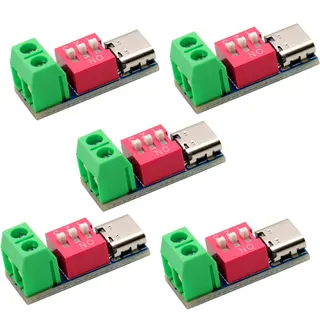

Five green USB-C PD trigger boards with DIP switches on a green PCB

GE USB-C PD Trigger Board 100W 5V 9V 12V 15V 20V Green 5PCS

SKU CH-94N3-HZJFQ

Five USB-C PD trigger boards select 5V, 9V, 12V, 15V or 20V up to 100W for charger testing

  • TypeUSB Type C
  • Changer TypeUSB Type-C to SATA
  • ColorGreen
  • SpecificationsUSB Type C, 1, no_plug
  • Connector AUSB Type C
  • Connector BUSB Type C
  • Triggers up to 100W via PD 3.0/2.0 and BC1.2 protocols

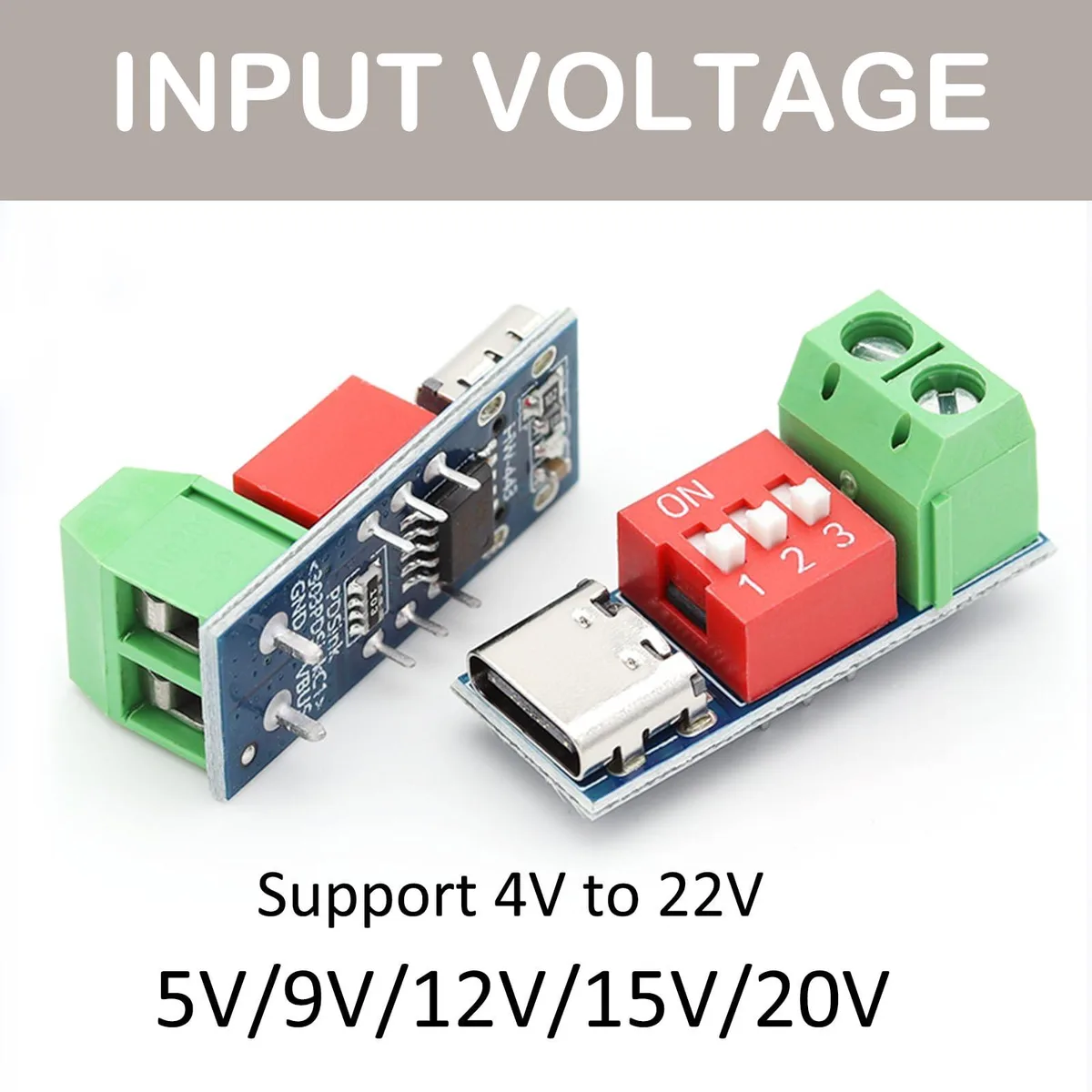

  • Selectable 5V, 9V, 12V, 15V, 20V output using DIP switch
  • Built-in over-voltage, over-temperature, and short-circuit protection
  • Simulates PD/QC negotiation for charger and cable testing
  • Pack of five green ABS modules weighing 50 grams total

PD trigger board for charger testing

This GE USB-C PD trigger board simulates Power Delivery and Quick Charge negotiation to request fixed voltages from a compatible charger. Engineers, technicians and hobbyists use it to verify charger output, test cables or power prototype circuits without a full PD controller. The pack contains five identical green modules.

Upgrades manual voltage selection

A DIP switch replaces trial-and-error cable swaps by letting you select 5V, 9V, 12V, 15V or 20V directly on the board. The jump is worth it when you need repeatable voltage steps for load testing, repair diagnostics or validating PD3.0 and PD2.0 compliance up to 100W.

Plug in and set the switch

Insert the USB-C connector into the charger, set the desired voltage with the DIP switch and the board negotiates the contract automatically. Built-in over-voltage, over-temperature and short-circuit protection shut the output down if limits are exceeded. The only common issue is forgetting to match the switch position to the test plan before applying power.

Highlights

  • Triggers up to 100W via PD 3.0/2.0 and BC1.2 protocols
  • Selectable 5V, 9V, 12V, 15V, 20V output using DIP switch
  • Built-in over-voltage, over-temperature, and short-circuit protection
  • Simulates PD/QC negotiation for charger and cable testing
  • Pack of five green ABS modules weighing 50 grams total

Specifications

BrandGE
TypeUSB Type C
Changer TypeUSB Type-C to SATA
ColorGreen
SpecificationsUSB Type C, 1, no_plug
Connector AUSB Type C
Connector BUSB Type C
Connector StyleUSB Type C
Apple CompatibleUSB Type C
FeaturesUSB Type C, 1, no_plug, green
Weight50 grams
Package Contents5 Count
Disclaimer1 year manufacture, not_applicable, true

Questions about this item

What voltage levels can the DIP switch select on this GE USB-C PD trigger board?

The DIP switch selects fixed output voltages of 5V, 9V, 12V, 15V and 20V for PD testing.

How do you connect the board to a USB-C charger for protocol negotiation?

Plug the USB-C male connector into the charger; the board automatically detects orientation and triggers PD or QC handshake.

What protection features are built into each module for long-term testing use?

Each board includes over-voltage, over-temperature and short-circuit protection for safe repeated operation.
