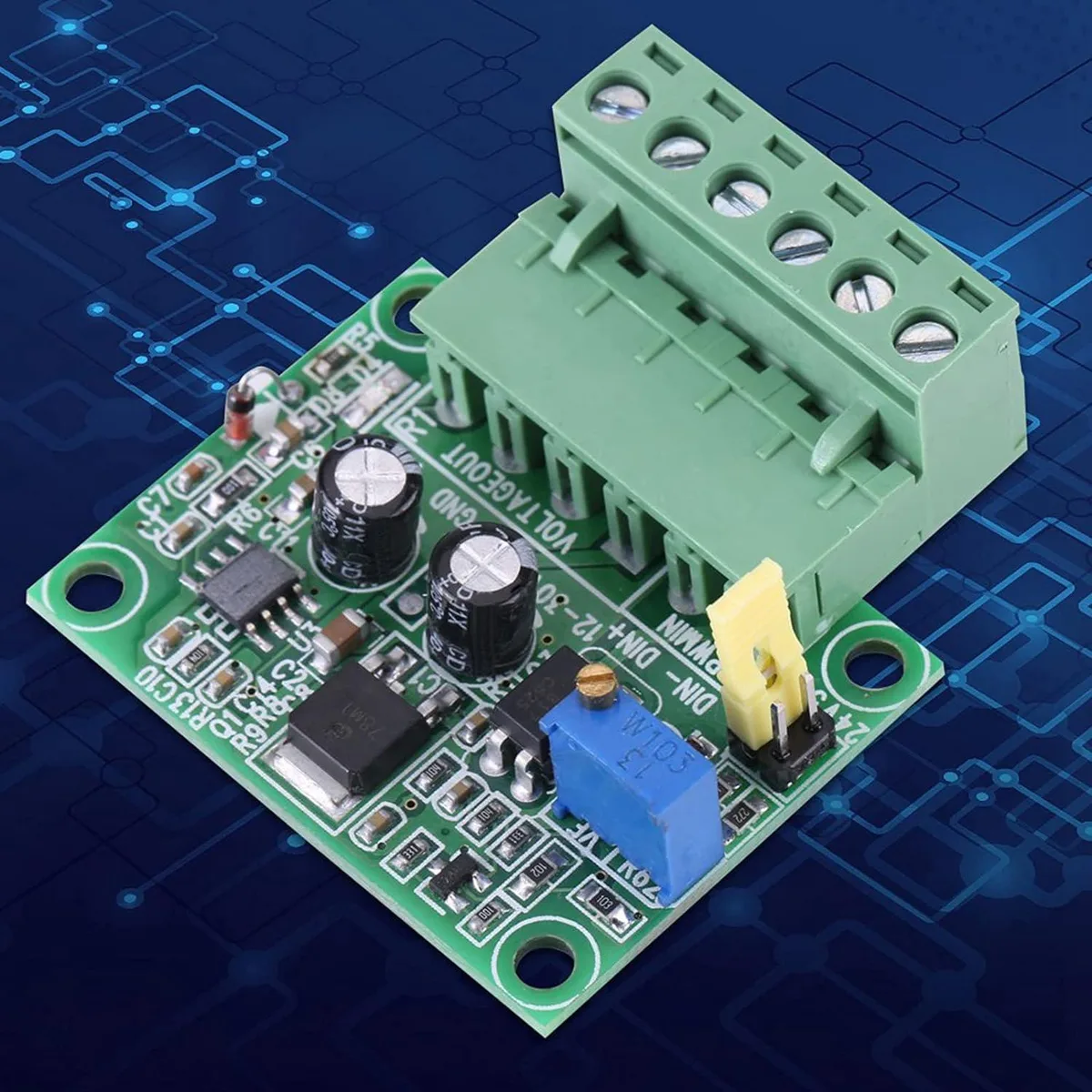

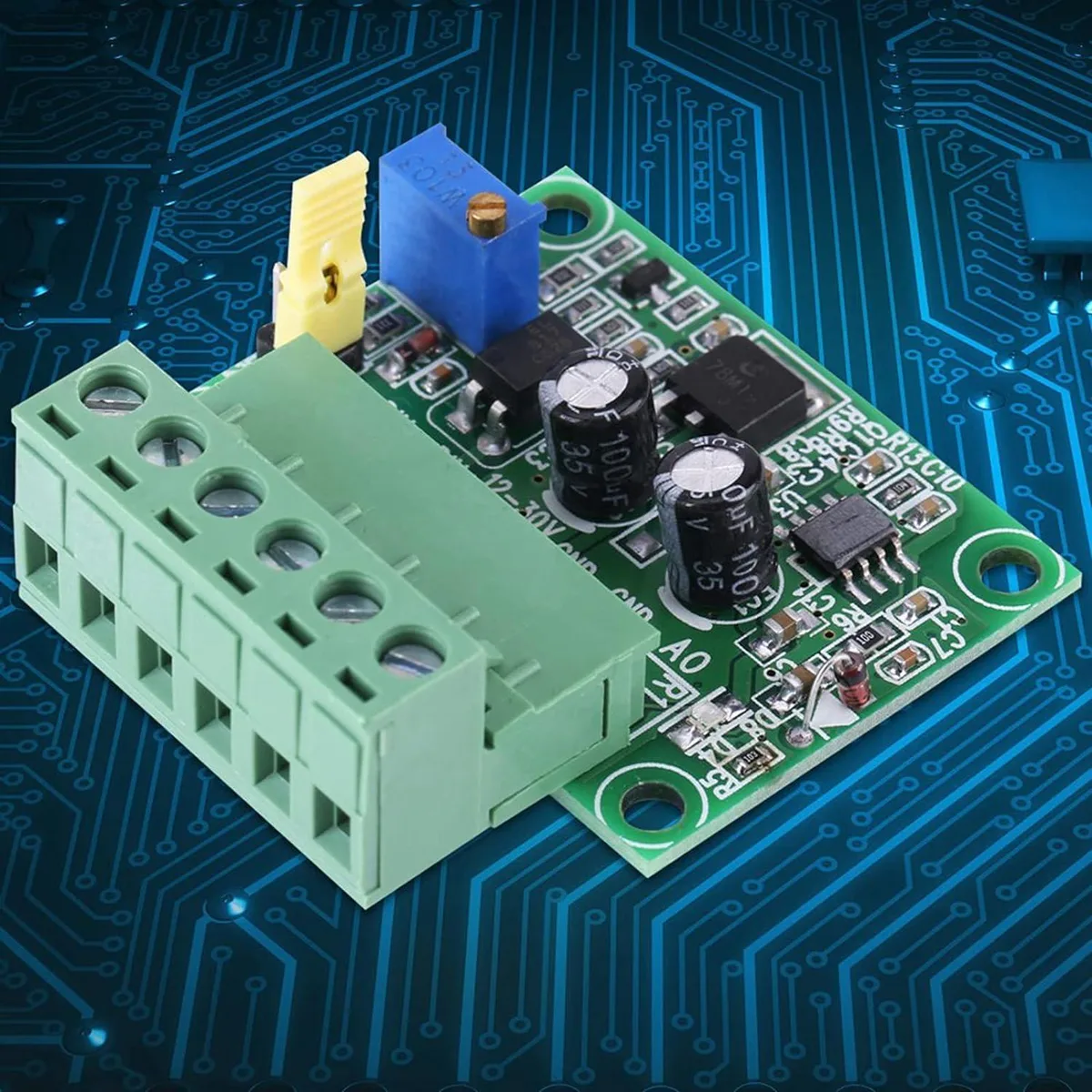

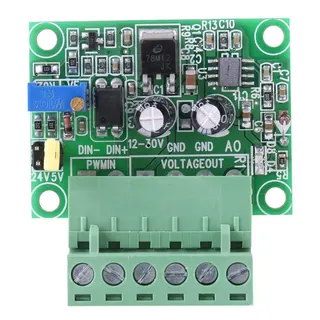

Small green circuit board with terminal blocks and components

GCON

GCON PWM to Voltage Converter Module 0-10V gender changer

SKU CH-DGYB-JZHNQ

Converts 5V or 24V PWM signals into adjustable 0-10V or 0-5V analog outputs for PLC and industrial control interfaces

  • Converts PWM to 0-10V analog for industrial control
  • Accepts 5V or 24V digital input levels
  • Output selectable between 0-10V and 0-5V ranges
  • Simple wiring enables quick signal interface switching
  • 0-100% duty cycle translates to precise voltage control

Signal Conversion Module

The GCON PWM to Voltage Converter Module translates digital PWM signals into an analog voltage output ranging from 0 to 10V. It accepts input levels of 5V or 24V with a duty cycle spanning 0 to 100 percent. This adapter suits engineers and technicians integrating industrial control panels or PLC interfaces where analog voltage control is required. It is not intended for builders needing video signal conversion or standard PC peripheral adapters.

Build Integration

The module installs directly into a signal chain without requiring an external power supply for the conversion logic itself. It frees the system from needing a dedicated analog output card by generating a 0-10V or 0-5V signal from an existing PWM source. Wiring is straightforward thanks to clearly labelled terminals. Users must ensure the driving controller can supply a compatible PWM frequency and voltage level.

Functional Benefits

The selectable output range allows the same hardware to serve 0-10V industrial actuators or 0-5V sensor interfaces without hardware changes. This flexibility reduces spare-part inventory for maintenance teams. The board isolates the conversion function, protecting the source controller from loading effects on the analog line. No software drivers or configuration utilities are involved.

Highlights

  • Converts PWM to 0-10V analog for industrial control
  • Accepts 5V or 24V digital input levels
  • Output selectable between 0-10V and 0-5V ranges
  • Simple wiring enables quick signal interface switching
  • 0-100% duty cycle translates to precise voltage control

Specifications

No published specifications for this item yet.

Questions about this item

Does the 0-10V output stay linear when the module runs continuously?

The module converts a 5V or 24V PWM input into a steady 0-10V or 0-5V analog output for PLC and industrial control panels.

How warm does the board get and does it add audible noise during all-day operation?

The compact board has no moving parts and draws minimal power, so it runs silently with negligible heat rise in a cabinet.

What power source must I already have to supply the 5V or 24V PWM signal?

You need a controller or PLC capable of generating a 0-100% PWM signal at either 5V or 24V logic level.
