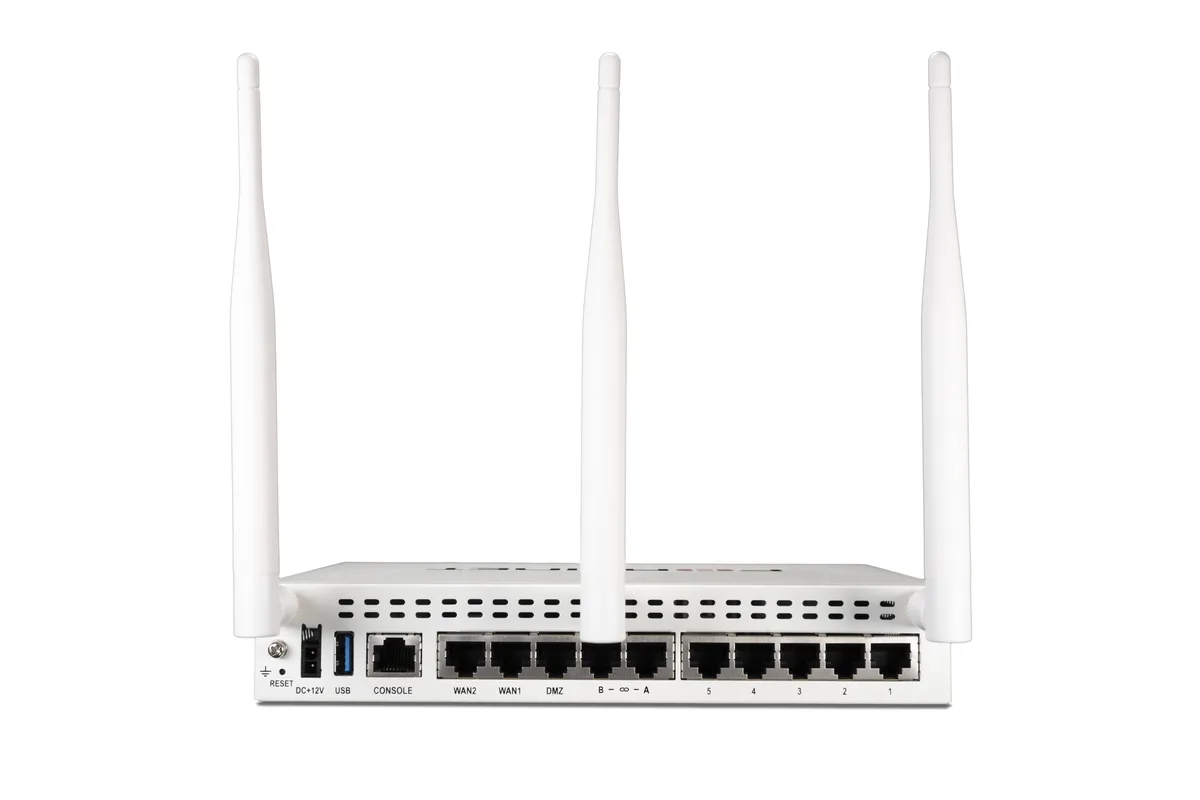

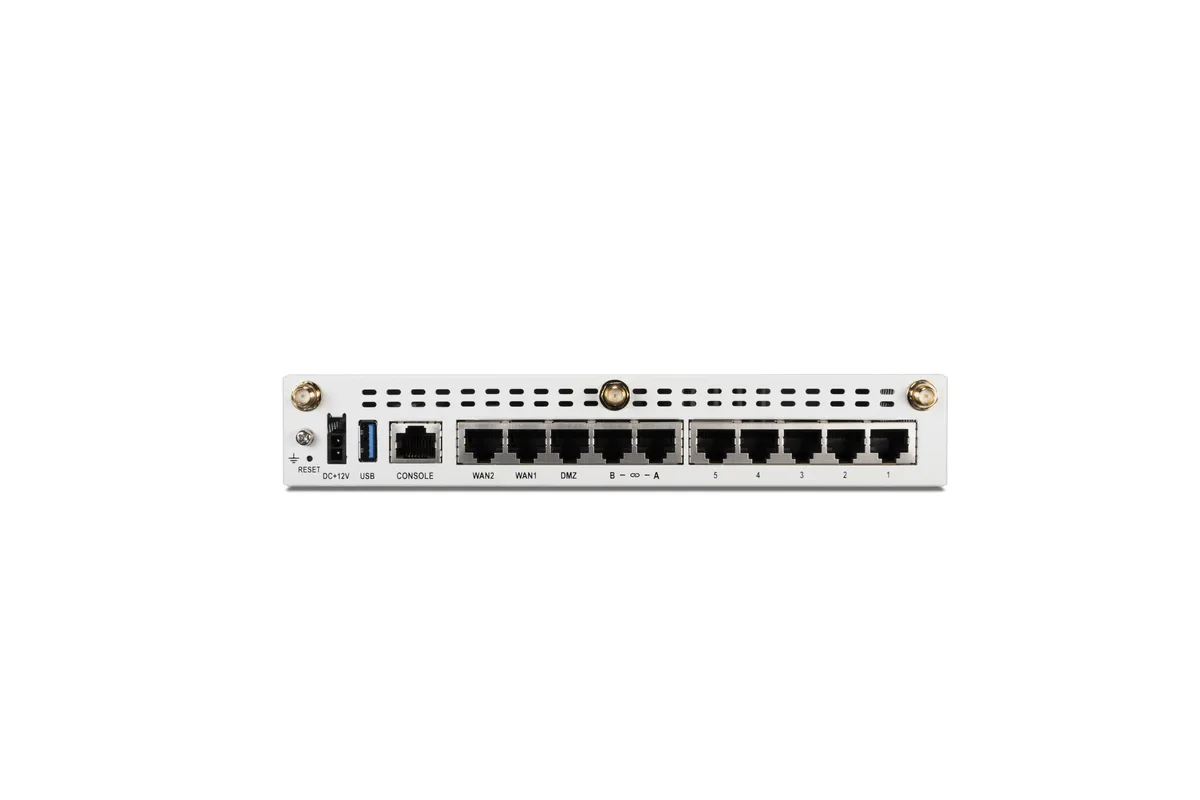

Compact white desktop firewall appliance with front LED indicators and rear port array

Fortinet

Fortinet FWF-60F-A-BDL-950-36 firewall appliance

SKU CH-VMDS-D9DN3 MPN FWF-60F-A-BDL-950-36

Desktop wireless firewall appliance with dual WAN, five internal ports, 10 Gbps throughput, 1.4 Gbps IPS and integrated 802.11 a/b/g/n/ac-W2 Wi-Fi.

  • TypeWireless
  • Form FactorDesktop
  • PortsGE RJ45 WAN / DMZ Ports: 2 / 1 GE RJ45 Internal Ports: 5 GE
  • WAN Ports2 ports
  • VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/1
  • ThroughputIPS Throughput: 1.4 Gbps NGFW Throughput: 1 Gbps Threat Prot

Model FortiWiFi 60F

Option w/ FortiCare Premium and FortiGuard Unified Threat Protection (3-Y)

  • Enterprise-grade security backed by three-year FortiCare Premium and FortiGuard UTP
  • High-speed Wi-Fi with 1300 Mbps at 5 GHz and 450 Mbps at 2.4 GHz
  • Compact fanless desktop design measuring 1.5 by 8.5 by 6.3 inches
  • Low power draw averaging 17.2 watts with a maximum of 18.7 watts
  • Firewall throughput of 10 Gbps at 1518-byte packets for fast traffic processing

FortiWiFi 60F compact wireless firewall

The FortiWiFi 60F is a desktop firewall appliance with integrated wireless for branch offices and mid-sized businesses. It combines SD-WAN, security processing and a single 2.4 GHz/5 GHz radio in a fanless chassis. The bundle includes three years of FortiCare Premium and FortiGuard Unified Threat Protection services.

Sustained threat-protection throughput

Under continuous inspection the unit delivers 700 Mbps threat-protection throughput, 1 Gbps NGFW throughput and 1.4 Gbps IPS throughput. Firewall latency sits at 3.3 µs with 9 Mpps packet processing and 700 000 concurrent TCP sessions. Performance scales with packet size: 10 Gbps at 1518 bytes, 10 Gbps at 512 bytes and 6 Gbps at 64 bytes UDP.

Fanless thermal design and power profile

The fanless desktop form factor operates silently with average consumption of 17.2 W and a maximum of 18.7 W. Power is supplied by an external 12 Vdc, 3 A adapter accepting 100–240 V AC at 50/60 Hz. Current draw peaks at 1.0 A at 100 V AC and 0.6 A at 240 V AC.

Highlights

  • Enterprise-grade security backed by three-year FortiCare Premium and FortiGuard UTP
  • High-speed Wi-Fi with 1300 Mbps at 5 GHz and 450 Mbps at 2.4 GHz
  • Compact fanless desktop design measuring 1.5 by 8.5 by 6.3 inches
  • Low power draw averaging 17.2 watts with a maximum of 18.7 watts
  • Firewall throughput of 10 Gbps at 1518-byte packets for fast traffic processing

Specifications

BrandFortinet
SeriesFortiWiFi 60F Series
ModelFortiWiFi 60F w/ FortiCare Premium and FortiGuard Unified Threat Protection
Part NumberFWF-60F-A-BDL-950-36
TypeWireless
Form FactorDesktop
PortsGE RJ45 WAN / DMZ Ports: 2 / 1
GE RJ45 Internal Ports: 5
GE RJ45 FortiLink Ports (Default): 2
WAN Ports2 ports
VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/10/6 Gbps
Firewall Latency (64 byte UDP packets): 3.3 µs
Firewall Throughput (Packets Per Second): 9 Mpps
Concurrent Sessions (TCP): 700 000
New Sessions/Second (TCP): 35 000
Firewall Policies: 2000
IPsec VPN Throughput (512 byte): 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 500
SSL-VPN Throughput: 900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
SSL Inspection Throughput (IPS, avg. HTTPS): 630 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 400
SSL Inspection Co
ThroughputIPS Throughput: 1.4 Gbps
NGFW Throughput: 1 Gbps
Threat Protection Throughput: 700 Mbps
CertificationsUSGv6/IPv6
ComplianceFCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Power InputPower Rating: 12Vdc, 3A
Power Required: Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current: 100Vac/1.0A, 240Vac/0.6A
Max Power ConsumptionPower Consumption (Average / Maximum): 17.2 W / 18.7 W
FeaturesWireless Interface: Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2
Radio Specifications
Multiple User (MU) MIMO: 3x3
Maximum Wi-Fi Speeds: 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Maximum Tx Power: 20 dBm
Antenna Gain: 3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz
FortiGuard Unified Threat Protection (UTP) with FortiCare Premium bundle offers foundational security services tailored for small to medium-sized businesses and distributed enterprises. This edition provides the essential tools needed to defend against common and emerging cyber threats of malware, phishing, and network intrusions, ensuri
Dimensions1.5 x 8.5 x 6.3 (inches)
Weight2.23 lbs (1.01 kg)
Shipping weight2.27 kg
Package size292 × 216 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power does the fanless desktop unit draw when running continuously?

The appliance consumes an average of 17.2 W and a maximum of 18.7 W, with no internal fan to add noise.

What external power source is required to operate the device?

It ships with an external DC adapter that accepts 100–240 V AC at 50/60 Hz and delivers 12 Vdc at 3 A.

Can the built-in 802.11 a/b/g/n/ac-W2 radio serve legacy 2.4 GHz clients while also supporting newer 5 GHz devices?

Yes, the single radio operates on both bands simultaneously, reaching 450 Mbps at 2.4 GHz and 1300 Mbps at 5 GHz with 3x3 MU-MIMO.
