Compact fanless desktop firewall appliance in black finish

Fortinet

Fortinet FG-61F-BDL-950-12 firewall appliance

SKU CH-RB9X-XWY5F MPN FG-61F-BDL-950-12

Desktop firewall appliance with 1.4 Gbps IPS throughput, 700 Mbps threat protection, 128 GB SSD and one-year FortiCare Premium plus FortiGuard UTP bundle

  • TypeWired
  • Form FactorDesktop
  • PortsGE RJ45 WAN / DMZ Ports: 2 / 1 GE RJ45 Internal Ports: 5 GE
  • VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/1
  • ThroughputIPS Throughput: 1.4 Gbps NGFW Throughput: 1 Gbps Threat Prot
  • CertificationsUSGv6/IPv6

Model FortiGate 61F

Option w/ FortiCare Premium and FortiGuard Unified Threat Protection (1-Y)

  • Enterprise-grade protection with FortiGuard AI-Powered Security Services
  • Ultra-low latency of 3.3 µs for responsive network performance
  • High throughput of 10 Gbps firewall capacity handles heavy traffic loads
  • Compact fanless desktop design fits space-constrained branch offices
  • Includes 128 GB internal SSD storage for logging and caching

FortiGate 61F desktop security appliance

The FortiGate 61F is a fanless desktop firewall with integrated FortiCare Premium and FortiGuard Unified Threat Protection for one year. It provides wired network security and SD-WAN capabilities for enterprise branch offices and mid-sized businesses. Internal storage includes a 128 GB SSD for logging and local services.

Throughput limits for inspection services

Firewall throughput reaches 10 Gbps with 1518-byte packets and 6 Gbps with 64-byte packets at 3.3 µs latency. IPS throughput is 1.4 Gbps while NGFW throughput is 1 Gbps. Threat Protection throughput measures 700 Mbps with 700 000 concurrent TCP sessions supported.

Port layout determines deployment fit

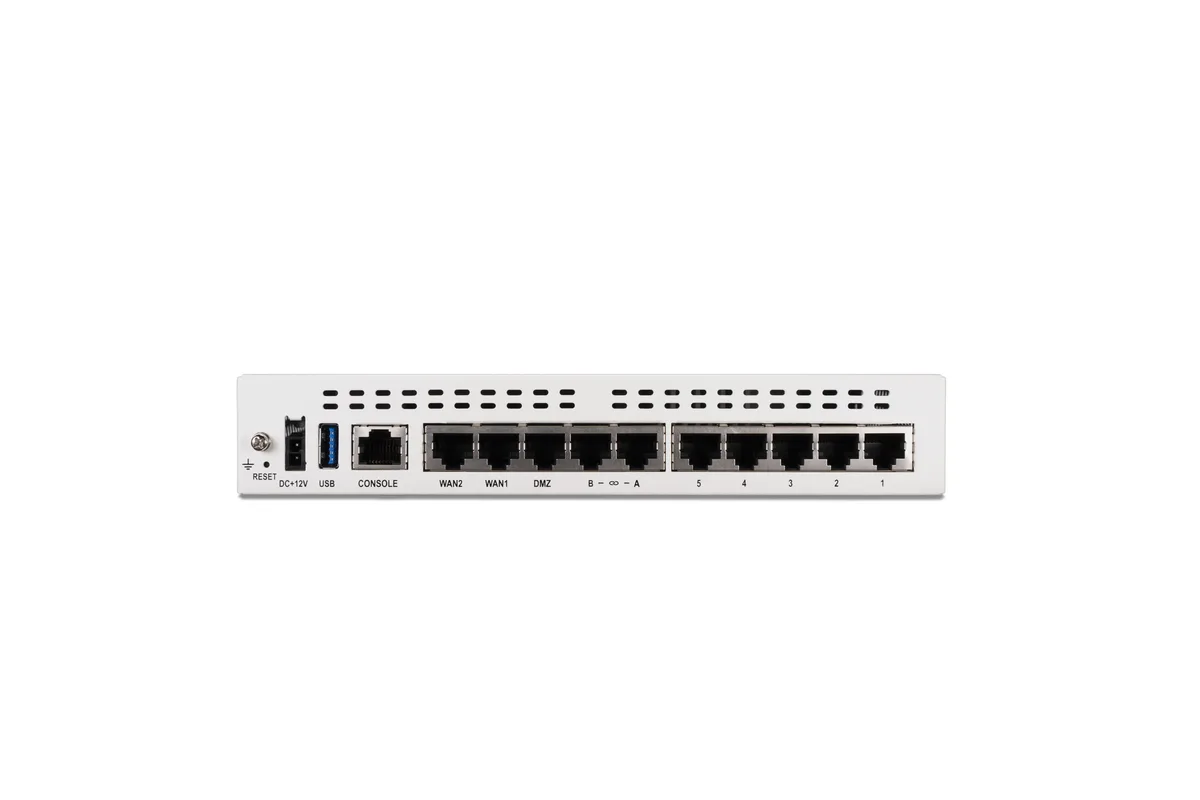

The appliance offers two GE RJ45 WAN/DMZ ports, five GE RJ45 internal ports and two GE RJ45 FortiLink ports for switch management. Power is supplied by an external 12 V DC adapter accepting 100–240 V AC input. Maximum consumption is 18.7 W.

Highlights

  • Enterprise-grade protection with FortiGuard AI-Powered Security Services
  • Ultra-low latency of 3.3 µs for responsive network performance
  • High throughput of 10 Gbps firewall capacity handles heavy traffic loads
  • Compact fanless desktop design fits space-constrained branch offices
  • Includes 128 GB internal SSD storage for logging and caching

Specifications

BrandFortinet
SeriesFortiGate 61F Series
ModelFortiGate 61F w/ FortiCare Premium, FortiGuard Unified Threat Protection
Part NumberFG-61F-BDL-950-12
TypeWired
Form FactorDesktop
PortsGE RJ45 WAN / DMZ Ports: 2 / 1
GE RJ45 Internal Ports: 5
GE RJ45 FortiLink Ports (Default): 2
VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/10/6 Gbps
Firewall Latency (64 byte UDP packets): 3.3 µs
Firewall Throughput (Packets Per Second): 9 Mpps
Concurrent Sessions (TCP): 700 000
New Sessions/Second (TCP): 35 000
Firewall Policies: 2000
IPsec VPN Throughput (512 byte): 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 500
SSL-VPN Throughput: 900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
SSL Inspection Throughput (IPS, avg. HTTPS): 630 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 400
SSL Inspection Co
ThroughputIPS Throughput: 1.4 Gbps
NGFW Throughput: 1 Gbps
Threat Protection Throughput: 700 Mbps
CertificationsUSGv6/IPv6
ComplianceFCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Power InputPower Rating: 12Vdc, 3A
Power Required: Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current: 100Vac/1.0A, 240Vac/0.6A
Max Power ConsumptionPower Consumption (Average / Maximum): 17.2 W / 18.7 W
FeaturesInternal Storage: 1 x 128 GB SSD
FortiGuard Unified Threat Protection (UTP) with FortiCare Premium bundle offers foundational security services tailored for small to medium-sized businesses and distributed enterprises. This edition provides the essential tools needed to defend against common and emerging cyber threats of malware, phishing, and network intrusions, ensuring a safe and secure digital environment for business operations.
Dimensions1.5 x 8.5 x 6.3 (inches)
Weight2.23 lbs (1.01 kg)
Shipping weight2.04 kg
Package size290 × 210 × 125 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which bundle version does the FG-61F-BDL-950-12 include?

The FG-61F-BDL-950-12 bundles a FortiGate 61F appliance with a 1-year FortiCare Premium and FortiGuard Unified Threat Protection subscription.

What does the 1.4 Gbps IPS throughput figure mean in daily operation?

The 1.4 Gbps IPS throughput is the maximum inspection speed with intrusion prevention enabled; actual traffic will be lower when additional security profiles are active.

What WAN interfaces does the 61F provide and what speed do they cap at?

The unit has two GE RJ45 WAN/DMZ ports, each capped at 1 Gbps line rate.
